3 ROLLS MECHANICAL PLATE BENDING MACHINES

Our mechanical models are usually manufactured for use in light and medium-thickness jobs. According to the need and purpose of usage; We have a wide range of mechanical bending machines between 0,8-10 mm bending thickness and 610 mm - 3050 mm bending length. They are used in aluminum materials, in the construction of air conditioning channels, in advertising panels, in the production of machine hoods and sheet metal parts, and many other similar works.

CATEGORY CODE: SM

GENERAL FEATURES OF
3 ROLLS MECHANICAL PLATE BENDING MACHINES

The general features of the 3 rolls mechanical plate bending machines we produce are listed.

  • Welded steel main frames. (Cast Iron)
  • Two rolls powered by a single chain and belt driven helical type gearbox and gear system.

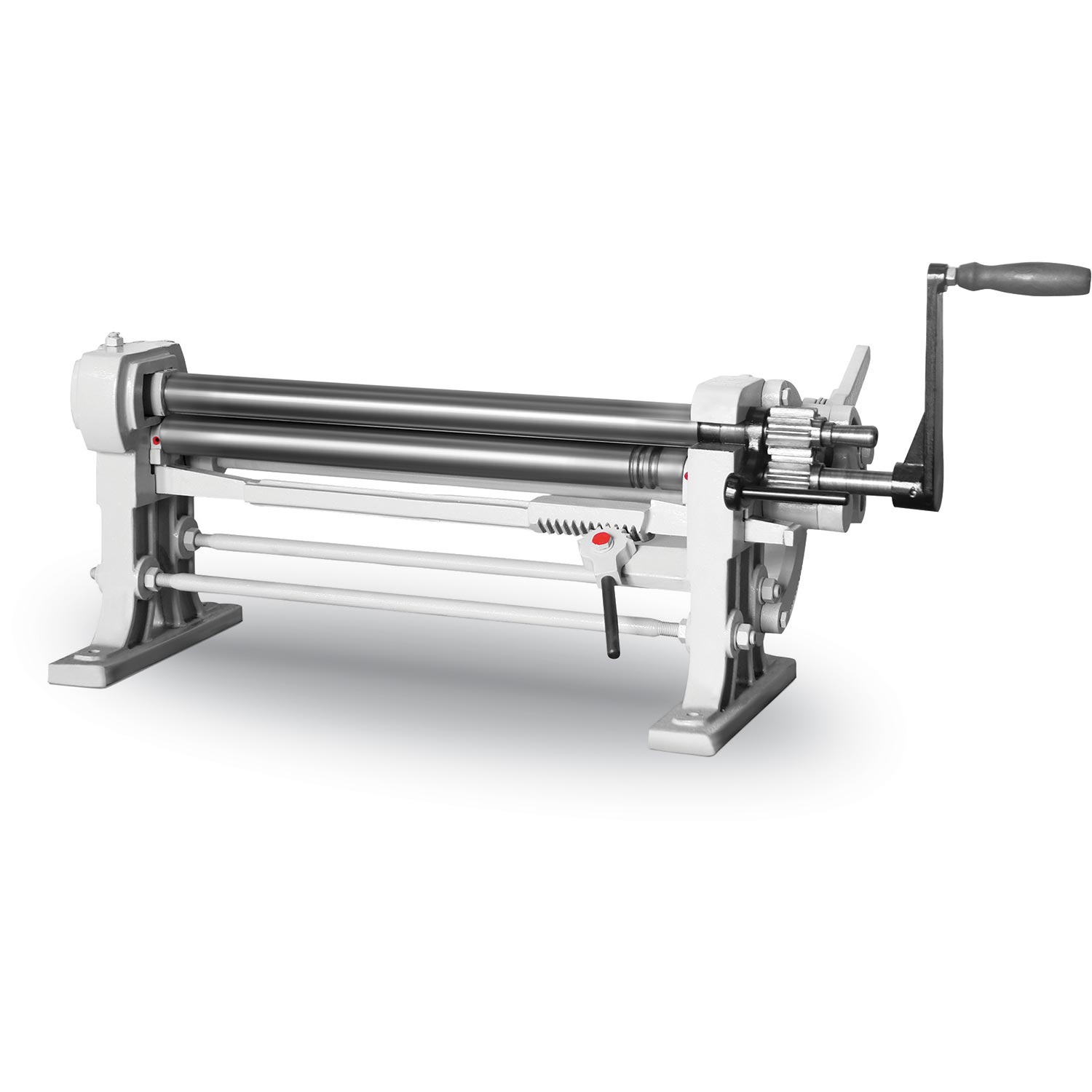

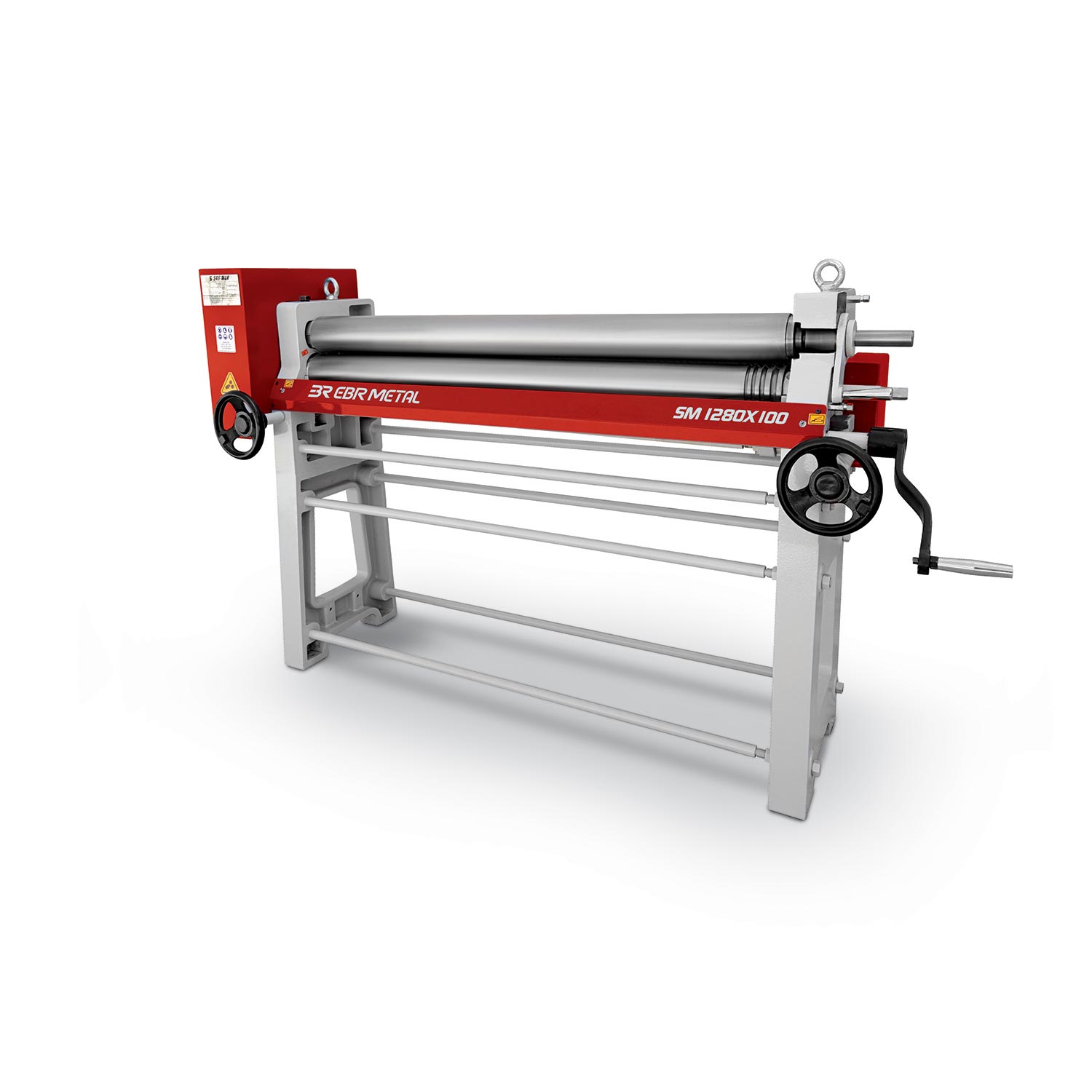

3 Rolls Mechanical Plate Bending Machines Overview
  • Mechanical manual openable Drop-End.
  • These models offer economical solutions to small and medium-sized workshops in various business areas.

STANDARD EQUIPMENT

  • Mobile control panel by foot pedan on motorized models
  • Manual Drop-End
  • SAE 1050 (CK 45) quality certificated steel rolls with high tensile strength
  • Wire grooves at the end of the rolls

OPTIONAL EQUIPMENT

  • Motorized Back roll adjustment (MRM, MRD)
  • Digital readout for motorized rear roll (MRMS, MRM, MRD)
  • Induction hardened rolls (All Models)
  • Full closed sheet covers (MRD)
  • Precision bending with brake motor (MRD, MSR, MRM)
  • NC Control (MRMS)
  • Extended roll shafts for profile and pipe bending operation (MRMS)
  • Profile and section bending rolls set (MRMS)
  • Plastic coated top roll for alucobond bending (MRMS)
  • Variable step-less speed (MRMS)

PHOTOS OF
3 ROLLS MECHANICAL PLATE BENDING MACHINES

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.

MODELS OF
3 ROLLS MECHANICAL PLATE BENDING MACHINES

There are 7 different types of 3 Rolls Mechanical Plate Bending Machines that we manufacture regularly.
Depending on the customer request changes can be done on the specifications of the machine like shearing capacity and length of the machine.



MODEL Usefull Length Bending Capacity Roll Diameters Motor Power Machine Dimensions Weight
  mm mm mm mm (LxWxH) mm kg
MSM 1080 x 68 1080 1.50 68 0.75 1580x590x1150 430
MSM 1080 x 75 1080 2.00 75 0.75 1580x590x1150 450
MSM 1080 x 100 1080 2.50 100 0.75 1780x590x1150 540
MSM 1280 x 68 1280 1.50 68 0.75 1780x590x1150 470
MSM 1280 x 75 1280 2.00 75 0.75 1780x590x1150 495
MSM 1280 x 100 1280 2.50 100 0.75 1780x590x1150 600
MSM 1580 x 68 1580 1.50 68 1.1 2080x590x1150 500
MSM 1580 x 75 1580 2.00 75 1.1 2080x590x1150 530
MSM 1580 x 100 1580 2.50 100 1.1 2080x590x1150 660
MSM 2080 x 75 2080 1.50 75 1.1 2580x590x1150 600
MSM 2080 x 100 2080 2.00 100 1.1 2580x590x1150 770
SM 1080 x 68 1080 1.50 68 - 1630x590x1150 360
SM 1080 x 75 1080 2.00 75 - 1630x590x1150 380
SM 1080 x 100 1080 2.50 100 - 1630x590x1150 470
SM 1280 x 68 1280 1.50 68 - 1830x590x1150 390
SM 1280 x 75 1280 2.00 75 - 1830x590x1150 415
SM 1280 x 100 1280 2.50 100 - 1830x590x1150 520
SM 1580 x 68 1580 1.50 68 - 2130x590x1150 420
SM 1580 x 75 1580 2.00 75 - 2130x590x1150 450
SM 1580 x 100 1580 2.50 100 - 2130x590x1150 540
SM 2080 x 75 2080 1.50 75 - 2630x590x1150 530
SM 2080 x 100 2080 2.00 100 - 2630x590x1150 700

Plate bending capacities are given for 260 N/mm2 plate yielding strength

MODEL Usefull Length Prebending Capacity Bending Capacity Roll Diameters Min. Bending Dia. Motor power Back Roll Motor Machine Dimensions Weight
  mm mm mm mm mm kw kw (LxWxH) mm kg
MRMS 1050x130 1050 5/6 6/7 130 195 2,2 1,1 2750x650x1020 1200
MRMS 1050x150 1050 6/7 7/8 150 225 3 1,1 2750x680x1040 1450
MRMS 1050x170 1050 7/8 8/9 170 255 4 1,1 2850x720x1050 1600
MRMS 1050x190 1050 8/9 9/10 190 285 4 1,5 3200x950x1300 2450
MRMS 1550x130 1550 4/5 5/6 130 195 2,2 1,1 3250x650x1020 1400
MRMS 1550x150 1550 5/6 6/7 150 225 3 1,1 3250x680x1040 1650
MRMS 1550x170 1550 6/7 7/8 170 255 4 1,1 3350x720x1050 1850
MRMS 1550x190 1550 7/8 8/9 190 285 4 1,5 3700x950x1300 2750
MRMS 2050x130 2050 2/3 3/4 130 195 2,2 1,1 3750x650x1020 1600
MRMS 2050x150 2050 3/4 4/5 150 225 3 1,1 3750x680x1040 1885
MRMS 2050x170 2050 4/5 5/6 170 255 4 1,1 3850x720x1050 2100
MRMS 2050x190 2050 5/6 6/7 190 285 4 1,5 4200x950x1300 3100
MRMS 2550x150 2550 2/3 3/4 150 225 3 1,1 4250x650x1020 2150
MRMS 2550x180 2550 3/4 4/5 180 270 4 1,5 4350x950x1300 3050
MRMS 2550x190 2550 4/5 5/6 190 285 4 1,5 4700x950x1300 3400
MRMS 2550x220 2550 5/6 6/7 220 330 5,5 2,2 4700x1150x1400 5000
MRMS 3050x160 3050 1,5/2 2/3 160 240 4 1,1 4850x720x1050 2650
MRMS 3050x190 3050 2/3 3/4 190 285 4 1,5 5200x950x1300 3750
MRMS 3050x200 3050 3/4 4/5 200 300 4 1,5 5200x950x1300 4000
MRMS 3050x220 3050 4/5 5/6 220 330 5,5 2,2 5200x1150x1400 6000

Plate bending capacities are given for 260 N/mm2 plate yielding strength

MODEL Usefull Length Bending Capacity Roll Diameters Motor Power Wire Grooves Dia. Back Roll Motor Machine Dimensions Weight
  mm mm mm mm mm kw (LxWxH) mm kg
MRM 1050 x 110 1050 4 110 2,2 4/7/9/13 0,75 2200x750x1000 990
MRM 1050 x 130 1050 5 130 2,2 4/7/9/13 0,75 2200x750x1000 1200
MRM 1270 x 120 1270 4 120 2,2 4/7/9/13 0,75 2470x750x1000 1110
MRM 1270 x 140 1270 5 140 2,2 4/7/9/13 0,75 2470x750x1000 1350
MRM 1550 x 110 1550 3 110 2,2 4/7/9/13 0,75 2700x750x1000 1200
MRM 1550 x 140 1550 4 140 2,2 4/7/9/13 0,75 2700x750x1000 1420
MRM 2050 x 110 2050 2 110 1,5 4/7/9/13 0,75 3200x750x1000 1380
MRM 2050 x 130 2050 3 130 2,2 4/7/9/13 0,75 3200x750x1000 1500
MRM 2050 x 140 2050 4 140 2,2 4/7/9/13 0,75 3200x750x1000 1650
MRM 2550 x 140 2550 2,5 140 2,2 4/7/9/13 0,75 3700x750x1000 1850

Plate bending capacities are given for 260 N/mm2 plate yielding strength

MODEL Usefull Length Bending Capacity Roll Diameters Rolls Speed Motor Power Wire Grooves Dia. Machine Dimensions Weight
  mm mm mm m/min. kw mm (LxWxH) mm kg
MRD 1270x90 1270 2,5 90 6 1.1 4/7/10 1850x700x1200 520
MRD 1550x90 1550 2.0 90 6 1.5 4/7/10 2130x700x1200 580
MRD 2050x95 2050 1.5 95 6 1.5 4/7/10 2630x700x1200 715
RD 1050x90 1050 3.0 90 - - 4/7/10 2080x700x1200 410
RD 1270x90 1270 2,5 90 - - 4/7/10 2300x700x1200 450
RD 1550x90 1550 2.0 90 - - 4/7/10 2580x700x1200 560
RD 2050x95 2050 1.5 95 - - 4/7/10 3080x700x1200 650

Plate bending capacities are given for 260 N/mm2 plate yielding strength
