HYDRAULIC STEELWORKERS

These compact, multi-purpose machine tools can punch, shear bar, shear angle, shear plate, notch, form and bend and utilize quick change tool holders. EBR METAL steel workers are easy to operate and ideal for all fabricators, workshops, tool rooms and structural applications. Systems are available with automated processing lines for structural steel, CNC positioning devices, punching machines or special tooling, The EBR METAL range of iron workers include machines with one or two cylinder operation, punching machines, automatic steelworker lines, punching stations and shearing stations.

CATEGORY CODE: HSW

GENERAL FEATURES OF
HYDRAULIC STEELWORKERS

The general features of the hydraulic steelworkers we produce are listed.

Hydraulic Steelworkers Overview
  • Welded steel construction
  • High quality special material blades.
  • Lubrication system
  • Easy and long life use

STANDARD EQUIPMENT

  • Steel solid round and square bar cutting blade set
  • 22 mm punch and die and standard punching tools (HSW40, HSW 45-60, HSW 55-85)
  • Sheet metal cutting shear
  • U-Notching blade set (HSW 45-60, HSW 55-175, HSW 65V)
  • Angle cutting blade set
  • 26 mm punch and die and standard punching tools (HSW115, HSW 175)

OPTIONAL EQUIPMENT

  • Punch and die sets
  • IPN, UPN, T profile blade sets
  • V-notching blade set
  • Press brake kit
  • Large hole punching attachments

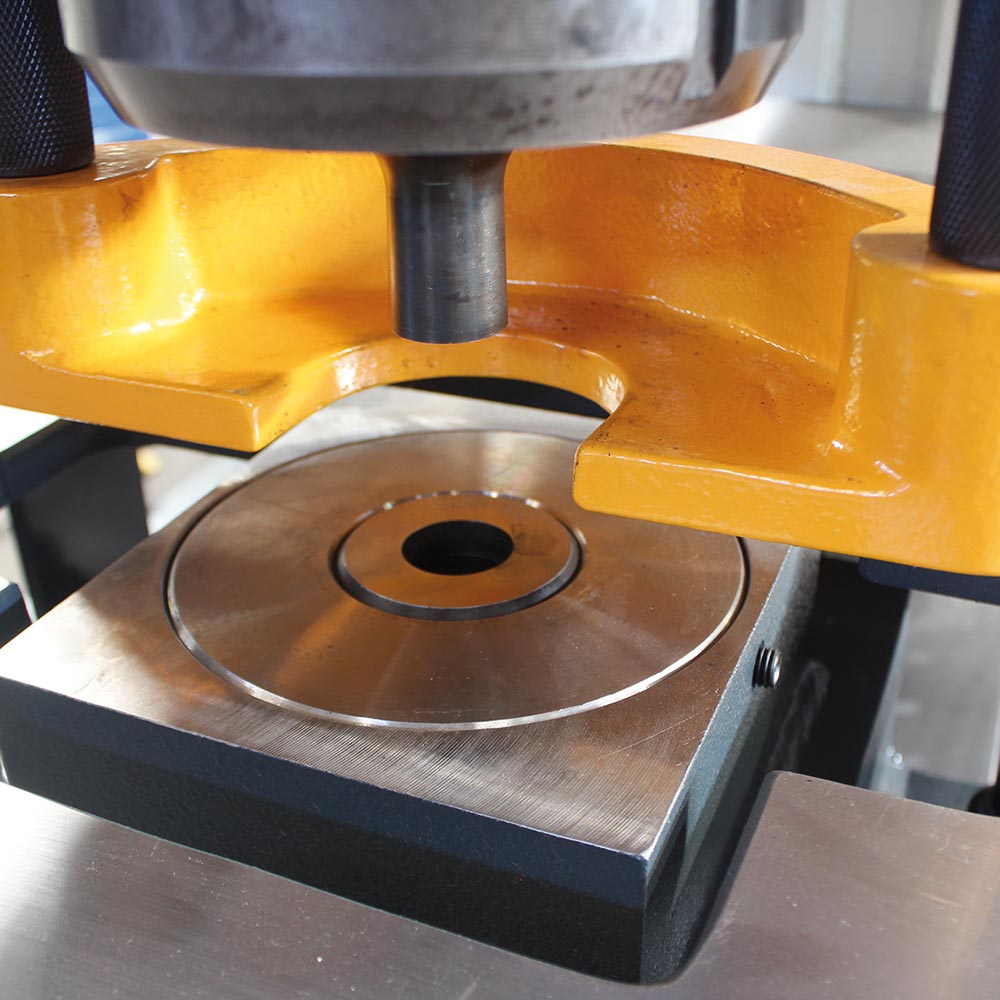

PHOTOS OF
HYDRAULIC STEELWORKERS

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.



MODEL Motor Power Power (Pressure) Machine Dimensions Weight
  kw ton (LxWxH) mm kg
HSW 40 3 40 1100X800X1520 580



MODEL Motor Power Power (Pressure) Machine Dimensions Weight
  kw ton (LxWxH) mm kg
HSW 45 4 45 1430X950X1680 1165
HSW 60 4 60 1520X950X1780 1440



MODEL Motor Power Power (Pressure) Machine Dimensions Weight
  kw ton (LxWxH) mm kg
HSW 55 5.5 55 1500X950X1880 1520
HSW 65 5.5 65 1700X950X1880 1600
HSW 85 7.5 85 1920X950X2040 2315
HSW 115 11 115 2040X950X2180 2920
HSW 175 11 175 2730X1150X2280 6000



MODEL Motor Power Power (Pressure) Machine Dimensions Weight
  kw ton (LxWxH) mm kg
HSW 55 5.5 65 1180X900X1720 1215



MODELS OF
HYDRAULIC STEELWORKERS

There are 9 different types of Hydraulic Steelworkers that we manufacture regularly.
Depending on the customer request changes can be done on the specifications of the machine.

Single piston, 4 work stations. Without notching station.
Single piston, 5 work stations.
2 separete hydraulic piston and fot pedal to allow 2 operator to work at the same time. Adjustable piston stroke distance. Electrical back gauge.
Single piston, 4 stations vertical material cutting. Electrical back gauge, adjustable piston stroke. Working light.
