UNIVERSAL T SLOT HYDRAULIC PRESSES

Universal hydraulic press for quality manufacturing. Suitable for small and medium size enterprise. more comfortable working with adjustable bottom table, adjustable pressure valve and stepless stroke adjustment. 100 or 150 ton press power. 300 mm stroke and 7.5 or 11 kw motor power.

CATEGORY CODE: HPT

GENERAL FEATURES OF
UNIVERSAL T SLOT HYDRAULIC PRESSES

The general features of the universal t slot hydraulic presses we produce are listed.

  • T-slot top and bottom table
  • Steel construction welded frame
  • Two guide piston both side
  • Adjustable bottom table
  • Manometer
Universal T Slot Hydraulic Press
  • Adjustable pressure valve
  • Table up-down movement attachment
  • Stepless stroke adjustment
  • Two hand control

OPTIONAL EQUIPMENT

  • NC control back gauge with 1000 mm stroke (GMRL Series)
  • Rear production cages with light barrier
  • Pneumatic thin sheet support system
  • 0-180 º angular cutting device
  • Control unit
  • Front operated manual back gauge with ball screw
  • Cutting line shadow illumination

PHOTOS OF
UNIVERSAL T SLOT HYDRAULIC PRESSES

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.

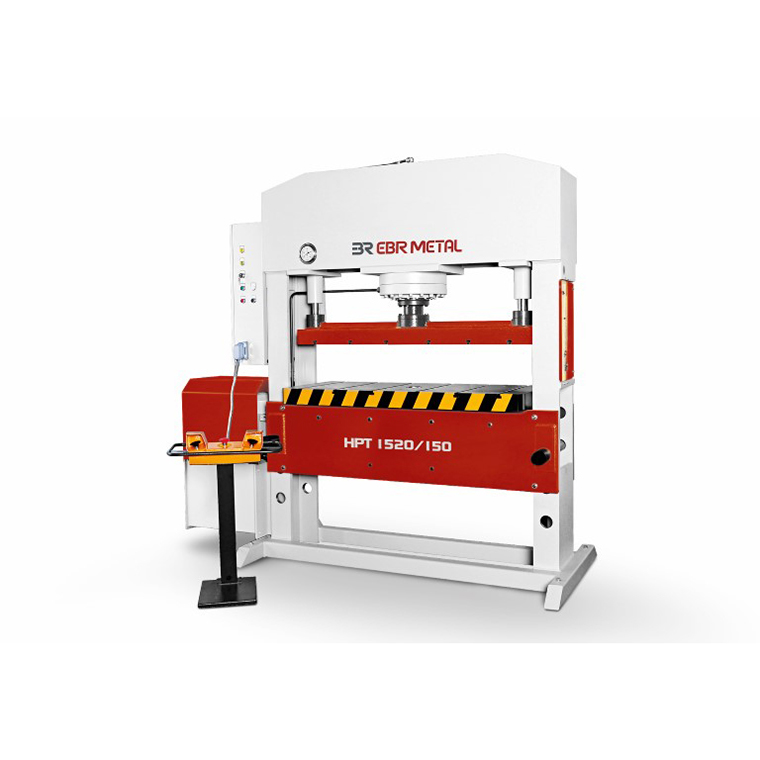

HPT

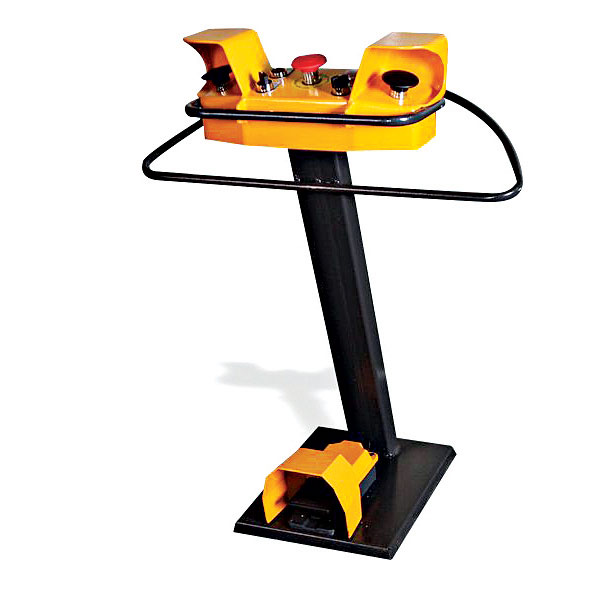

Universal T Slot Hydraulic Press HPT Pedal

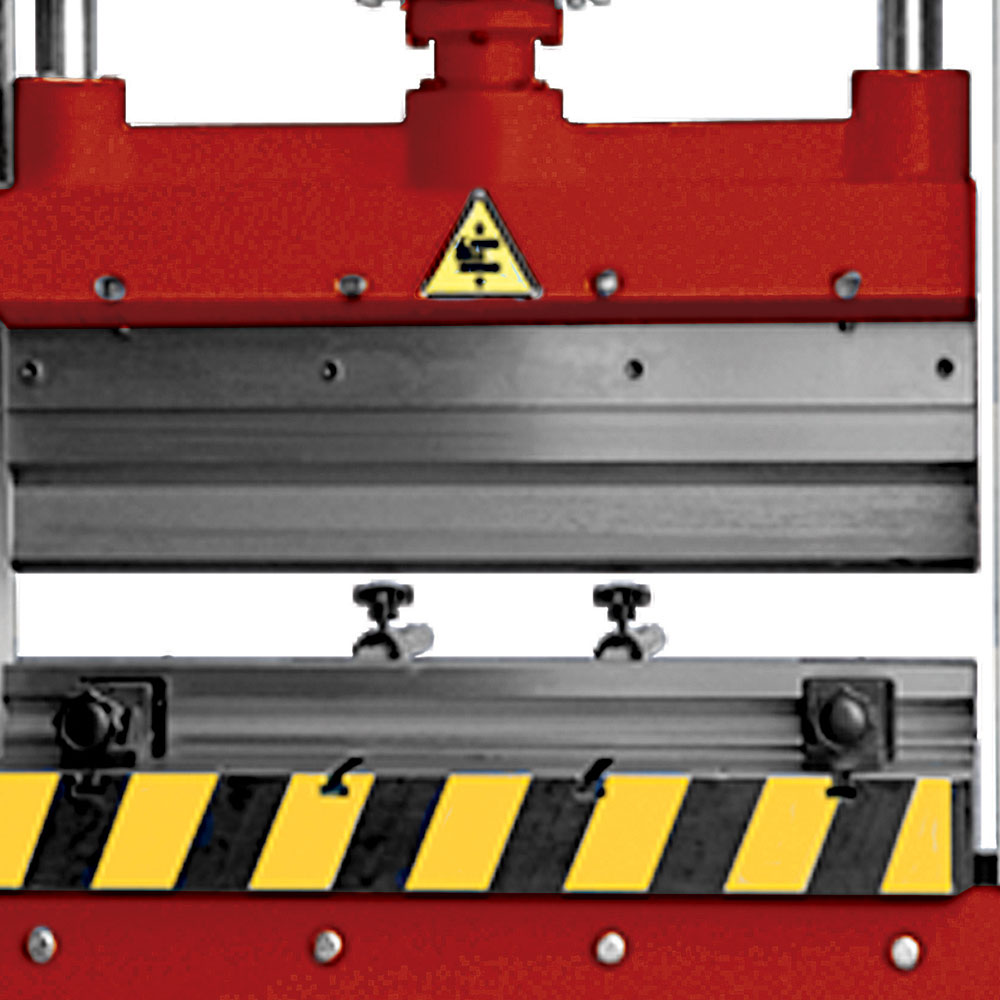

Universal T Slot Hydraulic Press HPT Detail



MODEL Press Power Max. Working Pressure Stroke Width of Working Area Distance Between Tables Advance Speed Working Speed Return Speed Table Dimension Bottom Table Hole Dia. Motor Power Width Length Height Weight
  ton bar mm mm mm mm/sec mm/sec mm/sec mm Æmm kw mm mm mm kg
HPT 1020/100 100 263 300 1020 680 8 5 10 500x1020 100 7.5 1000 2110 2350 1985
HPT 1520/100 100 263 300 1520 680 8 5 10 500x1520 100 7.5 1000 2630 2350 2500
HPT 1020/150 150 244 300 1020 610 9 5 10 600x1020 100 11 1000 2110 2450 2400
HPT 1520/150 150 244 300 1520 610 9 5 10 600x1520 100 11 1000 2630 2450 3100



HPT Slider
