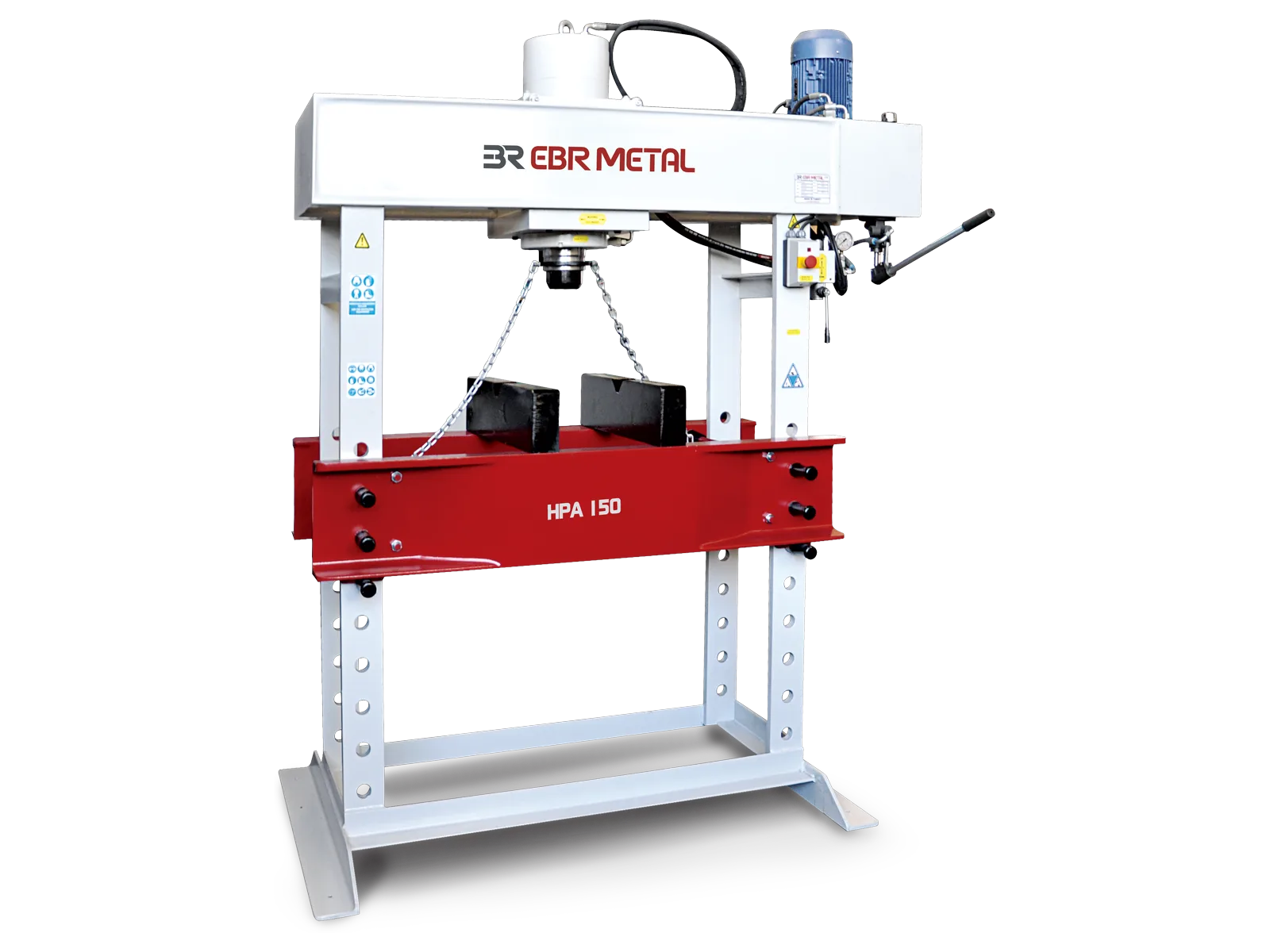

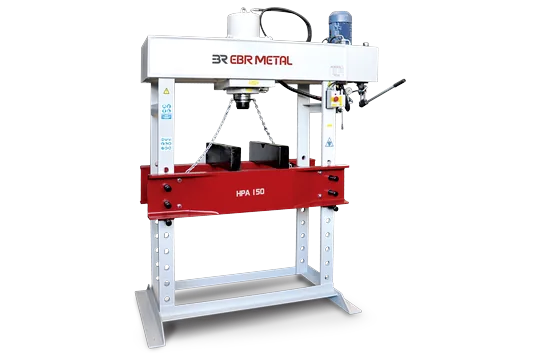

HPA Hydraulic Workshop Press
The HPA hydraulic workshop press from EBR METAL is a motorised two-column press for general pressing work in maintenance and production workshops. It is operated by joystick, and a hand pump is standard on every size.
Standard models run from 10 to 400 tonnes, with wide HPA-W versions at 100, 150 and 200 tonnes. From 30 tonnes up, the cylinder can be moved by hand between the columns. Other sizes and configurations are built to order.
• Press force 10–400 t • Cylinder stroke 250–400 mm • Daylight 950–1,100 mm • Hand pump standard
The HPA hydraulic workshop press from EBR METAL is a motorised two-column press for general pressing work in maintenance and production workshops. It is operated by joystick, and a hand pump is standard on every size.
Standard models run from 10 to 400 tonnes, with wide HPA-W versions at 100, 150 and 200 tonnes. From 30 tonnes up, the cylinder can be moved by hand between the columns. Other sizes and configurations are built to order.
- Press force 10–400 t
- Cylinder stroke 250–400 mm
- Daylight 950–1,100 mm
- Hand pump standard
HPA Design
The press is built in rigid steel with a low-maintenance hydraulic unit. The operator works the ram with a joystick and reads the pressure on the manometer.
The part sits on a height-adjustable lower support (work bed) between the columns. A full lower table work plate is optional. From 30 tonnes up, the cylinder is moved by hand between the columns, and hand-wheel or geared movement can be specified instead. Hydraulic and electrical safety systems and an emergency stop button come as standard.

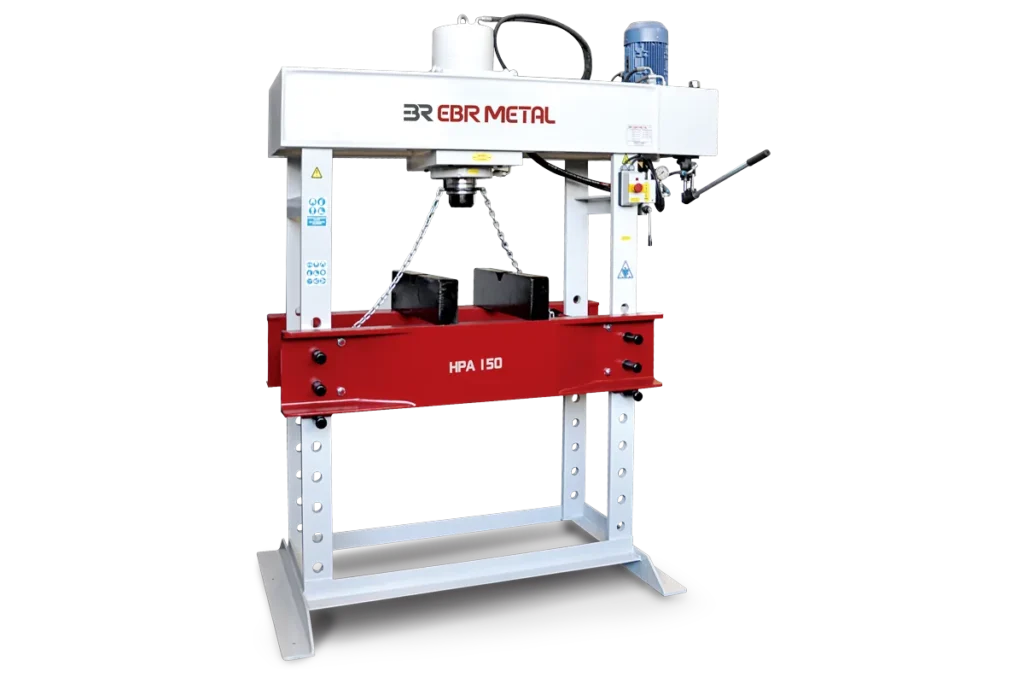

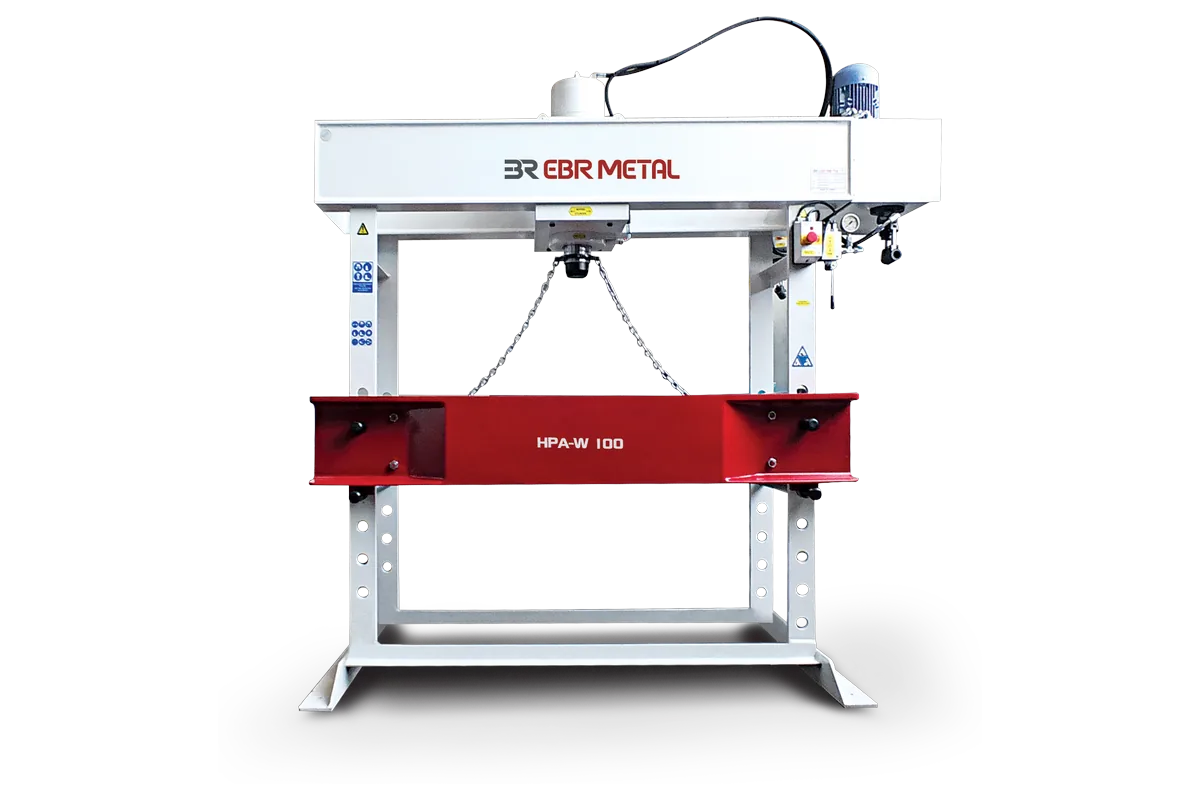

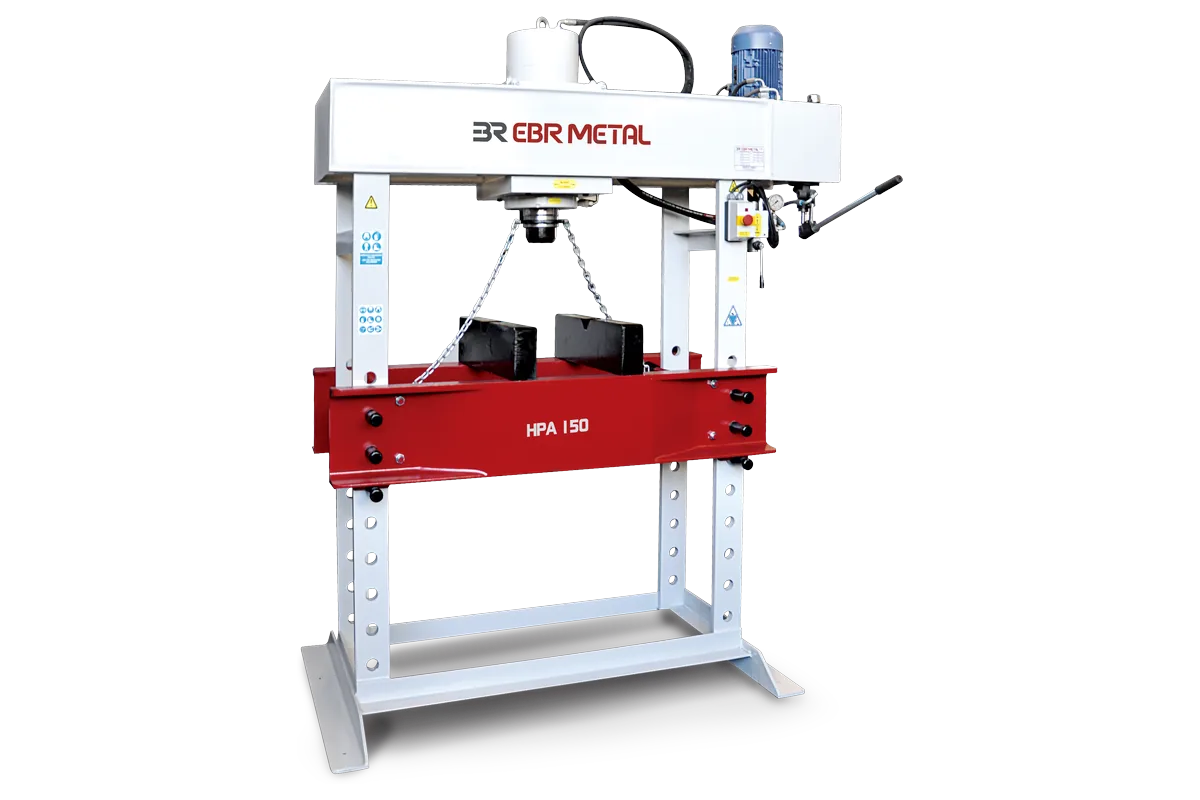

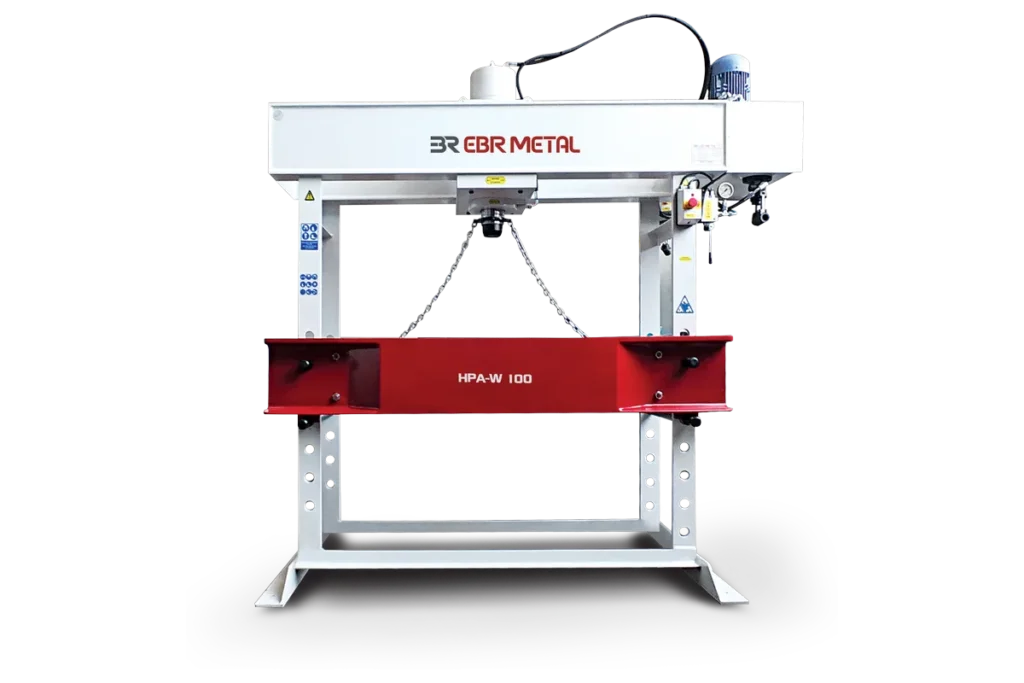

HPA Product Gallery
HPA General Features
- Rigid steel construction
- Low-maintenance hydraulic unit
- Wide HPA-W versions at 100, 150 and 200 t, with more clearance between the columns
- Italian hydraulic components (Duplomatic)
- Available in a CE-conform configuration for CE markets
- Built to the customer’s requirements, with other sizes on request
HPA Standard Equipment
- Joystick (control lever) operation

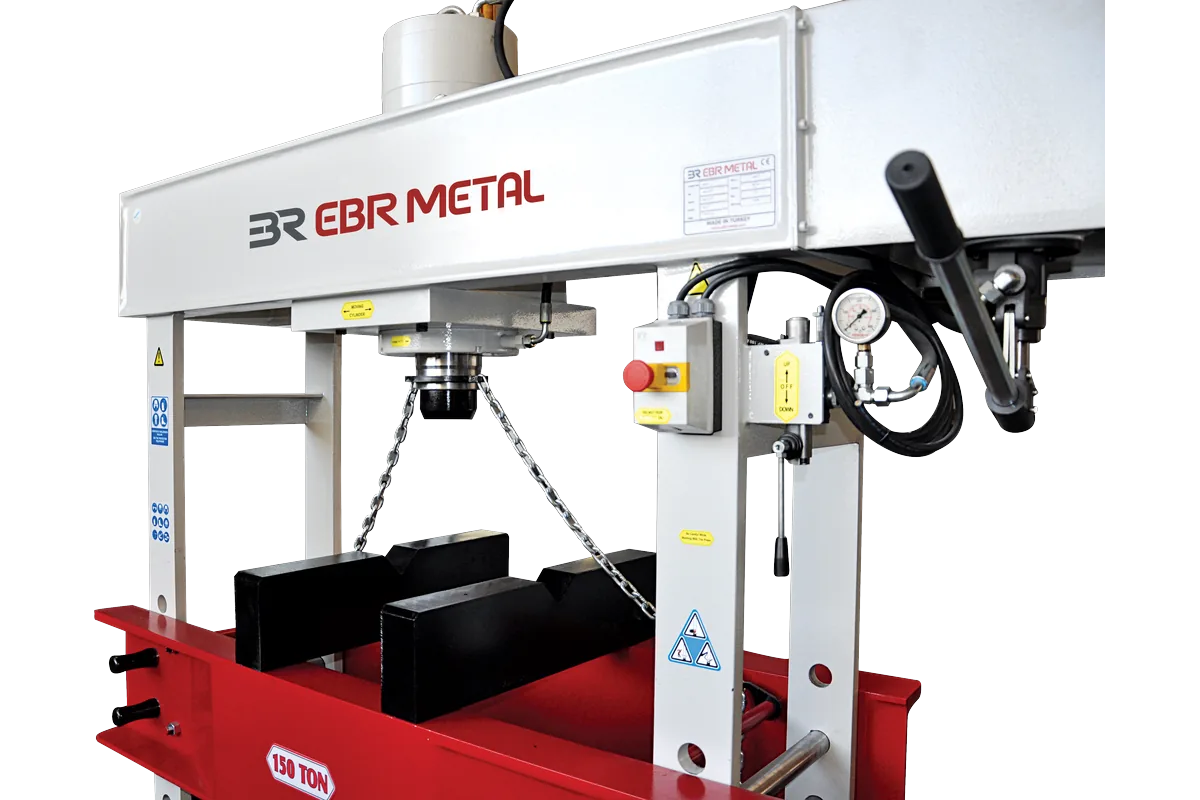

- Hand pump
- Pressure gauge
- Manual moving cylinder (30 t and above)
- V-block set
- Height-adjustable lower support (work bed)
- Emergency stop button
- Hydraulic safety system
- Electrical safety system
HPA Optional Equipment
- Push-button control
- Manual ram stroke adjustment
- Hand-wheel moving cylinder
- Geared (reducer) moving cylinder
- Punch set
- Lower table work plate
- Light barrier (light curtain)
- Safety cage

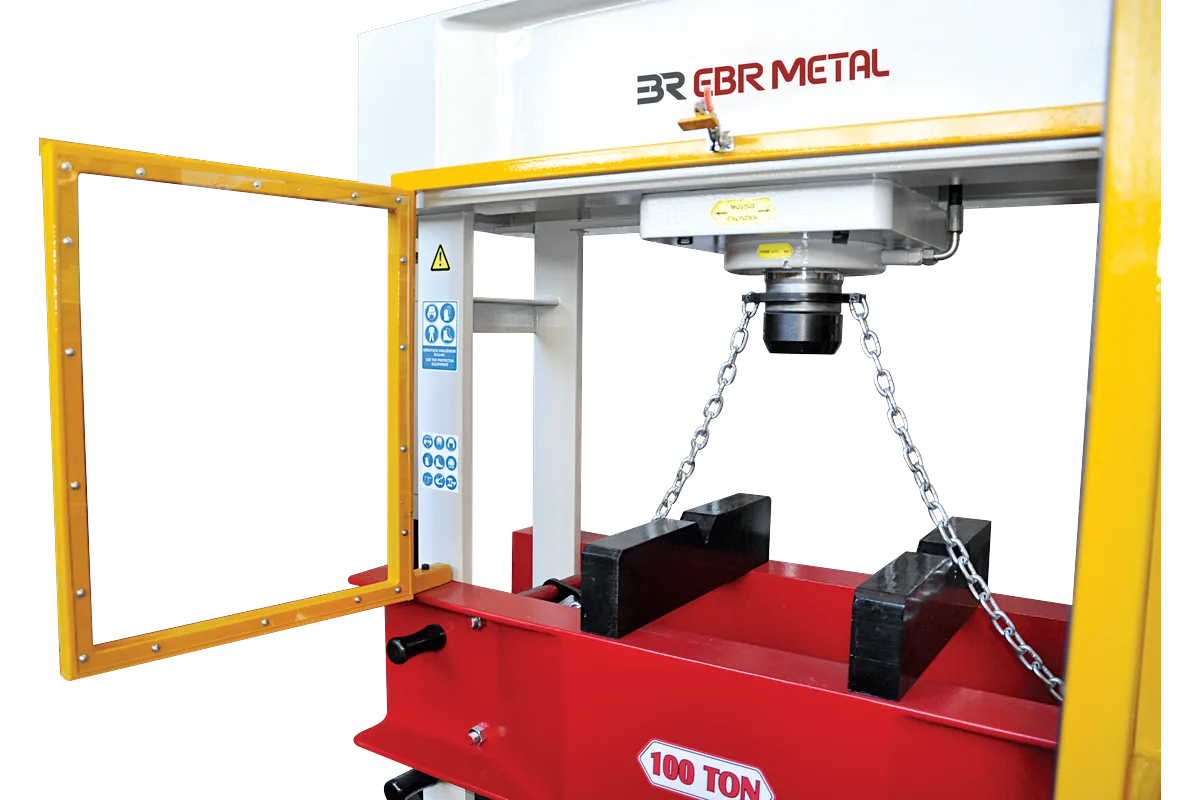

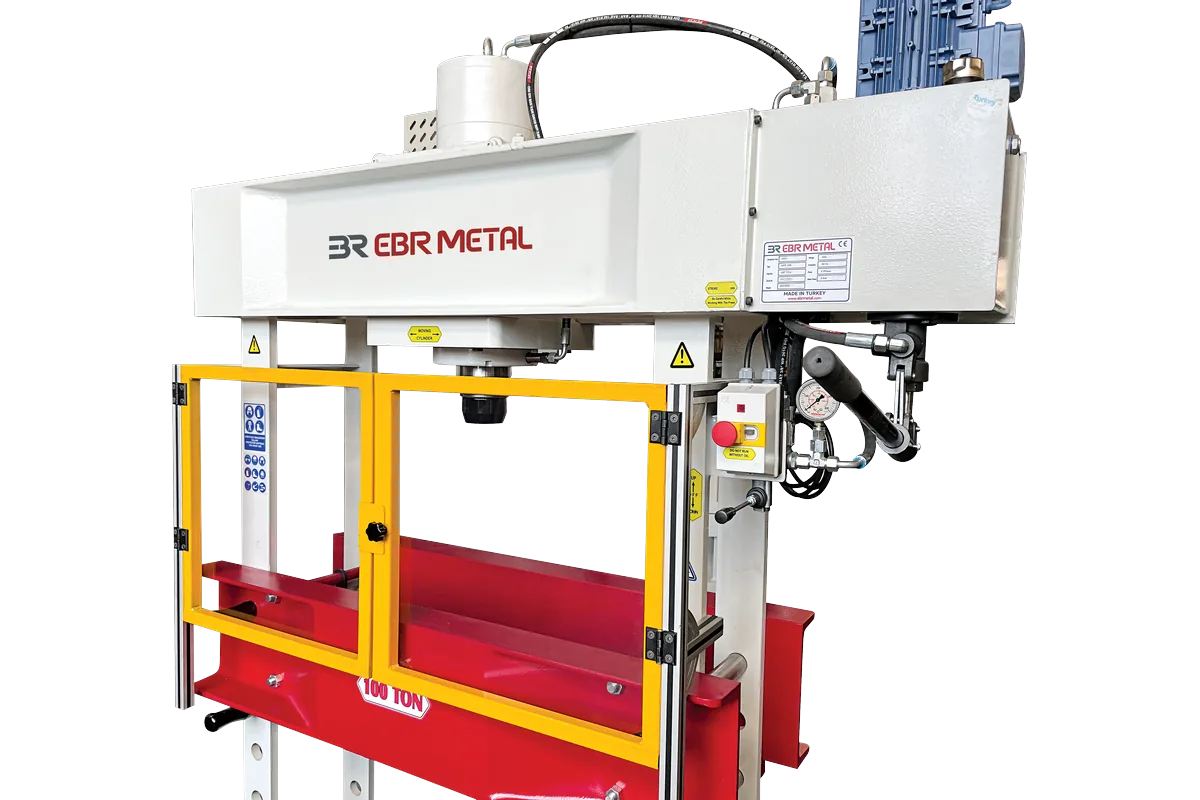

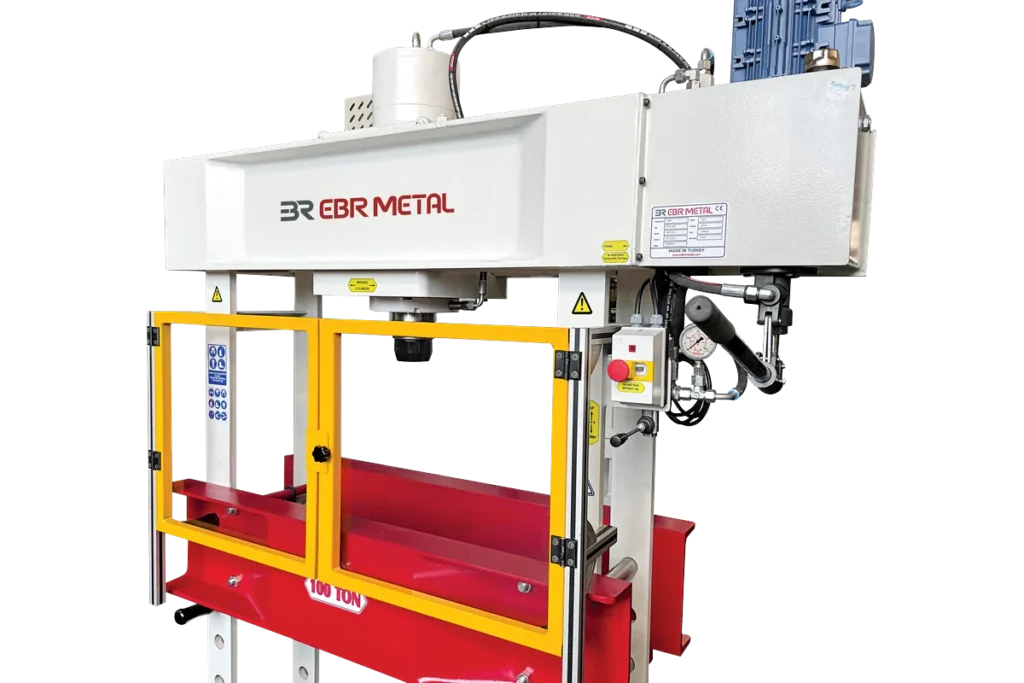

- Safety guard (cover)
- Two-stage hand pump
- Automatic working with a solenoid valve system
- Manual, motorised or hydraulic lower-table lifting device

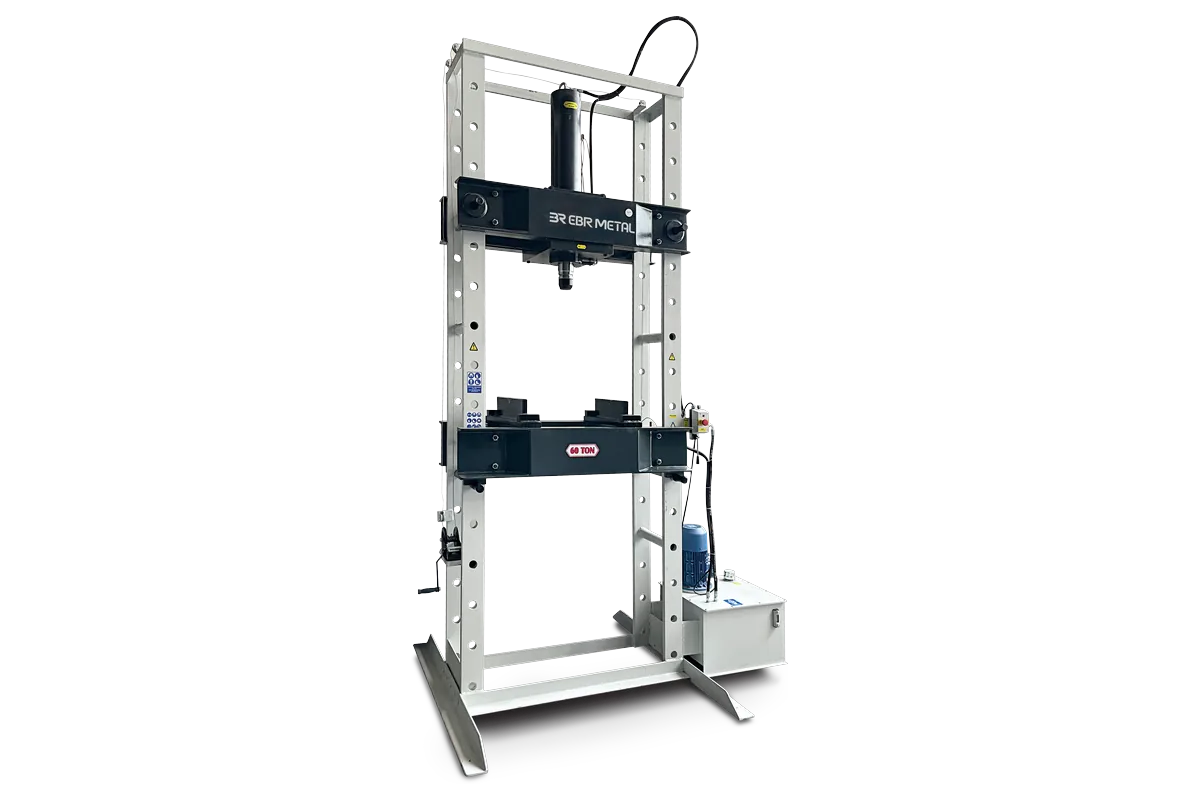

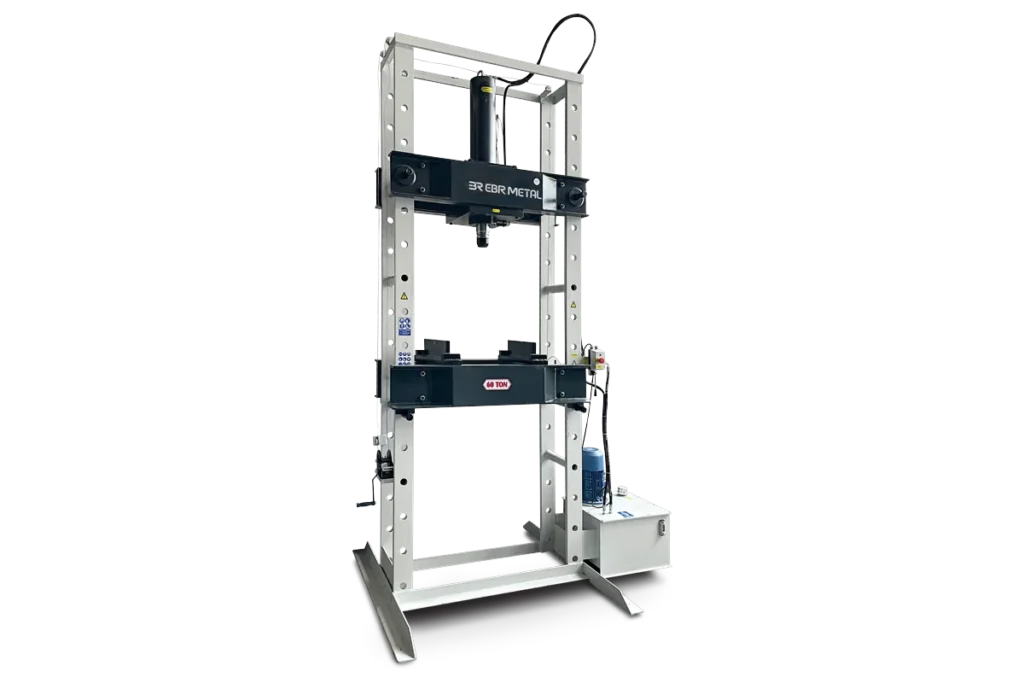

- Special dimensions on request
HPA Technical Specifications
| Model | Press force (t) | Working area between columns (depth × width), mm | Daylight (mm) | Table width (mm) | Cylinder stroke (mm) | Motor power (kW) | Pump flow (l/min) | Down speed (mm/s) | Return speed (mm/s) | Width (mm) | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPA 10 | 10 | 140x550 | 950 | 280 | 250 | 0.75 | 2.3 | 9.9 | 16.5 | 550 | 930 | 1730 | 160 |
| HPA 20 | 20 | 180x550 | 950 | 340 | 250 | 0.75 | 2.9 | 6.3 | 8.4 | 550 | 1040 | 1740 | 250 |
| HPA 30 | 30 | 250x700 | 1100 | 442 | 400 | 1.5 | 6.1 | 9.8 | 15.2 | 650 | 1300 | 2070 | 360 |
| HPA 60 | 60 | 300x900 | 950 | 520 | 400 | 3 | 9 | 9 | 15 | 900 | 1545 | 2230 | 560 |
| HPA 80 | 80 | 300x950 | 950 | 552 | 400 | 3 | 12 | 7.8 | 13.1 | 900 | 1700 | 2300 | 800 |
| HPA 100 | 100 | 380x1000 | 950 | 630 | 400 | 3 | 12 | 7 | 11 | 900 | 1700 | 2320 | 810 |
| HPA 120 | 120 | 350x1050 | 950 | 605 | 400 | 4 | 16 | 7.6 | 10.8 | 1000 | 1860 | 2285 | 1150 |
| HPA 150 | 150 | 440x1250 | 950 | 716 | 400 | 4 | 16 | 6 | 9 | 1000 | 2000 | 2360 | 1200 |
| HPA 200 | 200 | 400x1500 | 950 | 695 | 400 | 5.5 | 22 | 5.9 | 9 | 1100 | 2405 | 2540 | 2050 |
| HPA 250 | 250 | 450x1500 | 950 | 695 | 400 | 7.5 | 28 | 6.6 | 11.4 | 1100 | 2500 | 2500 | 2800 |
| HPA 300 | 300 | 550x1500 | 950 | 793 | 400 | 7.5 | 28 | 5.4 | 8.2 | 1250 | 2600 | 2500 | 3300 |
| HPA 400 | 400 | 550x1500 | 950 | 865 | 400 | 7.5 | 28 | 4.5 | 8.3 | 1600 | 2900 | 2770 | 4750 |
| HPA-W 100 | 100 | 500x1550 | 950 | 776 | 400 | 3 | 12 | 7 | 11 | 1000 | 2250 | 2320 | 1150 |
| HPA-W 150 | 150 | 550x2050 | 950 | 780 | 400 | 4 | 16 | 6 | 9 | 1200 | 2800 | 2360 | 1700 |
| HPA-W 200 | 200 | 600x2050 | 950 | 895 | 400 | 5.5 | 22 | 5.9 | 9 | 1200 | 3000 | 2540 | 2650 |
Working area between columns is the clear working size between the columns, given as depth × width: e.g. 400x1500 = 400 mm depth × 1,500 mm width.
Speeds are typical values. The pressing speed under full rated force depends on the pump and motor configuration chosen for the application.
Choosing the HPA Hydraulic Workshop Press
The HPA covers general workshop pressing from 10 to 400 tonnes, and the wide HPA-W frames take longer parts. Shafts and bars that need straightening on V-blocks, with stop-at-any-position control, belong on the HPR. For sheet bending with blades and a prism, see the HPG.
Typical industries: agricultural machinery, vehicle and heavy-equipment repair, plant maintenance and metal fabrication.
HPA Hydraulic Workshop Press in Operation
Watch the EBR METAL HPA 100 hydraulic workshop press in operation.
HPA 100 — Hydraulic Workshop Press
Request a Quote for the HPA
Send us the required press force, the largest part dimensions, the width you need between the columns and the type of work. If you have a drawing or a photo of the part, send that too. We will propose a model and configuration from it.
Frequently Asked Questions About HPA
Is the HPA motorised?
Yes. Every standard model has a motor-driven hydraulic unit with joystick operation. A hand pump is also fitted as standard on every size.
What are the HPA-W models?
HPA-W are wide versions at 100, 150 and 200 tonnes, with 1,550 or 2,050 mm between the columns.
Can the cylinder be moved?
From 30 tonnes up, yes. It is moved by hand as standard, and hand-wheel or geared movement is optional.
Are V-blocks included?
Yes. A V-block set is standard on every size. A punch set and a lower table work plate are optional.
Which safety equipment is available?
An emergency stop button and hydraulic and electrical safety systems are standard. A light barrier (light curtain), safety cage and safety guard are optional.
