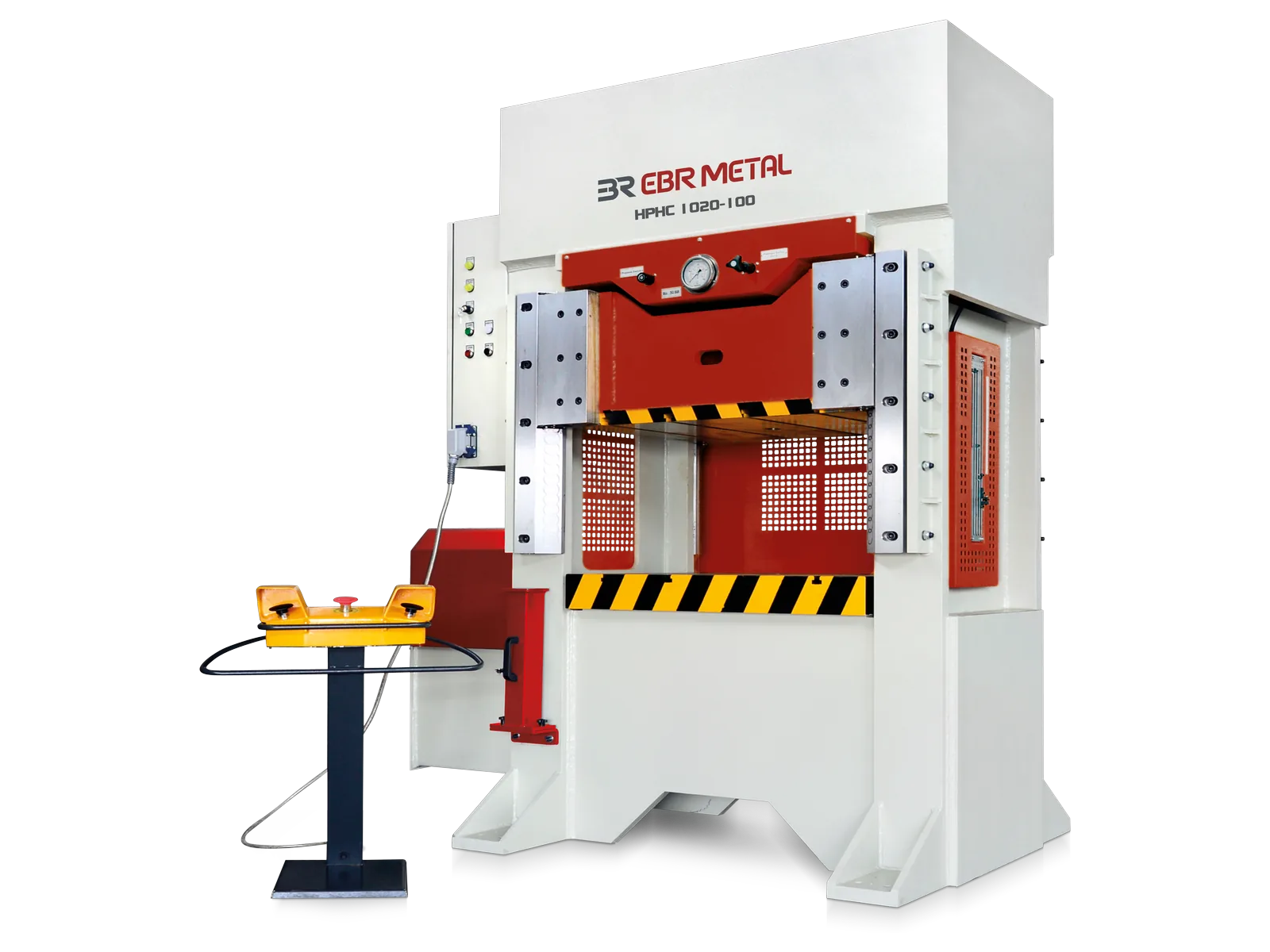

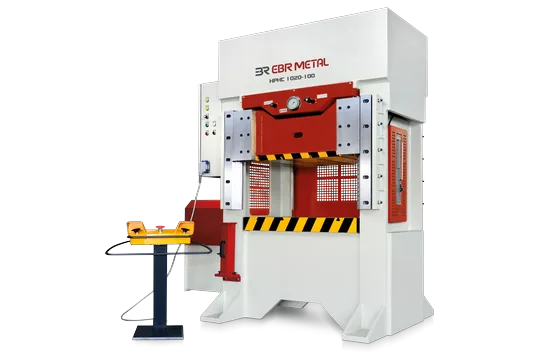

HPHC H-Frame Hydraulic Press
The HPHC H-frame hydraulic press from EBR METAL is an industrial hydraulic press for forming and assembly at 100 and 150 tonnes, with manual pressure and stroke setting and two-hand control.
Four standard models cover working widths of 1,020 and 1,520 mm, and the 1,520 mm models get a second main piston.
• Capacity 100–150 t • Working width 1,020 / 1,520 mm • Stroke 300 mm • Daylight 500 mm
The HPHC H-frame hydraulic press from EBR METAL is an industrial hydraulic press for forming and assembly at 100 and 150 tonnes, with manual pressure and stroke setting and two-hand control.
Four standard models cover working widths of 1,020 and 1,520 mm, and the 1,520 mm models get a second main piston.
- Capacity 100–150 t
- Working width 1,020 / 1,520 mm
- Stroke 300 mm
- Daylight 500 mm

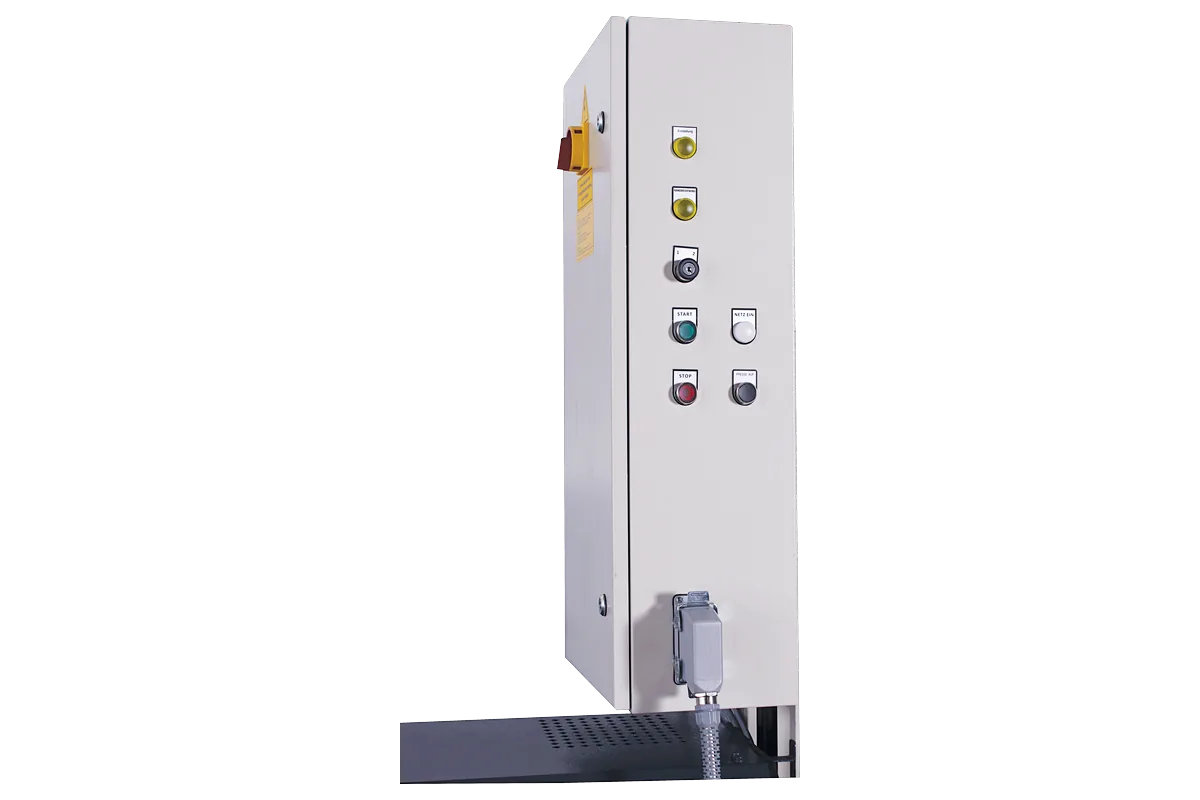

HPHC Design
The ram table runs in a prismatic, maintenance-free slide system on both sides of the H-frame. On the 1,520 mm models two main pistons act on the wider table.
Pressure and stroke are set by hand, and a manometer shows the working pressure. There is no PLC. Sheet covers at the rear and sides protect the operator.

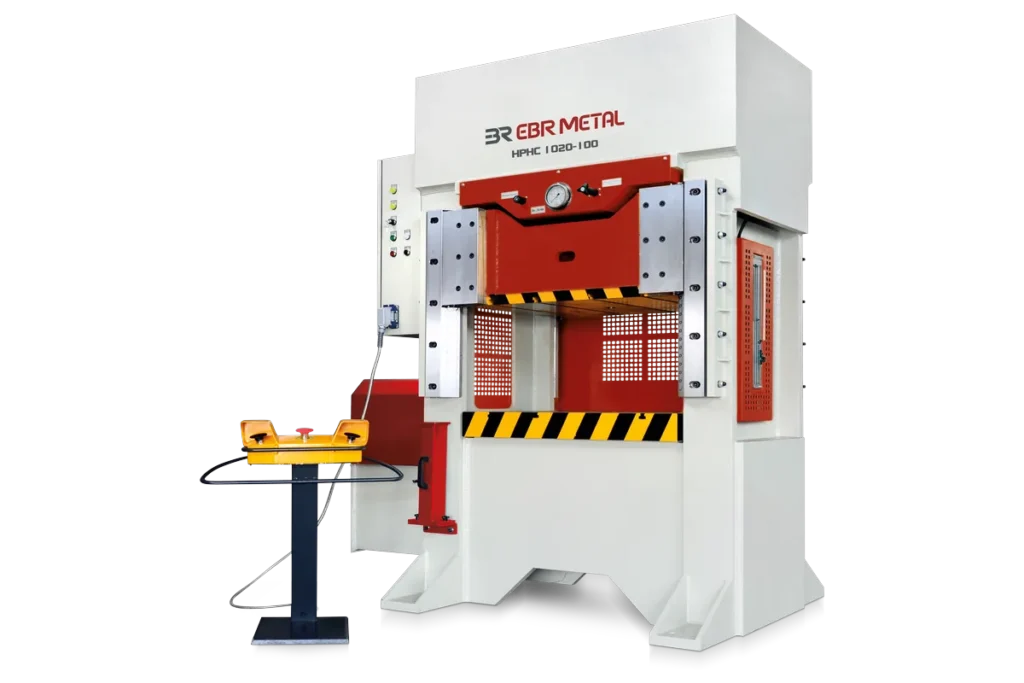

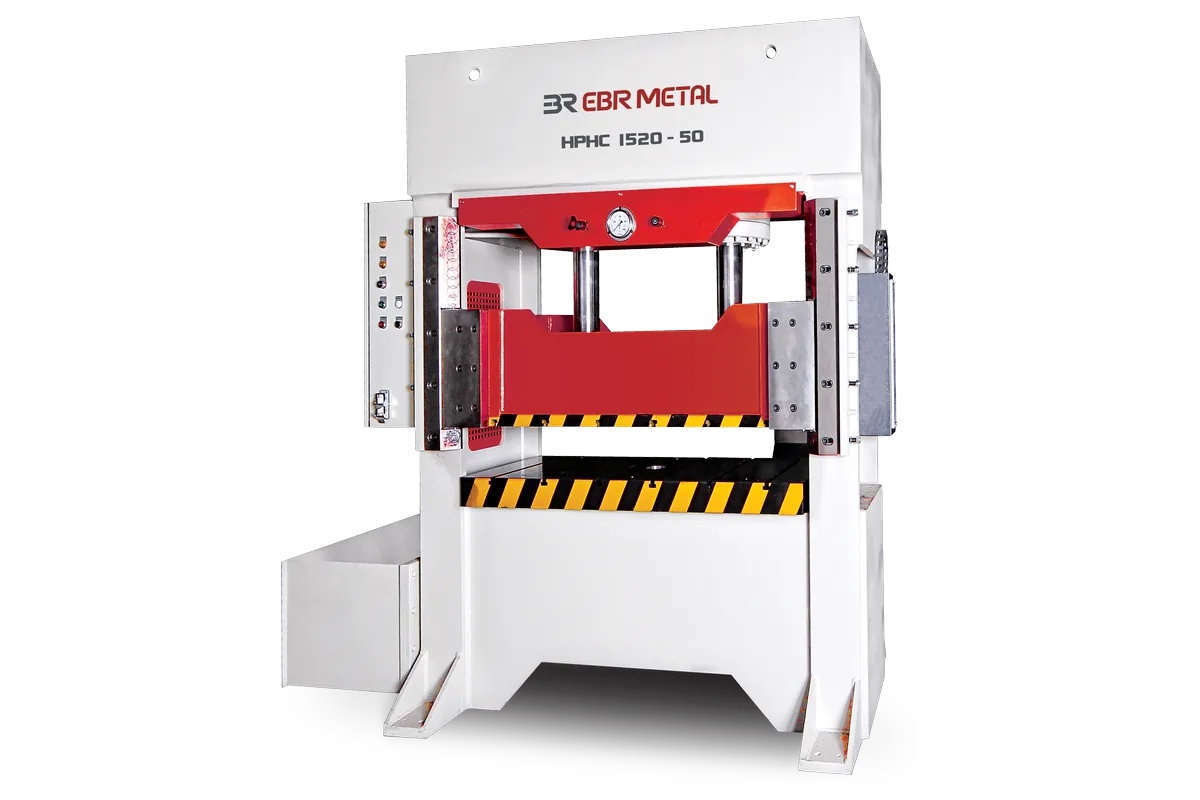

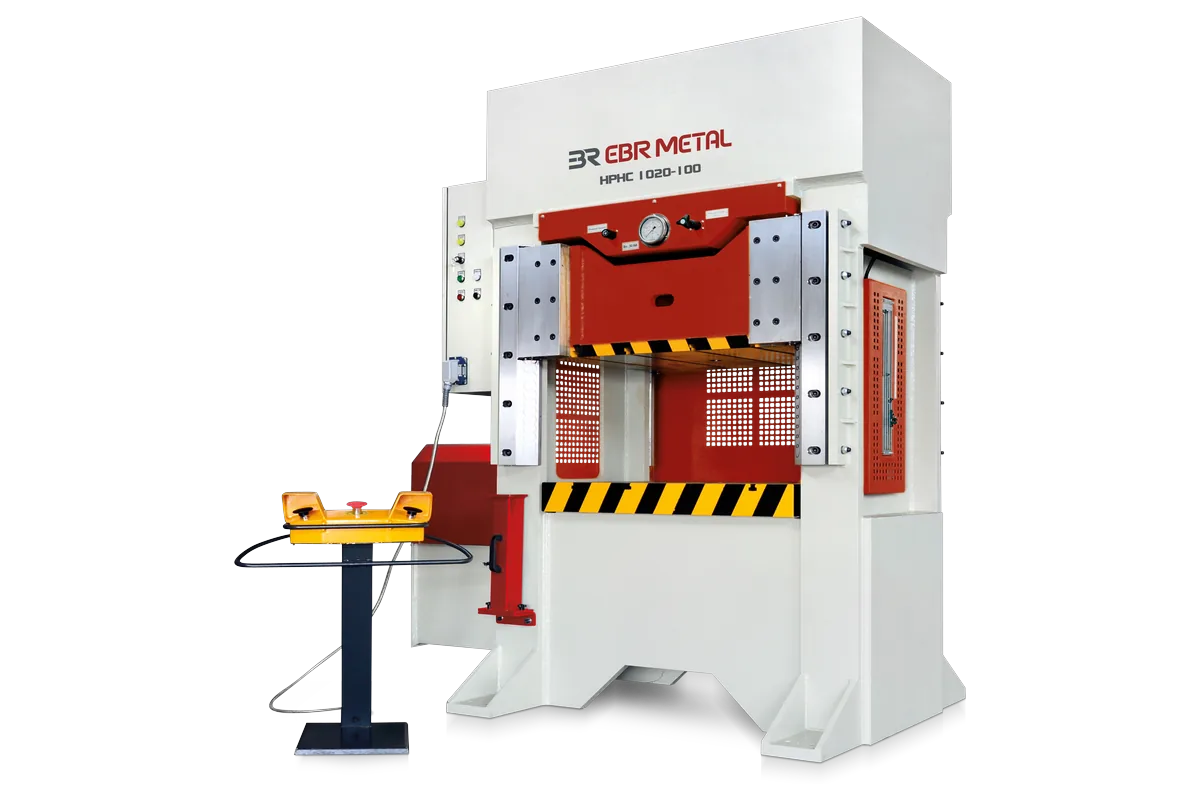

HPHC Product Gallery
HPHC General Features
- H-frame with prismatic, maintenance-free ram slide system
- Single main piston on 1,020 mm models, double piston on 1,520 mm models
- Max. working pressure 197–263 bar depending on model
- Italian hydraulic components (Duplomatic)
- Available in a CE-conform configuration for CE markets
HPHC Standard Equipment
- Stepless pressure adjustment
- Stepless stroke adjustment
- T-slot upper and lower tables
- Manometer
- Protective sheet covers at the rear and sides
- Two-hand control
HPHC Optional Equipment
- Light curtain
- Cushion cylinder in the bed
Built to order: every press is configured to the customer’s work. Other sizes and configurations are available on request.
HPHC Technical Specifications
| Model | Capacity (t) | Stroke (mm) | Daylight (mm) | Max. working pressure (bar) | Table (mm) | Approach speed (mm/s) | Pressing speed (mm/s) | Return speed (mm/s) | Motor power (kW) | Width (mm) | Length (mm) | Height (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPHC 1020-100 | 100 | 300 | 500 | 263 | 700x1020 | 8 | 4.5 | 9.5 | 7.5 | 1170 | 2050 | 2725 | 6000 |
| HPHC 1520-100 | 100 | 300 | 500 | 197 | 700x1520 | 9 | 5 | 10 | 7.5 | 1170 | 2550 | 2785 | 7800 |
| HPHC 1020-150 | 150 | 300 | 500 | 244 | 700x1020 | 8 | 4.5 | 9.5 | 11 | 1170 | 2050 | 2725 | 6500 |
| HPHC 1520-150 | 150 | 300 | 500 | 240 | 700x1520 | 9 | 5 | 10 | 11 | 1170 | 2550 | 2785 | 8000 |
Speeds are typical values; they depend on the pump and motor chosen for each press.
Choosing the HPHC H-Frame Hydraulic Press
The HPHC suits production pressing and forming at 100 or 150 tonnes where simple manual setting is preferred. Pick the model by part width and required force. Higher tonnages and PLC control are covered by the HPHS H-frame press, which is also built double-action. On the HPHC, a cushion cylinder in the bed is available as an option. If you need a universal frame with a height-adjustable bottom table and optional press-brake tooling, see the HPT universal press.
Typical industries: automotive parts, agricultural machinery, machinery manufacturing and steel construction.
Request a Quote for the HPHC
Send us the work you plan to do on the press, the part material and size, the force you need, the working width and the stroke. If you have a drawing or a photo of the part, include it and we will propose a model and configuration.
Frequently Asked Questions About HPHC
What do the HPHC model numbers mean?
The first number is the working width in mm, the second the capacity in tonnes. So the HPHC 1520-150 has a 1,520 mm working width and 150 tonnes capacity.
Does the HPHC have a PLC?
No. Pressure and stroke are set steplessly by hand, and a manometer shows the working pressure.
Can the HPHC have a cushion?
Yes. A cushion cylinder in the bed is available as an option.
Is a light curtain standard?
No. Two-hand control and protective sheet covers are standard. A light curtain is an option. Available in a CE-conform configuration for CE markets.
