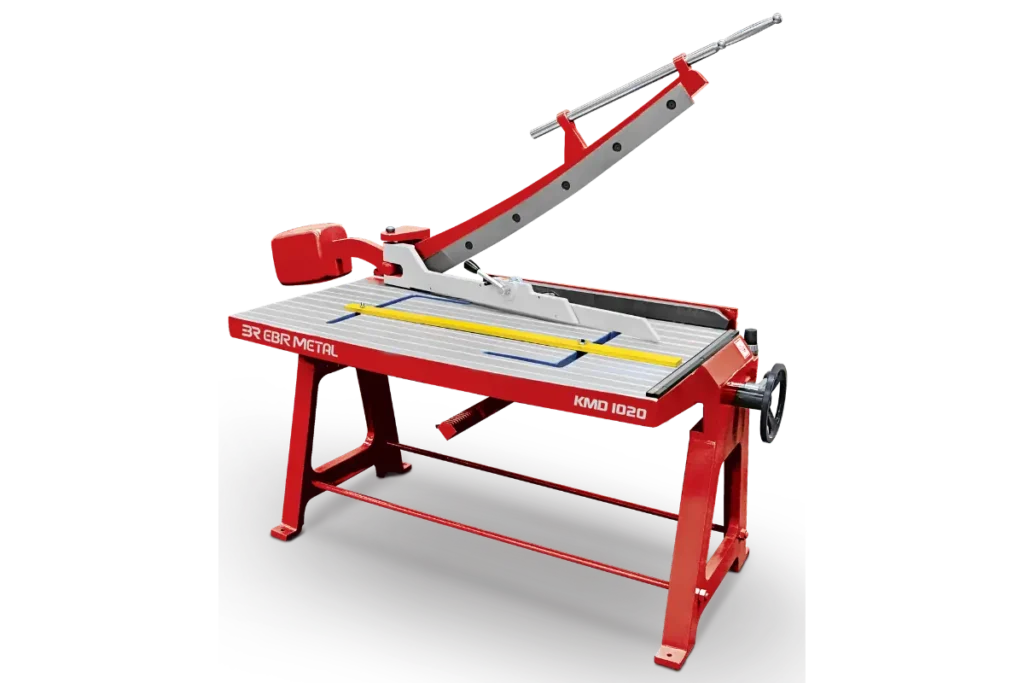

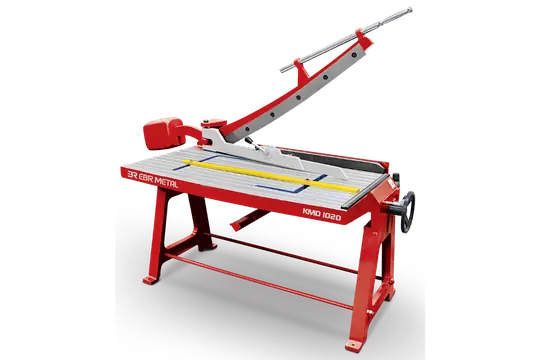

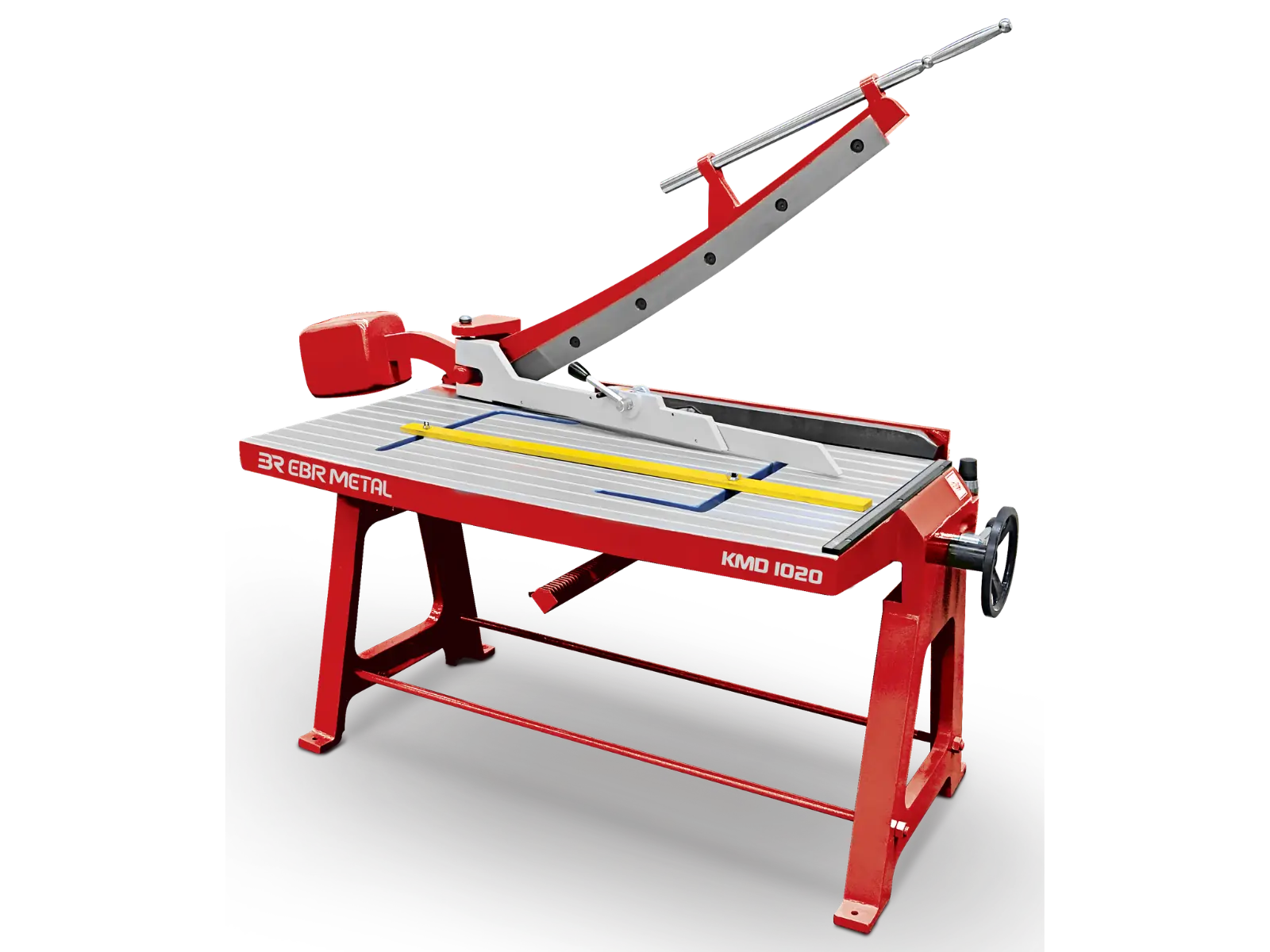

KMD Manual Guillotine Shear with Cast-Iron Construction
KMD’s cast-iron table and legs give the machine its higher mass. This cast iron manual guillotine shear is rated for 2.0 mm mild/carbon-steel cutting capacity, and the added mass helps keep manual cutting stable.
KMD’s cast-iron table and legs give the machine its higher mass. This cast iron manual guillotine shear is rated for 2.0 mm mild/carbon-steel cutting capacity, and the added mass helps keep manual cutting stable.
Cast-Iron Construction of the KMD
KMD uses cast iron construction for the table and legs, while KMP uses welded steel and KMH uses formed sheet steel. Construction material is what separates the three models.
KMD Product Gallery
KMD Technical Specifications
| Model | Actual Shearing Length | Nominal Capacity (Mild/Carbon Steel) | Back Gauge Range | Table Width | Table Length | Machine Width | Machine Length | Machine Height | Approx. Weight |
|---|---|---|---|---|---|---|---|---|---|

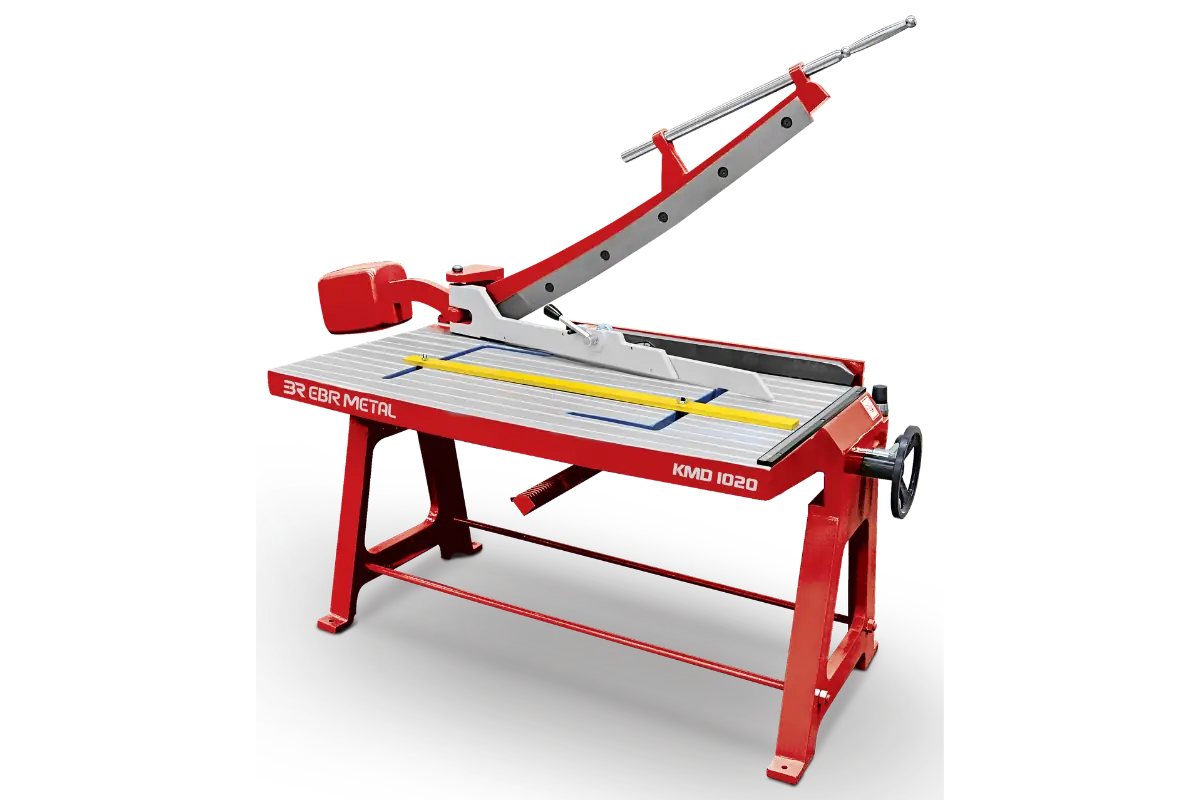

| KMD 1020 | 1050 mm | 2.0 mm | 0–600 mm | 600 mm | 1300 mm | 1040 mm | 1920 mm | 1350 mm | 500 kg |

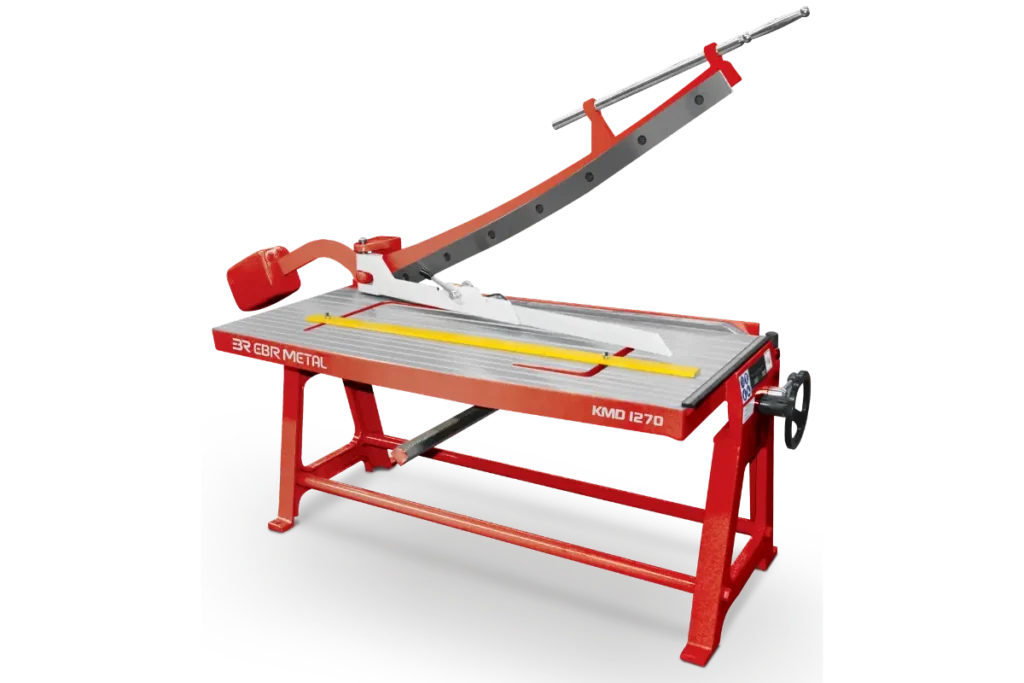

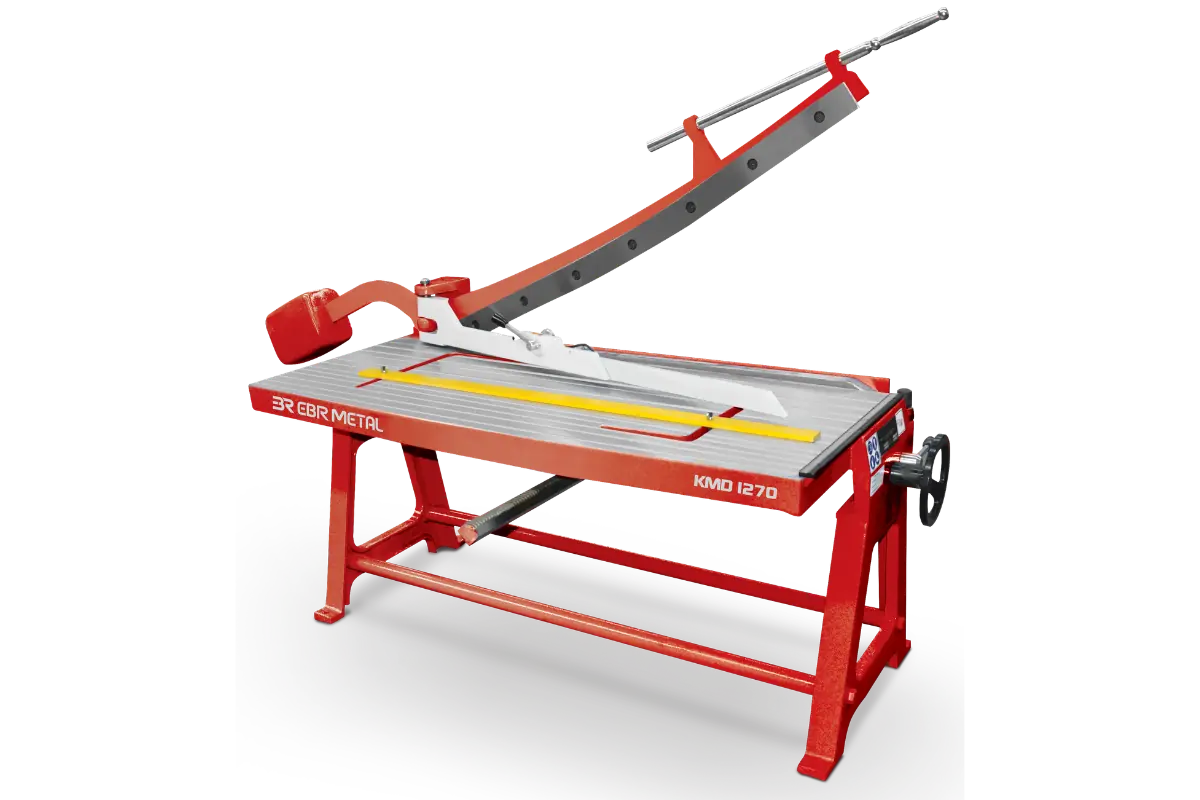

| KMD 1270 | 1280 mm | 2.0 mm | 0–600 mm | 600 mm | 1565 mm | 1040 mm | 2360 mm | 1630 mm | 600 kg |
Cutting capacities are specified for ST37 / S235JR mild steel with approximately 370–400 N/mm² tensile strength.
Stable Manual Cutting Conditions from Machine Mass
At 500 kg (1050 mm model) or 600 kg (1280 mm model), KMD is the heaviest model in the Hand-Lever Guillotine Shears family. Because of this mass, cutting can be performed with very little machine movement even before the machine is floor anchored.
All EBR METAL hand-lever guillotine shears, including KMD, are designed to be floor anchored and perform more effectively when correctly installed. Floor anchoring is recommended for all installations regardless of model.
KMD or KMP? Choosing Between Cast-Iron and Welded-Steel Construction
KMD and KMP share the same 2.0 mm nominal cutting capacity. The choice between them is a construction and cost question, not a capacity question:
– KMD uses cast-iron construction, is the heaviest model in the family, and costs more due to the material, sourcing and machining involved.
– KMP uses welded/fabricated steel construction, offering the same 2.0 mm capacity as a more economical alternative.
In practice, there is no major difference in usage or performance between KMD and KMP.
KMD Applications
KMD suits workshops that prefer traditional cast iron hand lever shear for general-purpose sheet metal cutting, including simple and occasional cuts, workshop support work and maintenance use.
Blade System, Serviceability and Warranty
Blades are single-edged and can be reground repeatedly. The upper blade position adjusts afterward to restore correct cutting clearance, and replacement blades can be ordered later if needed. KMD carries a 2-year warranty.
Tell EBR METAL about your cutting requirement and we’ll help confirm whether the KMD cast-iron construction fits your workshop.
Frequently Asked Questions About KMD
What distinguishes KMD's cast-iron construction?
KMD’s cast-iron construction is what sets it apart. As a cast iron hand lever shear, it carries more mass than KMP or KMH, and that extra weight helps keep manual cutting stable, especially before the machine is floor anchored.
What is the cutting capacity of KMD?
KMD cuts up to 2.0 mm mild/carbon steel, in both the 1050 mm and 1280 mm actual shearing-length models.
What is the difference between KMD and KMP?
Both share the same 2.0 mm nominal capacity. The difference is construction material and cost: KMD is cast iron and the heaviest, most expensive model; KMP is welded steel and a more economical alternative with no practical performance difference.
