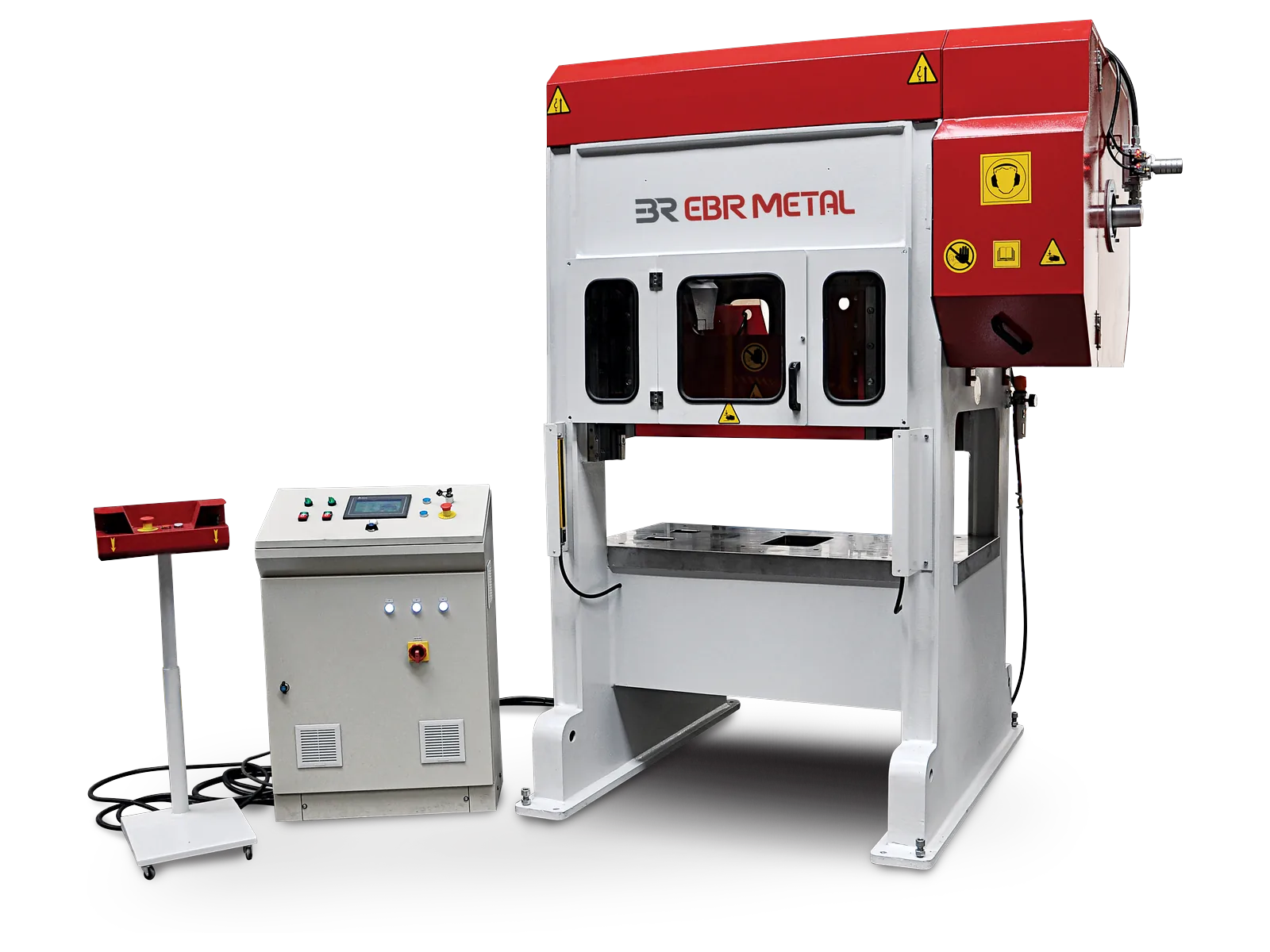

MPH H-Frame Mechanical Press
The MPH H-frame mechanical press from EBR METAL is a closed-frame eccentric press for larger dies and wider beds. Two connecting rods drive an 8-way guided ram, and a speed-control unit sets the press between 70 and 180 strokes per minute.
The range has 11 models from 40 to 500 tonnes, all with a fixed 40 mm stroke. Motorised table–ram adjustment, automatic central lubrication and PLC touchscreen control are standard.
• Capacity 40–500 t • Fixed stroke 40 mm • speed-control range 70–180 spm • Bed 700×850 to 1000×1500 mm
The MPH H-frame mechanical press from EBR METAL is a closed-frame eccentric press for larger dies and wider beds. Two connecting rods drive an 8-way guided ram, and a speed-control unit sets the press between 70 and 180 strokes per minute.
The range has 11 models from 40 to 500 tonnes, all with a fixed 40 mm stroke. Motorised table–ram adjustment, automatic central lubrication and PLC touchscreen control are standard.
- Capacity 40–500 t
- Fixed stroke 40 mm
- speed-control range 70–180 spm
- Bed 700×850 to 1000×1500 mm
MPH Design
The MPH is the H-type eccentric press in the EBR METAL range, built on a closed, straight-side frame that is steel-fabricated as a monoblock and vibration stress-relieved. The ram runs in 8-way guides on bronze or fibre guide bearings.

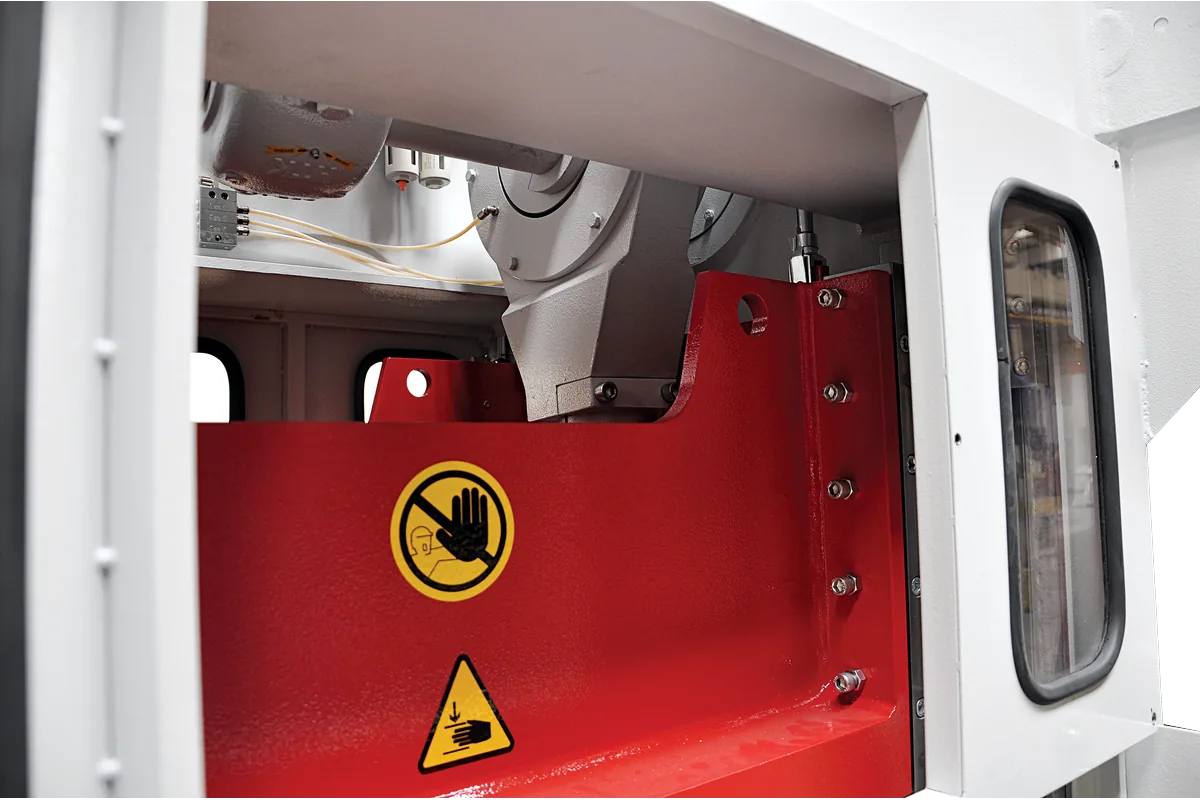

Two connecting rods transfer the load to the ram. The eccentric shafts are alloy steel and the gears cast steel. The flywheel runs on rolling bearings. Four ram cushioning cylinders are standard, and the table–ram distance is shown on the touchscreen.

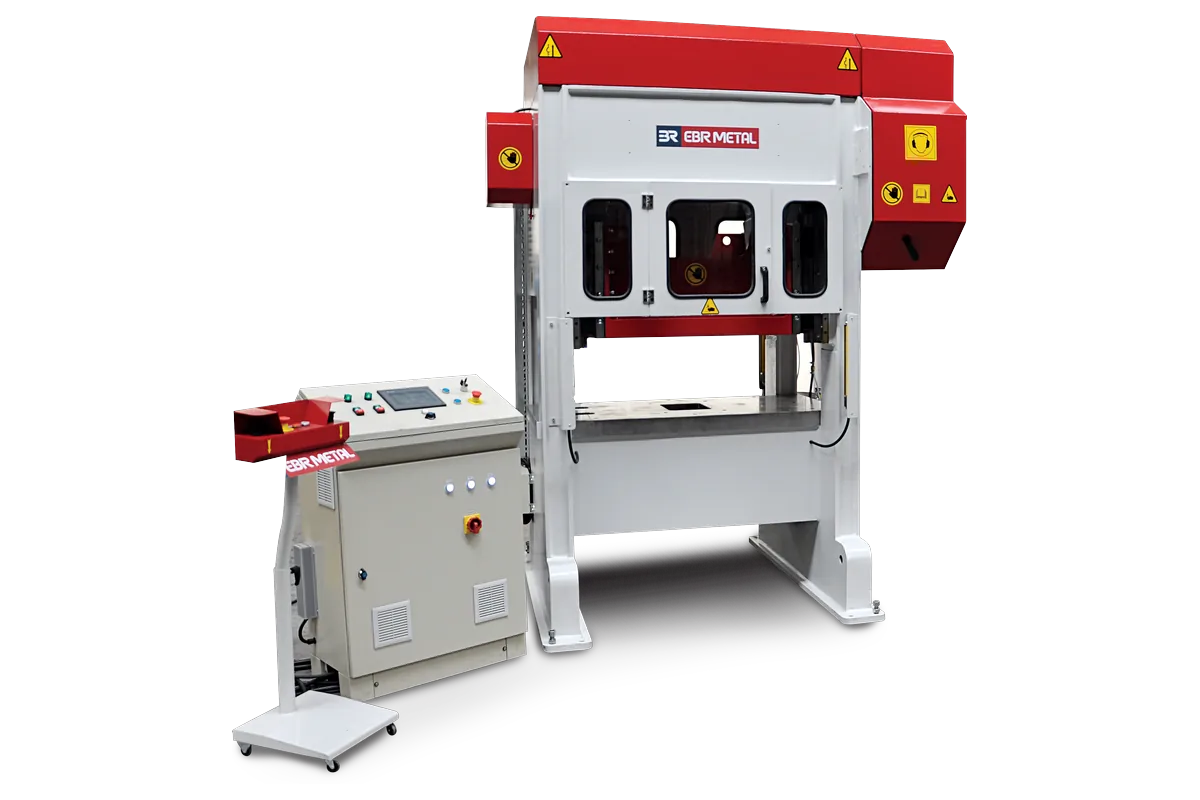

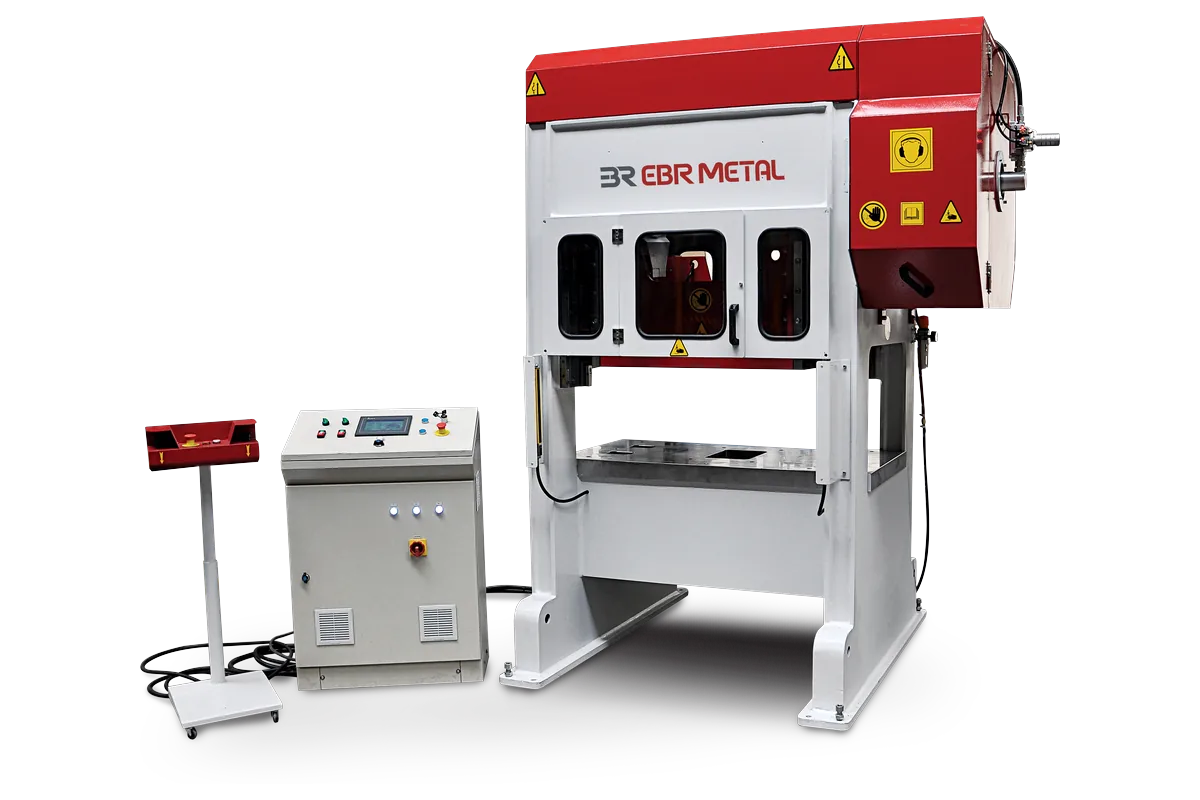

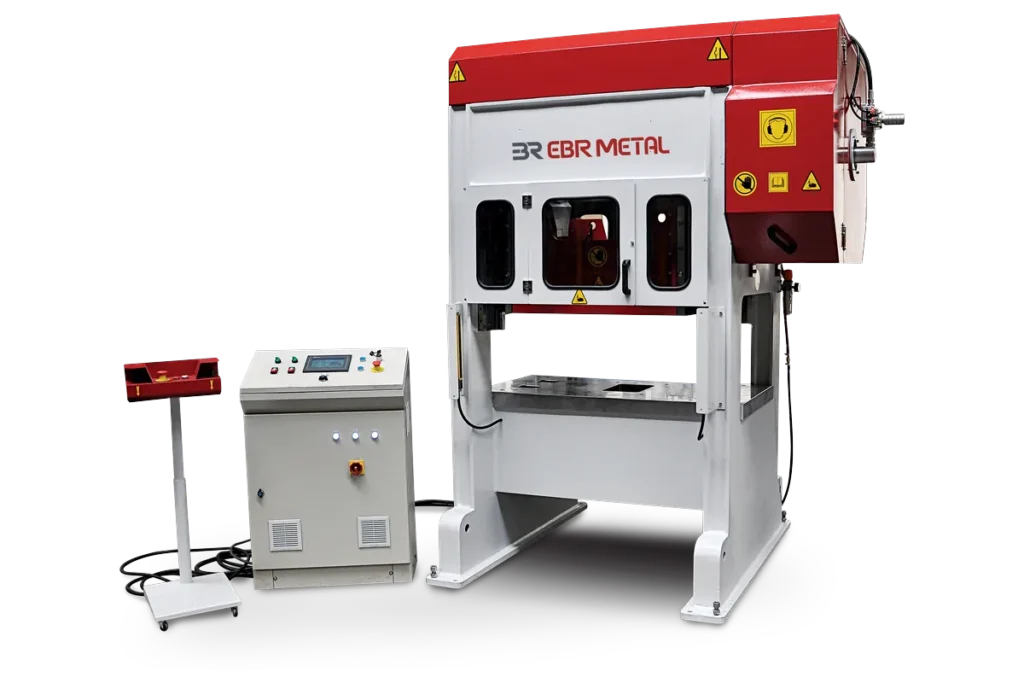

MPH Product Gallery
MPH General Features
- Closed H-frame, steel-fabricated monoblock, vibration stress-relieved
- Certified welding
- Double connecting rod and 8-way guided ram
- Alloy-steel eccentric shafts, cast-steel gears, flywheel on rolling bearings
- Bronze connecting-rod, intermediate and main bearings
- Parallelism 0.12 mm/m and perpendicularity 0.06 mm/m (ISO/DIN)
- Available in a CE-conform configuration for CE markets
MPH Standard Equipment

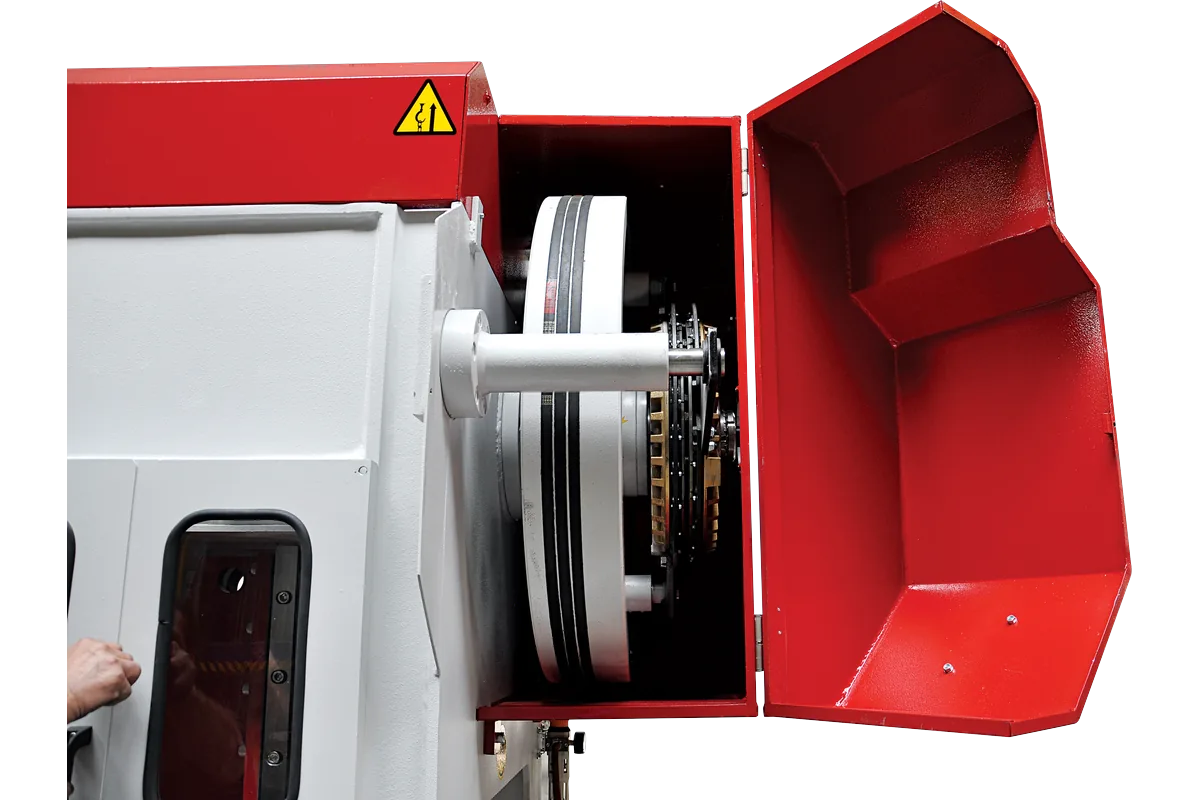

- Pneumatic clutch-brake (hydraulic on selected models)
- Speed-control unit, 70–180 spm
- Motorised table–ram adjustment with on-screen distance display
- Four ram cushioning cylinders
- T-slot main table
- Automatic central grease lubrication
- PLC with touchscreen, die-adaptation program and 100 die recipes
- Cam encoder
- IE3 main motor
- Two-hand control
MPH Optional Equipment
- Servo feeder
- Hydraulic overload protection
- Custom table and stroke
- Anti-vibration pads
- Front and rear light curtains
- Safety PLC and double-coil safety valve
- Covered side windows and safety blocks
MPH Technical Specifications
| Model | Capacity (t) | Daylight, table–ram (mm) | Housing width (mm) | Ram adjustment, motorised (mm) | Bed and ram table (mm) | Stroke, fixed (mm) | Strokes per minute (spm) | Main motor (kW) | Bed height from floor (mm) | Width (mm) | Depth (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPH 40 | 40 | 350 | 910 | 100 | 700x850 | 40 | 70–180 | 5.5 | 900 | 1700 | 1150 | 2600 | 3500 |
| MPH 60 | 60 | 350 | 960 | 100 | 700x900 | 40 | 70–180 | 7.5 | 900 | 1750 | 1150 | 2600 | 4200 |
| MPH 80 | 80 | 350 | 1060 | 100 | 700x1000 | 40 | 70–180 | 15 | 900 | 2050 | 1310 | 2800 | 6500 |
| MPH 100 | 100 | 400 | 1060 | 100 | 700x1000 | 40 | 70–180 | 15 | 900 | 2200 | 1800 | 3000 | 8500 |
| MPH 120 | 120 | 400 | 1060 | 100 | 700x1000 | 40 | 70–180 | 15 | 900 | 2200 | 1800 | 3000 | 9000 |
| MPH 150 | 150 | 400 | 1460 | 120 | 700x1000 | 40 | 70–180 | 22 | 900 | 2400 | 2300 | 3200 | 10500 |
| MPH 200 | 200 | 400 | 1750 | 130 | 800x1200 | 40 | 70–180 | 30 | 900 | 2850 | 2100 | 3300 | 18000 |
| MPH 250 | 250 | 400 | 1750 | 150 | 1000x1500 | 40 | 70–180 | 37 | 900 | 3350 | 3000 | 3750 | 26000 |
| MPH 300 | 300 | 400 | 1750 | 150 | 1000x1500 | 40 | 70–180 | 37 | 900 | 3350 | 3000 | 3850 | 30000 |
| MPH 400 | 400 | 400 | 1950 | 150 | 1000x1500 | 40 | 70–180 | 45 | 900 | 3500 | 3000 | 4000 | 36000 |
| MPH 500 | 500 | 400 | 1950 | 150 | 1000x1500 | 40 | 70–180 | 55 | 900 | 3500 | 3000 | 4000 | 41000 |
Daylight is the maximum table–ram distance. Strokes per minute are typical values with the speed-control unit. Other sizes and configurations are built to order.
Choosing the MPH H-Frame Mechanical Press
The MPH suits short-stroke, high-speed stamping with larger dies, where the load is spread across a wide bed. This closed frame with two connecting rods is our recommendation for precision parts that need the load spread evenly across the die. Stroke is a fixed 40 mm and the speed-control range is 70–180 spm. For an open front and an adjustable stroke up to 300 tonnes, see the MPC C-frame mechanical press. If the job needs force held through a long stroke and adjustable pressing speed, a hydraulic press is the better fit; see Hydraulic Presses.
Typical industries are automotive parts, white goods, kitchen equipment and railway components.
Two variants are built on request. Long-stroke H-type eccentric presses have a 200 mm stroke, with a single connecting rod from 125 to 300 tonnes or two connecting rods from 125 to 600 tonnes. D-type closed-frame eccentric presses add an adjustable stroke, from 80 to 300 tonnes.
MPH H-Frame Mechanical Press in Operation
Watch the EBR METAL MPH h-frame mechanical press in operation.
MPH — H-Frame Mechanical Press
Request a Quote for the MPH
Send us the part drawing, the material grade and thickness, the operation and the required force. Add the die dimensions and weight, the target strokes per minute and the feeding method, plus the stroke length if you need a longer or adjustable stroke.
Frequently Asked Questions About MPH
What stroke does the MPH have?
All standard models have a fixed 40 mm stroke. A custom stroke is available as an option, and long-stroke H-type eccentric presses with a 200 mm stroke are built on request.
How fast does the MPH run?
Between 70 and 180 strokes per minute, set with the standard speed-control unit. These are typical values.
Which clutch-brake does the MPH use?
Most models have a pneumatic clutch-brake combination. A hydraulic clutch-brake is fitted on selected models.
Is there a closed-frame eccentric press with an adjustable stroke?
Yes. A D-type closed-frame eccentric press with an adjustable stroke is built on request from 80 to 300 tonnes.
What overload protection is available?
Hydraulic overload protection is an option on the MPH.
