MPC C-Frame Mechanical Press

Name: MPC 110 — C-Frame Mechanical Press
Uploaded: 2025-02-05T03:53:26-08:00
Description: Watch the EBR METAL MPC 110 c-frame mechanical press, fitted with a hydraulic ejector and Siemens control in operation.

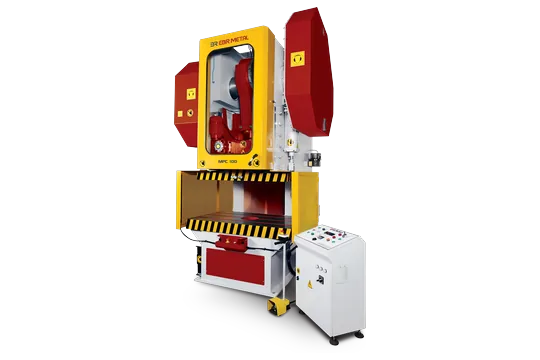

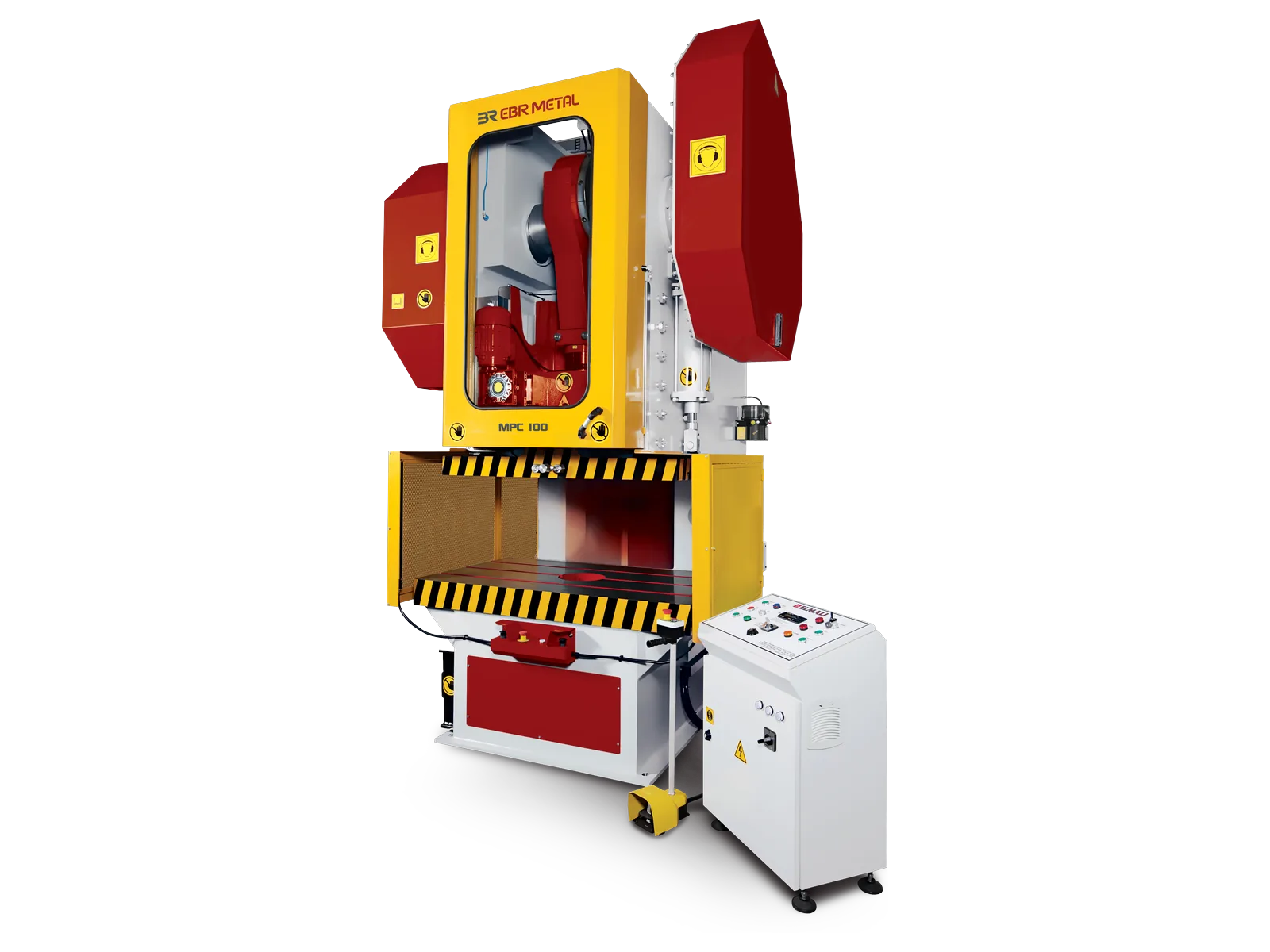

The MPC C-frame mechanical press from EBR METAL is an open-front eccentric press for blanking, punching and forming sheet-metal parts. A pneumatic clutch-brake combination, a 4-way guided ram and PLC touchscreen control are standard.

The range has 11 models from 15 to 300 tonnes. The stroke is adjustable on every model, up to 200 mm on the MPC 300.

• Capacity 15–300 t • Adjustable stroke up to 200 mm • 38–150 spm across the model range • Pneumatic clutch-brake

The range has 11 models from 15 to 300 tonnes. The stroke is adjustable on every model, up to 200 mm on the MPC 300.

Capacity 15–300 t
Adjustable stroke up to 200 mm
38–150 spm across the model range
Pneumatic clutch-brake

MPC Design

The MPC is the C-type eccentric press in the EBR METAL range. Its frame is steel-fabricated and vibration stress-relieved, and the open front gives direct access to the die area for die setting and part handling.

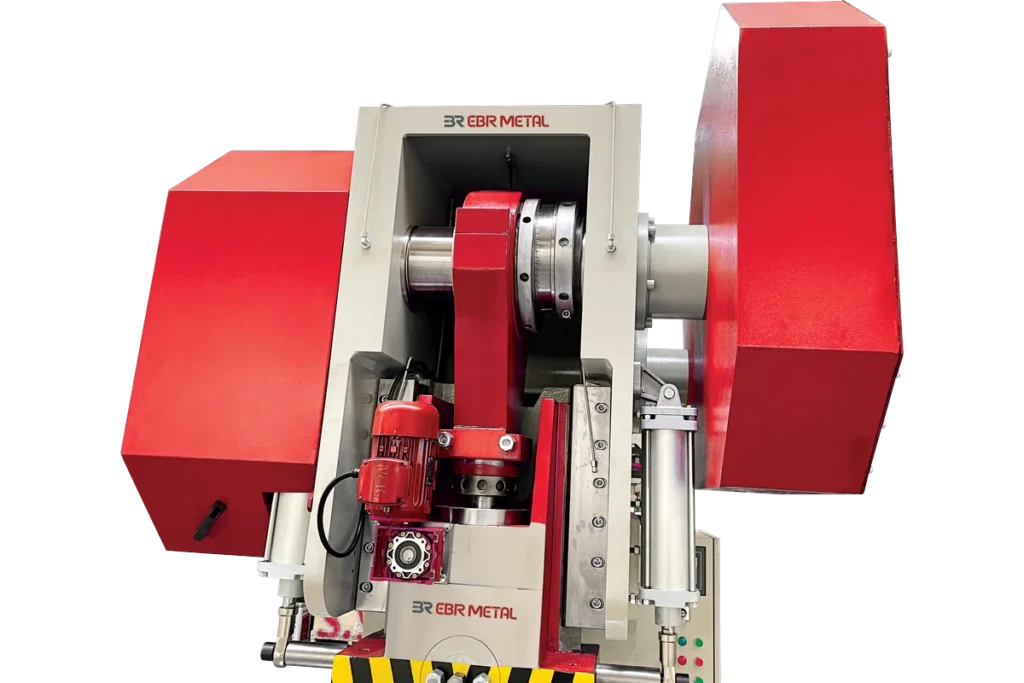

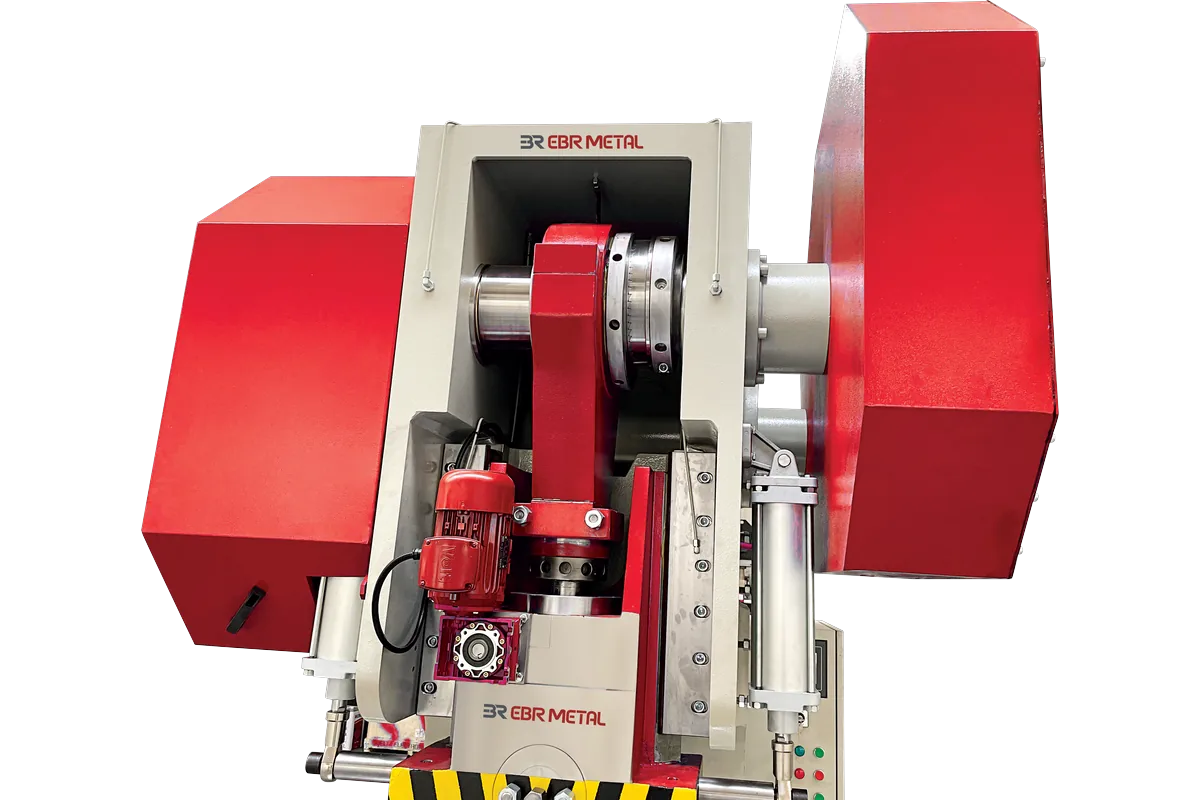

The ram, connecting rod and ball socket are steel castings. A one-piece high-strength crankshaft drives the ram through a bronze connecting-rod bushing. Ram adjustment is ratchet-type and motorised from 150 tonnes.

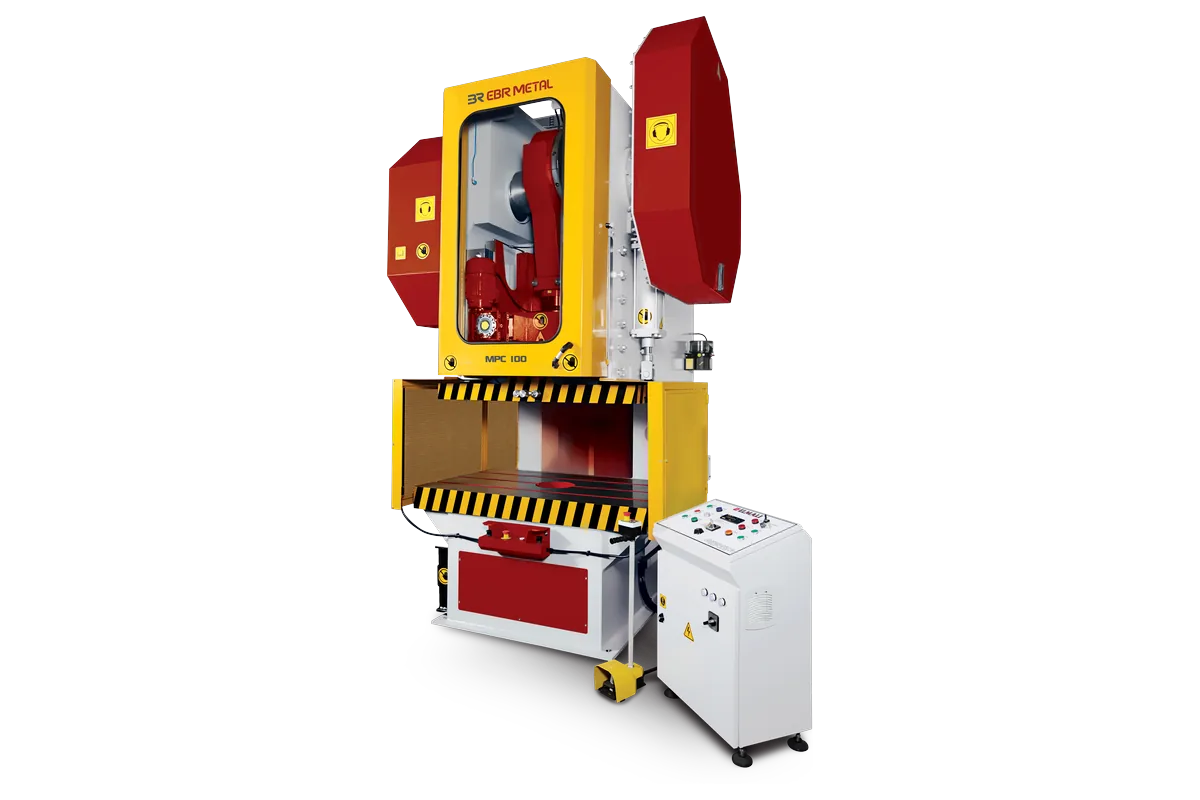

MPC Product Gallery

MPC General Features

Open-front C-frame, steel-fabricated and vibration stress-relieved
Adjustable stroke on every model
Cast-steel ram, connecting rod and ball socket
One-piece high-strength crankshaft with bronze connecting-rod bushing
Table parallelism 0.12 mm/m and perpendicularity 0.06 mm/m (ISO/DIN)
Available in a CE-conform configuration for CE markets

MPC Standard Equipment

Pneumatic clutch-brake combination

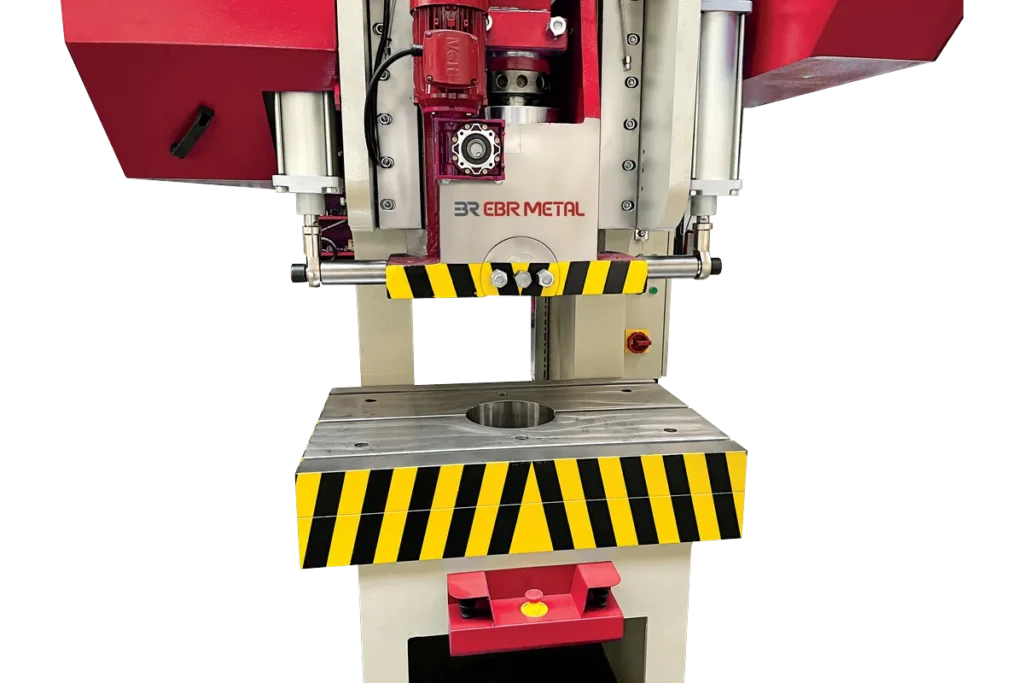

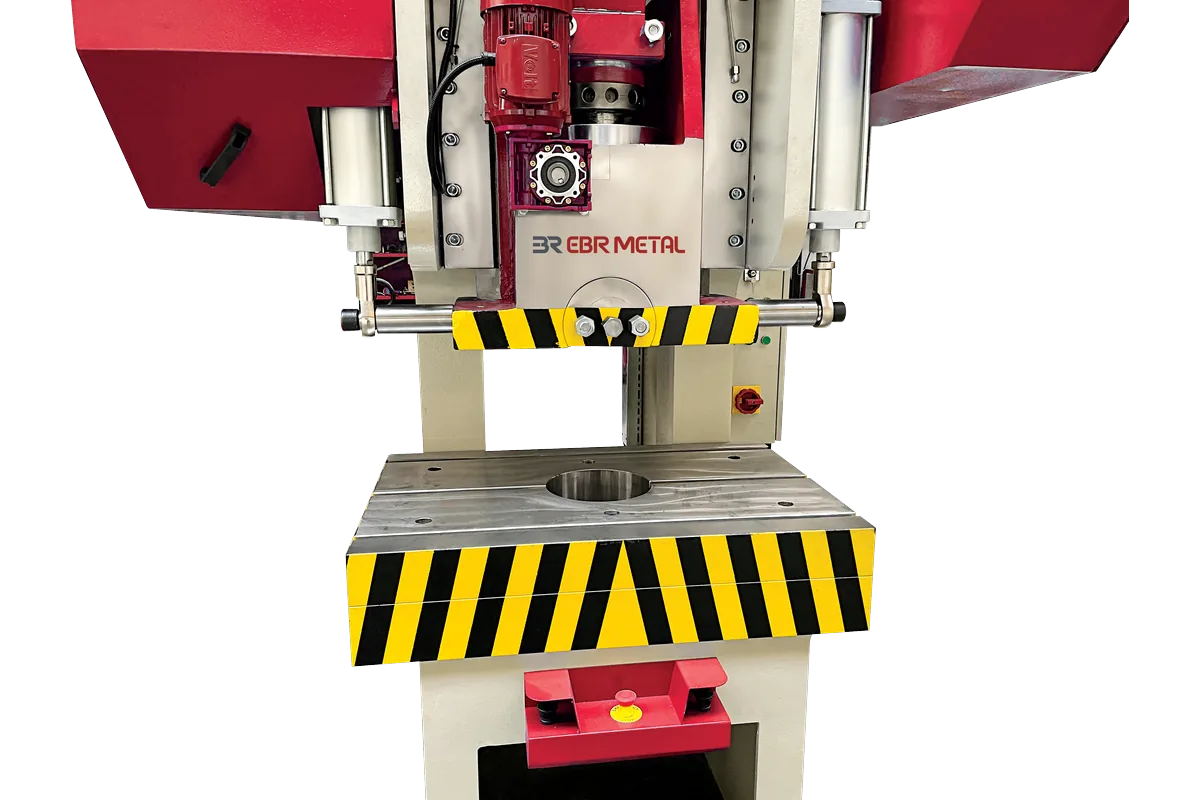

4-way guided ram
Ratchet-type ram adjustment (motorised from 150 t)
Main and spare tables with T-slots
Mechanical overload safety device
Electric stroke counter
Latching pneumatic foot pedal and timed two-hand control

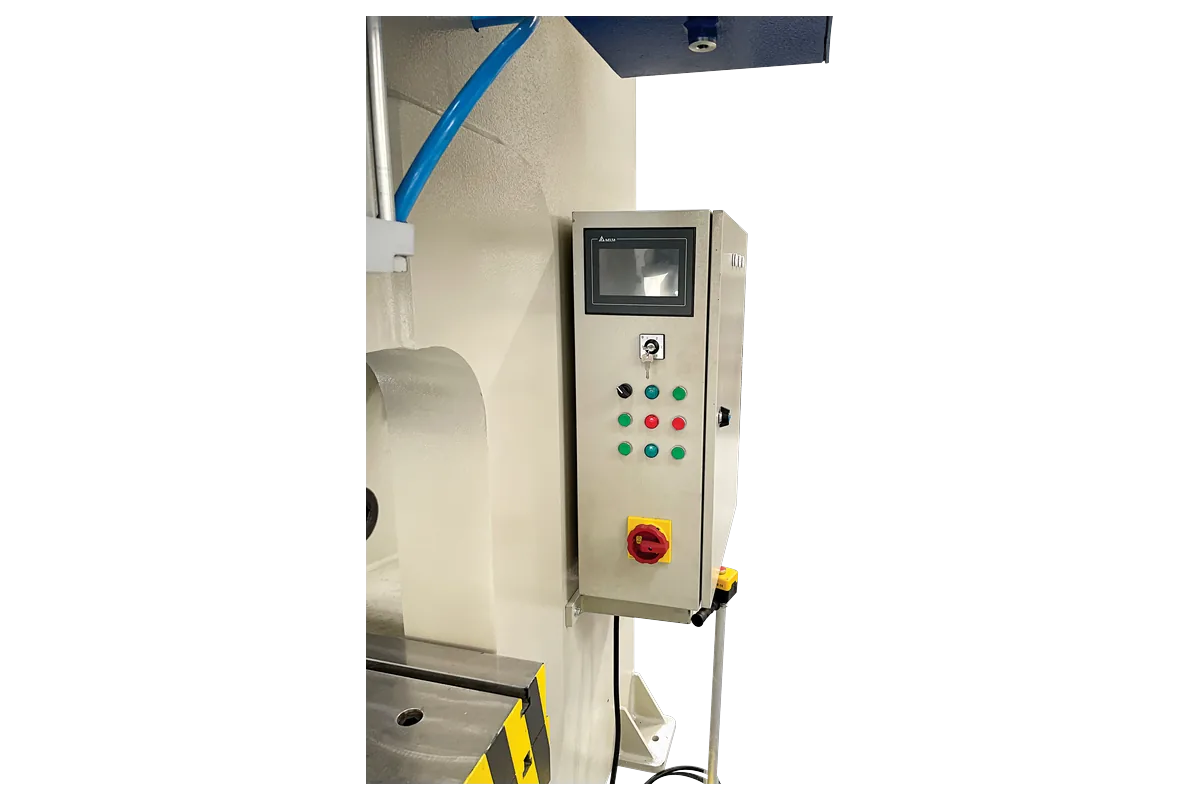

PLC with touchscreen
Manual central lubrication

MPC Optional Equipment

Servo feeder
Speed control unit
Automatic central lubrication
8-way guided ram
Ram cushioning cylinders and hydraulic overload safety device
Light curtains
Safety package: safety PLC, double-coil safety valve, interlocked guards and safety blocks

MPC Technical Specifications

Model	Capacity (t)	Throat depth (mm)	Daylight, table–ram (mm)	Table–guide distance (mm)	Housing width (mm)	Ram adjustment (mm)	Stroke, adjustable (mm)	Strokes per minute (spm)	Table (mm)	Table hole Ø (mm)	Ram face (mm)	Shank hole Ø (mm)	Table height from floor (mm)	Motor power (kW)	Motor speed (rpm)	Width (mm)	Depth (mm)	Height (mm)	Weight (kg)
MPC 15	15	140	250	270	240	50	10–50	150	280x480	110	225x150	30	660	2.2	1000	720	1100	1630	800
MPC 25	25	175	300	310	290	50	10–60	120	375x570	145	260x170	35	710	3	1000	870	1380	1870	1300
MPC 40	40	220	340	340	330	60	10–70	55	440x630	150	290x180	40	720	4	1450	1050	1280	2100	2100
MPC 60	60	260	360	395	380	70	10–95	50	520x720	150	340x220	40	730	4	1450	1340	1450	2200	2750
MPC 80	80	280	400	420	400	85	10–100	45–75	540x740	190	370x230	40	755	7.5	1450	1400	1735	2220	4000
MPC 100	100	300	400	465	420	85	10–110	50	600x780	200	405x240	50	775	11	1450	1400	1900	2450	4650
MPC 125	125	310	500	510	450	100	10–125	50	630x820	210	500x250	55	785	11	1450	1500	2200	2700	6000
MPC 150	150	320	500	540	500	120	10–125	42	660x920	220	600x290	55	805	15	1450	1600	2280	2750	7100
MPC 200	200	340	500	600	510	130	20–140	50	680x1000	240	620x350	60	805	18.5 + 0.75	1450	1900	2400	3000	9200
MPC 250	250	350	520	630	520	150	20–160	40	700x1100	250	670x380	60	810	22 + 2.2	1450	2000	2500	3100	12000
MPC 300	300	370	530	650	470	150	20–200	38	700x1200	260	780x400	60	810	30 + 2.2	1450	2000	2700	3200	13200

Strokes per minute are typical values. Other sizes and configurations are built to order.

Choosing the MPC C-Frame Mechanical Press

The MPC suits work where open access to the die matters and the stroke has to be set to the part. Most general punching, stamping and forming jobs fit it. Larger dies, wider beds and precision parts that need the load spread evenly across the die go on the closed-frame MPH H-frame mechanical press. Where the job needs force held through the stroke and adjustable pressing speed, look at the HPC C-frame hydraulic press.

Typical industries are automotive parts, white goods, kitchen equipment and electrical components.

An A-type monoblock eccentric press is also built on request, from 40 to 300 tonnes.

MPC C-Frame Mechanical Press in Operation

Watch the EBR METAL MPC 110 c-frame mechanical press, fitted with a hydraulic ejector and Siemens control in operation.

MPC 110 — C-Frame Mechanical Press

Request a Quote for the MPC

Send us the part drawing, the material grade and thickness, the operation and the required force. Add the die dimensions, the stroke you need, the target strokes per minute and whether the press will be sheet- or coil-fed.
