HPZ Horizontal Hydraulic Press

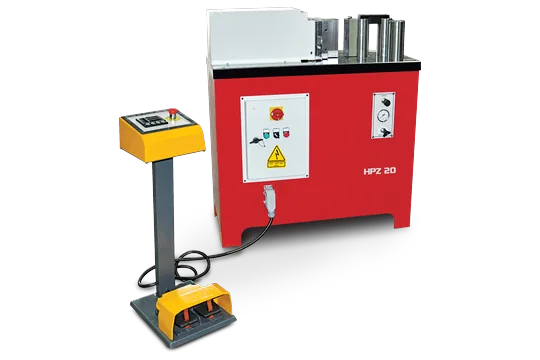

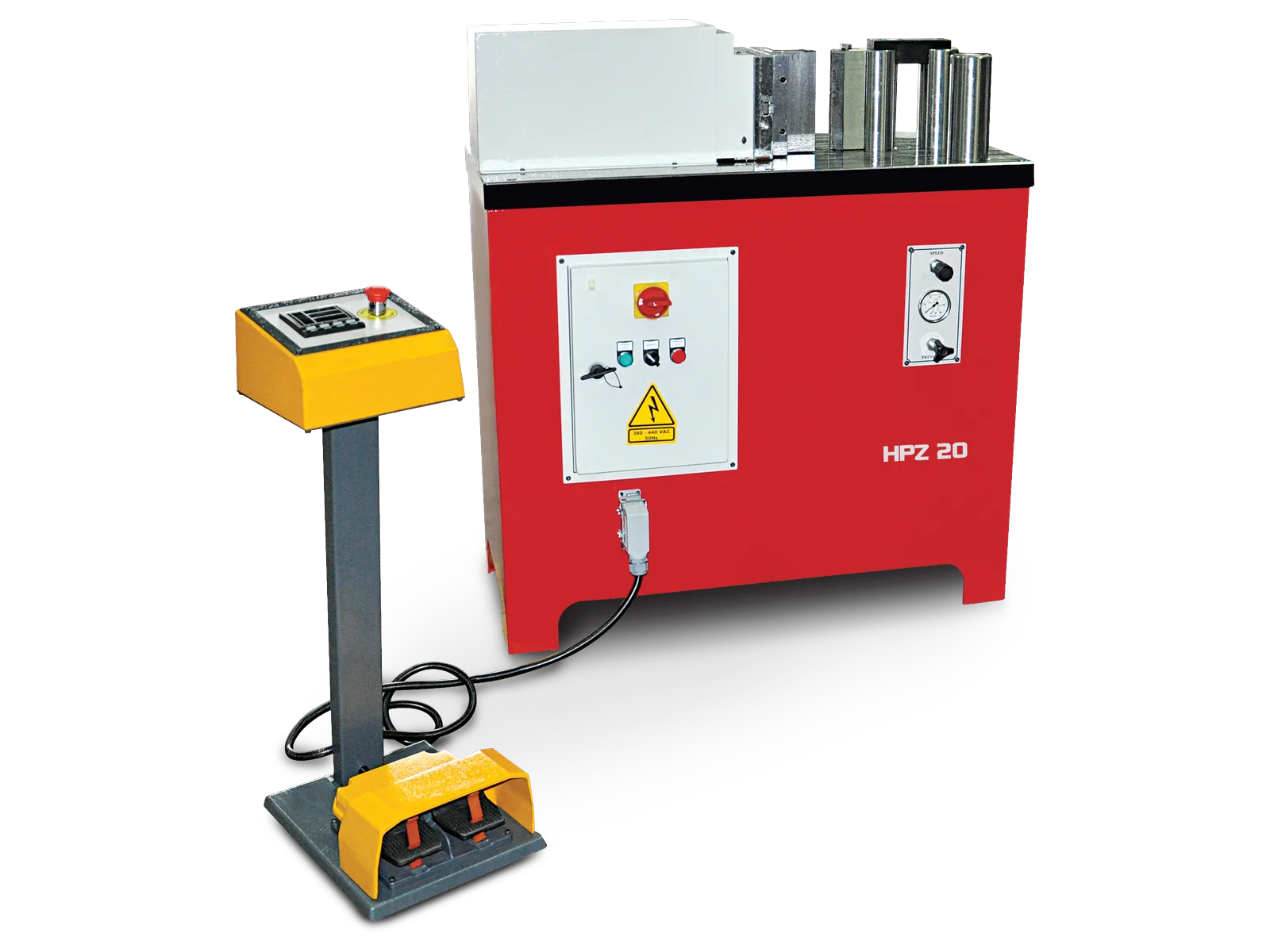

The HPZ horizontal hydraulic press from EBR METAL has a welded steel body and a ram that works horizontally against tooling on the table. It is supplied with one set of bending tooling, a foot pedal and stroke adjustment by digital readout.
Seven standard models cover 10 to 100 tonnes. With the right tooling, they bend flat bar up to 300 × 25 mm and round tube up to 114 × 10 mm. Pipe bending, cutting, punching and straightening tools are optional. Other sizes and configurations are built to order.
• Press force 10–100 t • Flat bar up to 300 × 25 mm • Round tube up to 114 × 10 mm • Working height 915–930 mm
The HPZ horizontal hydraulic press from EBR METAL has a welded steel body and a ram that works horizontally against tooling on the table. It is supplied with one set of bending tooling, a foot pedal and stroke adjustment by digital readout.
Seven standard models cover 10 to 100 tonnes. With the right tooling, they bend flat bar up to 300 × 25 mm and round tube up to 114 × 10 mm. Pipe bending, cutting, punching and straightening tools are optional. Other sizes and configurations are built to order.
- Press force 10–100 t
- Flat bar up to 300 × 25 mm
- Round tube up to 114 × 10 mm
- Working height 915–930 mm
HPZ Design

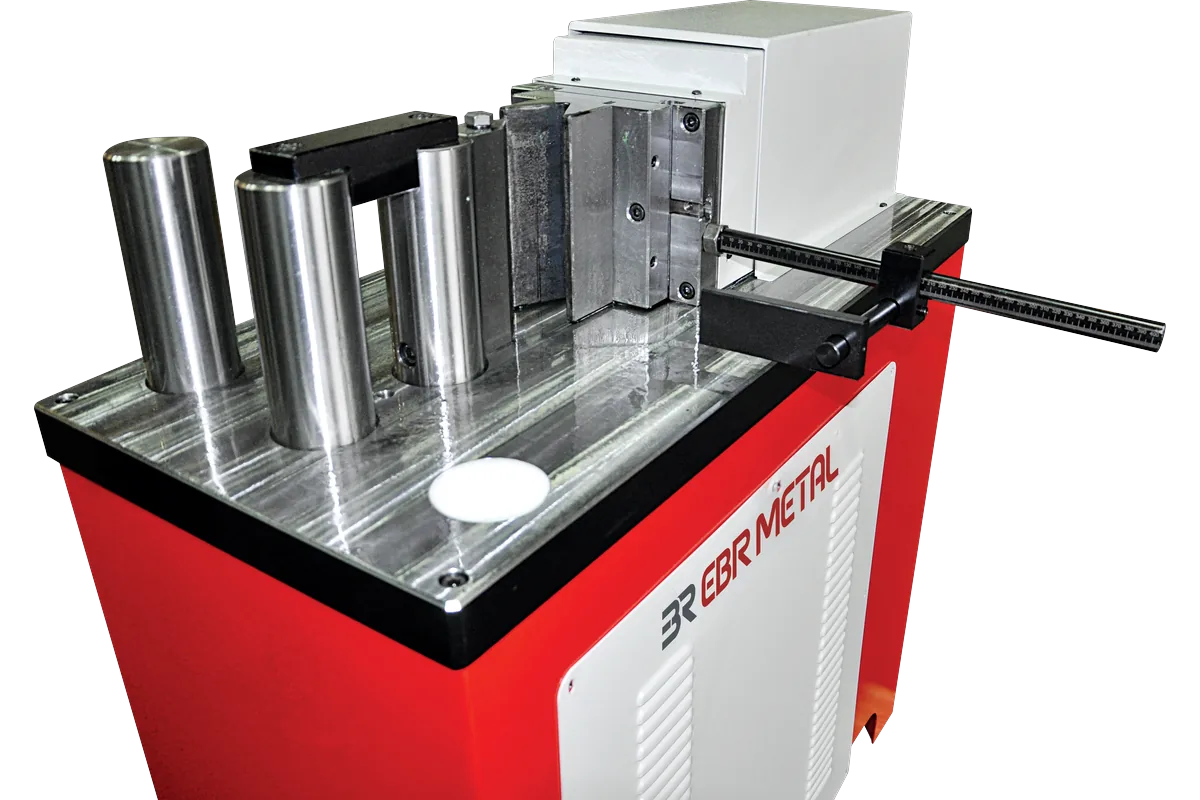

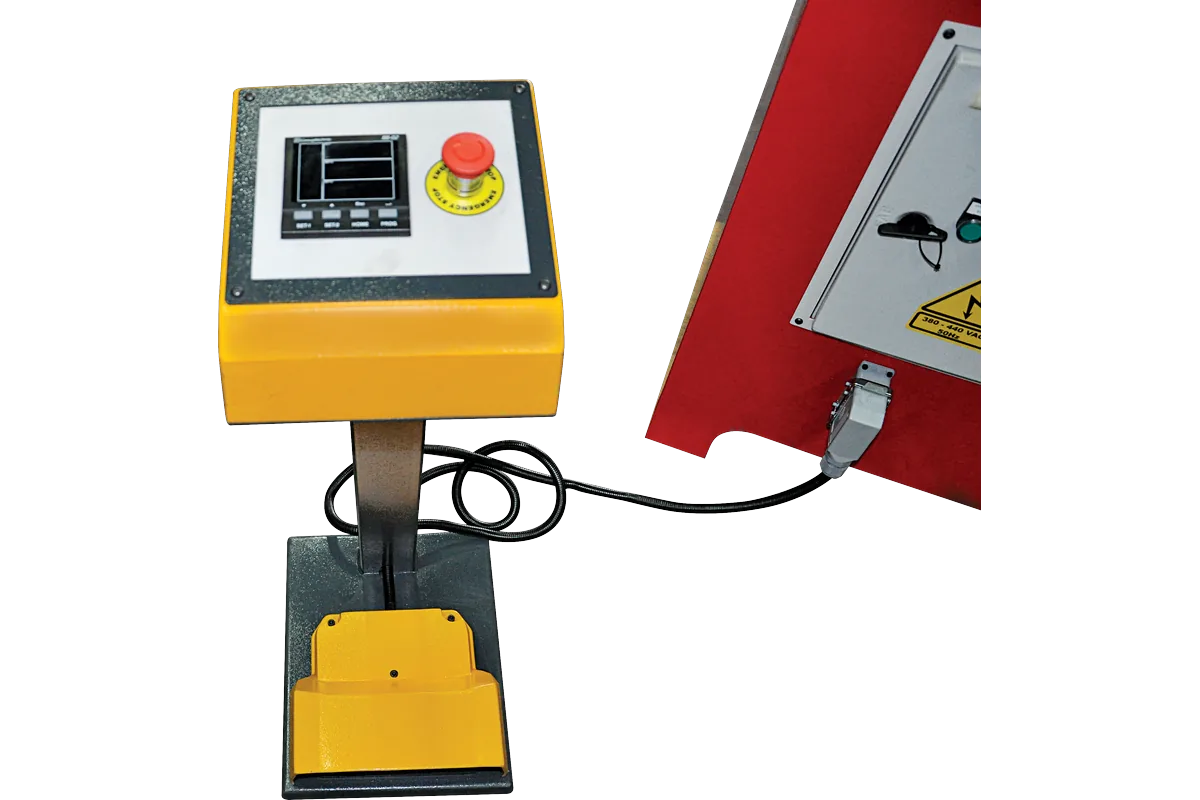

Because the ram moves horizontally, the tooling is bolted on a flat table at a working height of 915 to 930 mm. The operator sets the forward and return positions on the digital stroke readout and runs the press from the foot pedal, in manual or automatic mode. Optional NC adds programmable stepped bending.
Tooling and pins are hardened and ground. One set of bending tooling is standard, and further tools can be added as options.

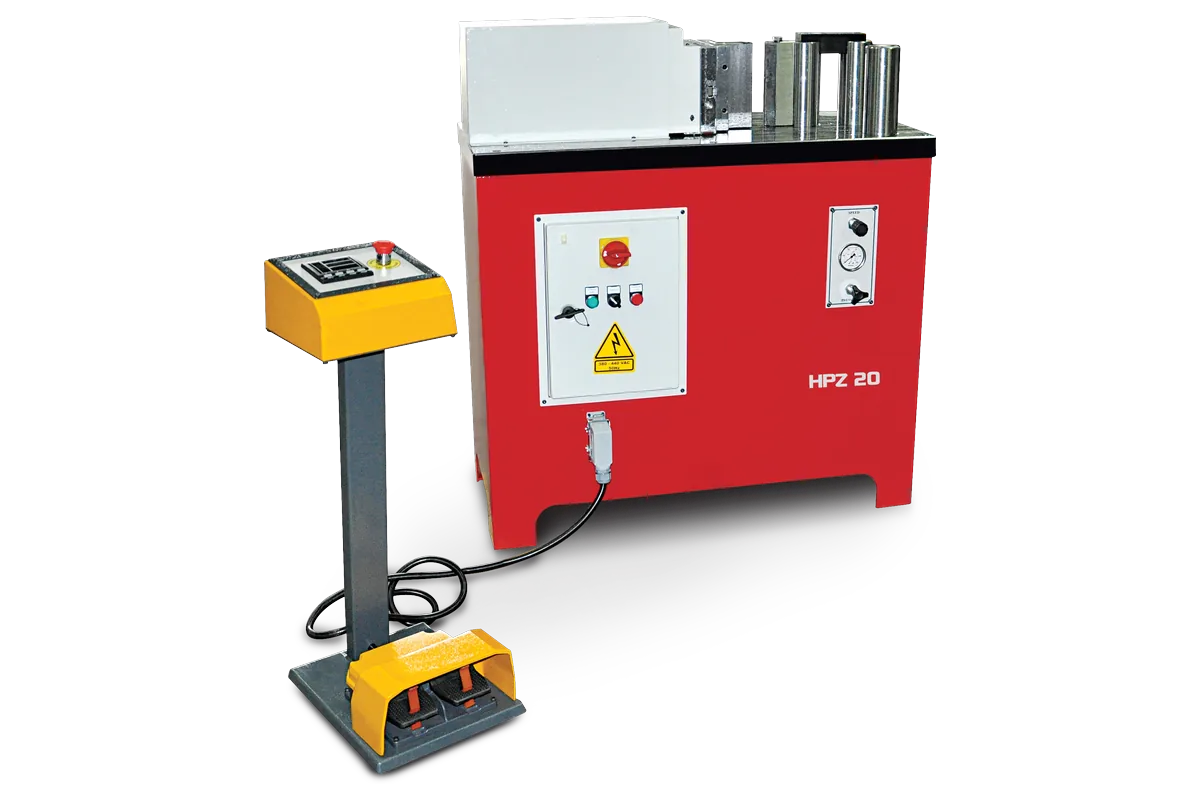

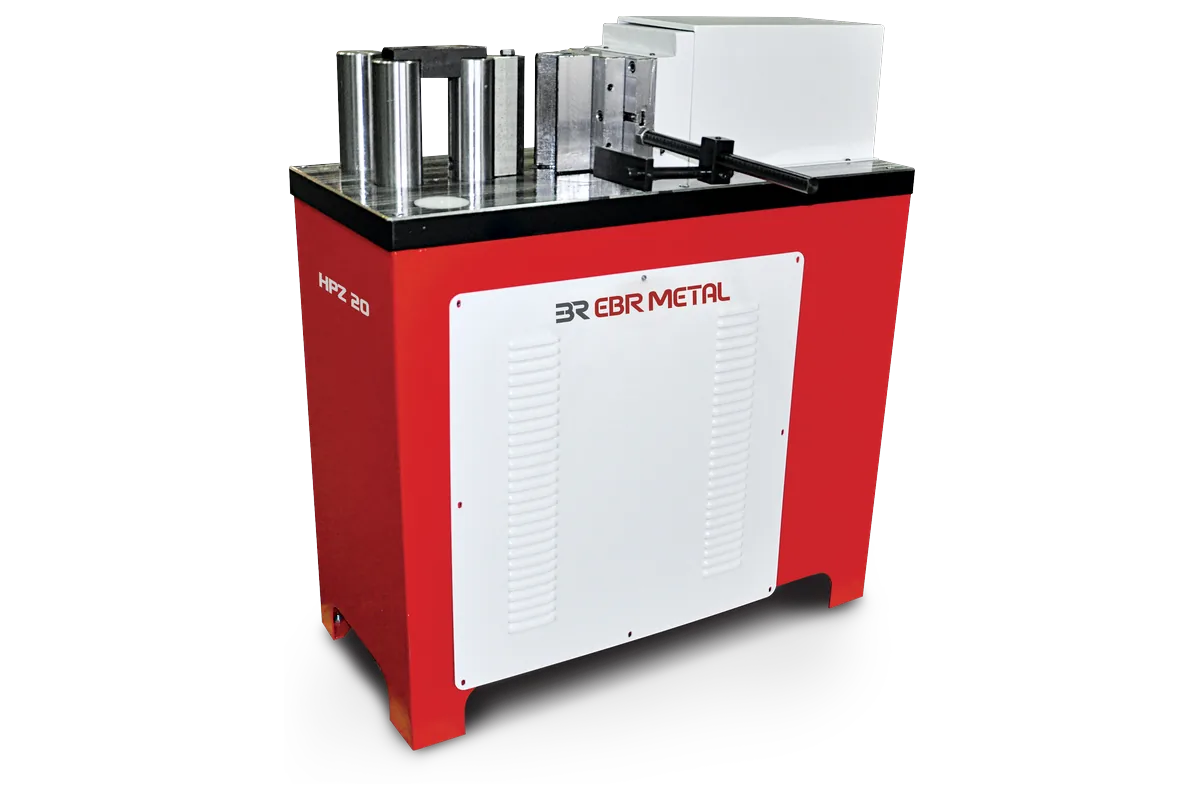

HPZ Product Gallery
HPZ General Features
- Welded steel construction with certified welding
- Horizontal ram with tooling on a flat table
- Working height 915–930 mm
- Italian hydraulic components (Duplomatic)
- Available in a CE-conform configuration for CE markets
- Built to the customer’s requirements, with other sizes on request
HPZ Standard Equipment
- Stroke adjustment by digital readout
- Manual and automatic operating modes
- Hardened and ground tooling and pins
- One set of bending tooling
- Foot pedal
HPZ Optional Equipment

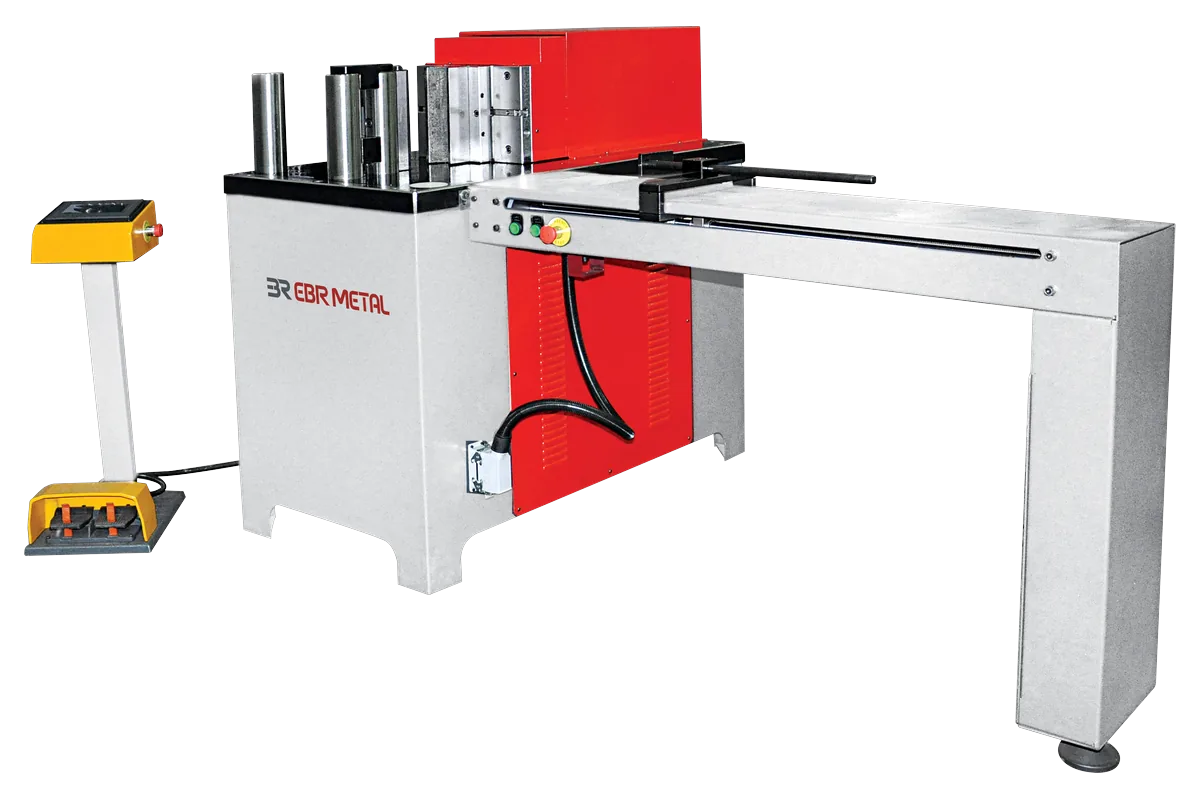

- NC control for programmable stepped bending
- Cutting, punching and straightening tools
- Pipe bending tools
- Light barrier (light curtain)
HPZ Technical Specifications
| Model | Press force (t) | Max. pressure (bar) | Stroke (mm) | Flat bar, width × thickness (mm) | Round tube, outside diameter × wall thickness (mm) | Table size (mm) | Working height (mm) | Tooling height (mm) | Bolt diameter (mm) | Working speed (mm/s) | Return speed (mm/s) | Oil tank (l) | Motor power (kW) | Width (mm) | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPZ 10 | 10 | 200 | 185 | 150x8 | 42x3.2 | 450x900 | 915 | 150 | 60 | 10 | 10 | 12 | 1.1 | 450 | 900 | 1130 | 250 |
| HPZ 20 | 20 | 200 | 185 | 200x12 | 48x4.0 | 480x1060 | 930 | 200 | 80 | 10 | 10 | 12 | 2.2 | 480 | 1150 | 1200 | 530 |
| HPZ 30 | 30 | 200 | 285 | 250x12 | 60x4.0 | 660x1250 | 930 | 250 | 80 | 10 | 10 | 40 | 3 | 650 | 1250 | 1250 | 1050 |
| HPZ 40 | 40 | 200 | 285 | 250x24 | 60x5.0 | 660x1250 | 930 | 250 | 80 | 10 | 10 | 40 | 4 | 650 | 1250 | 1250 | 1100 |
| HPZ 50 | 50 | 200 | 285 | 300x15 | 76x4.0 | 600x1250 | 930 | 300 | 90 | 10 | 10 | 60 | 5.5 | 600 | 1400 | 1500 | 1450 |
| HPZ 80 | 80 | 200 | 285 | 300x20 | 90x9 | 750x1425 | 930 | 300 | 105 | 10 | 10 | 120 | 10 | 750 | 1430 | 1450 | 1700 |
| HPZ 100 | 100 | 200 | 285 | 300x25 | 114x10 | 750x1425 | 930 | 300 | 105 | 10 | 10 | 120 | 10 | 750 | 1430 | 1450 | 1700 |
Bending capacities are given for St37 (S235) mild steel.
Speeds are typical values. Pump, motor and speeds are matched to the customer's requirements.
Choosing the HPZ Horizontal Hydraulic Press
The HPZ bends flat bar and tube at bench height. With optional tools it also cuts, punches and straightens smaller parts. For straightening shafts and bars in a vertical press, see the HPR. Sheet bending across a 1,020 or 1,520 mm table is done on the HPG.
Typical industries: ornamental and architectural ironwork, steel construction and metal fabrication.
HPZ Horizontal Hydraulic Press in Operation
Watch the EBR METAL HPZ 20 horizontal hydraulic press in operation.
HPZ 20 — Horizontal Hydraulic Press
Request a Quote for the HPZ
Send us the material and cross-section of the bar, tube or profile, the bends or operations you need (bending, cutting, punching, straightening) and the expected quantities. Include a drawing or a photo of the part, and we will propose a model and tooling.
Frequently Asked Questions About HPZ
What can the HPZ bend?
Flat bar up to 300 × 25 mm and round tube up to 114 × 10 mm, with the right tooling. Capacity depends on the model, so check the table for each size. Pipe bending tools are optional.
Which tooling comes with the HPZ?
One set of bending tooling is standard. Cutting, punching, straightening and pipe bending tools are available as options.
Is NC control available?
Yes, as an option. With NC, the back stop moves to each programmed dimension, the press bends, and the back stop moves on to the next step. Without it, the standard control unit gives manual and automatic modes, with the stroke set by digital readout and the press run from a foot pedal.
Does the HPZ work automatically?
Yes. Automatic mode is part of the standard control unit, alongside manual mode. Programmable stepped bending needs the NC option.
