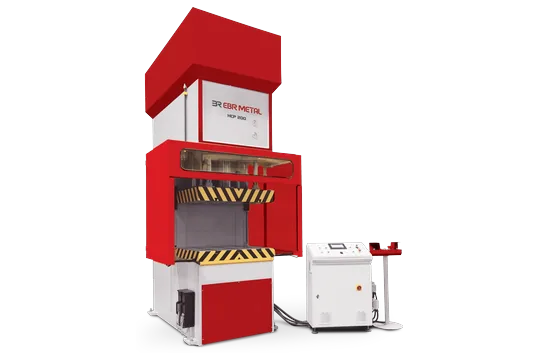

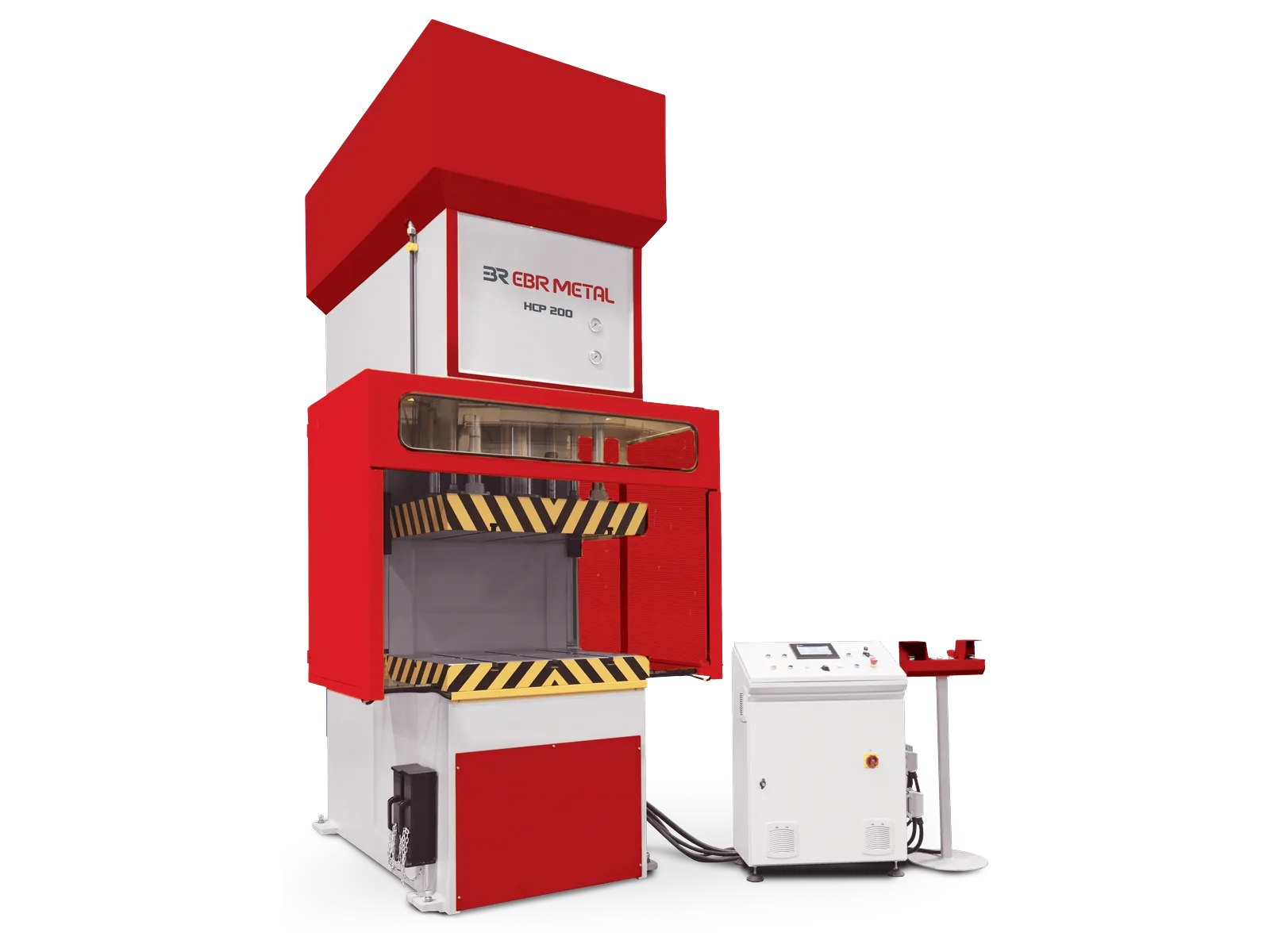

HPC C-Frame Hydraulic Press

The HPC C-frame hydraulic press from EBR METAL is a gap frame hydraulic press with an open front. The operator works straight into the die area, with pressure and stroke set on a PLC touchscreen. Typical jobs are forming, assembly and press-fit work.

Six standard models cover 40 to 200 tonnes with throat depths from 250 to 375 mm. Every press is configured to the customer’s work, and larger sizes are built on request.

• Capacity 40–200 t • Throat depth 250–375 mm • Stroke 500–800 mm • PLC touchscreen

Six standard models cover 40 to 200 tonnes with throat depths from 250 to 375 mm. Every press is configured to the customer’s work, and larger sizes are built on request.

Capacity 40–200 t
Throat depth 250–375 mm
Stroke 500–800 mm
PLC touchscreen

HPC Design

The C-frame is welded steel construction with a single main cylinder above the table. The open front leaves the die area free for loading and die changes, and the throat depth grows with capacity from 250 to 375 mm.

Working pressure is set to the job and the stroke adjusts without steps. Welding is certified, and precision parts are robot-welded.

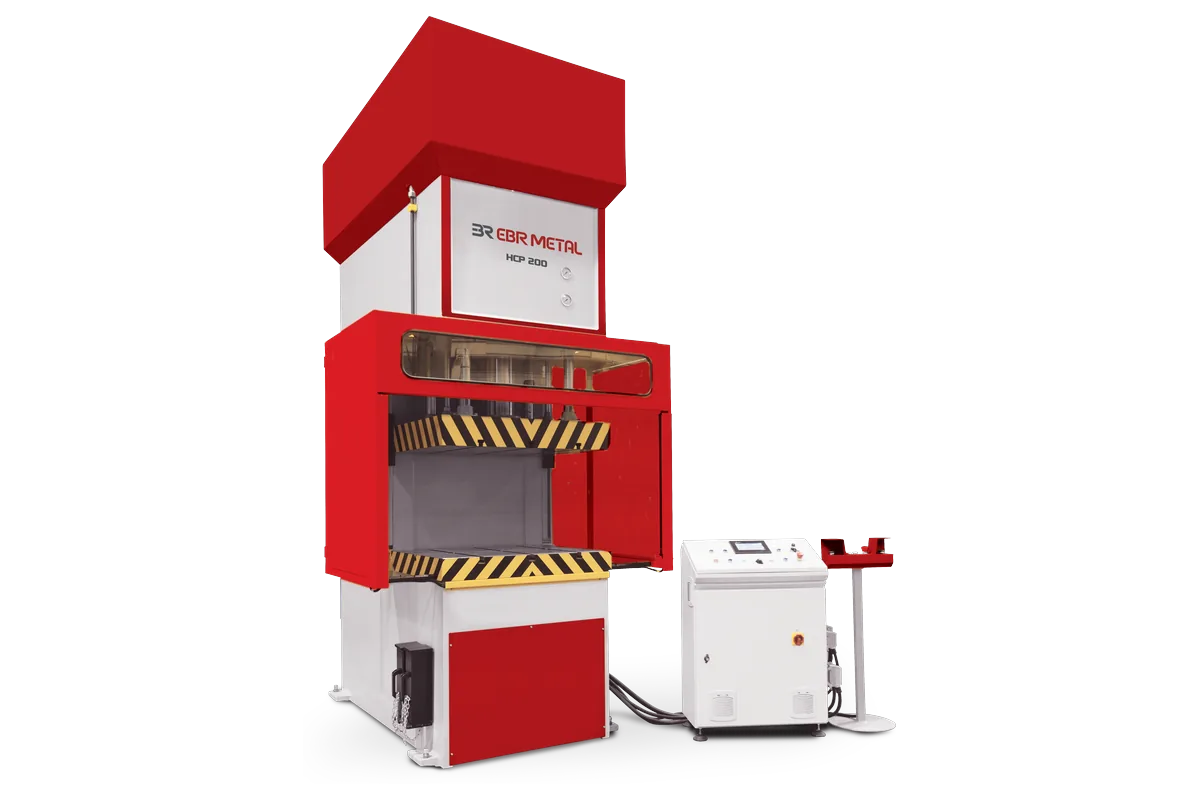

HPC Product Gallery

HPC General Features

Welded steel C-frame with open front
Single main cylinder, Ø145–320 mm depending on model
Max. working pressure 250 bar
Parallelism to ISO/DIN: ≤0.12 mm/m horizontal, 0.06 mm/m perpendicular
Bosch Rexroth or Parker hydraulics, Siemens or Schneider electrics. HAWE components are also used. Rexroth and Parker provide international warranty and service for the hydraulic system in their service regions.
Available in a CE-conform configuration for CE markets

HPC Standard Equipment

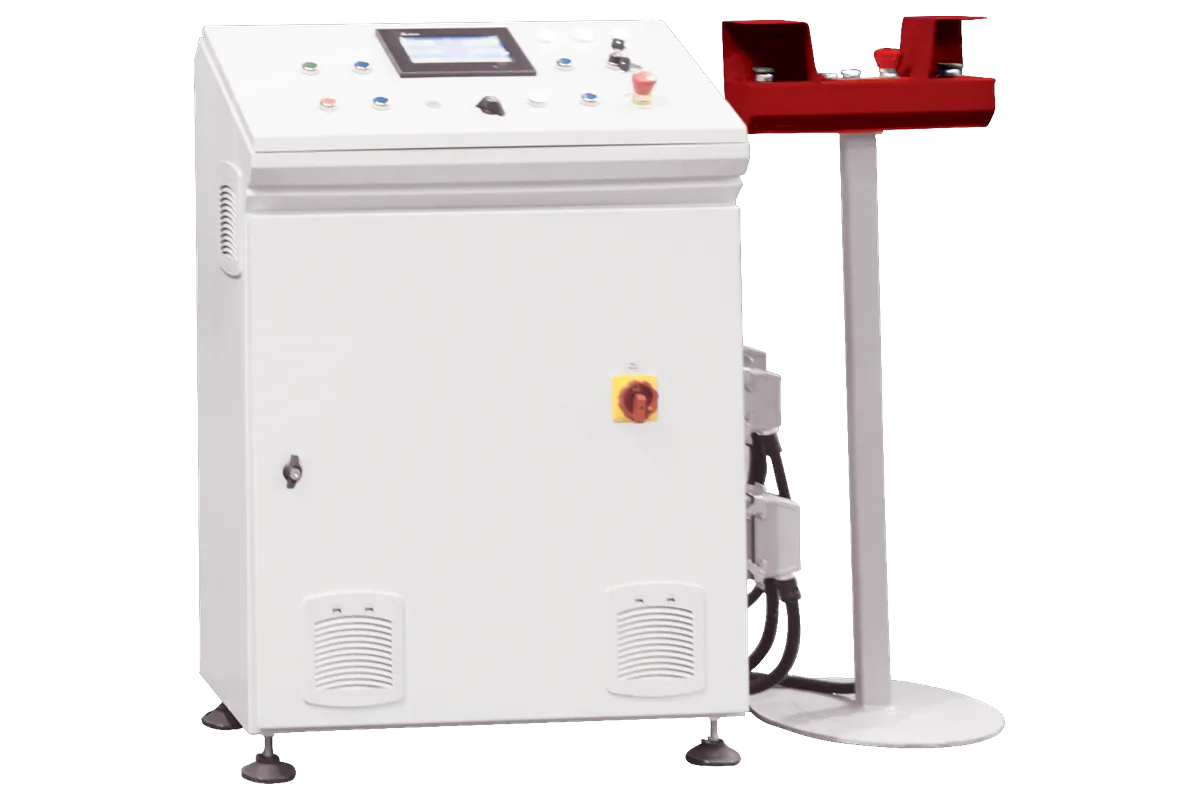

PLC with touchscreen
T-slot main table and ram table
Adjustable working pressure
Stepless stroke adjustment
Two-hand control panel

HPC Optional Equipment

Light curtain
Custom table size and stroke
Fast-approach circuit
Double-action version with die cushion
HMC (hydraulic motion control) for precision positioning
Servo-hydraulic or hybrid drive
Heated platens

Built to order: every press is configured to the customer’s work. Capacities above the standard table are available on request.

HPC Technical Specifications

Model	Capacity (t)	Stroke (mm)	Throat depth (mm)	Daylight (table–ram) (mm)	Table height from floor (mm)	Max. working pressure (bar)	Table (mm)	Main cylinder Ø (mm)	Motor power (kW)	Width (mm)	Length (mm)	Height (mm)	Approx. weight (kg)
HPC 40	40	500	250	600	850	250	500x600	145	5.5	500	1050	2400	4500
HPC 60	60	500	250	600	850	250	600x800	175	7.5	500	1150	2500	5500
HPC 80	80	600	300	700	850	250	600x800	200	15	650	1300	2600	6500
HPC 100	100	600	325	700	850	250	650x850	230	15	750	1300	2700	8500
HPC 150	150	700	350	800	850	250	700x1000	280	18.5	800	1400	2800	10500
HPC 200	200	800	375	900	850	250	750x1000	320	22	850	1500	2900	11500

Speeds depend on the pump and motor configuration and are given with the quotation.

Other tonnages, tables and strokes are built on request.

Choosing the HPC C-Frame Hydraulic Press

The HPC fits forming and pressing work where the operator needs free access to the die from the front. Choose the model by force, throat depth and table size. For deep drawing, see the HPS 4-column press or the HPHS H-frame press.

Typical industries: automotive parts, white goods, kitchen equipment and electrical components.

Request a Quote for the HPC

Send us the work you plan to do on the press, the part material and size, the force you need, the table size, the stroke and the throat depth. If you have a drawing or a photo of the part, include it and we will propose a model and configuration.
