CMF Manual Box and Pan Brake

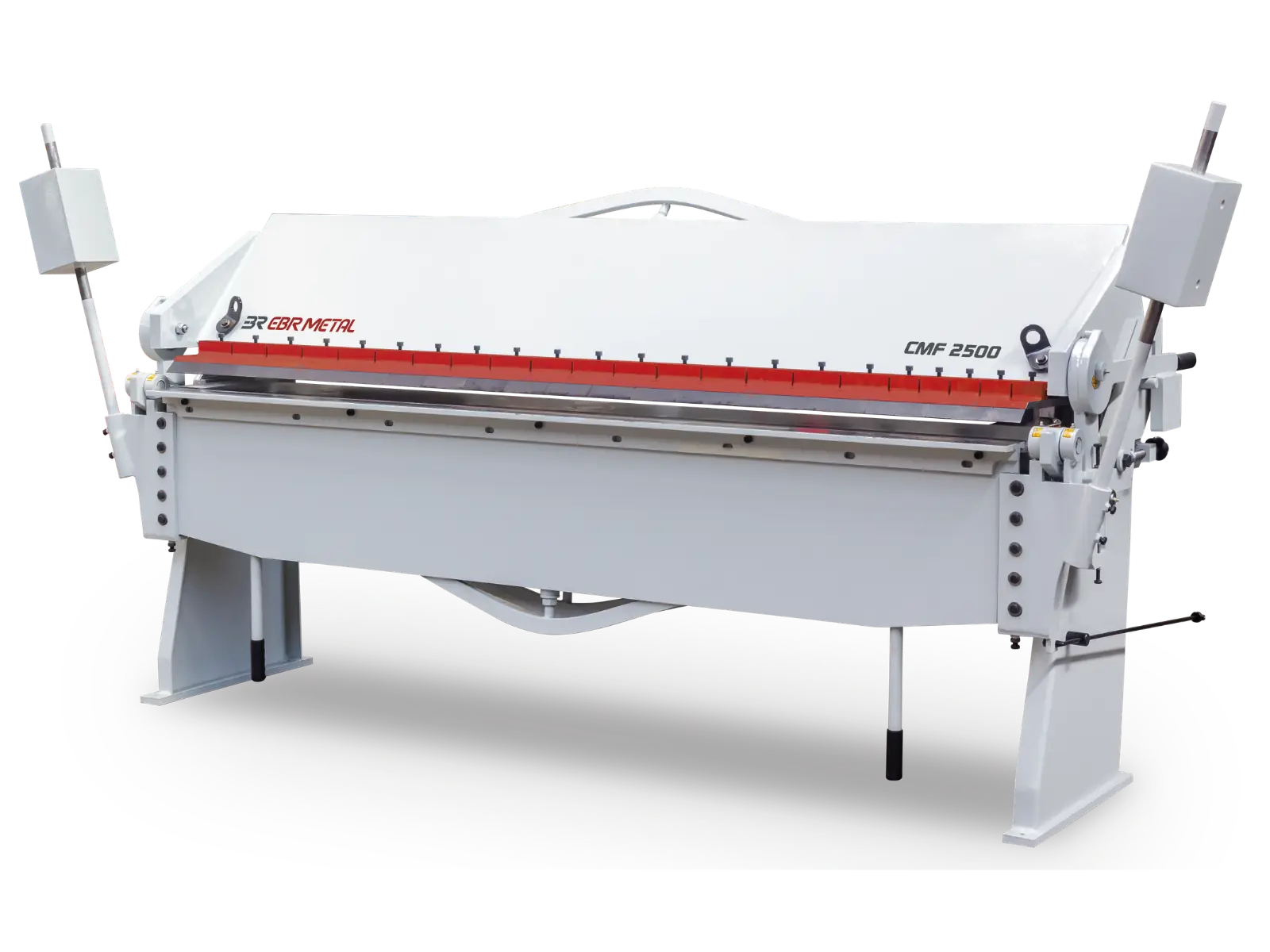

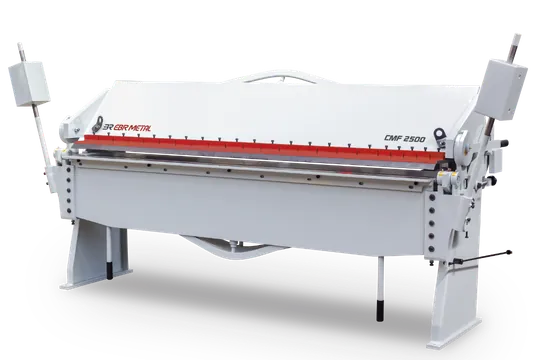

The CMF manual box and pan brake from EBR METAL is available in two working lengths — 1270 and 2500 mm.
The CMF manual box and pan brake from EBR METAL is available in two working lengths — 1270 and 2500 mm.

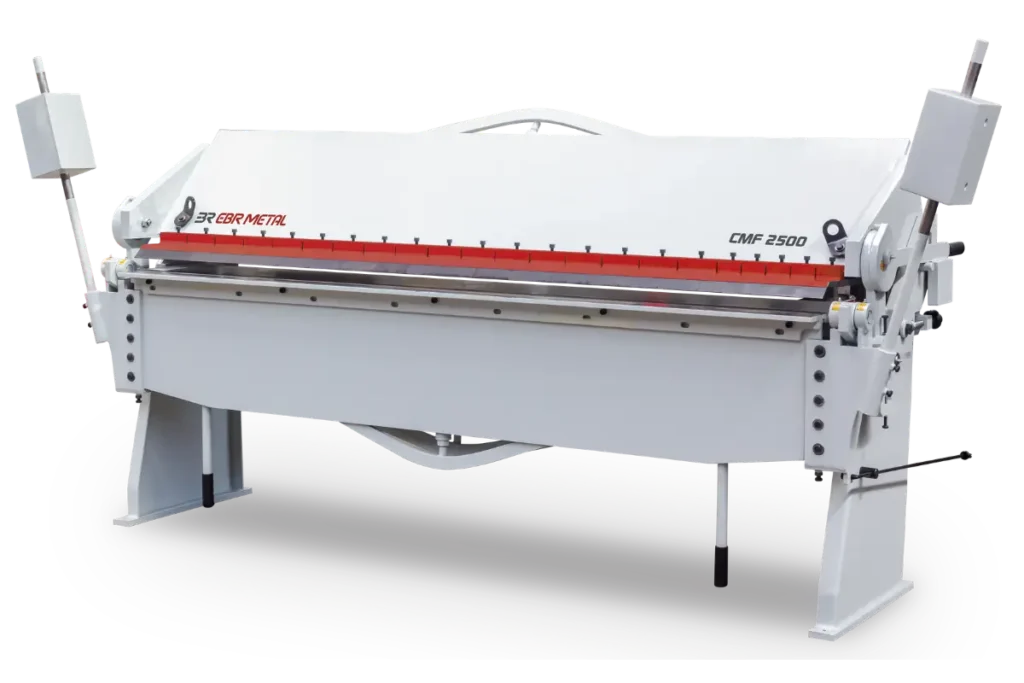

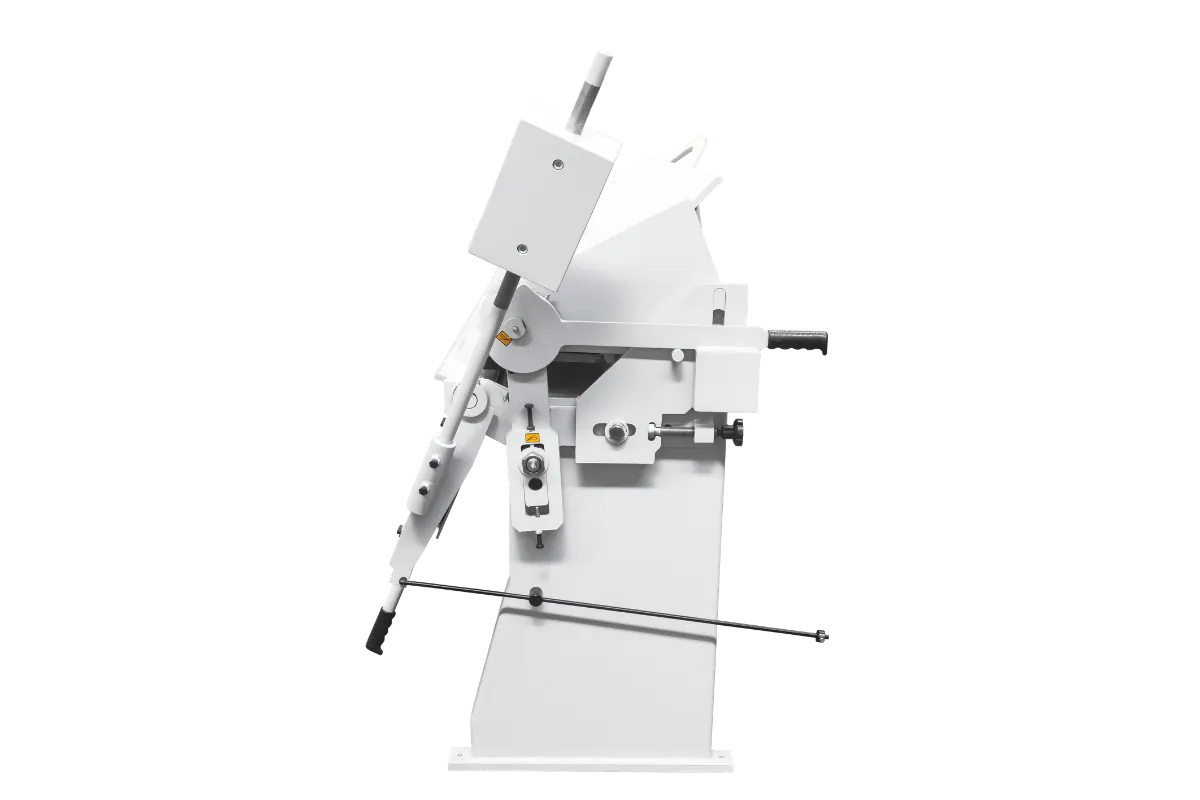

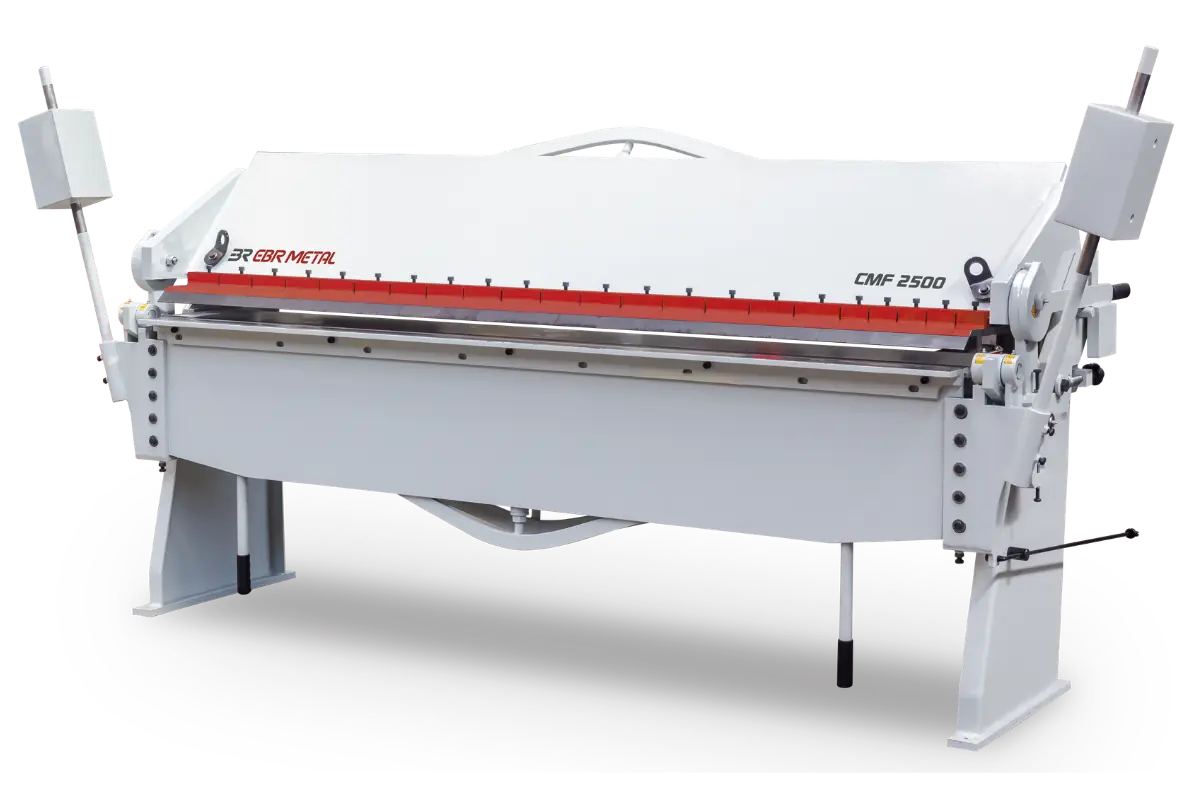

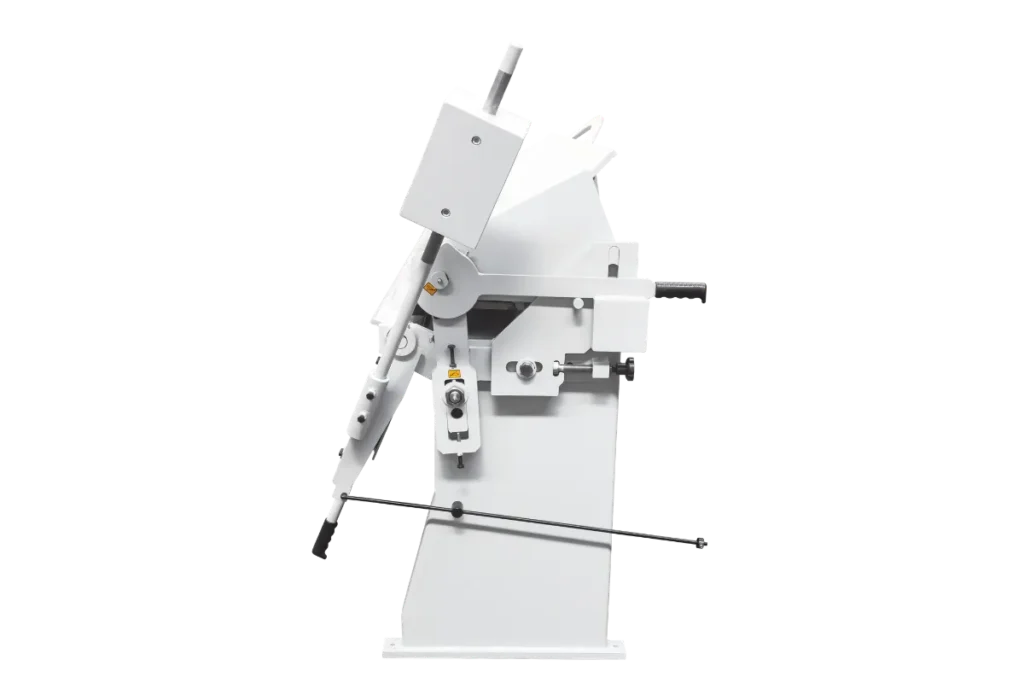

CMF Product Gallery
Construction and Standard Equipment
The CMF is built on a welded steel construction. Standard equipment includes:
– Interchangeable upper blades.
– Easily adjustable angle scale.
– Easy-to-use beam press & release system.
CMF Manual Box and Pan Brake — Technical Specifications
Capacities below reflect standard carbon/mild steel (St37) sheet. Other materials, such as stainless steel, aluminium or copper, behave differently and should be confirmed with EBR before ordering.
| Model | Working Length (mm) | Max Bending Angle | Capacity (mm) | Width (mm) | Length (mm) | Height (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| CMF 1270 | 1270 | 135° | 2.0 | 770 | 1670 | 1560 | 880 |
| CMF 2500 | 2500 | 135° | 1.5 | 770 | 3340 | 1560 | 1500 |

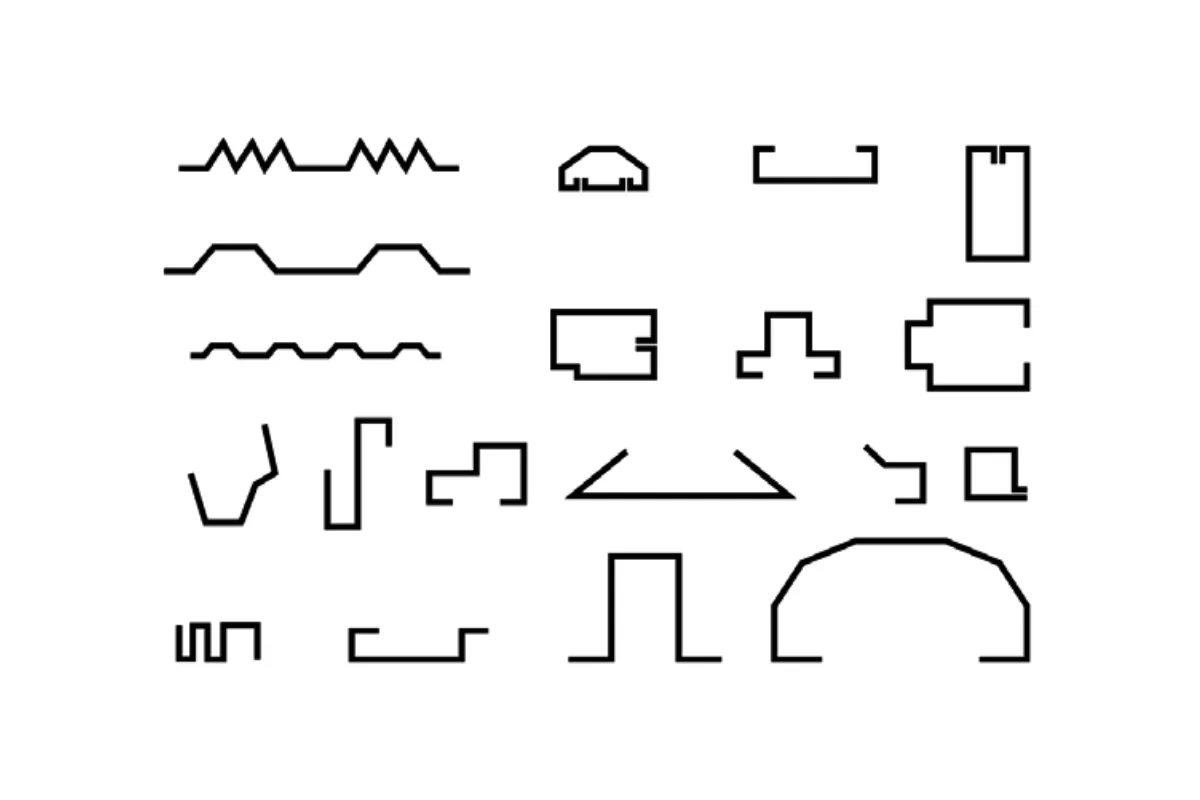

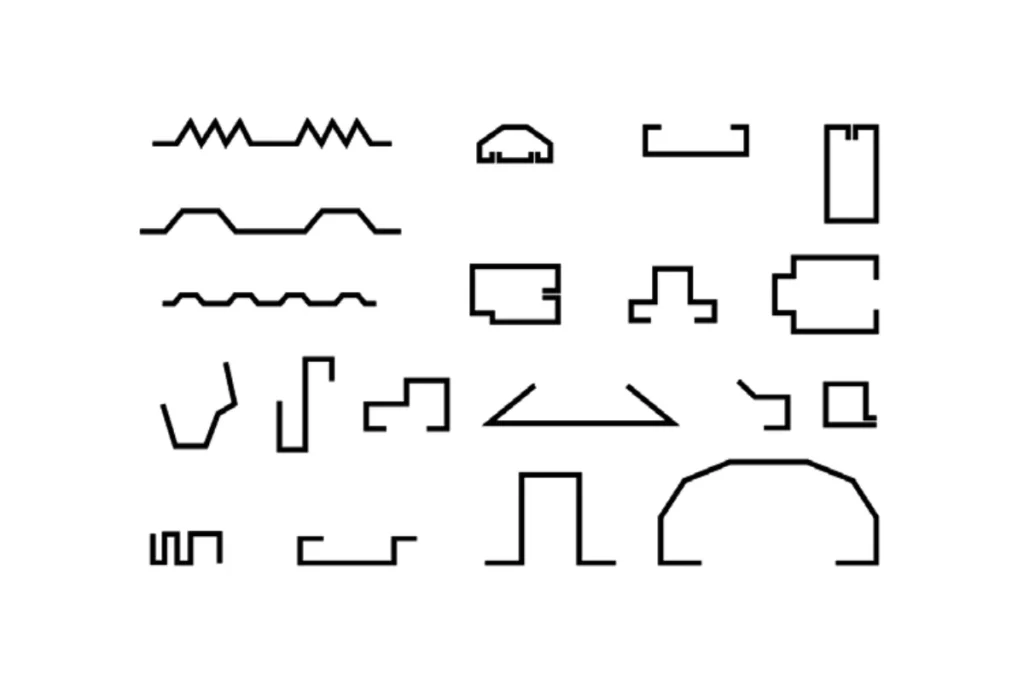

Parts, Bending Work and Selection
The CMF box and pan folder handles trays, return flanges and similar formed shapes within its working length and capacity. CMF and CMP are both manual box-and-pan brakes; see our Manual Folding Machines hub for a full comparison between the two, including tooling and working-length differences.
To confirm whether CMF is the right fit for your job, tell us your material, the required bending length and the maximum thickness. For complex or box-and-pan shapes, we’ll also need a technical drawing.
Request a Quote — send your material, bending length and thickness
Frequently Asked Questions
What is the difference between CMF and CMP?
Both are manual box-and-pan brakes. See our Manual Folding Machines hub for the full comparison — CMP offers three working lengths (1260, 2060 and 2560 mm) and an optional segmented lower-blade configuration.
What material does the technical table's capacity apply to?
The listed capacities reflect standard carbon/mild steel (St37) sheet. Other materials behave differently and should be confirmed with EBR before ordering.
