EHGM-LT NC Hydraulic Shearing Machine
EHGM-LT is EBR METAL’s NC hydraulic shearing machine, built on a monoblock steel frame for industrial sheet-metal cutting. It forms part of EBR METAL’s sheet metal cutting machines range.
It is a hydro-mechanical guillotine shear. Hydraulic power drives the cut and the return stroke. Blade gap is set through the NC controller, and a 750 mm NC-controlled motorized backgauge positions the material. That keeps operation straightforward for shops whose cutting requirements stay fairly consistent.
- Hydraulically driven cutting and return system
- Motorized blade-gap adjustment set through the NC controller
- 750 mm NC-controlled motorized backgauge (standard)
• NC-controlled hydro-mechanical guillotine shear • Hydraulically driven cutting and return system
EHGM-LT is EBR METAL’s NC hydraulic shearing machine, built on a monoblock steel frame for industrial sheet-metal cutting. It forms part of EBR METAL’s sheet metal cutting machines range.
It is a hydro-mechanical guillotine shear. Hydraulic power drives the cut and the return stroke. Blade gap is set through the NC controller, and a 750 mm NC-controlled motorized backgauge positions the material. That keeps operation straightforward for shops whose cutting requirements stay fairly consistent.
- Hydraulically driven cutting and return system
- Motorized blade-gap adjustment set through the NC controller
- 750 mm NC-controlled motorized backgauge (standard)
- NC-controlled hydro-mechanical guillotine shear
- Hydraulically driven cutting and return system

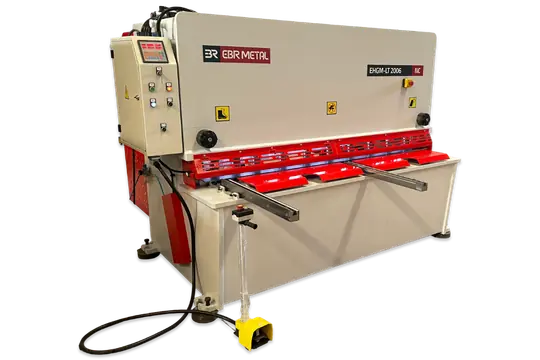

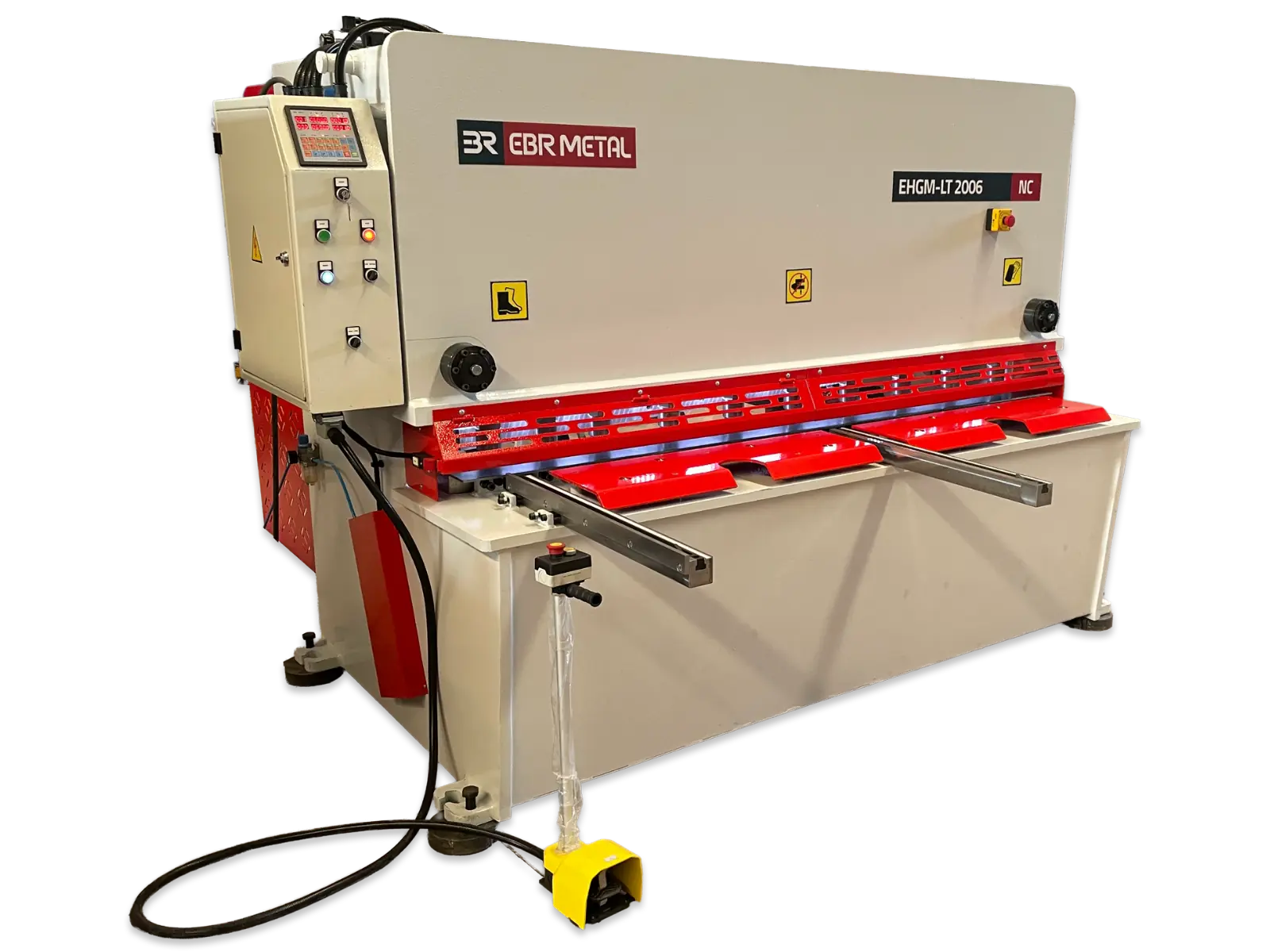

EHGM-LT NC Hydraulic Guillotine Shear
As an NC hydraulic shearing machine, EHGM-LT brings NC control, hydro-mechanical guillotine construction and a motorized blade-gap system together in one monoblock steel frame. Hydraulic power drives the cut and return, and a 750 mm NC-controlled backgauge positions the sheet. The EHGM comparison below explains how the two control approaches differ when selecting a machine.

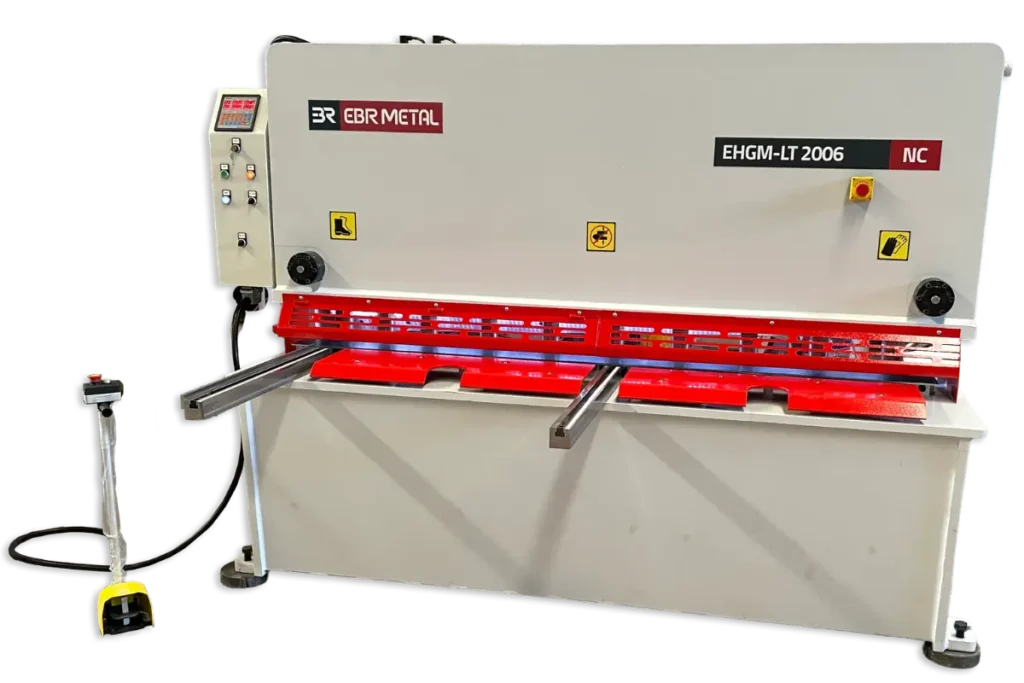

Real photography and a video are available for an EHGM-LT 2100 × 6 machine. Additional photos and video appear in the gallery below.

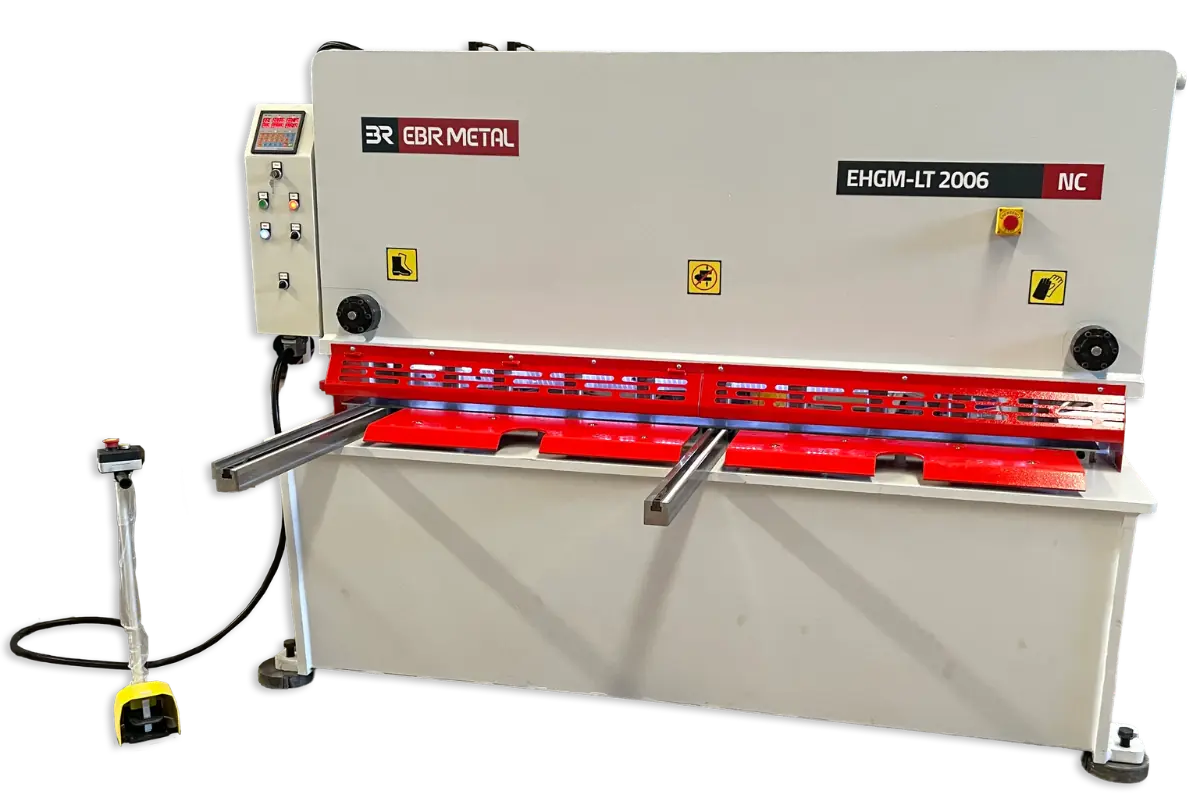

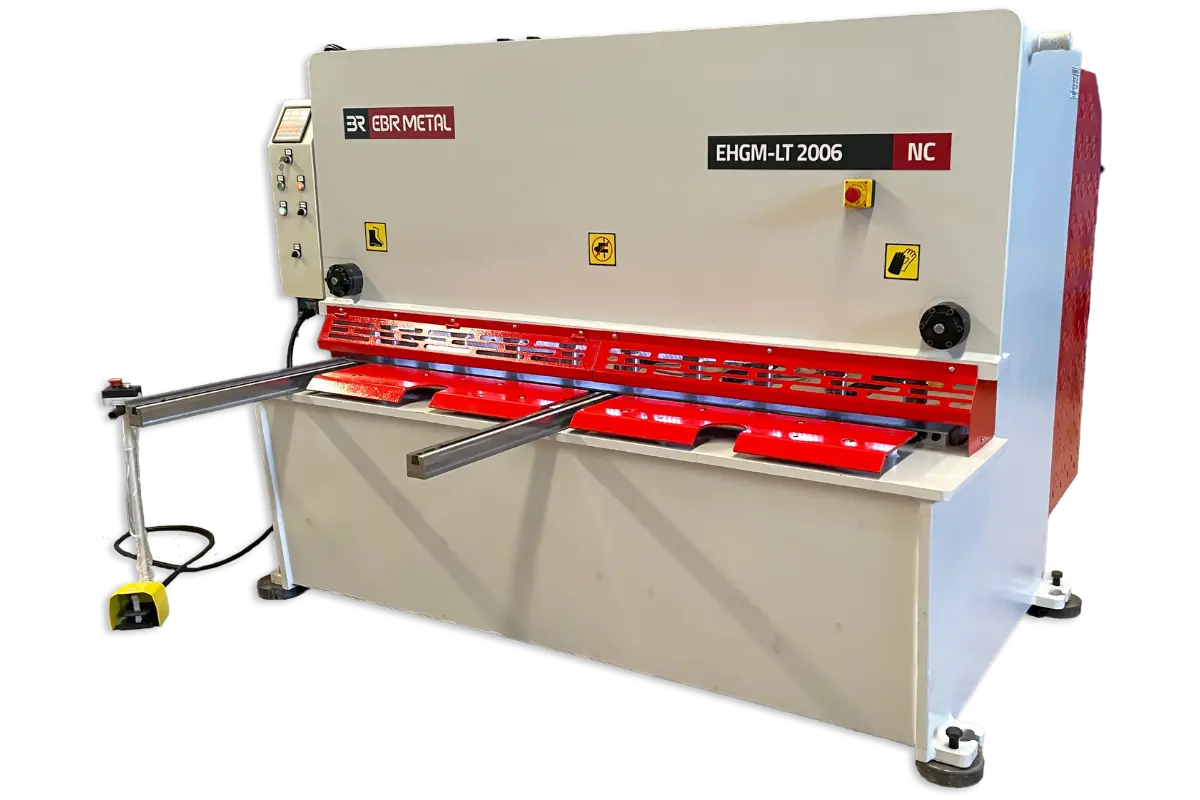

EHGM-LT Product Gallery
Standard Equipment
Standard EHGM-LT equipment includes:
- NC controller
- Monoblock steel construction
- 750 mm NC-controlled motorized backgauge
- Motorized blade-gap adjustment, set through sheet-thickness input on the NC controller
- Standard grease points at the relevant lubrication locations
- Hydraulic hold-down / sheet-clamping system
- Adjustable cutting length
- Hardened and ground upper and lower blades

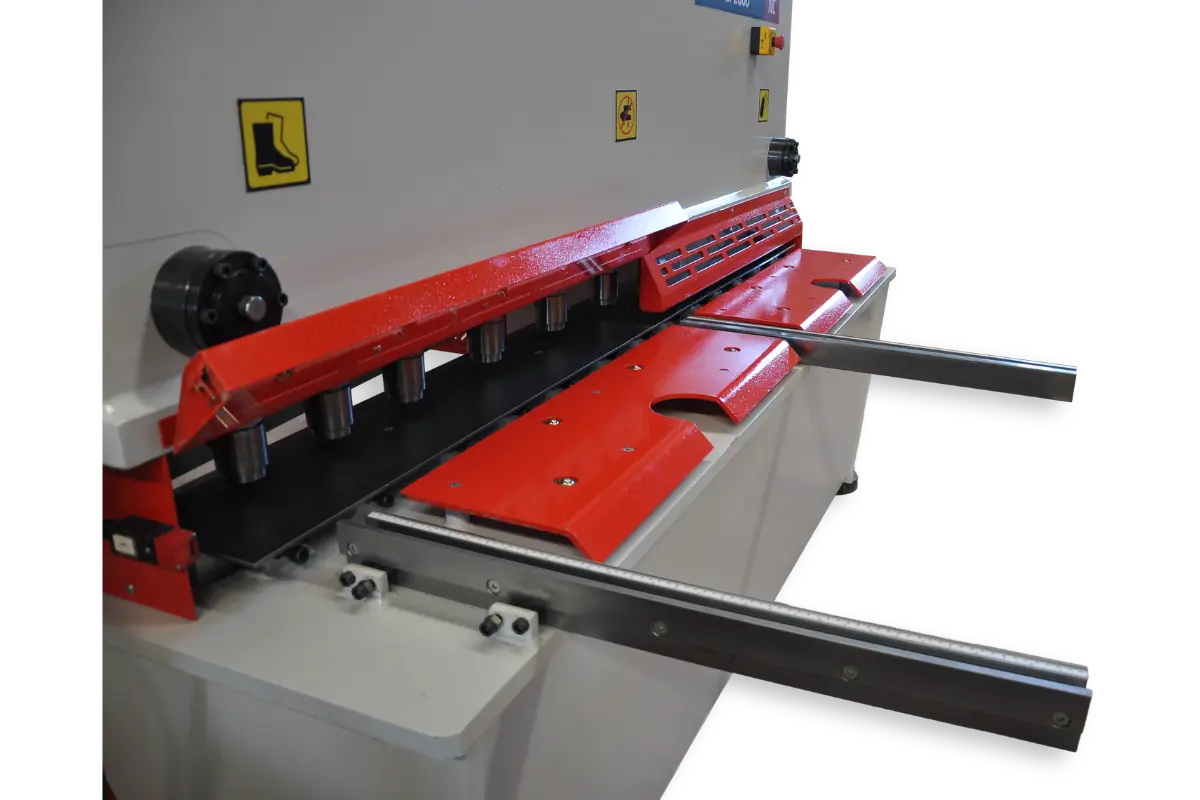

- Openable finger-protection system
- Sheet-metal sliding table
- 800 mm front support arms
- Cutting-line lighting system
- Rear safety sensor
- Hydraulic cutting and hydraulic return system
- Hydraulic crawler pump
- CE certificate
Hydraulic components are normally selected from Rexroth, Hoerbiger or equivalent-quality suppliers; electrical equipment is normally selected from ABB, Schneider, Siemens or equivalent-quality suppliers, according to configuration and availability.
Optional Equipment
Available EHGM-LT nc hydraulic shearing machine options include:
Backgauge and Sheet Handling

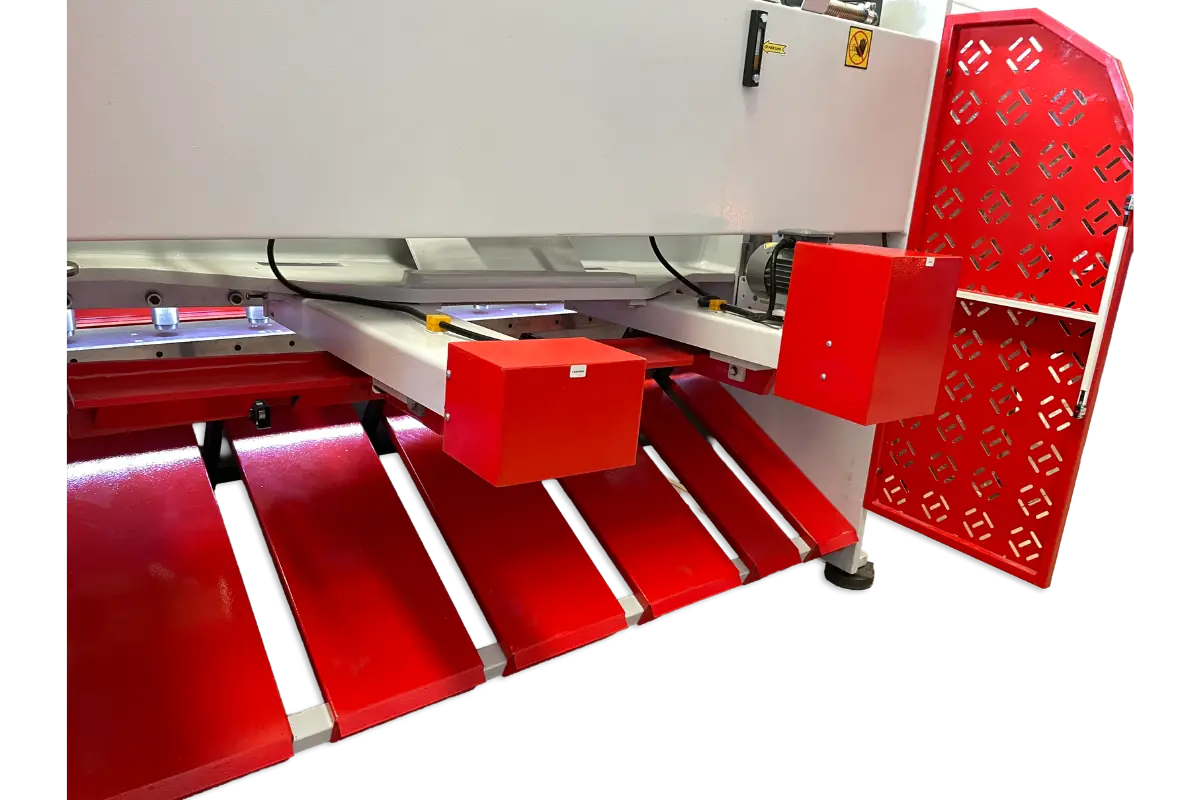

- Pneumatic rear sheet-support system, Eco
- NC-controlled servo-motorized backgauge
- 1000 mm backgauge, X axis
- Front angle gauge
The required backgauge configuration is confirmed during machine selection.
Controller
- Elgo P40T controller
Safety
- Light curtains instead of the finger-protection cage
- Front finger protection
- Rear light curtains, 900 mm
Lubrication and Hydraulic-Temperature Management
- Manual central lubrication system with hand pump — lubrication lines connect the relevant points to one central unit, operated manually
- Automatic central lubrication system — electrically operated and automatic
- Oil heater
- Oil cooler
Other Options
- Extra upper and lower blade
- Special colour
- Country- and customer-specific electrical configuration where applicable
EHGM-LT Technical Specifications
Compare EHGM-LT models by cutting length, sheet thickness capacity and the specifications relevant to your production requirements.
| Model | Cutting Length (mm) | Cutting Capacity 450 N/mm² (mm) | Cutting Capacity 700 N/mm² (mm) | Cutting Angle (°) | Strokes per Minute | Holddown Cylinder (Qty) | Main Motor (kW) | Backgauge Motor (kW) | Backgauge Stroke (mm) | Oil Capacity (lt) | Backgauge Speed (mm/s) | Sheet Support Arms (Qty) | Table Height (mm) | Distance Between Columns (mm) | Machine Length (mm) | Machine Width (mm) | Machine Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EHGM-LT 2006 | 2100 | 6 | 4 | 1,5 | 21/30 | 10 | 11 | 0,75 | 750 | 160 | 110 | 2 | 770 | 2540 | 3000 | 2650 | 1740 | 4100 |
| EHGM-LT 2008 | 2100 | 8 | 5 | 1,9 | 18/23 | 10 | 15 | 0,75 | 750 | 160 | 110 | 2 | 790 | 2540 | 3000 | 2650 | 1950 | 4800 |
| EHGM-LT 2010 | 2100 | 10 | 6 | 2 | 17/21 | 10 | 22 | 0,75 | 750 | 180 | 110 | 2 | 820 | 2540 | 3000 | 2650 | 2050 | 5900 |
| EHGM-LT 2013 | 2100 | 13 | 8 | 2,2 | 15/18 | 10 | 22 | 0,75 | 750 | 180 | 110 | 2 | 840 | 2540 | 3000 | 2650 | 2050 | 7000 |
| EHGM-LT 2506 | 2600 | 6 | 4 | 1,5 | 20/26 | 11 | 11 | 0,75 | 750 | 160 | 110 | 2 | 770 | 3040 | 3500 | 2650 | 2050 | 5200 |
| EHGM-LT 2508 | 2600 | 8 | 5 | 1,9 | 15/18 | 11 | 15 | 0,75 | 750 | 180 | 110 | 2 | 790 | 3040 | 3500 | 2650 | 2050 | 6300 |
| EHGM-LT 2510 | 2600 | 10 | 6 | 2 | 15/18 | 11 | 22 | 0,75 | 750 | 200 | 110 | 2 | 820 | 3040 | 3500 | 2650 | 2200 | 7800 |
| EHGM-LT 2513 | 2600 | 13 | 8 | 2,2 | 11/17 | 11 | 22 | 0,75 | 750 | 200 | 110 | 2 | 840 | 3040 | 3500 | 2650 | 2200 | 8200 |
| EHGM-LT 3006 | 3100 | 6 | 4 | 1,5 | 15/18 | 14 | 11 | 0,75 | 750 | 200 | 110 | 2 | 770 | 3540 | 4000 | 2650 | 1740 | 5800 |
| EHGM-LT 3008 | 3100 | 8 | 5 | 1,9 | 13/18 | 14 | 15 | 0,75 | 750 | 220 | 110 | 2 | 790 | 3620 | 4100 | 2900 | 1950 | 7000 |
| EHGM-LT 3010 | 3100 | 10 | 6 | 2 | 13/18 | 14 | 22 | 0,75 | 750 | 220 | 110 | 2 | 820 | 3650 | 4250 | 3100 | 2050 | 8800 |
| EHGM-LT 3013 | 3100 | 13 | 8 | 2,2 | 11/17 | 14 | 22 | 0,75 | 750 | 220 | 110 | 2 | 840 | 3650 | 4250 | 3100 | 2050 | 9300 |
| EHGM-LT 4006 | 4100 | 6 | 4 | 1,5 | 13/20 | 18 | 11 | 0,75 | 750 | 265 | 110 | 3 | 790 | 4540 | 5100 | 3250 | 2050 | 9800 |
| EHGM-LT 4008 | 4100 | 8 | 5 | 1,9 | 11/17 | 18 | 15 | 0,75 | 750 | 265 | 110 | 3 | 790 | 4540 | 5100 | 3250 | 2150 | 13000 |
| EHGM-LT 4010 | 4100 | 10 | 6 | 2 | 11/17 | 18 | 22 | 0,75 | 750 | 265 | 110 | 3 | 820 | 4650 | 5250 | 3350 | 2250 | 14500 |
| EHGM-LT 4013 | 4100 | 13 | 8 | 2,2 | 10/16 | 18 | 22 | 0,75 | 750 | 265 | 110 | 3 | 840 | 4650 | 5250 | 3350 | 2250 | 15200 |
Cutting capacities are specified separately for material tensile strengths of 450 N/mm² and 700 N/mm². Use the capacity value corresponding to the individual EHGM-LT model and required cutting length.
For materials outside the stated tensile-strength ratings, contact EBR METAL to confirm suitability for your material, thickness range, cutting length and expected workload.
NC Control and Motorized Blade-Gap Adjustment

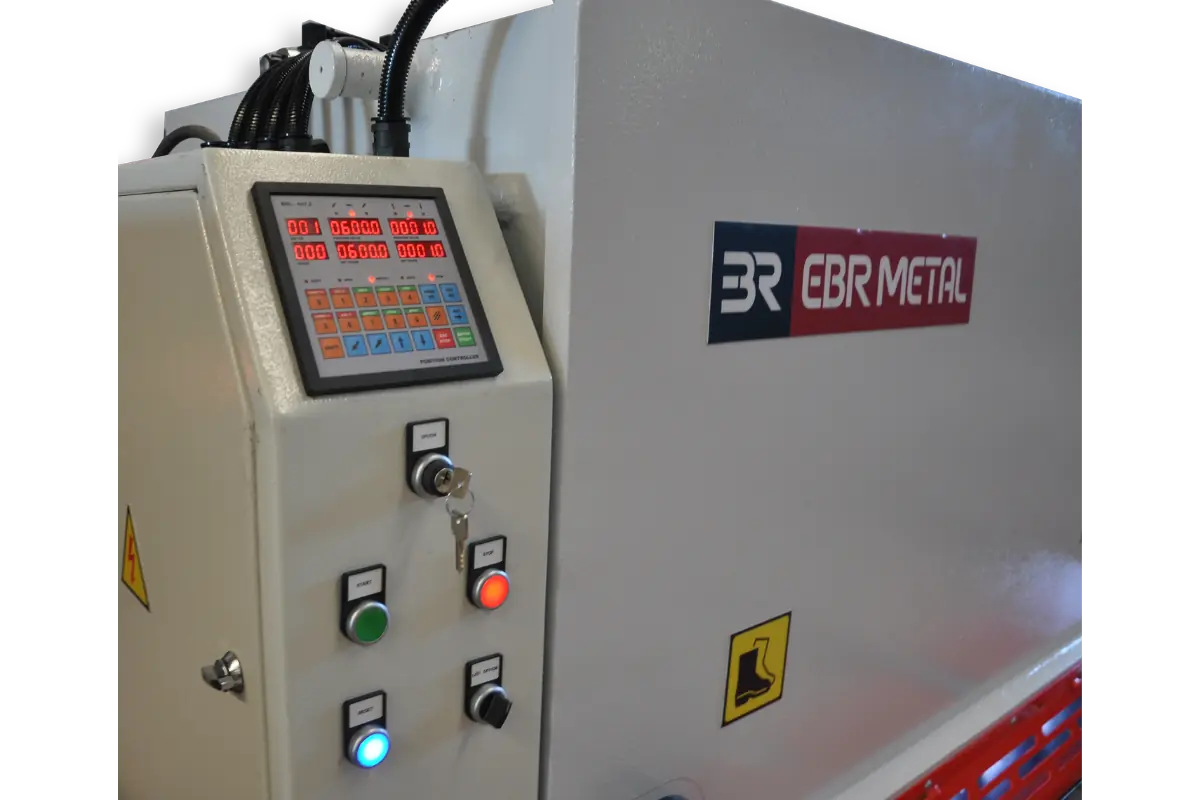

EHGM-LT is controlled through an NC controller rather than a CNC system. The operator enters the sheet thickness through the controller, and a motorized system then adjusts the blade gap to match.
An Elgo P40T controller is available as an optional upgrade. It is not fitted as standard.
Cutting Angle Fixed by Model
EHGM-LT’s cutting angle is fixed. It is set according to the machine’s size and capacity during manufacture, and the operator cannot adjust it once the machine is built.
EHGM’s CNC range takes a different approach, with a rake angle the operator can adjust through the control system. The choice between a fixed and an adjustable angle depends on how often materials, thicknesses and cutting requirements change on the shop floor.
EHGM-LT uses an upper blade with two cutting edges and a lower blade with four. When one cutting edge becomes worn, another available edge can be brought into service by repositioning the blade. The blades can also be reground for further use where technically appropriate.
750 mm NC-Controlled Motorized Backgauge
EHGM-LT nc hydraulic shearing machine comes standard with a 750 mm NC-controlled motorized backgauge. The drive is motorized, not servo.
Two further configurations are available: an NC-controlled servo-motorized backgauge and a 1000 mm X-axis backgauge. EBR METAL confirms the right configuration against the required backgauge travel and cutting application.
Hydraulic Cutting and Return System
EHGM-LT is a hydro-mechanical guillotine shear: hydraulic power drives both the cut and the return stroke. Its cutting mechanism differs from a classic swing-beam shear, and the cutting angle is set according to the model’s size and capacity during manufacture.
Hydraulic and electrical components are selected from established suppliers such as Rexroth, Hoerbiger, ABB, Schneider and Siemens, or equivalent-quality alternatives according to configuration and availability.
Sheet Handling and Support

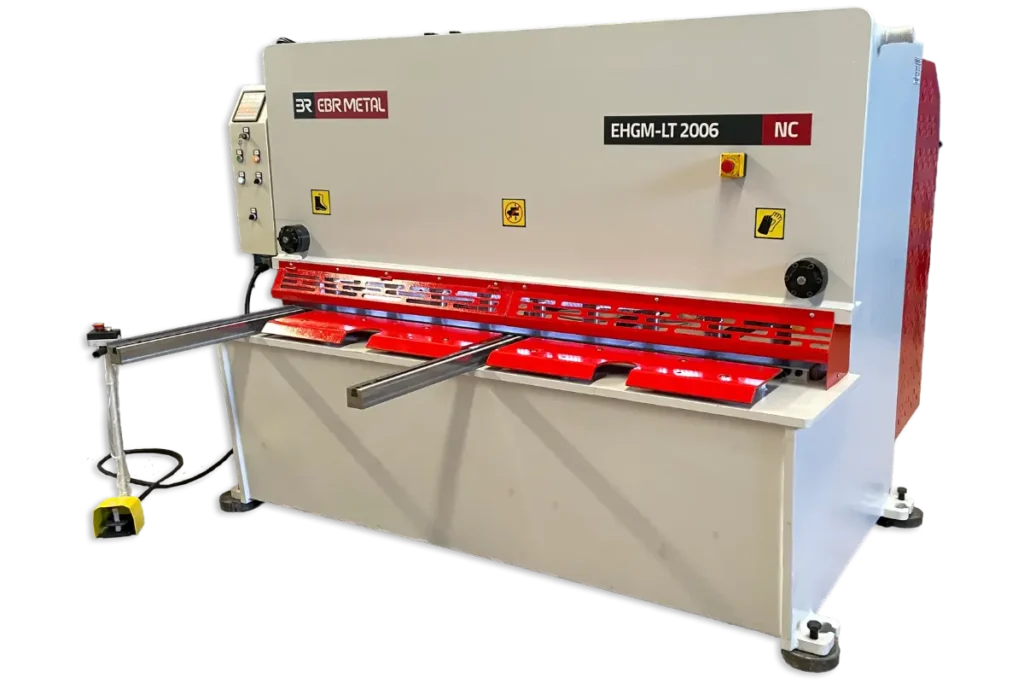

EHGM-LT combines a hydraulic hold-down system with a sheet-metal sliding table and 800 mm front support arms to hold the sheet steady during cutting. Cutting-line lighting keeps the cutting area visible. The rear safety sensor and openable finger-protection system round out the machine’s safety equipment.

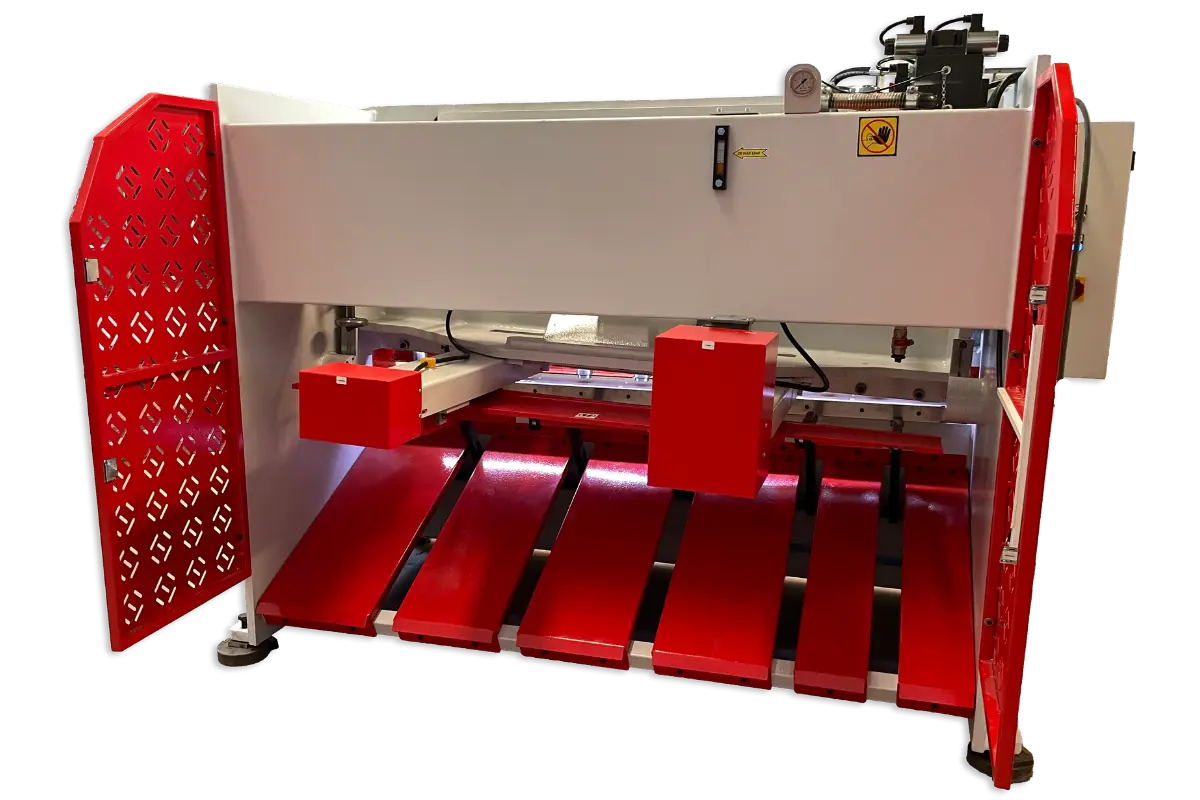

An optional pneumatic rear sheet support (Eco) suits applications that benefit from powered rear support. The available sheet-handling configurations are listed under Optional Equipment below.
EHGM-LT or EHGM?
EBR METAL manufactures two hydraulic guillotine shear ranges with different levels of machine control.
| Selection Point | EHGM-LT | EHGM |
|---|---|---|
| Control | NC | CNC |
| Hydraulic cutting and return | Yes | Yes |
| Cutting angle | Fixed, set per model during manufacture | CNC adjustable |
| Blade-gap adjustment | Motorized, set through NC controller after thickness input | CNC controlled, determined from machine settings and operator-adjustable |
| Backgauge | 750 mm NC-controlled motorized backgauge as standard; servo-motorized and 1000 mm options available | 1,000 mm CNC-controlled programmable motorized backgauge |
| Typical selection starting point | More consistent cutting requirements, straightforward NC operation and lower initial investment | Materials, thicknesses or cutting setups that change regularly, or applications requiring greater parameter flexibility |
EHGM-LT nc shearing machine suits buyers whose cutting requirements stay fairly consistent and who do not need the broader parameter flexibility of the EHGM CNC series. Its NC-controlled setup keeps operation simple, with a lower initial investment than EHGM.
Typical EHGM-LT Applications
This hydraulic NC shearing machine suits workshops with fairly consistent cutting requirements, including steel-product manufacturing and thicker-sheet work that does not involve continuous high-volume cutting.
For near-constant, high-volume production, such as steel service centres, tell us the expected workload so we can confirm the right model.
EHGM-LT NC Hydraulic Guillotine Shear in Operation
Real product video is available for an EHGM-LT 2106 machine.
EHGM-LT 2106 — Sheet Cutting Demonstration
Selecting the Right EHGM-LT for Your Cutting Requirements
Choosing the right EHGM-LT model starts with the cutting job, not a single thickness figure. To recommend the appropriate model, EBR METAL asks for:
1. Material type
2. Maximum sheet thickness
3. Minimum sheet thickness, when available
4. Maximum required cutting width/length
5. Expected operating intensity
6. Whether the machine will be used in a high-volume environment such as a steel service centre
7. Required backgauge travel
8. Whether pneumatic rear sheet support is needed
9. Relevant electrical, safety and environmental configuration requirements
10. Other required options
EBR METAL checks the complete cutting requirement against the EHGM-LT technical table.
Need help selecting the right EHGM-LT NC hydraulic shearing machine? Tell us your material type, minimum and maximum sheet thickness, required cutting length and expected workload. EBR METAL can recommend the appropriate model, backgauge configuration and sheet-support options for your application.
Frequently Asked Questions About EHGM-LT
Is the EHGM-LT an NC- or CNC-controlled machine?
The EHGM-LT is an NC shearing machine, not a CNC-controlled model. Elgo P40T is available as an optional controller.
How is blade clearance adjusted on the EHGM-LT?
Blade clearance is set through the NC controller. The operator enters the sheet thickness, and the standard motorized system positions the blade gap to match.
Does the EHGM-LT use a hydraulic or mechanical operating system?
EHGM-LT is a hydro-mechanical guillotine shear. Hydraulic power drives both the cutting stroke and the return, and the machine differs from a classic swing-beam design.
What is the EHGM-LT warranty period?
EHGM-LT carries a two-year warranty.
How do I select the right EHGM-LT model?
Model selection starts with material type, sheet thickness range, and required cutting width and length. Expected operating intensity matters too, including whether the machine will run in a high-volume environment such as a steel service centre. Providing these details allows EBR METAL to recommend the appropriate model and configuration.
What is the difference between the EHGM-LT and EHGM?
EHGM-LT is EBR METAL's NC-controlled hydraulic guillotine shear, with a fixed cutting angle per model and a 750 mm NC-controlled motorized backgauge as standard. EHGM is the CNC-controlled range, with a user-adjustable rake angle and a 1,000 mm CNC-controlled programmable backgauge. EHGM-LT suits more consistent cutting requirements at a lower initial investment, while EHGM fits jobs that change more frequently and need broader parameter flexibility.
Which backgauge and sheet-support options are available?
Available backgauge configurations include an NC-controlled servo-motorized backgauge and a 1000 mm X-axis backgauge. Pneumatic rear sheet support (Eco) is also available as an option. The standard 750 mm backgauge is motorized, not servo-driven, and EBR METAL confirms the required configuration during machine selection.
