PBH 4V 4-Roll Profile Bending Machine
The PBH 4V is a 4-roll profile bending machine for tube, pipe, flat bar, angle, channel and beams. The bottom and side rolls move up and down hydraulically, so the operator can hold the section, pre-bend its ends and roll the curve without taking the part out of the machine.

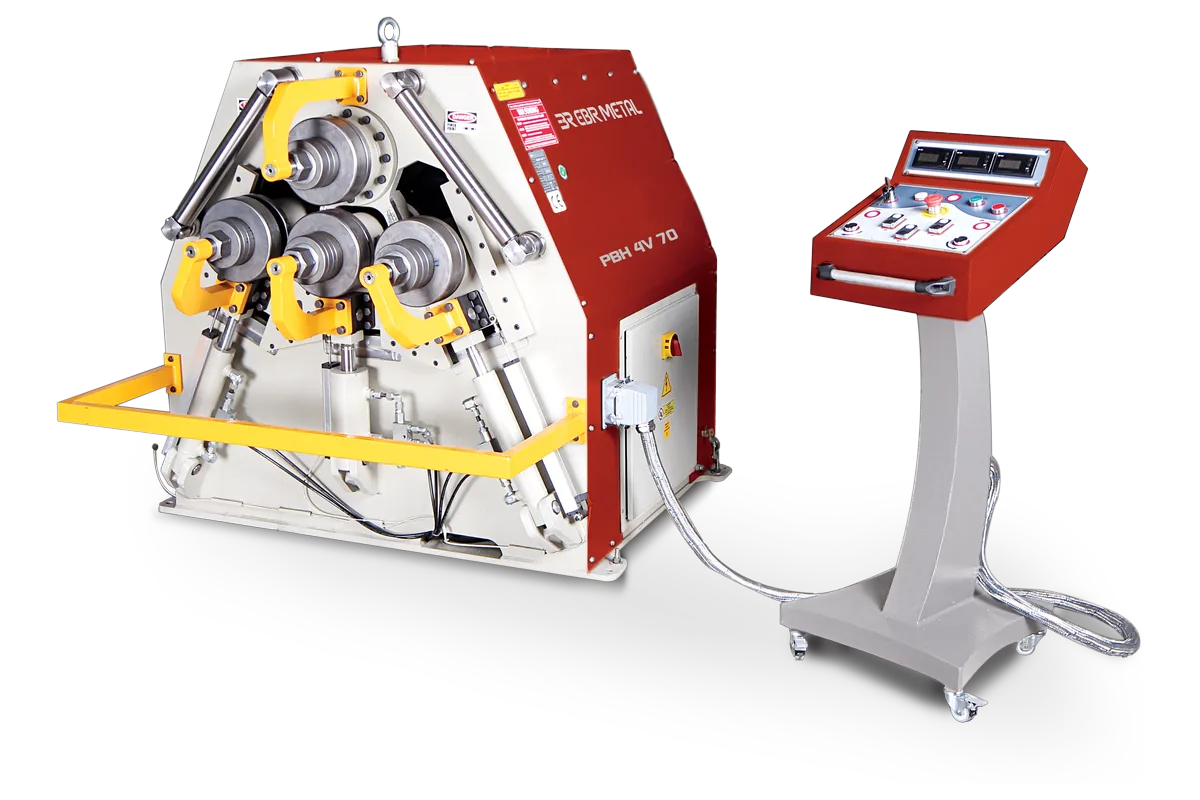

Three sizes: PBH 4V 70, 90 and 110. On all three the top and bottom rolls are driven through planetary reducers and the side rolls run free. All three work in the horizontal and the vertical position.
• 4 rolls • top and bottom rolls driven • Shafts Ø70–110 mm • Up to UPN 180 / IPN 180 • Horizontal and vertical working
The PBH 4V is a 4-roll profile bending machine for tube, pipe, flat bar, angle, channel and beams. The bottom and side rolls move up and down hydraulically, so the operator can hold the section, pre-bend its ends and roll the curve without taking the part out of the machine.
Three sizes: PBH 4V 70, 90 and 110. On all three the top and bottom rolls are driven through planetary reducers and the side rolls run free. All three work in the horizontal and the vertical position.
- 4 rolls
- top and bottom rolls driven
- Shafts Ø70–110 mm
- Up to UPN 180 / IPN 180
- Horizontal and vertical working
PBH 4V Design
The PBH 4V has a welded steel frame with four rolls. The shafts are made of high-tensile special steel, hardened and ground, and the rolls are hardened. A standard set of four rolls comes with the machine.
- Drive: the top and bottom rolls are driven through planetary reducers, by an electric motor on the PBH 4V 70 and by hydraulic motors on the 90 and 110. The two side rolls are idle.
- Roll movement: the bottom and side rolls move up and down hydraulically.

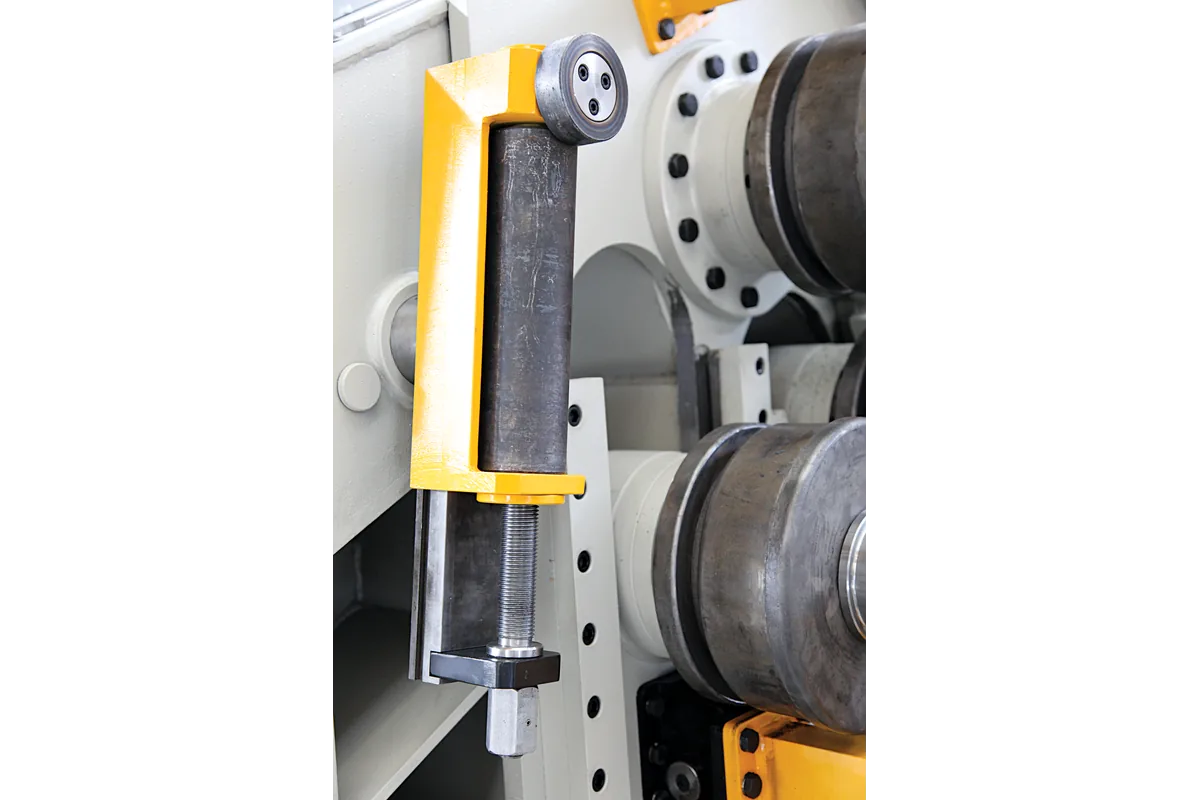

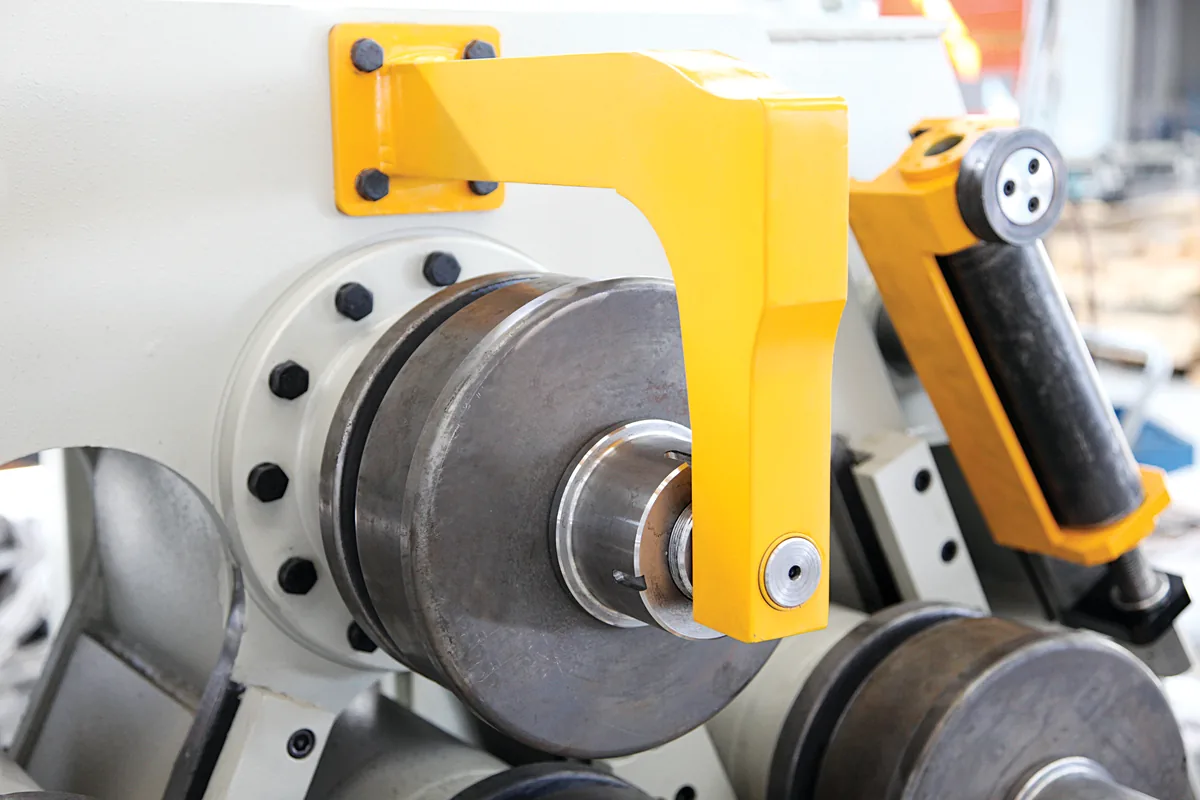

- Guide rolls: 1+1 axis on the PBH 4V 70, 3+3 axis on the PBH 4V 90 and 110. On the 110 the 3-axis guide rolls are hydraulic as standard.
- Control: a mobile control panel. With the optional NC control the machine learns a bend in teach mode: the operator bends the part once, the machine records each step, and it repeats the same bend whenever the program is called up.

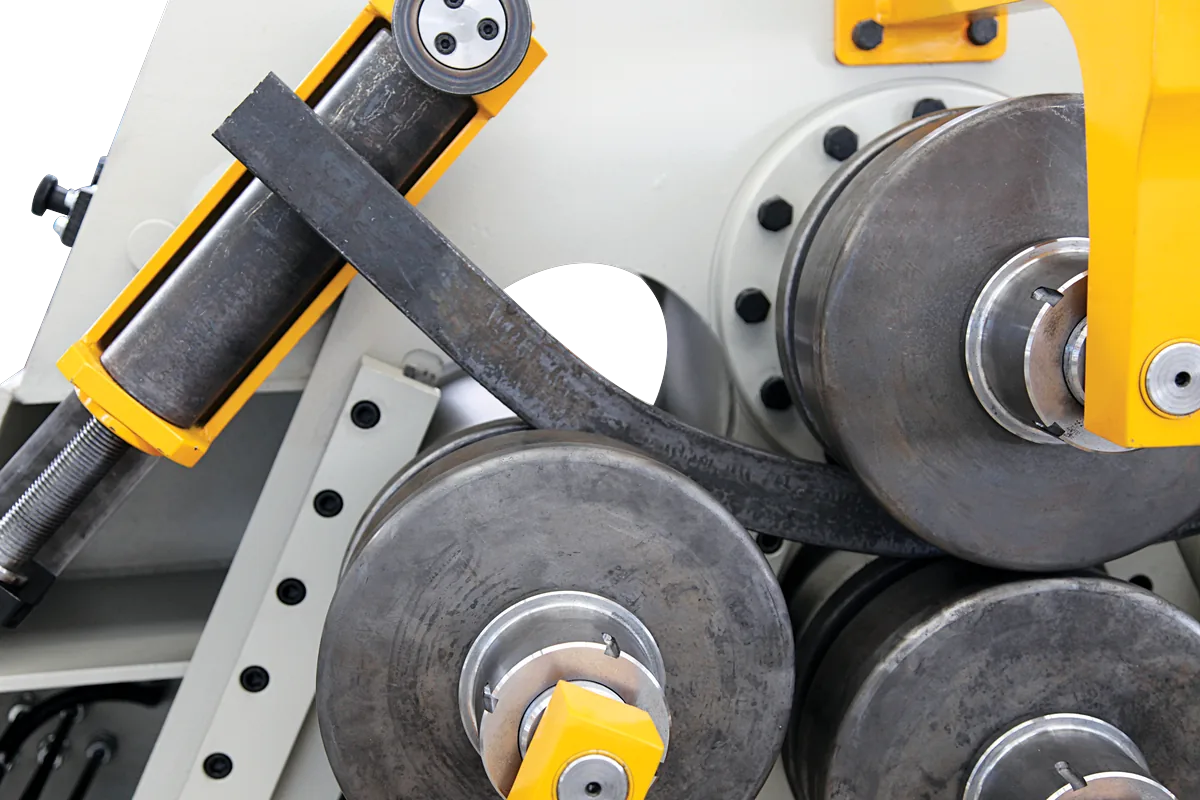

The wide distance between the side rolls lets the machine reach larger diameters. The part stays clamped while both ends are pre-bent in one setup.
PBH 4V Product Gallery
PBH 4V General Features
- Welded steel construction frame
- Four-roll bending
- Hydraulic up-down movement of the bottom and side rolls
- Hardened and ground shafts of high-tensile special steel
- Hardened rolls

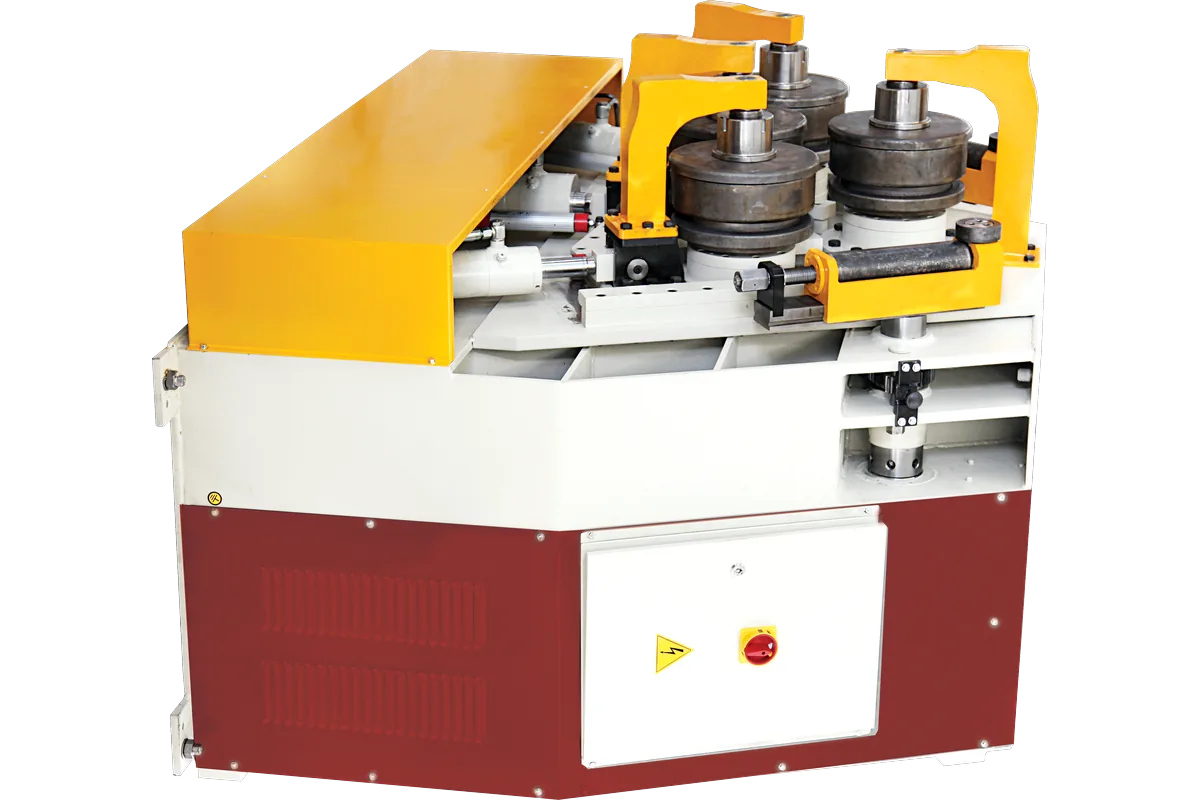

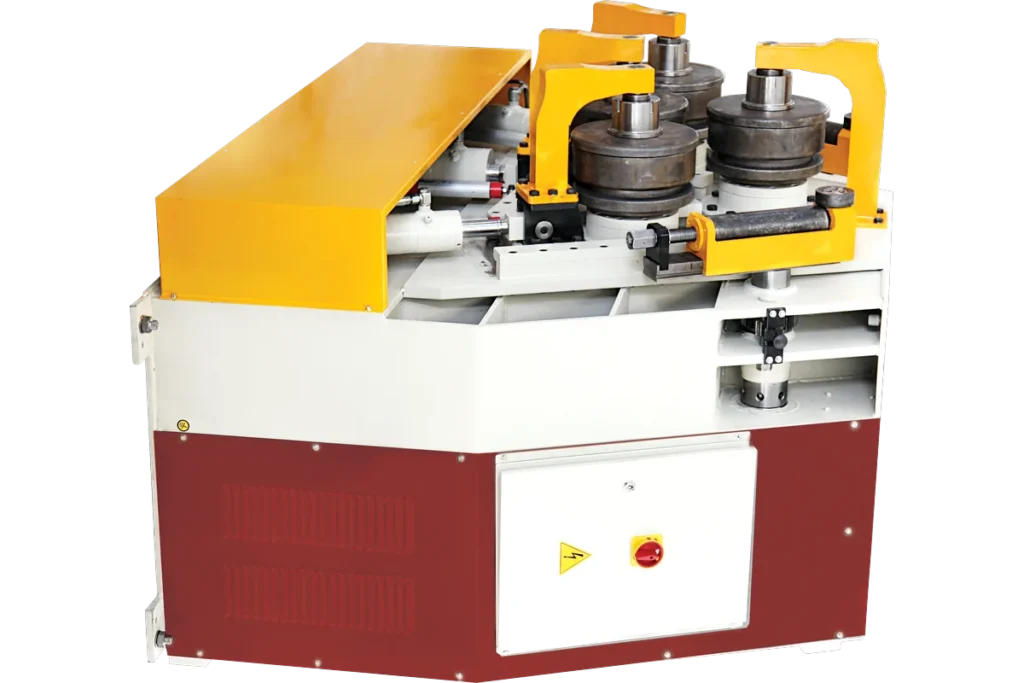

- Horizontal and vertical working position
- Mobile control panel
- User manual and CE certificate
PBH 4V Standard Equipment
- One standard set of 4 rolls
- Top and bottom rolls driven through planetary reducers; side rolls idle
- Guide rolls: 1+1 axis (PBH 4V 70), 3+3 axis (PBH 4V 90, 110)
- 3-axis hydraulic guide rolls (PBH 4V 110)
- Mobile control panel
PBH 4V Optional Equipment
- Pipe and tube bending rolls
- Profile bending rolls
- Angle bending rolls
- NC control
- Additional hydraulic motor
- Hydraulic guide rolls (PBH 4V 70)

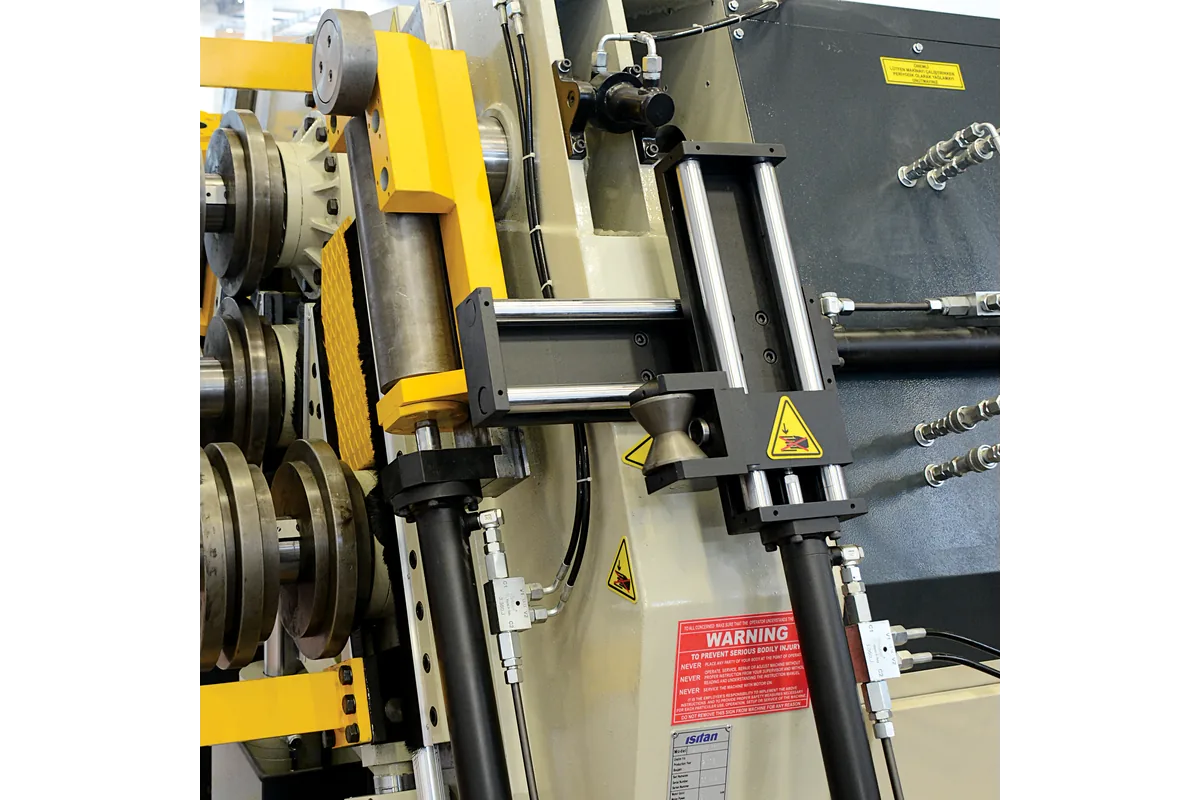

- Mechanical stairway bending attachment
- Custom rolls for special profiles and bends
PBH 4V Technical Specifications
| Model | Shaft Ø (mm) | Roll Ø (mm) | Upper roll shaft length (mm) | Bending speed (m/min) | Driven rolls | Side-roll axes | Motor (kW) | Dimensions L×W×H (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| PBH 4V 70 | 70 | 200 | 150 | 8 | 2 | 1+1 | 3 + 1.1 | 1200×1100×800 | 1400 |
| PBH 4V 90 | 90 | 260 | 160 | 6 | 2 | 3+3 | 5.5 | 1700×1450×1200 | 2800 |
| PBH 4V 110 | 110 | 320 | 200 | 5 | 2 | 3+3 | 7.5 | 2000×1700×1250 | 4500 |
Specifications may change without notice. Other capacities on request.
PBH 4V Capacity Chart
Capacities are given for 260 N/mm² yield strength. Min. Ø = minimum bending diameter in mm. For stainless steel or higher-strength material, send the grade and we will confirm the model. Rows marked * may need a special washer (spacer).
| No | Profile | PBH 4V 70 | PBH 4V 90 | PBH 4V 110 | Rolls |
|---|---|---|---|---|---|
| 1 |  Flat bar, on edge (hard way) | 60×10 / 500 20×5 / 250 | 100×20 / 2000 80×20 / 800 30×10 / 300 | 100×20 / 800 30×10 / 400 | Standard |
| 2 |  Flat bar, flat (easy way) | 80×20 / 500 50×5 / 250 | 125×25 / 600 60×5 / 300 | 200×30 / 1200 160×35 / 800 80×5 / 400 | Standard |
| 3 |  Square bar | 32×32 / 400 12×12 / 250 | 45×45 / 500 15×15 / 380 | 60×60 / 750 15×15 / 400 | Standard |
| 4 |  Round bar | Ø35 / 350 Ø10 / 250 | Ø50 / 500 Ø15 / 380 | Ø75 / 800 Ø15 / 450 | Optional |
| 5 |  Round tube (OD × wall) | Ø60×2 / 600 Ø15×1.5 / 200 | Ø100×2.5 / 1200 Ø15×1 / 380 | Ø125×2.5 / 1400 Ø15×1 / 450 | Optional |
| 6 |  Pipe (nominal inch × wall) | 2″×3.91 / 400 ½″×2.77 / 200 | 3″×5.48 / 800 ½″×2.77 / 380 | 4″×6.02 / 1000 ½″×2.77 / 450 | Optional |
| 7 |  Rectangular tube | 50×25×3 / 450 20×15×2 / 250 | 80×25×3 / 800 25×15×2 / 350 | 100×40×4 / 1300 25×15×2 / 450 | Optional |
| 8 |  Square tube | 45×3 / 600 20×2 / 300 | 70×3 / 1300 25×2 / 400 | 80×5 / 1500 25×2 / 450 | Optional |
| 9 |  Angle, leg out | 60×60×6 / 650 30×30×4 / 350 | 80×80×8 / 800 30×30×3 / 450 | 100×100×12 / 1000 40×40×4 / 700 | Optional |
| 10 |  Angle, leg in | 50×50×5 / 550 30×30×4 / 350 | 70×70×7 / 700 30×30×3 / 450 | 100×100×10 / 1000 40×40×4 / 550 | Optional |
| 11 |  T-section, stem out | 60×7 / 550 20×3 / 250 | 80×9 / 800 25×3.5 / 280 | 100×11 / 1000 30×4 / 400 | Standard |
| 12 |  T-section, stem in | 50×6 / 500 20×3 / 250 | 70×8 / 800 25×3.5 / 280 | 90×10 / 1000 30×4 / 400 | Standard |
| 13 |  T-section, stem up | 60×7 / 500 20×3 / 250 | 80×9 / 800 30×4 / 300 | 100×11 / 1000 30×4 / 400 | Optional* |
| 14 |  Channel (UPN), flanges out | UPN 80 / 600 UPN 30 / 250 | UPN 140 / 1600 UPN 120 / 900 UPN 100 / 600 | UPN 180 / 900 UPN 30 / 400 | Standard* |
| 15 |  Channel (UPN), flanges in | UPN 65 / 600 UPN 30 / 250 | UPN 140 / 1600 UPN 120 / 1000 UPN 100 / 800 | UPN 180 / 1000 UPN 30 / 400 | Standard* |
| 16 |  I-beam (IPN), easy way | IPN 80 / 600 | IPN 120 / 600 IPN 80 / 400 | IPN 180 / 1000 IPN 80 / 400 | Optional* |
Choosing the PBH 4V 4-Roll Profile Bending Machine
Choose a 4-roll profile bending machine when you bend the same parts in series, need short straight ends, or handle long, heavy sections that are hard to turn around. For one-off work and the widest size range, the 3-roll PBH angle roll machine is the simpler choice and reaches HEA/HEB beams on its largest models.
- PBH 4V 70: light structural and architectural work, rings for lighting fixtures.
- PBH 4V 90: general fabrication up to UPN 140 and IPN 120.

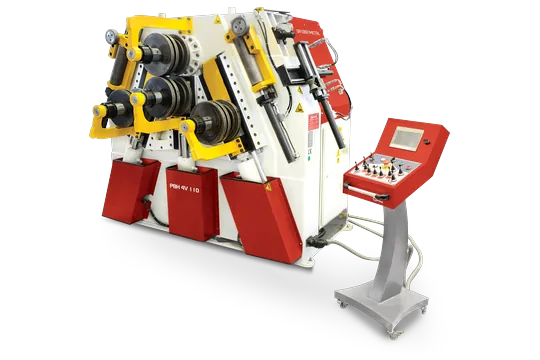

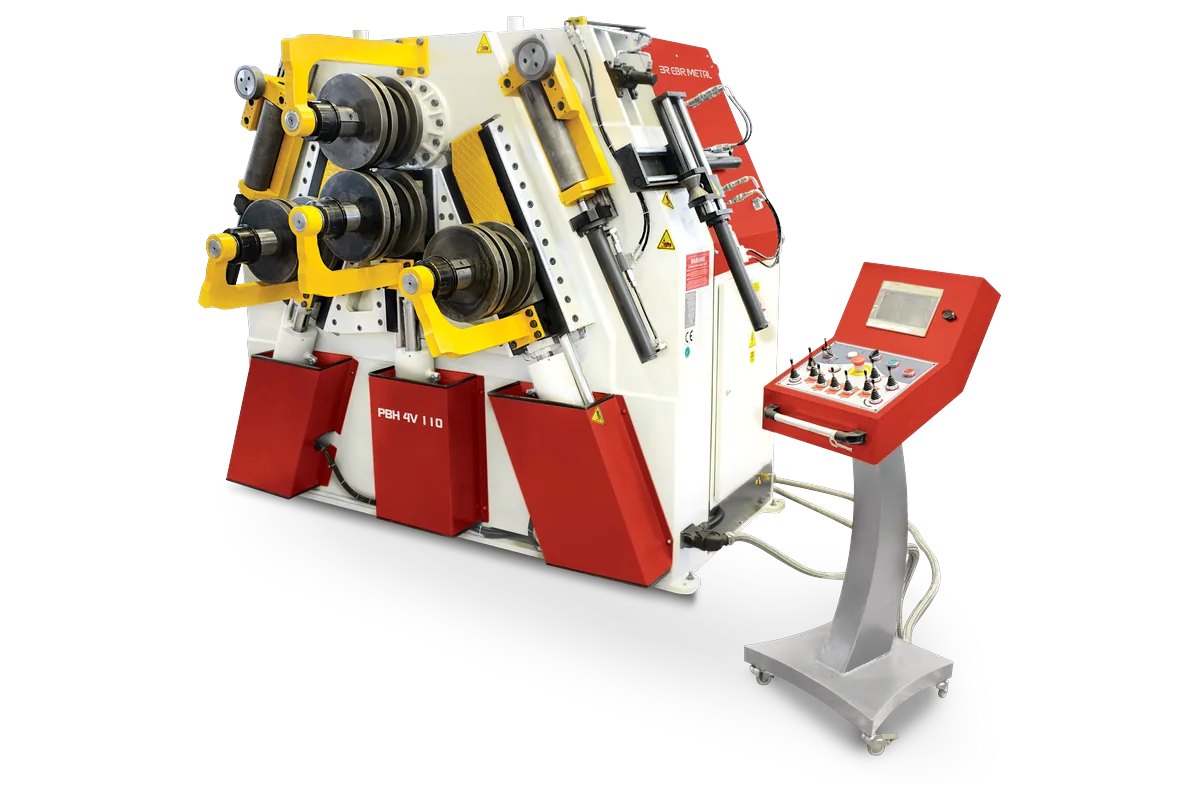

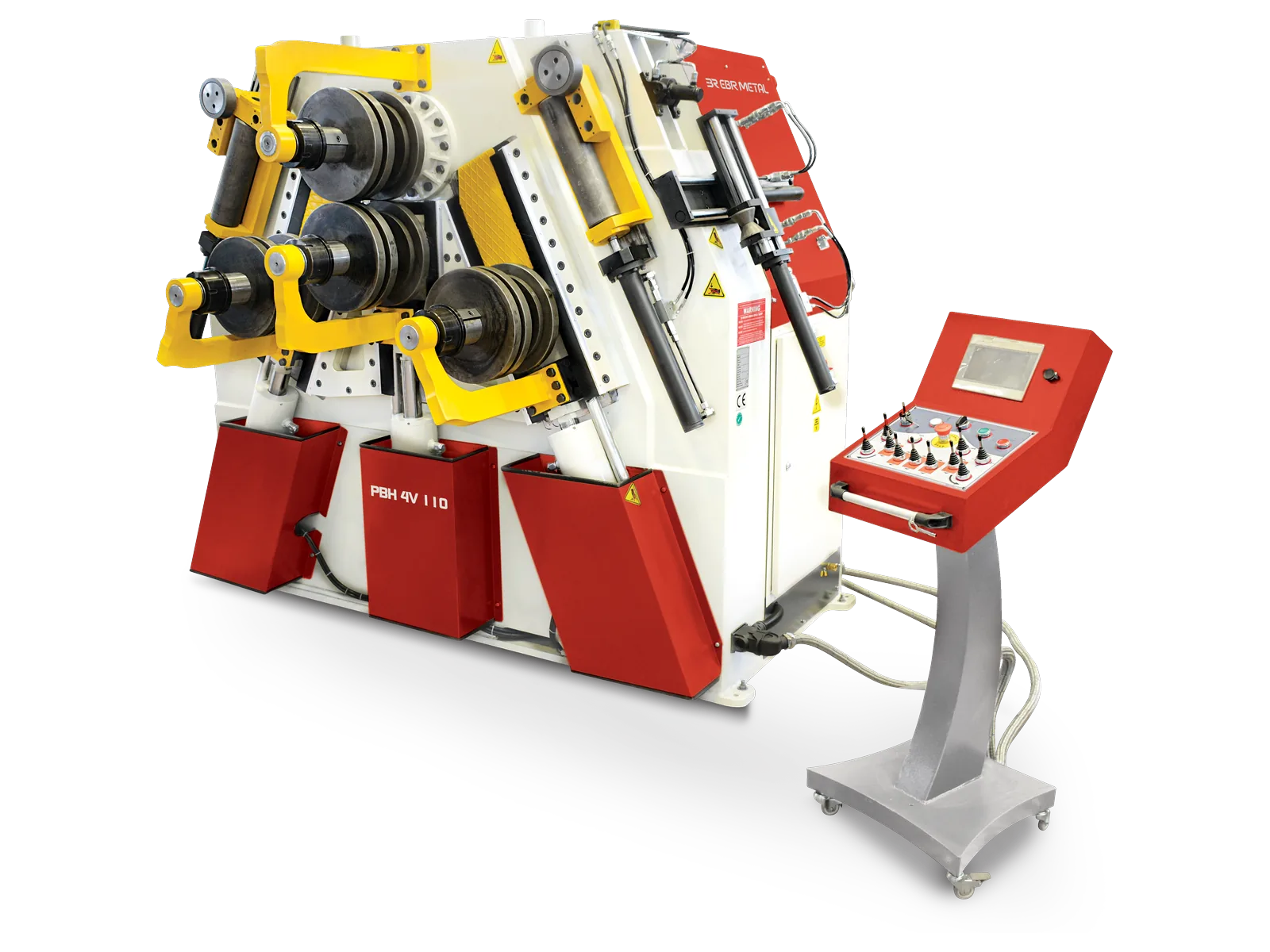

- PBH 4V 110: heavier sections up to UPN 180, IPN 180 and Ø125 × 2.5 mm tube.
See the full profile bending machine range.
Request a Quote for the PBH 4V
For each part, send the material, the section type and size, the wall thickness and the smallest inside diameter you need. Add the orientation and the batch size. We will confirm whether a PBH 4V or a 3-roll PBH suits the job and which roll sets you need.
Frequently Asked Questions About PBH 4V
What is the advantage of a 4-roll angle roll?
The extra roll holds the section while the ends are pre-bent, so the part does not have to be taken out and turned around. Straight ends are shorter and repeated parts take less handling.
Which rolls are driven on the PBH 4V?
The top and bottom rolls, through planetary reducers. The two side rolls run free and are positioned hydraulically.
Can the PBH 4V be automated?
Yes. With the optional NC control in teach mode, the machine records a bend made by the operator and repeats it when the program is called up. An additional hydraulic motor can also be fitted.
Which roll set comes with the machine?
One standard set of four rolls, for flat bar, square bar, channel and T-sections. Rolls for tube, pipe, round bar, angle and IPN beams are optional, and a mechanical stairway bending attachment is available.
