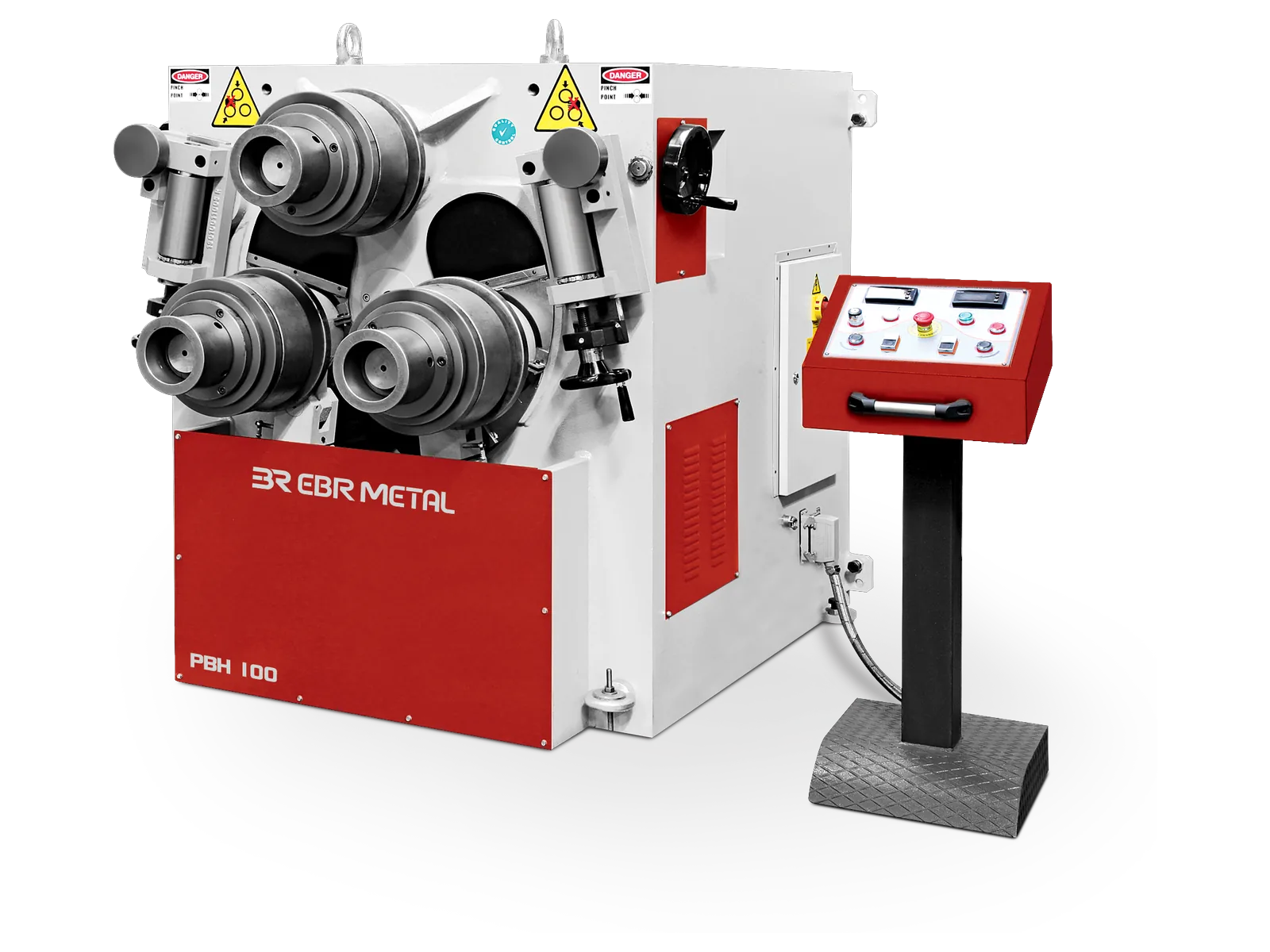

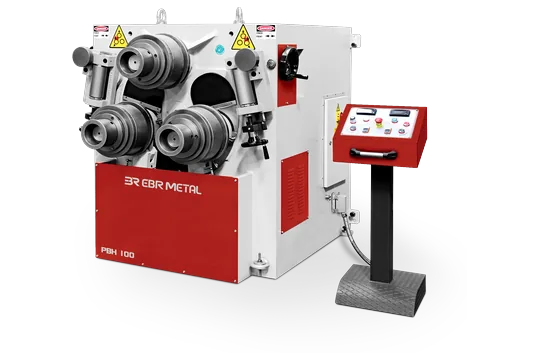

PBH Hydraulic Angle Roll Machine
The PBH angle roll machine from EBR METAL is a 3-roll machine that bends tube, pipe, flat bar, angle iron, channel and beams into curves, rings and spirals. All three rolls are driven to feed the section through the machine. The machine works in the horizontal or the vertical position.
Seven sizes cover the range, from the compact PBH 40 up to the PBH 120, which rolls HEA 140 and HEB 120 beams. PBH 40, 65, 80, 100 and 120 form the main hydraulic profile bending machine series, with the bottom rolls set hydraulically. PBH 50 and PBH 60 are a compact series with a hydraulic top roll.
• 7 sizes • 3 driven rolls • Roll Ø137–390 mm • Up to HEA 140 / HEB 120 • Horizontal and vertical working
The PBH angle roll machine from EBR METAL is a 3-roll machine that bends tube, pipe, flat bar, angle iron, channel and beams into curves, rings and spirals. All three rolls are driven to feed the section through the machine. The machine works in the horizontal or the vertical position.
Seven sizes cover the range, from the compact PBH 40 up to the PBH 120, which rolls HEA 140 and HEB 120 beams. PBH 40, 65, 80, 100 and 120 form the main hydraulic profile bending machine series, with the bottom rolls set hydraulically. PBH 50 and PBH 60 are a compact series with a hydraulic top roll.
- 7 sizes
- 3 driven rolls
- Roll Ø137–390 mm
- Up to HEA 140 / HEB 120
- Horizontal and vertical working
PBH Design
The PBH is a hydraulic section and pipe bending machine. PBH 50 to PBH 120 have a welded steel body; the PBH 40 has a rigid spheroidal graphite cast iron body. The shafts are made of high-tensile special steel, hardened and ground, and the standard rolls are hardened.
- Drive: all three rolls are driven. PBH 40, 65 and 80 use an electric brake motor with a gearbox. On the PBH 100 a single gearbox with a hydraulic motor drives the three rolls through gears. On the PBH 120 each roll has its own planetary gearbox and hydraulic motor, and the speed is infinitely adjustable from 2 to 7.5 m/min.
- Roll setting: on PBH 40, 65, 80, 100 and 120 the two bottom rolls move up and down hydraulically, and two digital read-outs show their position.
- Control: a separate, mobile control panel and a brake motor for exact stopping. With the optional NC control the machine learns a bend in teach mode: the operator bends the part once, the machine records each step, and it repeats the same bend whenever the program is called up.

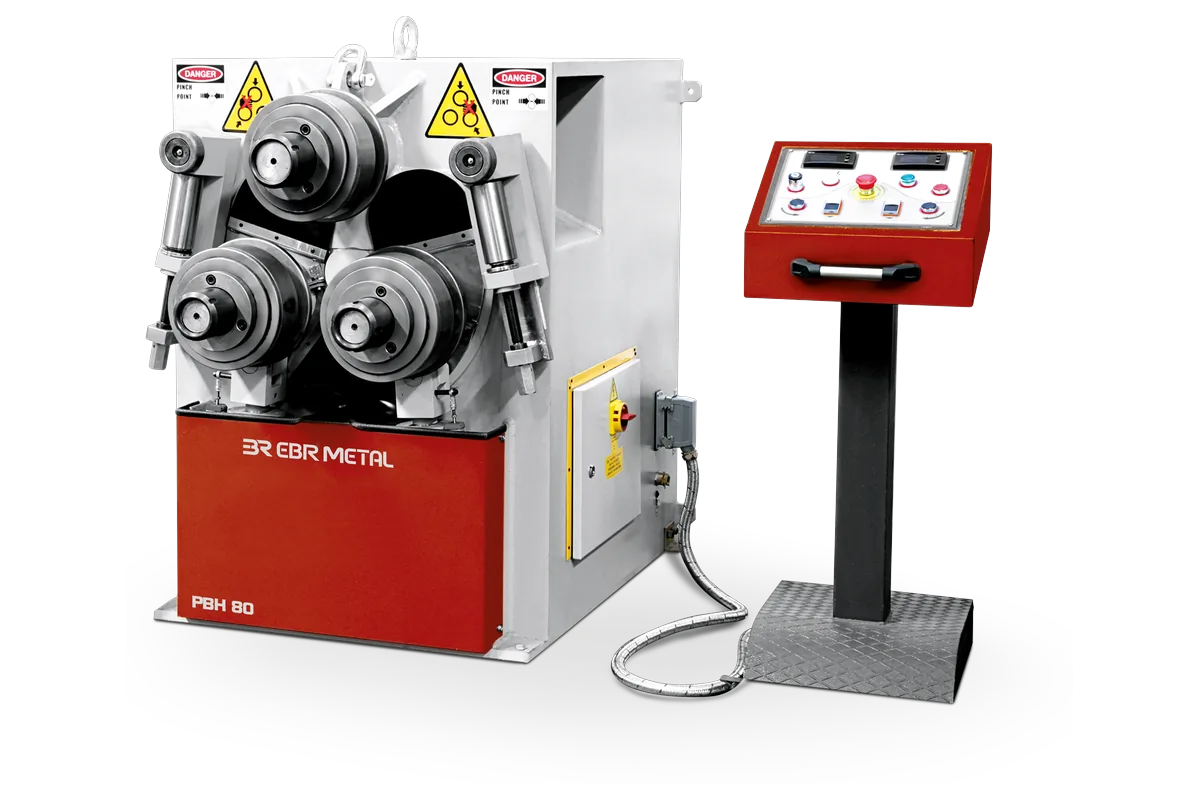

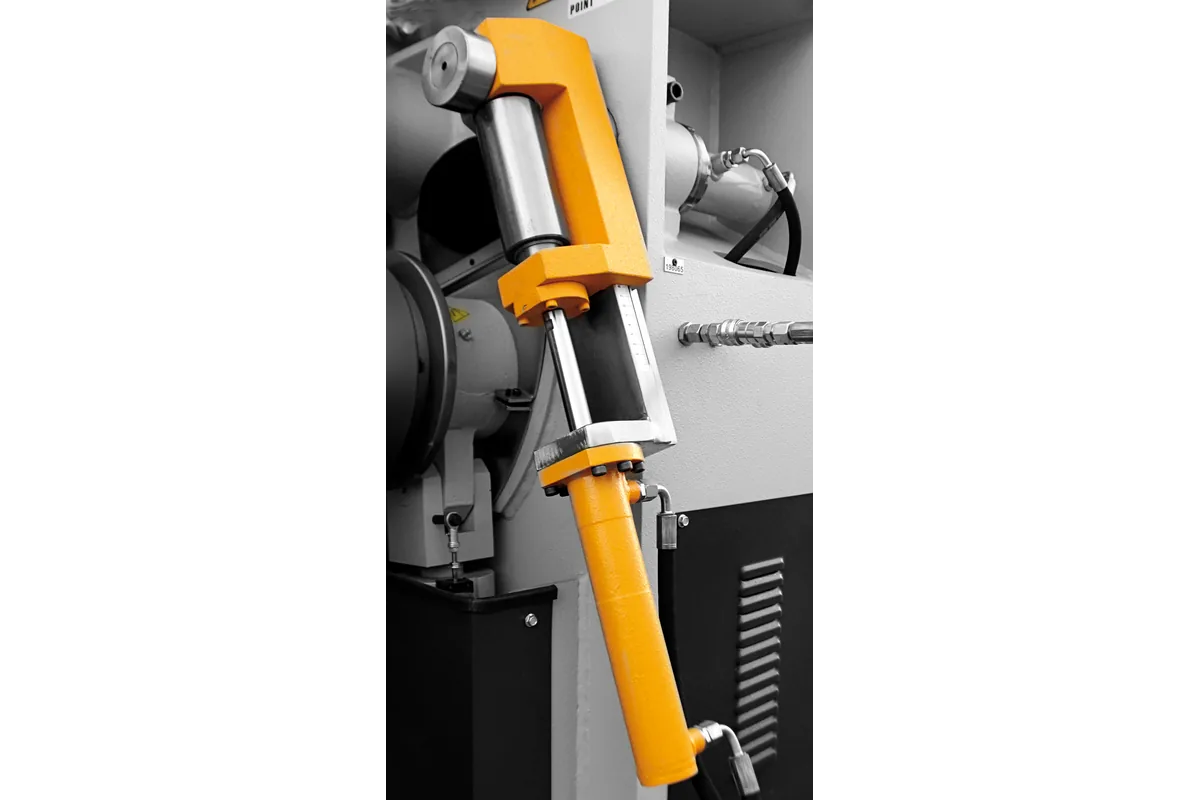

- Guiding: lateral angle guide rolls keep angle and T-sections from twisting. They are adjustable by hand on 3 axes on PBH 65–100, hydraulic on PBH 120, and simpler lateral guide rolls on PBH 40.

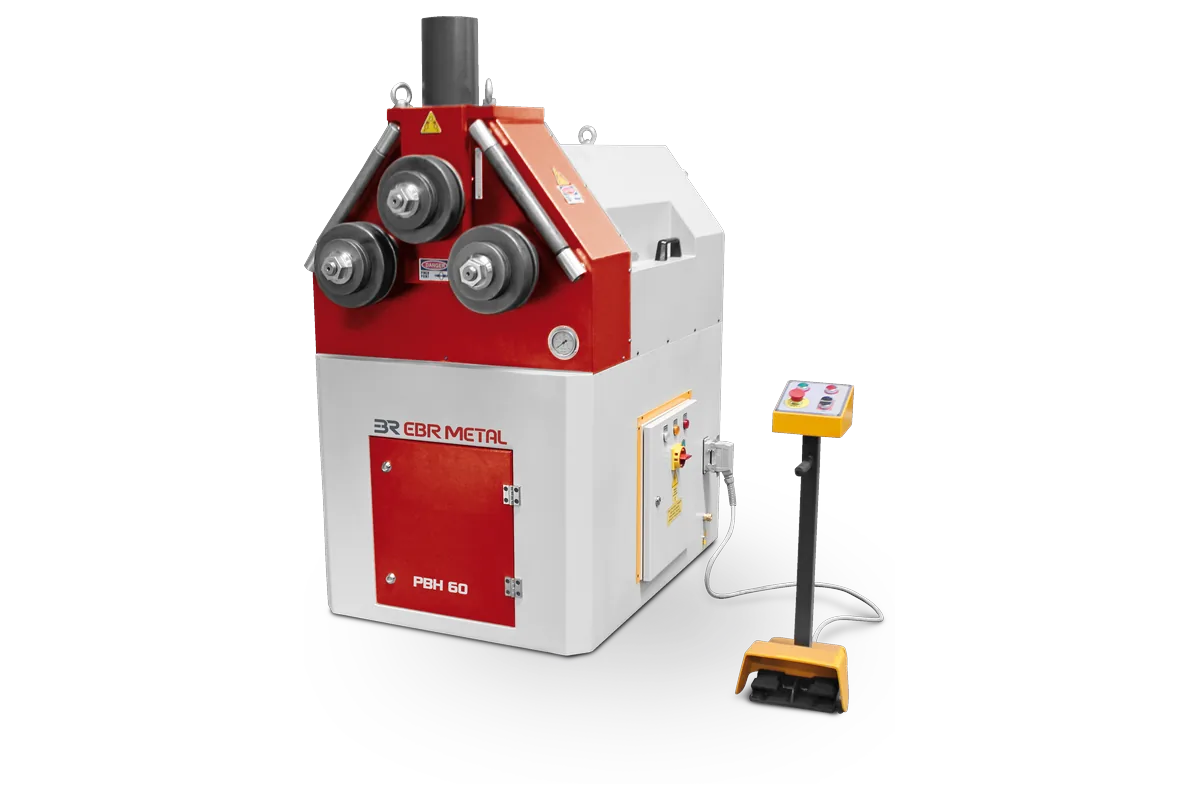

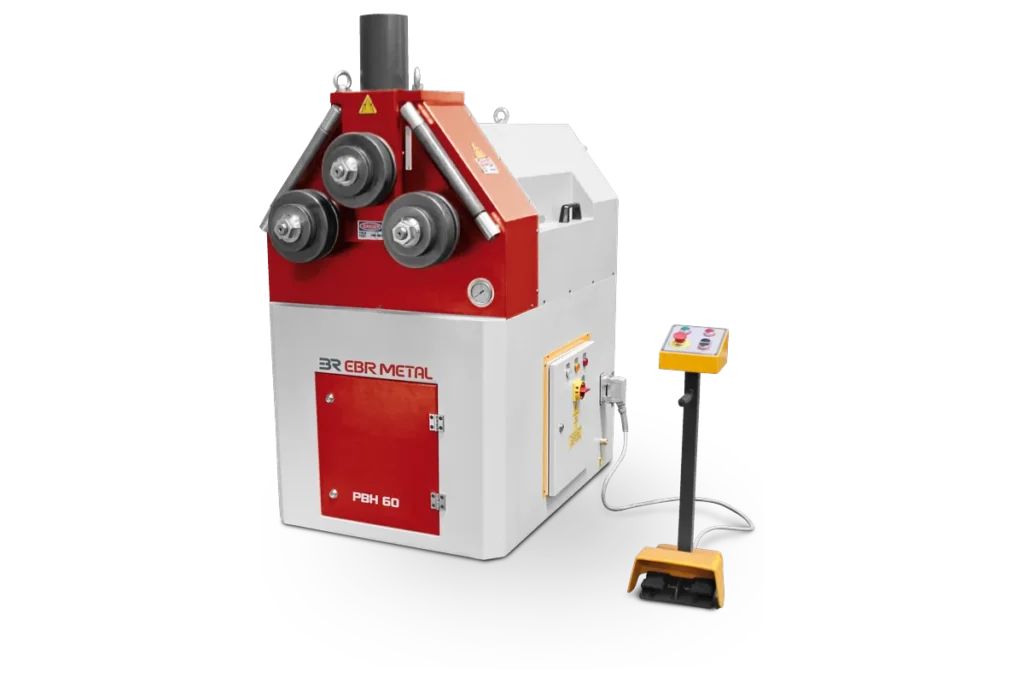

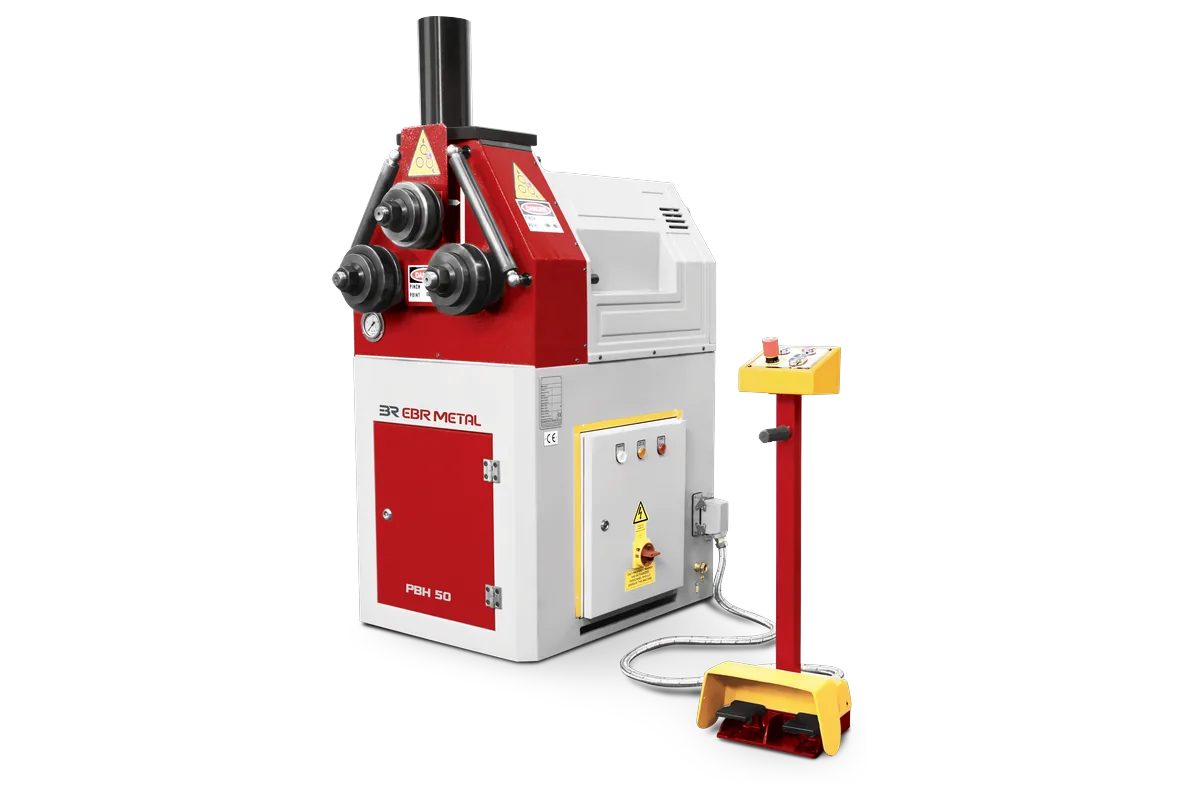

- PBH 50 and 60: compact series. All three rolls are motor driven, the top roll moves up and down hydraulically, and the top-roll force is 8 t (PBH 50) or 16 t (PBH 60).

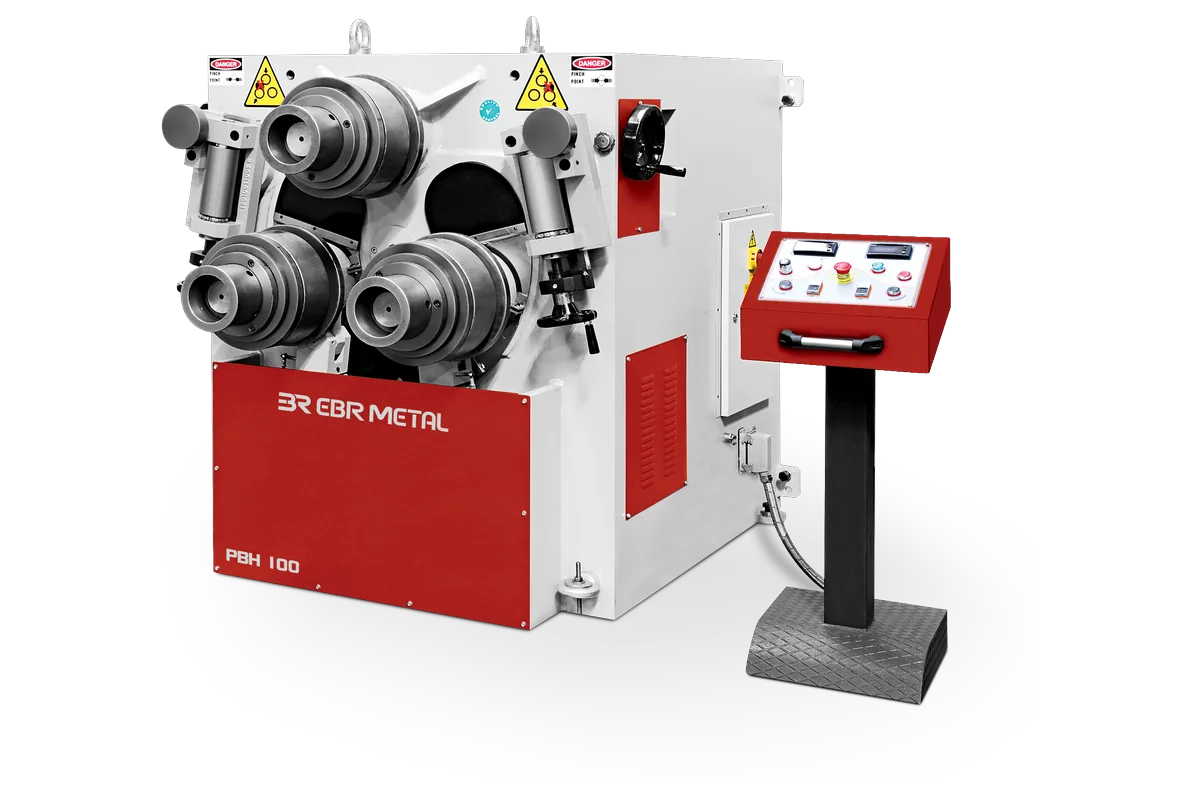

PBH Product Gallery
PBH General Features
- Welded steel body (PBH 50–120); spheroidal graphite cast iron body (PBH 40)
- Three driven rolls
- Hardened and ground shafts of high-tensile special steel
- Hardened standard rolls

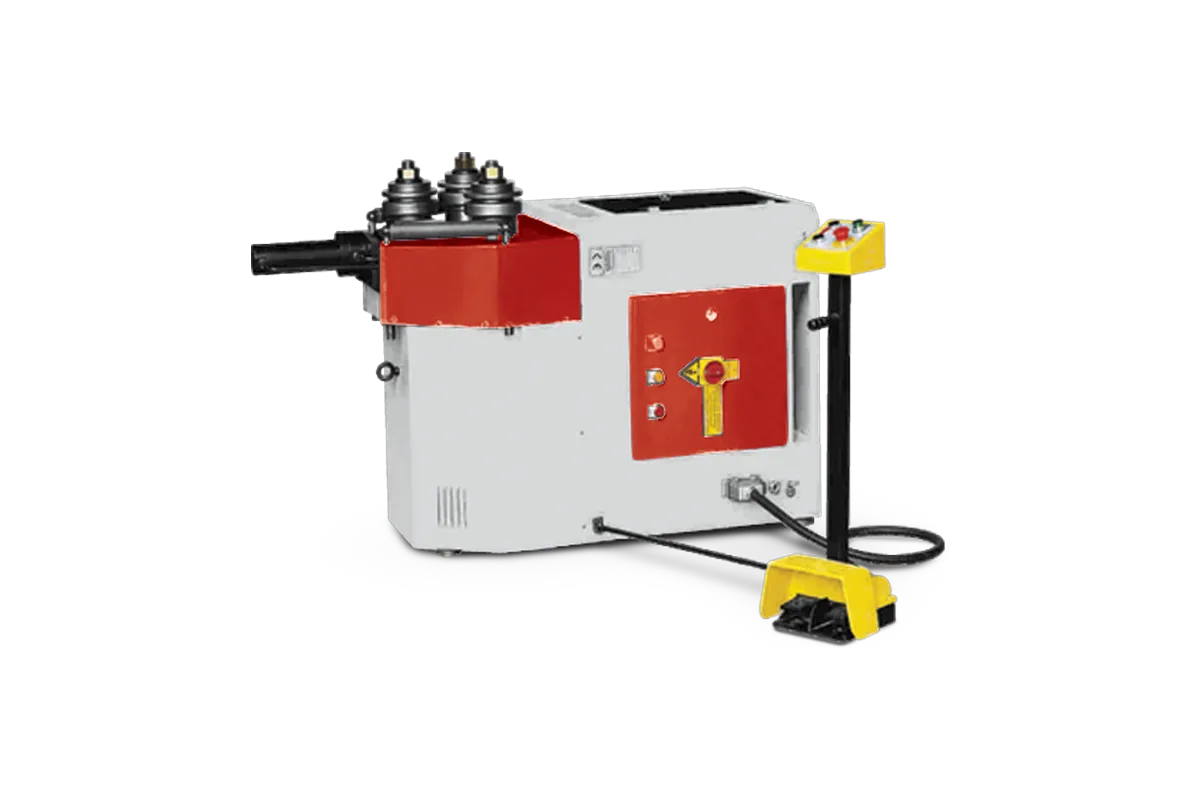

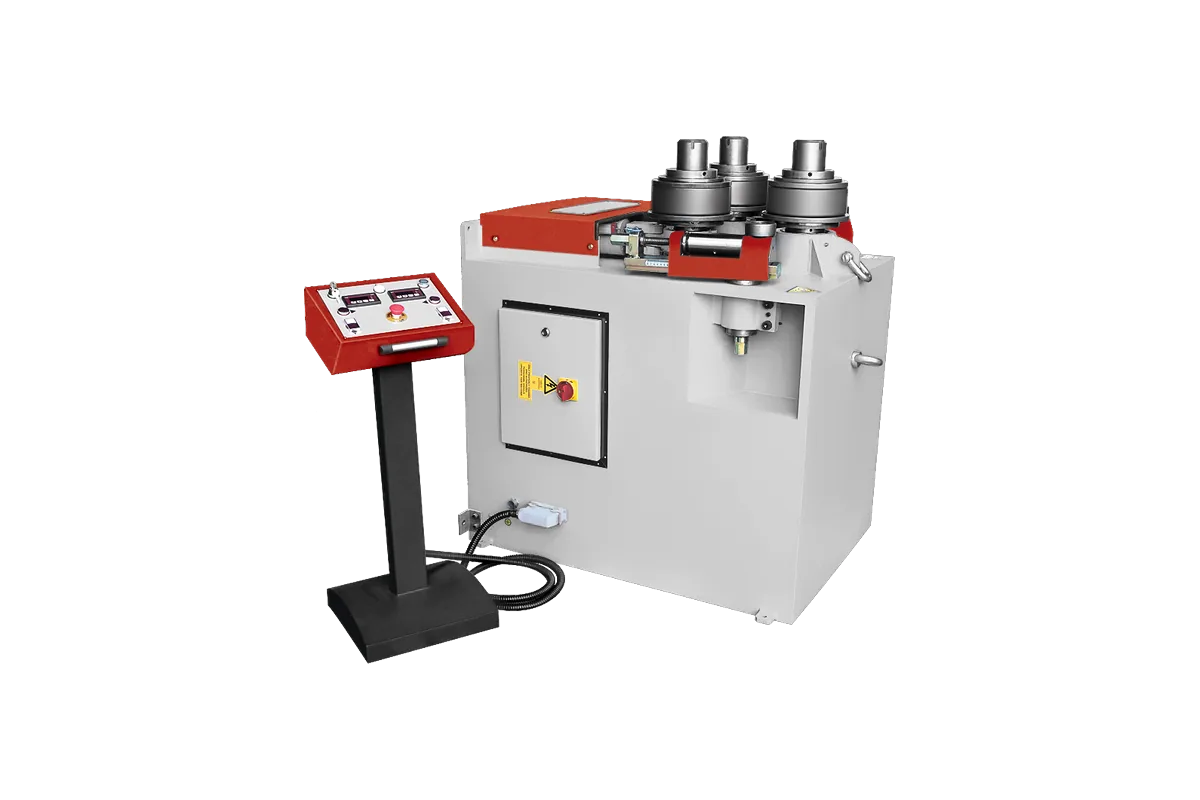

- Horizontal and vertical working position
- Brake motor for precise bending
- Mobile control panel, separate from the machine body
- Hydraulic up-down movement of the bottom rolls (PBH 40, 65, 80, 100, 120); hydraulic top roll (PBH 50, 60)
- Two digital read-outs for the bottom-roll position (PBH 40, 65, 80, 100, 120)
- Built to CE requirements
PBH Standard Equipment
PBH 40
- Hardened standard roll set
- Lateral guide rolls
- Two digital read-outs for the bottom-roll position
- Hydraulic up-down movement of the bottom rolls
PBH 50, 60
- Standard roll set
- Hydraulic top roll
- Guide rolls

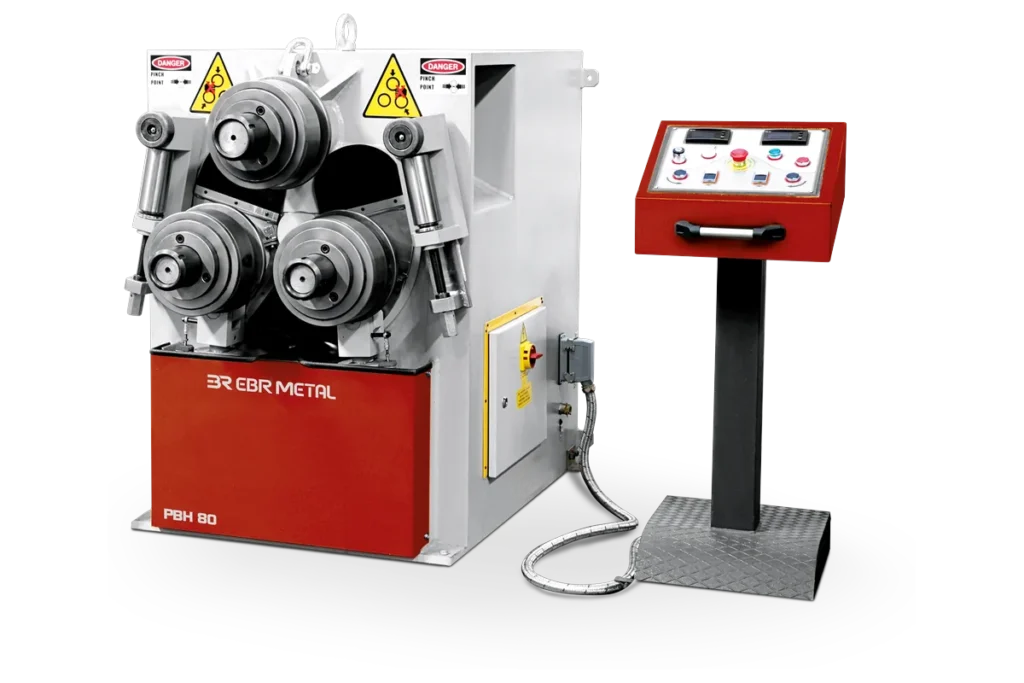

PBH 65, 80, 100
- Hardened and ground standard rolls
- Lateral angle guide rolls, adjustable on 3 axes by hand
- Two digital read-outs
- Hydraulic up-down movement of the bottom rolls
PBH 120
- Each roll driven by its own planetary gearbox and hydraulic motor
- Hydraulic lateral guide rolls
- Infinitely variable speed, 2–7.5 m/min
- Two digital read-outs
- Hydraulic up-down movement of the bottom rolls
PBH Optional Equipment
PBH 40
- Pipe and tube bending rolls
- Special profile rolls
- Spiral bending crane
- NC control
PBH 50, 60
- Pipe and tube bending rolls
- Profile bending rolls
- Angle bending rolls
- Digital read-out
- Lateral angle guides

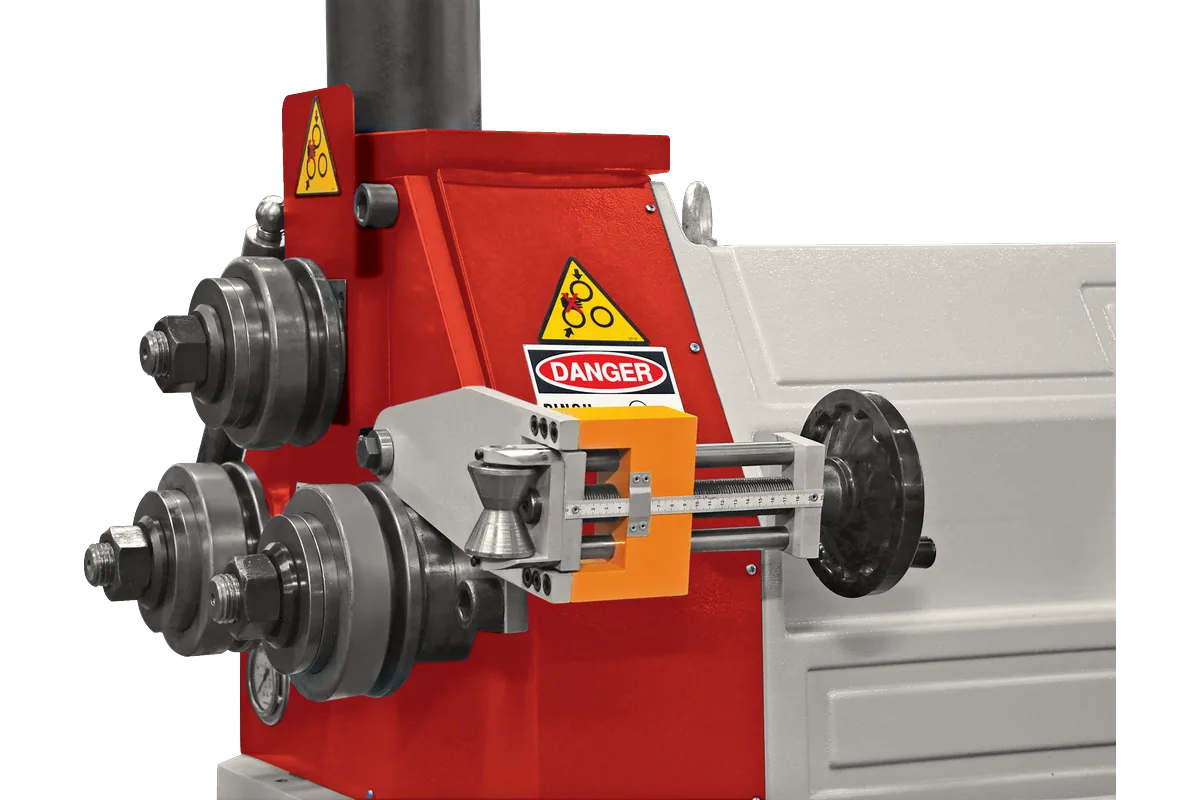

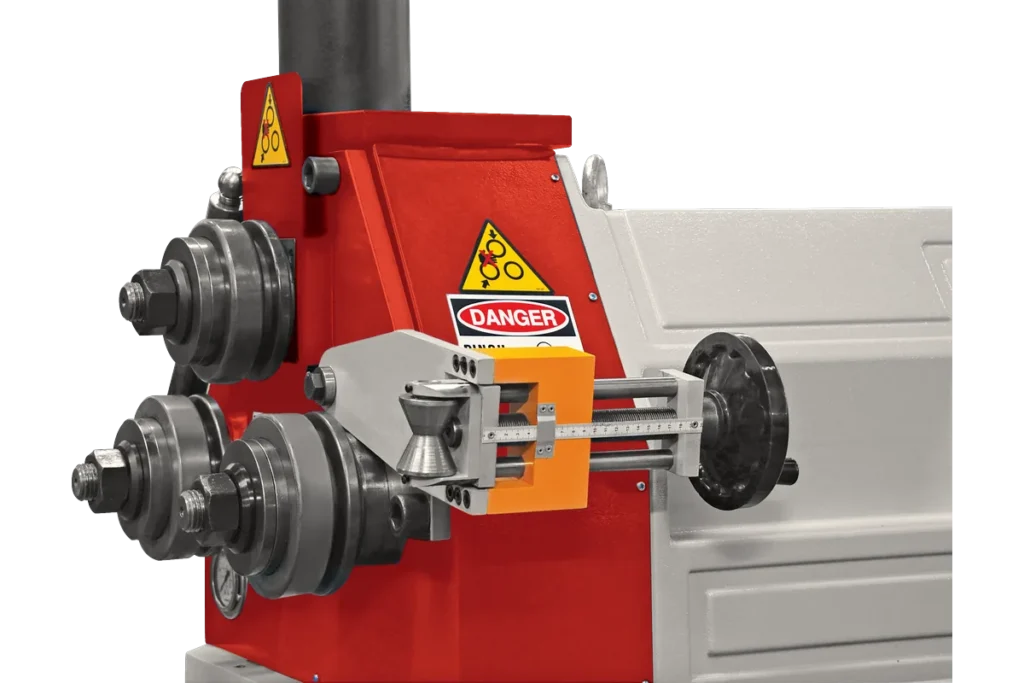

- Stairway bending attachment, for spiral stair stringers
- Delrin (plastic) rolls for bending aluminium and stainless steel
- NC control
PBH 65, 80
- Pipe, tube and profile bending rolls
- 2-axis hydraulic lateral guide rolls
- NC control
- Crane system for spiral rolling
PBH 100
- Pipe, tube and profile bending rolls
- 3-axis hydraulic lateral guide rolls
- Infinitely variable speed adjustment
- NC control
- Crane system for spiral rolling
- Half-pipe bending attachment
PBH 120
- Special rolls for any pipe or profile, and IPN / UPN beam bending attachments, on request
- NC control
- Crane system for spiral rolling
All models: custom rolls for special profiles and bends, made to your drawing.
Pyramid-type 3-roll machines, the former PBH 3V, are built to order. Send your section sizes and we will quote the configuration.
PBH Technical Specifications
Main series: PBH 40, 65, 80, 100, 120
| Model | Upper roll shaft Ø (mm) | Bottom roll shafts Ø (mm) | Roll Ø (mm) | Working speed (m/min) | Motor (kW) | Length (mm) | Width (mm) | Height (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| PBH 40 | 35 | 35 | 137 | 7 | 1.47 | 1050 | 700 | 1250 | 415 |
| PBH 65 | 60 | 50 | 180 | 6 | 3.75 | 1200 | 850 | 1200 | 980 |
| PBH 80 | 80 | 70 | 245 | 7 | 4.75 | 1500 | 1000 | 1400 | 1645 |
| PBH 100 | 100 | 100 | 315 | 7 | 7.5 | 2000 | 1450 | 1700 | 3200 |
| PBH 120 | 120 | 120 | 390 | 2–7.5 | 15 | 2000 | 1650 | 1900 | 4450 |
Compact series: PBH 50, 60
| Model | Shaft Ø (mm) | Roll Ø (mm) | Upper roll Ø (mm) | Bending speed (m/min) | Hydraulic top-roll force (t) | Motor (kW) | Dimensions L×W×H (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|---|
| PBH 50 | 50 | 162 | 152 | 4.5 | 8 | 1.47 | 1000×750×1600 | 510 |
| PBH 60 | 60 | 215 | 215 | 4 | 16 | 2.25 | 1500×900×1700 | 910 |
Specifications may change without notice. Other capacities on request.
PBH Capacity Chart
Capacities are given for 260 N/mm² yield strength. Min. Ø = minimum bending diameter in mm. For stainless steel or higher-strength material, send the grade and we will confirm the model.
* A special washer (spacer) may be needed. ** Only with the special beam bending attachment.
| No | Profile | PBH 40 | PBH 50 | PBH 60 | PBH 65 | PBH 80 | PBH 100 | PBH 120 | Rolls |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  Flat bar, on edge (hard way) | 35×8 / 300 | 60×10* / 600 20×10 / 300 | 80×20 / 1200 40×10 / 400 | 60×10 / 500 20×5 / 250 | 100×20* / 2000 80×20 / 800 30×10 / 300 | 100×20 / 800 30×10 / 400 | 125×25 / 1200 30×10 / 500 | Standard |
| 2 |  Flat bar, flat (easy way) | 50×12 / 400 | 80×15* / 600 50×10 / 300 | 120×25* / 600 50×10 / 400 | 80×20 / 500 50×5 / 250 | 125×25 / 600 60×5 / 300 | 200×30 / 1200 160×35 / 800 80×5 / 400 | 200×50 / 1000 100×10 / 500 | Standard |
| 3 |  Square bar | 18×18 / 250 | 35×35 / 600 15×15 / 300 | 50×50 / 800 20×20 / 400 | 32×32 / 400 12×12 / 250 | 45×45 / 500 15×15 / 380 | 60×60 / 750 15×15 / 400 | 65×65 / 750 20×20 / 500 | Standard |
| 4 |  Round bar | Ø22 / 200 | Ø35 / 600 Ø20 / 300 | Ø50 / 800 Ø20 / 400 | Ø35 / 350 Ø10 / 250 | Ø50 / 500 Ø15 / 380 | Ø75 / 800 Ø15 / 450 | Ø80 / 850 Ø20 / 500 | Optional |
| 5 |  Round tube (OD × wall) | Ø40×1.5 / 500 | Ø70×2 / 1200 Ø25×1.5 / 400 | Ø100×2 / 1600 Ø60×2 / 500 | Ø60×2 / 600 Ø15×1.5 / 200 | Ø100×2.5 / 1200 Ø15×1 / 380 | Ø125×2.5 / 1400 Ø15×1 / 450 | Ø160×4 / 2800 Ø140×3 / 1500 Ø50×2 / 500 | Optional |
| 6 |  Pipe (nominal inch × wall) | Ø33.7×2.3 / 450 | 2″×2.9 / 1000 ½″×2.3 / 300 | 3″×3.2 / 1600 1″×2.6 / 500 | 2″×3.91 / 400 ½″×2.77 / 200 | 3″×5.48 / 800 ½″×2.77 / 380 | 4″×4.5 / 2500 ½″×2.77 / 450 | 5″×6.35 / 1500 ¾″×2.87 / 500 | Optional |
| 7 |  Rectangular tube | 30×15×2.5 / 500 | 70×30×3 / 1500 30×15×2 / 400 | 80×40×3 / 1400 40×20×2 / 500 | 50×25×3 / 450 20×15×2 / 250 | 80×25×3 / 800 25×15×2 / 350 | 100×40×4 / 1300 25×15×2 / 450 | 120×40×4 / 1800 30×20×3 / 500 | Optional |
| 8 |  Square tube | 25×25×2 / 450 | 50×3 / 1600 20×2 / 400 | 70×3 / 1600 40×2 / 500 | 45×3 / 600 20×2 / 300 | 70×3 / 1300 25×2 / 350 | 80×5 / 1500 25×2 / 450 | 90×5 / 1800 30×3 / 500 | Optional |
| 9 |  Angle, leg out | 35×35×5 / 400 | 50×50×6 / 600 30×30×3 / 400 | 70×70×7 / 1000 40×40×5 / 500 | 60×60×6 / 650 30×30×4 / 350 | 80×80×8 / 800 30×30×3 / 400 | 100×100×12 / 1000 40×40×4 / 700 | 120×120×12 / 1200 40×40×4 / 600 | Optional |
| 10 |  Angle, leg in | 30×30×4 / 550 | 50×50×6 / 900 30×30×3 / 600 | 70×70×7 / 1200 40×40×5 / 600 | 50×50×5 / 550 30×30×4 / 350 | 70×70×7 / 700 30×30×3 / 450 | 100×100×10 / 1500 40×40×4 / 550 | 100×100×10 / 1200 40×40×4 / 600 | Optional |
| 11 |  T-section, stem out | 30×30×5 / 300 | 60×7* / 600 30×4 / 400 | 80×9* / 1000 40×5* / 400 | 60×7 / 550 20×3 / 250 | 80×9 / 800 25×3.5 / 450 | 100×11 / 1000 30×4 / 400 | 100×11 / 800 30×4 / 500 | Standard |
| 12 |  T-section, stem in | 35×35×5 / 350 | 60×7* / 700 30×4 / 400 | 80×9* / 1200 40×5* / 500 | 50×6 / 500 20×3 / 250 | 70×8 / 800 25×3.5 / 280 | 90×10 / 1000 30×4 / 400 | 100×11 / 1000 30×4 / 500 | Standard |
| 13 |  T-section, stem up | 35×35×5 / 300 | 60×7 / 700 30×4 / 400 | 80×9 / 1000 40×5 / 400 | 60×7 / 500 20×3 / 250 | 80×9 / 800 30×4 / 280 | 100×11 / 1000 30×4 / 400 | 100×11 / 800 30×4 / 500 | Standard (PBH 40–60) / Optional (PBH 65–120) |
| 14 |  Channel (UPN), flanges out | UPN 40×20 / 350 | UPN 80* / 800 UPN 30 / 400 | UPN 100 / 800 UPN 60 / 500 | UPN 80 / 600 UPN 30 / 250 | UPN 140 / 1600 UPN 120 / 900 UPN 100 / 800 | UPN 180 / 900 UPN 30 / 400 | UPN 220 / 1000 UPN 180 / 800 UPN 40 / 500 | Optional* (PBH 40–60) / Standard* (PBH 65–120) |
| 15 |  Channel (UPN), flanges in | UPN 35×18 / 500 | UPN 80* / 1200 UPN 30 / 600 | UPN 100 / 1200 UPN 60 / 600 | UPN 65 / 600 UPN 30 / 250 | UPN 140 / 1600 UPN 120 / 1000 UPN 100 / 800 | UPN 180 / 1000 UPN 30 / 400 | UPN 220 / 1200 UPN 180 / 900 UPN 40 / 600 | Standard* |
| 16 |  I-beam (IPN), easy way | — | — | — | IPN 80 / 600 | IPN 120 / 600 IPN 80 / 400 | IPN 180 / 1000 IPN 80 / 400 | IPN 220 / 1000 IPN 80 / 500 | Standard* |
| 17 |  H-beam (HEA / HEB), easy way | — | — | — | — | — | HEA 120 / 1000 HEB 100 / 1200 | HEA 140 / 1200 HEB 120 / 1200 | Standard* |
| 18 |  Channel (UPN), hard way | — | — | — | — | — | — | UPN 120 / 10000 UPN 100 / 7500 | Optional** |
| 19 |  I-beam (IPN), hard way | — | — | — | — | — | — | IPN 160 / 5000 IPN 140 / 4000 IPN 100 / 2000 | Optional** |
| 20 |  H-beam (HEA / HEB), hard way | — | — | — | — | — | — | HEA 120 / 4000 HEB 100 / 1600 | Optional** |
Choosing the PBH Angle Roll Machine
Start from the largest section you bend and its smallest radius, then find the first column in the capacity chart that covers both. For angle, T-section and channel, check the row for the right orientation, since leg-in and leg-out bending have different limits.
- PBH 40, 50, 60: light and medium work: railings, gates, furniture frames, greenhouse arches.
- PBH 65, 80: general fabrication with tube, angle and channel up to UPN 140 on the PBH 80.
- PBH 100, 120: structural work with I-beams and H-beams, and large tube up to Ø160 × 4 mm on the PBH 120.
PBH 50, PBH 65 and PBH 100 are the sizes ordered most often. If you bend the same part in series and want the ends pre-bent without taking the part out, compare the PBH 4V 4-roll profile bending machine. For lighter sections, the PBM motorized profile bending machine costs less. The PBH angle roll machine is available in seven sizes within EBR METAL’s profile bending machine range.
PBH Angle Roll Machine in Operation
Watch the PBH 50 angle roll machine in operation.
PBH 50 — Angle Roll Machine
Request a Quote for the PBH
For each part, send the material, the section type and size, the wall thickness and the smallest inside diameter you need. Add the orientation for angle, T and channel, and the batch size for series work. We will recommend the PBH size and the roll sets. On request, we film the bending test with your material.
Frequently Asked Questions About PBH
What is an angle roll machine?
A machine that rolls angle iron, flat bar, tube and other sections into curves and rings between three rolls. On the PBH all three rolls are driven.
Can the PBH bend beams?
Yes. PBH 65 and larger bend IPN beams, and PBH 100 and PBH 120 also bend HEA and HEB beams. PBH 120 can bend UPN, IPN and HEA/HEB the hard way with the special beam bending attachment.
What is the difference between the compact PBH 50/60 and the main PBH series?
PBH 50 and 60 are a compact series with a hydraulic top roll, an optional stairway bending attachment and optional Delrin rolls for aluminium and stainless steel. On PBH 40, 65, 80, 100 and 120 the bottom rolls are set hydraulically, two digital read-outs are standard, and an optional crane supports spiral rolling. On PBH 50 and 60 the digital read-out is optional.
Does the PBH need special rolls for pipe?
Yes. Round bar, round tube, pipe, rectangular and square tube and angle are bent with optional rolls. Flat bar, square bar, channel, beams and most T-section positions use the standard roll set; some sizes need a special washer.
What does the NC control do?
It works in teach mode. The operator bends the part once, the machine records every step, and it repeats that bend each time the program is called up.
Is the pyramid-type PBH 3V still available?
It is built to order. Send your section sizes and we will quote the configuration.
