PBM Motorized Profile Bending Machine
The PBM motorized profile bending machine is EBR METAL’s compact roll bender for lighter sections and ornamental metalwork. It rolls flat bar, square and round bar, tube, pipe, angle, T-sections and small channel into curves, rings and spirals. Two bottom rolls are driven through gears, and the top roll turns freely.
Three models: PBM 32, PBM 35 and PBM 45. On the PBM 45 the top roll moves up and down hydraulically. All models work in the horizontal and the vertical position.
• 3 models • 2 gear-driven rolls • Shafts Ø30–50 mm • Up to UPN 80 • 215–430 kg
The PBM motorized profile bending machine is EBR METAL’s compact roll bender for lighter sections and ornamental metalwork. It rolls flat bar, square and round bar, tube, pipe, angle, T-sections and small channel into curves, rings and spirals. Two bottom rolls are driven through gears, and the top roll turns freely.
Three models: PBM 32, PBM 35 and PBM 45. On the PBM 45 the top roll moves up and down hydraulically. All models work in the horizontal and the vertical position.
- 3 models
- 2 gear-driven rolls
- Shafts Ø30–50 mm
- Up to UPN 80
- 215–430 kg
PBM Design
The PBM is a motorized section and pipe bending machine with a steel body. The roll shafts are special steel, hardened and ground, and the rolls are hardened.
- Drive: the two bottom rolls are driven directly by a gear system from the gearbox; the top roll is idle. On PBM 35 and 45 the roll shafts run in bearings.

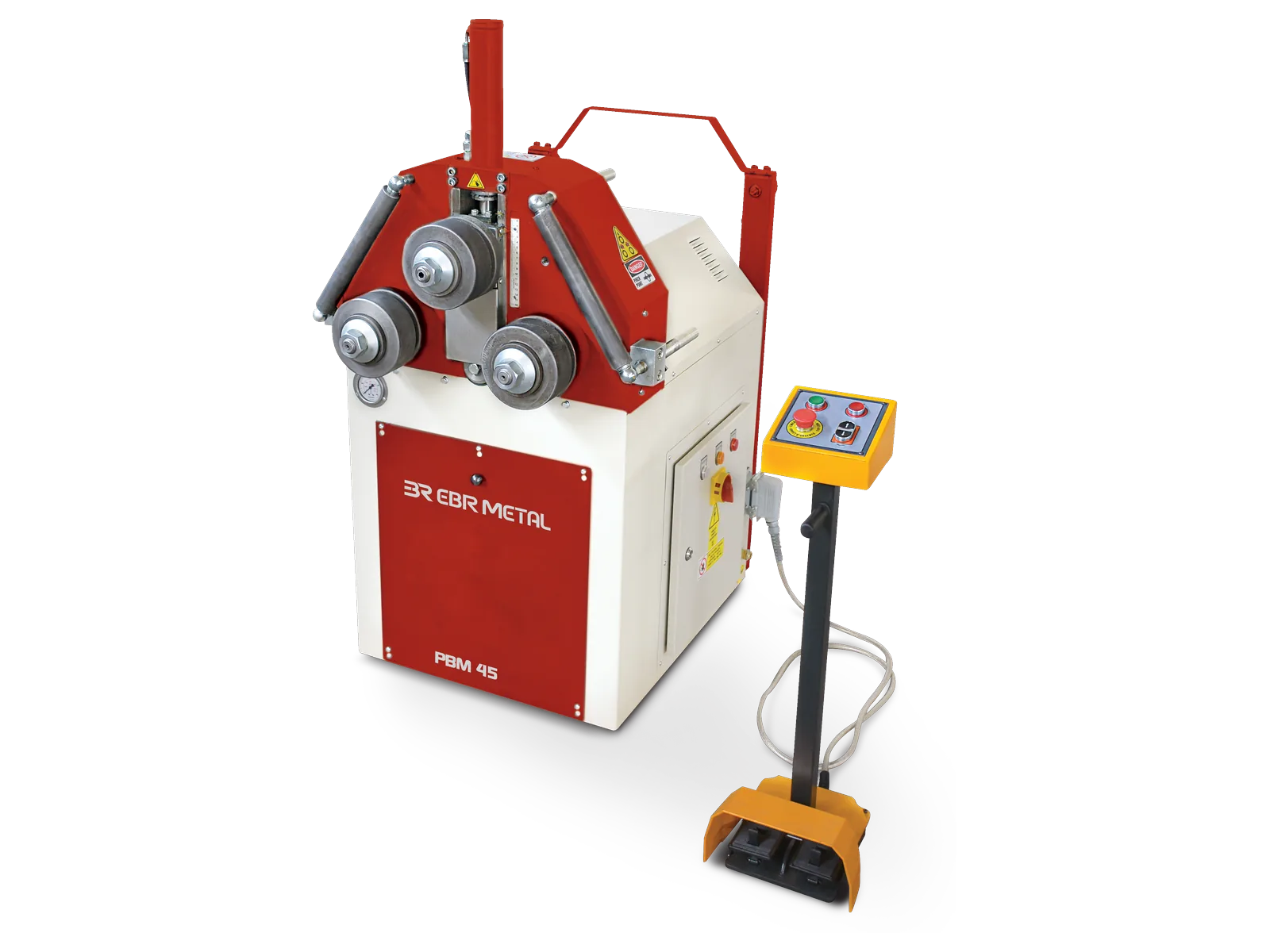

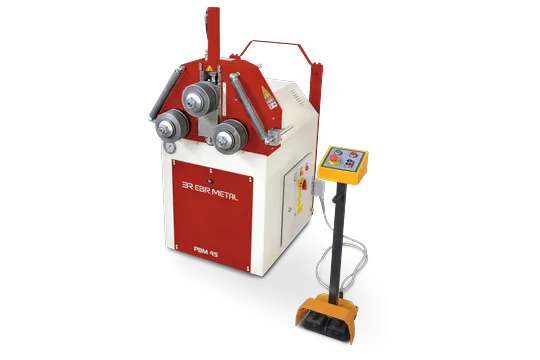

- Top roll: set by hand on the PBM 32 and 35; moved up and down hydraulically on the PBM 45.
- Motor: double-speed motor as standard on the PBM 32 (2–4 m/min); on the PBM 35 and 45 a double-speed motor is an option.
- Guiding: adjustable guide rolls are standard.

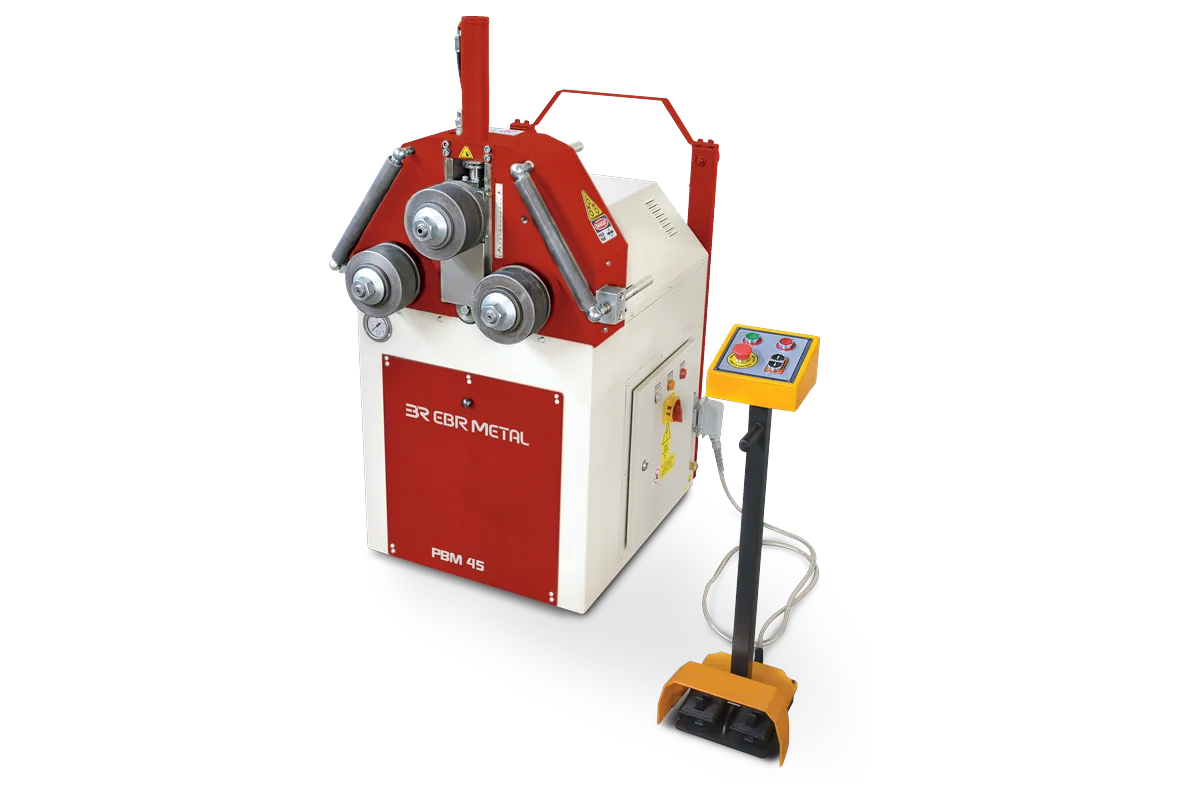

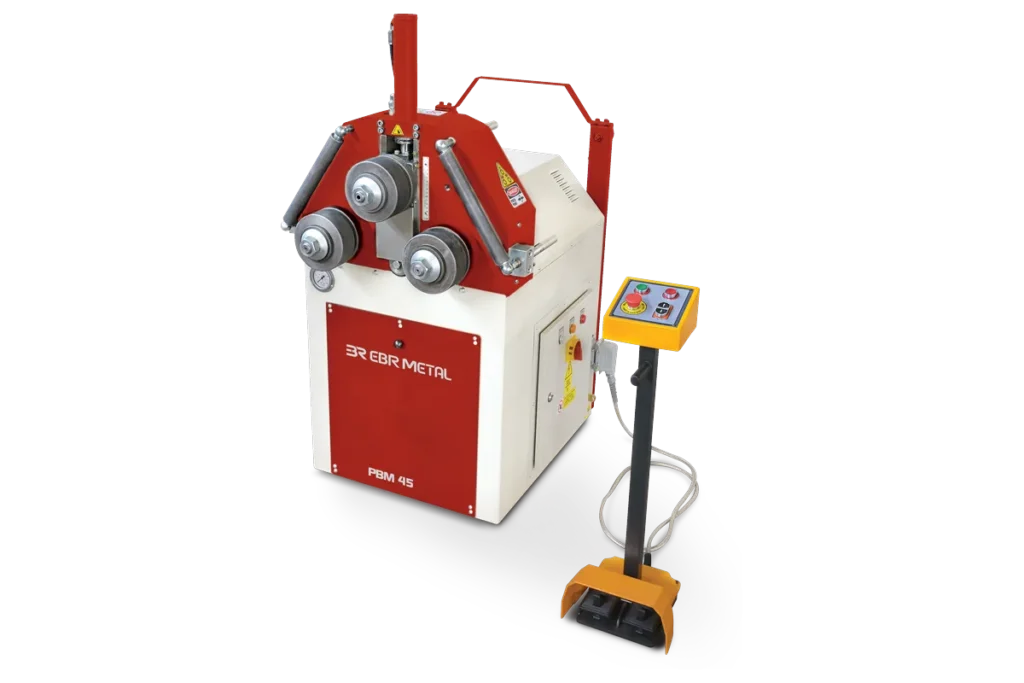

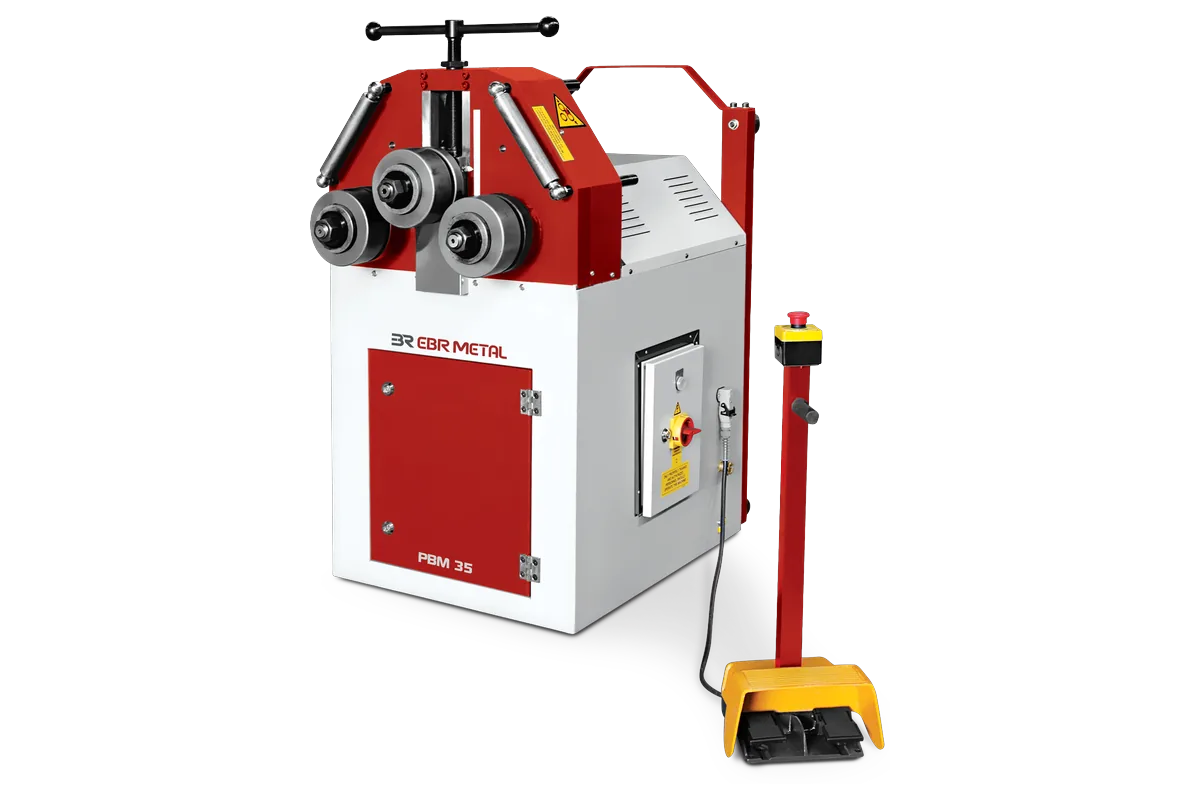

PBM Product Gallery
PBM General Features
- Steel frame
- Two bottom rolls driven directly by gears
- Idle (free-turning) top roll: manual setting (PBM 32, 35), hydraulic (PBM 45)
- Hardened rolls; shafts of special steel, hardened and ground
- Roll shafts in bearings (PBM 35, 45)

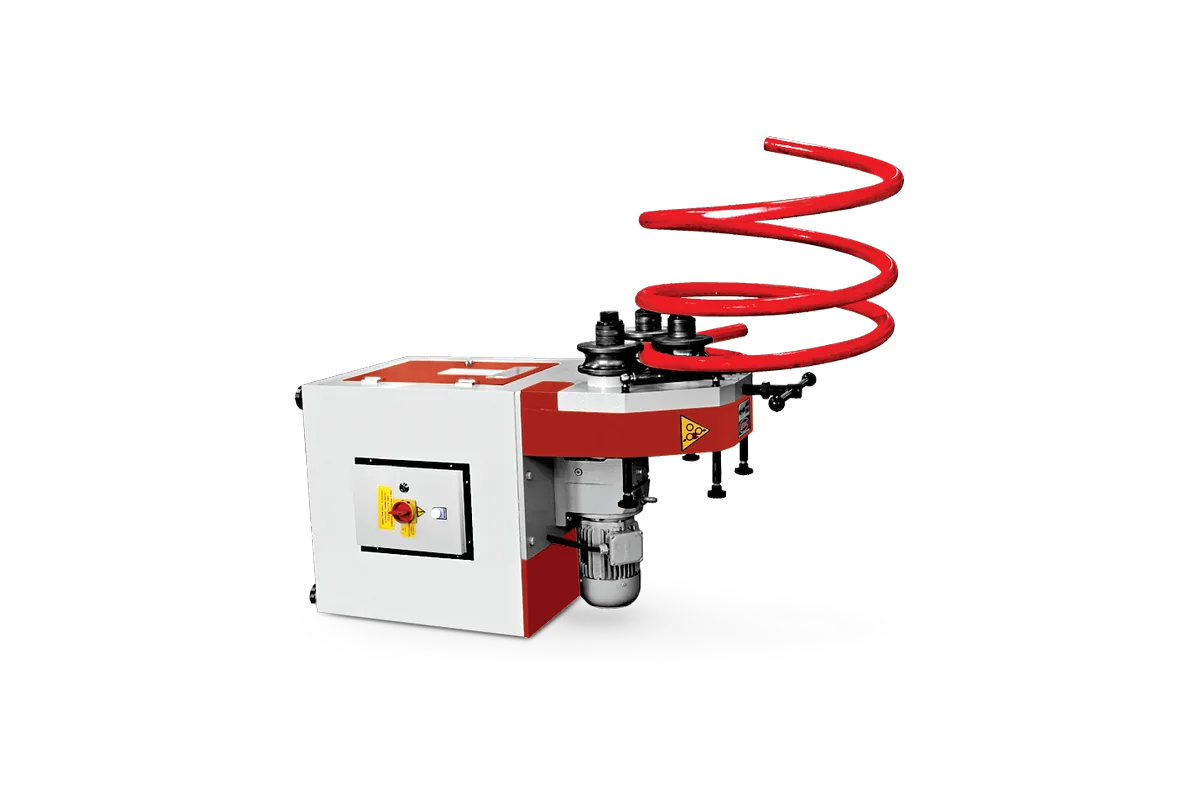

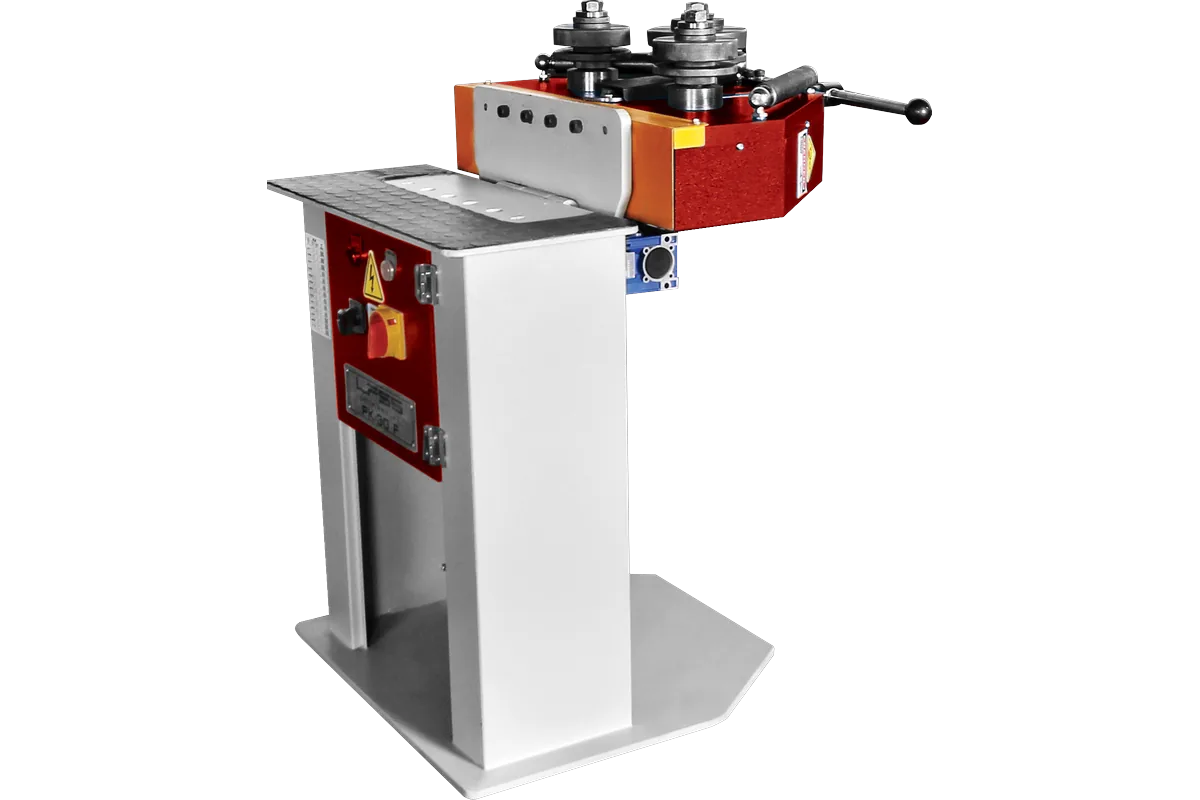

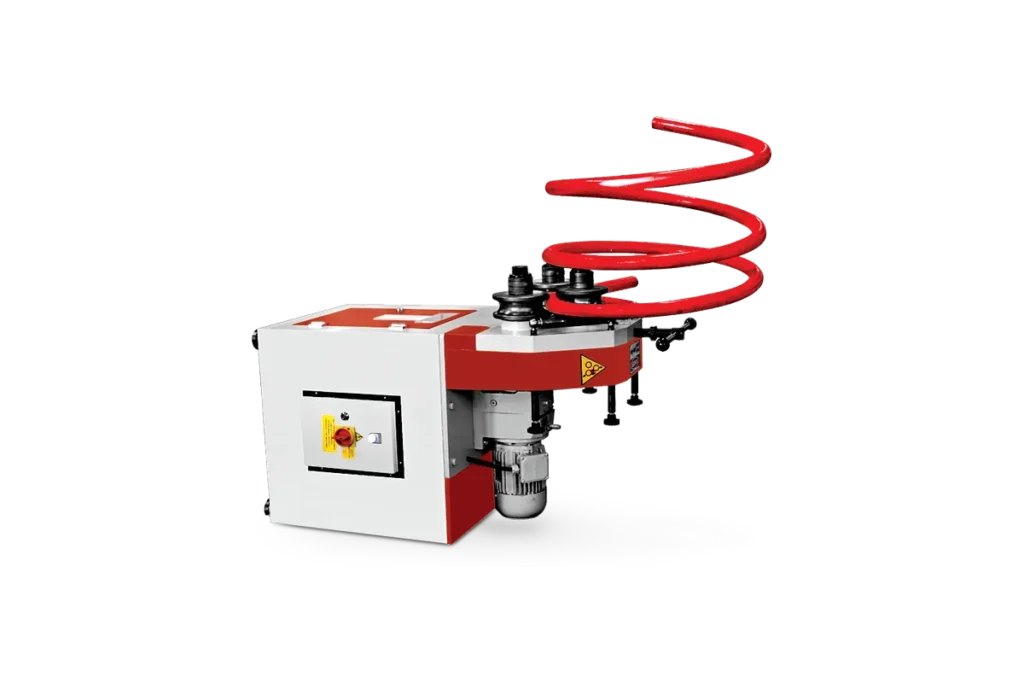

- Horizontal and vertical working position
- Built to CE requirements
PBM Standard Equipment
- Standard roll set
- Adjustable guide rolls
- Double-speed motor (PBM 32)
- Hydraulic top roll (PBM 45)
PBM Optional Equipment
- Pipe and tube bending rolls
- Special profile bending rolls
- Angle bending rolls
- Digital read-out
- Special lateral angle guide rolls
- Double-speed motor (PBM 35, PBM 45)
- Special bar twist attachment (PBM 35, PBM 45)
- C&S (scroll) forming attachment (PBM 35, PBM 45)
- Custom rolls for special profiles and bends
PBM Technical Specifications
| Model | Shaft Ø (mm) | Top roll Ø (mm) | Bottom roll Ø (mm) | Bending speed (m/min) | Motor (kW) | Dimensions L×W×H (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|
| PBM 32 | 30 | 148 | 118 | 2–4 | 0.7–0.85 | 600×700×1350 | 215 |
| PBM 35 | 50 | 155 | 155 | 4.5 | 1.5 | 1000×750×1400 | 400 |
| PBM 45 | 50 | 155 | 155 | 4.5 | 1.5 + 0.75 | 900×1355×1450 | 430 |
Specifications may change without notice. Other capacities on request.
PBM Capacity Chart
Capacities are given for 260 N/mm² yield strength. Min. Ø = minimum bending diameter in mm. For stainless steel or higher-strength material, send the grade and we will confirm the model. Sizes marked * may need a special washer (spacer).
| No | Profile | PBM 32 | PBM 35 / PBM 45 | Rolls |
|---|---|---|---|---|
| 1 |  Flat bar, on edge (hard way) | 50×10 / 1800 20×6 / 300 | 60×10 / 500 40×10 / 400 | Standard |
| 2 |  Flat bar, flat (easy way) | 80×15* / 700 30×6 / 400 | 100×15* / 450 60×10 / 350 | Standard |
| 3 |  Square bar | 30×30 / 900 10×10 / 200 | 35×35 / 900 20×20 / 300 | Standard |
| 4 |  Round bar | Ø30 / 900 Ø10 / 200 | Ø35 / 600 Ø30 / 400 | Optional |
| 5 |  Round tube (OD × wall) | Ø60×1.5 / 1000 Ø25×1.5 / 600 | Ø70×2 / 1000 Ø30×2 / 500 | Optional |
| 6 |  Pipe (nominal inch × wall) | 1½″×2.9 / 600 ¼″×1.8 / 300 | 2″×2.9 / 1000 1″×2.3 / 350 | Optional |
| 7 |  Rectangular tube | 50×30×3 / 1200 40×20×2 / 800 | 70×30×2 / 1200 50×40×3 / 1200 | Optional |
| 8 |  Square tube | 40×3 / 1200 30×2 / 800 | 50×3 / 1700 40×3 / 600 | Optional |
| 9 |  Angle, leg out | 40×40×5 / 600 30×30×4 / 300 | 50×50×5 / 800 40×40×5 / 600 | Optional |
| 10 |  Angle, leg in | 35×35×5 / 600 30×30×4 / 400 | 50×50×6 / 1000 30×30×3 / 500 | Optional |
| 11 |  T-section, stem out | 50×6 / 600 20×3 / 400 | 60×7* / 700 30×4 / 400 | Standard |
| 12 |  T-section, stem in | 50×6 / 600 20×3 / 400 | 60×7* / 800 30×4 / 500 | Standard |
| 13 |  T-section, stem up | 50×6 / 600 20×3 / 400 | 60×7 / 700 30×4 / 500 | Standard |
| 14 |  Channel (UPN), flanges out | — | UPN 80 / 1000 UPN 30 / 500 | Optional* |
| 15 |  Channel (UPN), flanges in | — | UPN 80 / 1200 UPN 30 / 800 | Standard* |
Choosing the PBM Motorized Profile Bending Machine
The PBM motorized profile bending machine suits workshops that bend lighter sections, including railings, gates, fences, greenhouse arches, furniture frames and tube spirals. It is the lowest-cost machine in EBR METAL’s profile bending range, and the PBM 32 and PBM 35 are the models ordered most often.

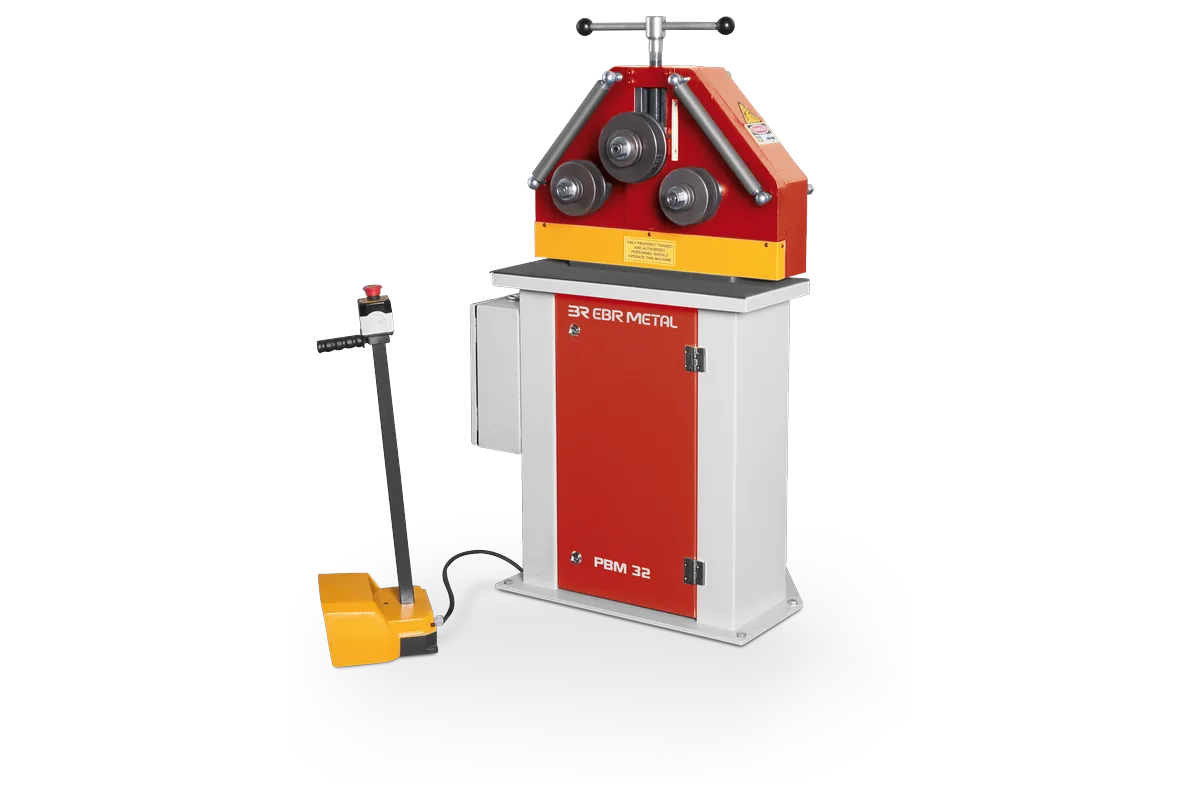

- PBM 32: the smallest and lightest model, with a double-speed motor as standard and a manually set top roll.

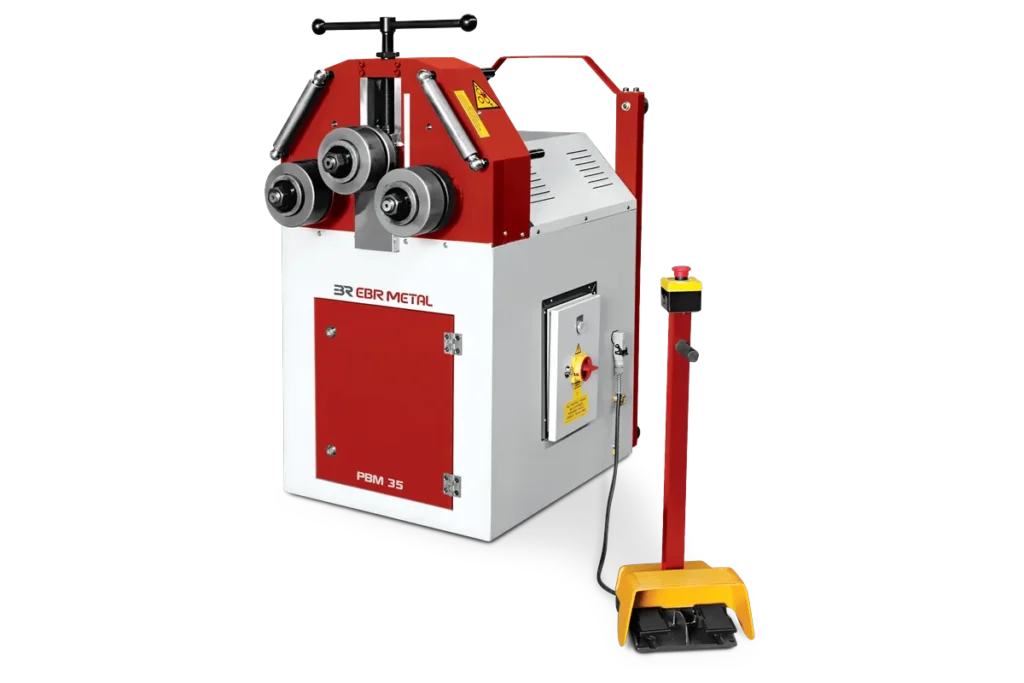

- PBM 35: larger shafts and capacity, up to UPN 80 and Ø70 × 2 mm tube; manual top roll, optional twist and scroll attachments.
- PBM 45: the same capacity as the PBM 35, with a hydraulic top roll for easier setting.
For heavier sections, three driven rolls and digital read-outs, see the PBH angle roll machine. All models: profile bending machine range.
Request a Quote for the PBM
For each part, send the material, the section type and size, the wall thickness and the smallest inside diameter you need. Each tube diameter needs its own roll set, so list every size. If your work is close to the PBM limits, we will compare it with the smallest PBH models.
Frequently Asked Questions About PBM
What is a roll bender used for?
For rolling bar, tube and light sections into curves, rings and spirals. The PBM is a motorized roll bender for railings, gates, frames and greenhouse arches.
What is the difference between PBM 35 and PBM 45?
They have the same capacity. On the PBM 35 the top roll is set by hand; the PBM 45 moves it hydraulically, which makes setting the radius easier.
Can the PBM make twisted bars and scrolls?
Yes, on the PBM 35 and 45, with the optional bar twist and C&S (scroll) forming attachments, used for gates, railings and decorative metalwork.
Can the PBM bend tube and pipe?
Yes, with the optional pipe and tube rolls: up to Ø70 × 2 mm round tube and 2″ pipe on the PBM 35 and 45.
PBM or PBH?
The PBM costs less and suits lighter sections. For heavier work, beams or three driven rolls, compare the PBH range.
