CMH Manual HVAC Folding Machine

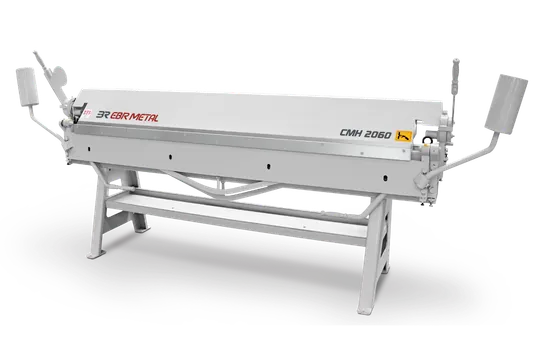

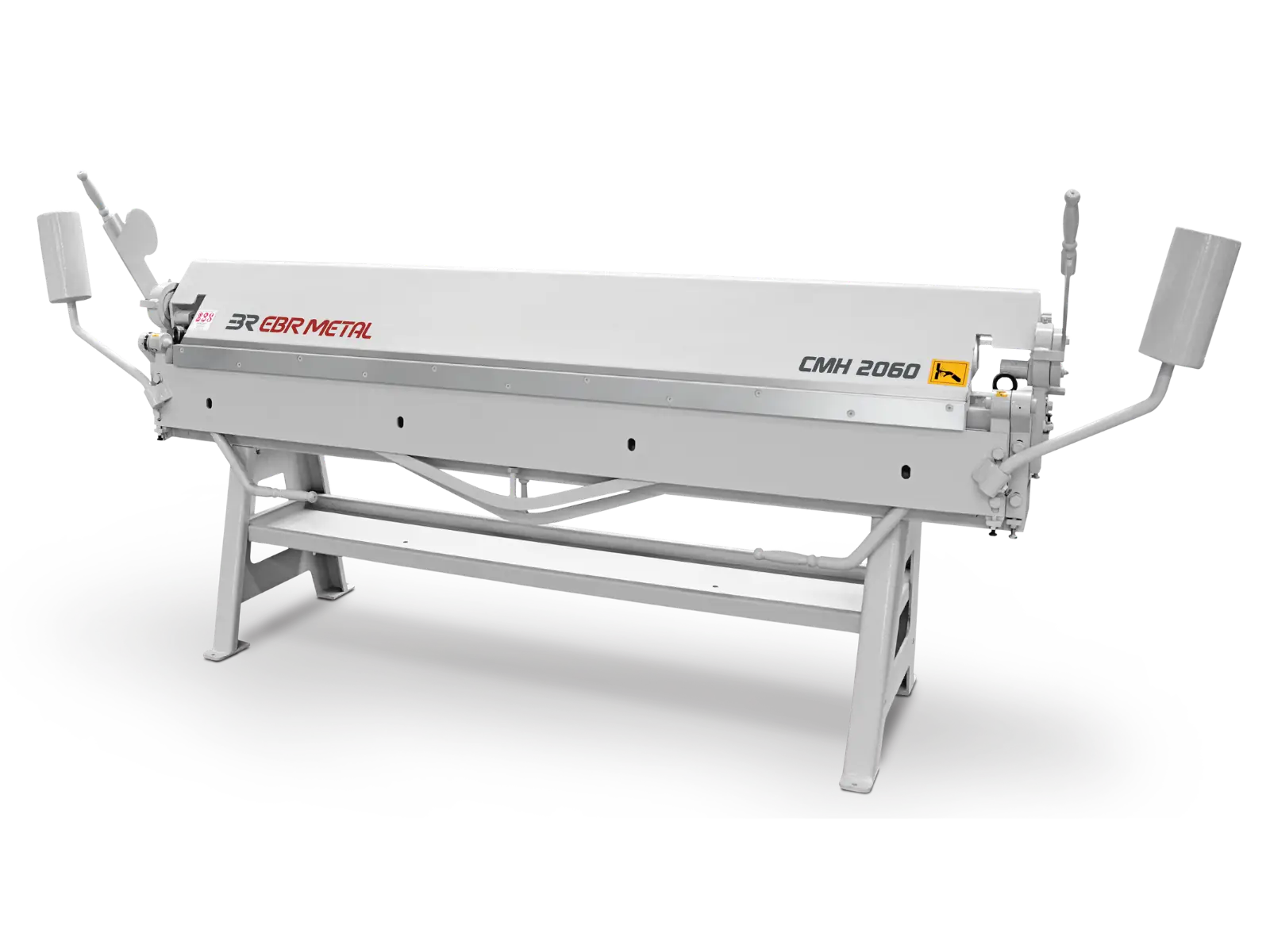

The CMH is EBR METAL’s manual HVAC-type folding machine, portable and suited to site-use work, available in three working lengths — 2060, 2560 and 3060 mm.
The CMH is EBR METAL’s manual HVAC-type folding machine, portable and suited to site-use work, available in three working lengths — 2060, 2560 and 3060 mm.

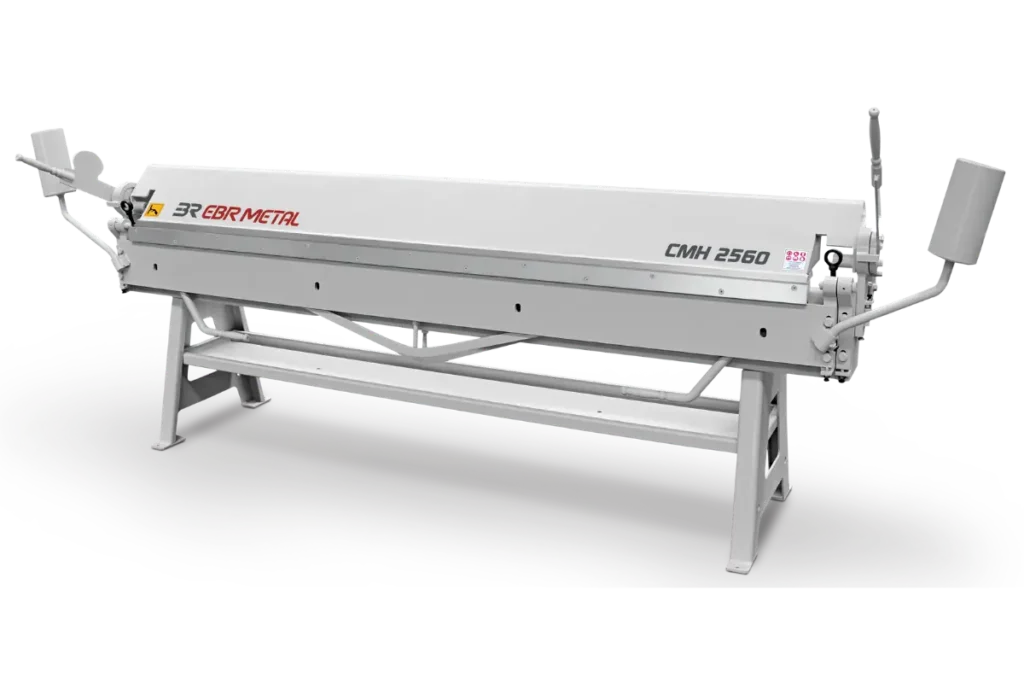

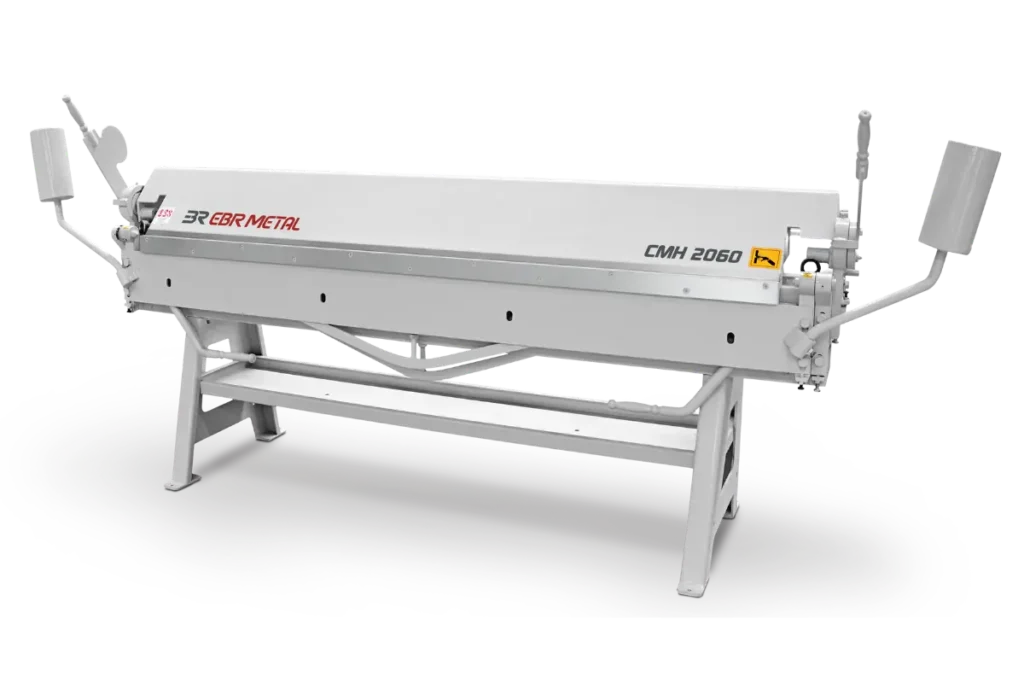

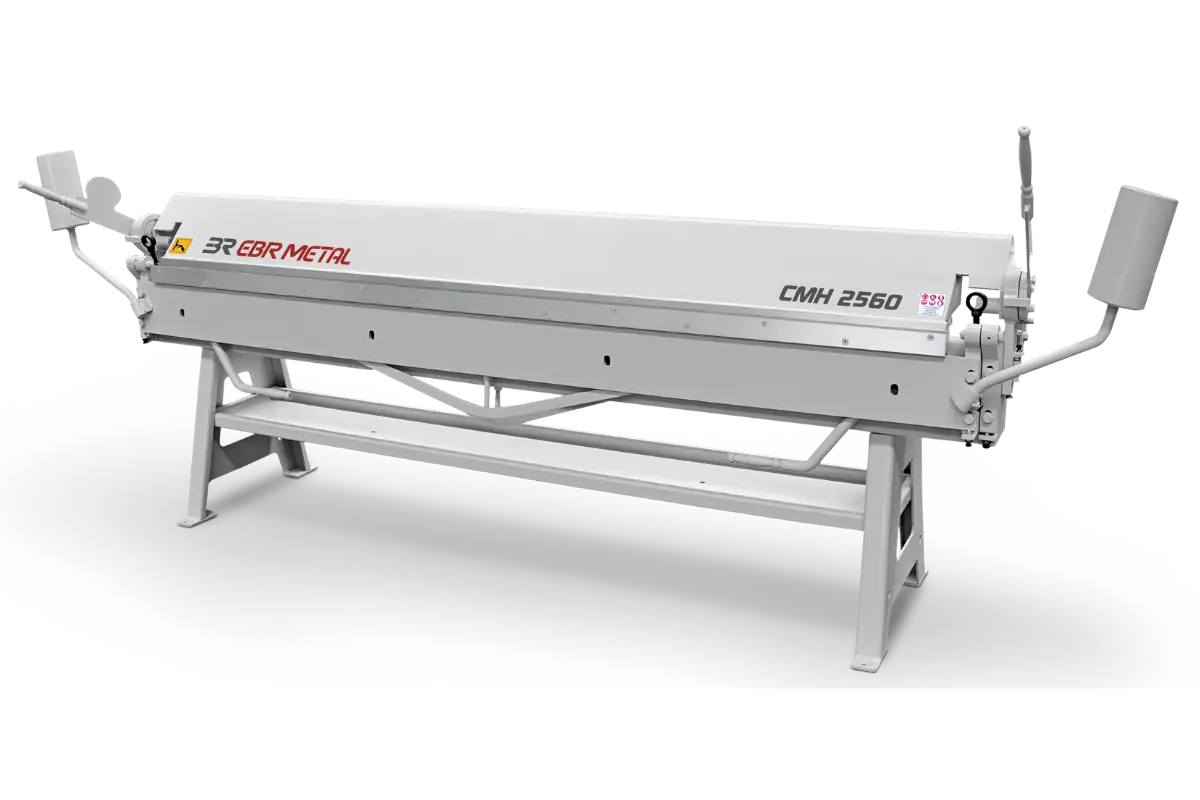

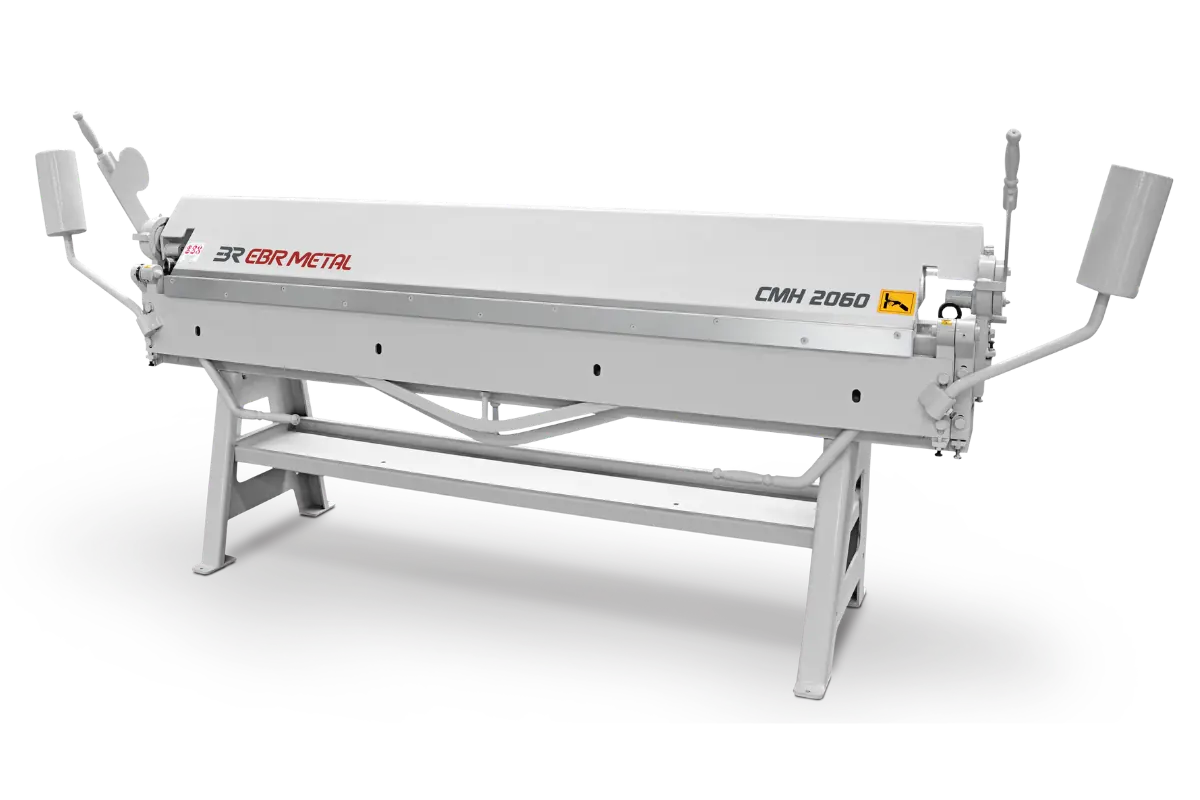

CMH Product Gallery
Construction and Standard Equipment
The CMH manual HVAC folding machine has a welded steel body. Standard equipment includes:
– Easy top-beam press & release system.
– Angle scale.
CMH suits aluminium, copper and steel material, matching CMK.
Optional Equipment of CMH Manual HVAC Folding Machine
– Slitting/cutting attachment.
CMH Technical Specifications
Capacities below reflect standard carbon/mild steel (St37) sheet. Other materials, such as stainless steel, behave differently and should be confirmed with EBR before ordering.
| Model | Working length (mm) | Max bending angle | Capacity (mm) | Width (mm) | Length (mm) | Height (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|
| CMH 2060 | 2060 | 135° | 1.20 | 910 | 3300 | 1350 | 500 |
| CMH 2560 | 2560 | 135° | 1.20 | 910 | 3700 | 1350 | 600 |
| CMH 3060 | 3060 | 135° | 1.00 | 910 | 4100 | 1350 | 700 |
Parts, Bending Work and Selection
The CMH manual HVAC folding machine is portable and suited to HVAC ductwork and general on-site folding. CMH and CMK are both portable manual folding machines for HVAC work. CMK is lighter and easier to move between sites, while CMH covers working lengths up to 3060 mm.
To confirm whether CMH is the right fit for your job, tell us your material, the required bending length and the maximum thickness. For complex bends, we’ll also need a technical drawing.
Request a Quote — send your material, bending length and thickness
Frequently Asked Questions
Is CMH the same as CHM?
No. CMH is a manual folding machine; CHM is EBR’s hydraulic folding machine. They are different products, despite the similar name.
What is the difference between CMH and CMK?
Both are portable manual HVAC-type folders and both suit aluminium, copper and steel. CMK is lighter, making it easier to transport to construction sites and similar locations; CMH covers working lengths up to 3060 mm.
Does CMH have a slitting option?
Yes, a slitting/cutting attachment is available as an optional extra.
What material does the technical table's capacity apply to?
The listed capacities reflect standard carbon/mild steel (St37) sheet. Other materials behave differently and should be confirmed with EBR before ordering.
