LSM Lock Seamer Machines
The LSM lock seamer machine closes the longitudinal lock seam of round ducts and pipes. A hardened seaming roll presses the seam flat along a length of up to 1300 mm, on ducts from Ø130 to Ø1000 mm and sheet up to 1.2 mm.
Round duct and chimney makers use it to press a formed lock seam closed without welding.
Two models: the LSM 13 presses with a pneumatic piston at 8 bar; the LSM 13M presses with a motor and needs no compressed air.
• 2 models • Ø130–1000 mm • 1300 mm seam • Up to 1.2 mm • Pneumatic or motorized
The LSM lock seamer machine closes the longitudinal lock seam of round ducts and pipes. A hardened seaming roll presses the seam flat along a length of up to 1300 mm, on ducts from Ø130 to Ø1000 mm and sheet up to 1.2 mm.
Round duct and chimney makers use it to press a formed lock seam closed without welding.
Two models: the LSM 13 presses with a pneumatic piston at 8 bar; the LSM 13M presses with a motor and needs no compressed air.
- 2 models
- Ø130–1000 mm
- 1300 mm seam
- Up to 1.2 mm
- Pneumatic or motorized

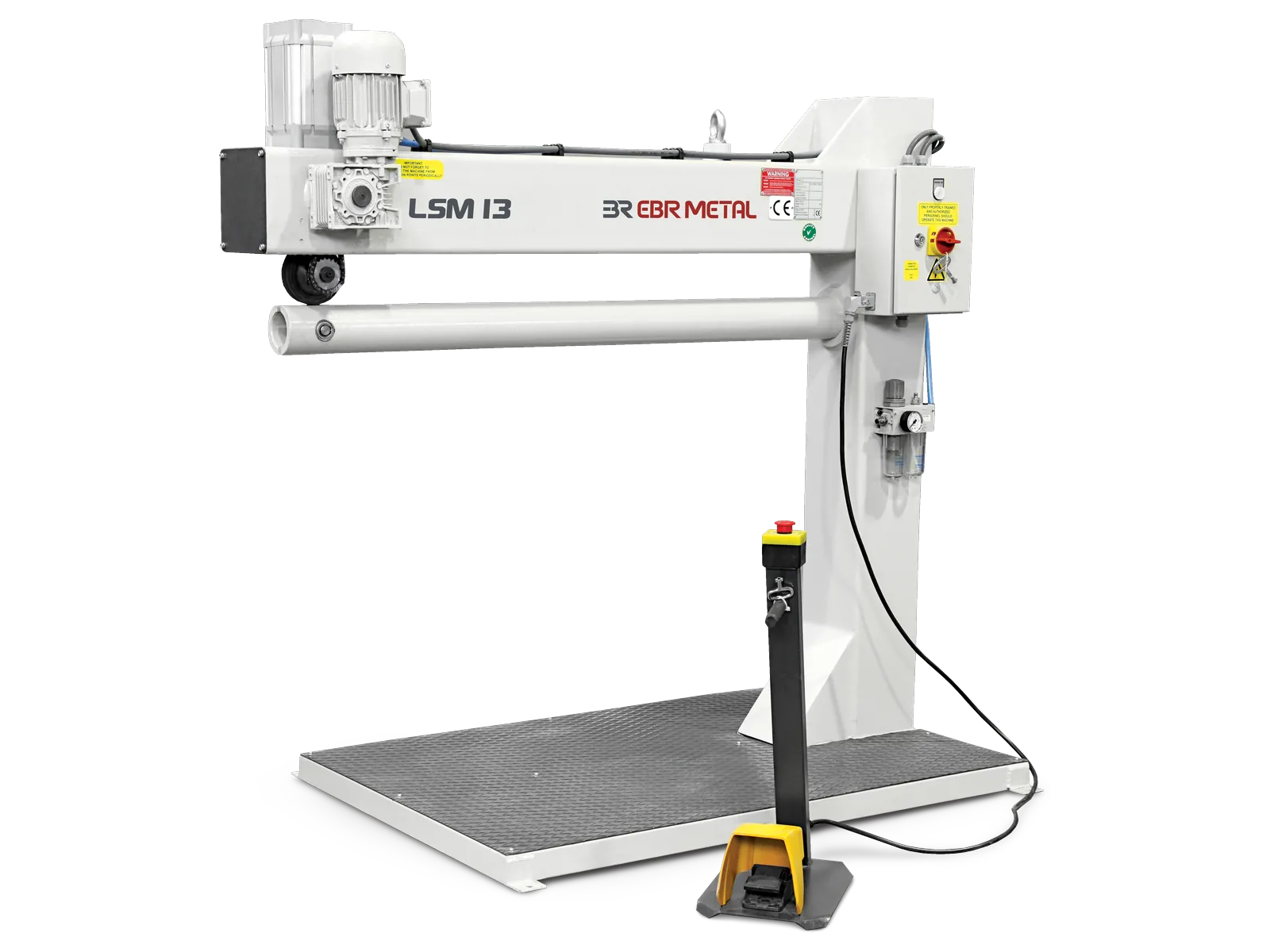

LSM Design

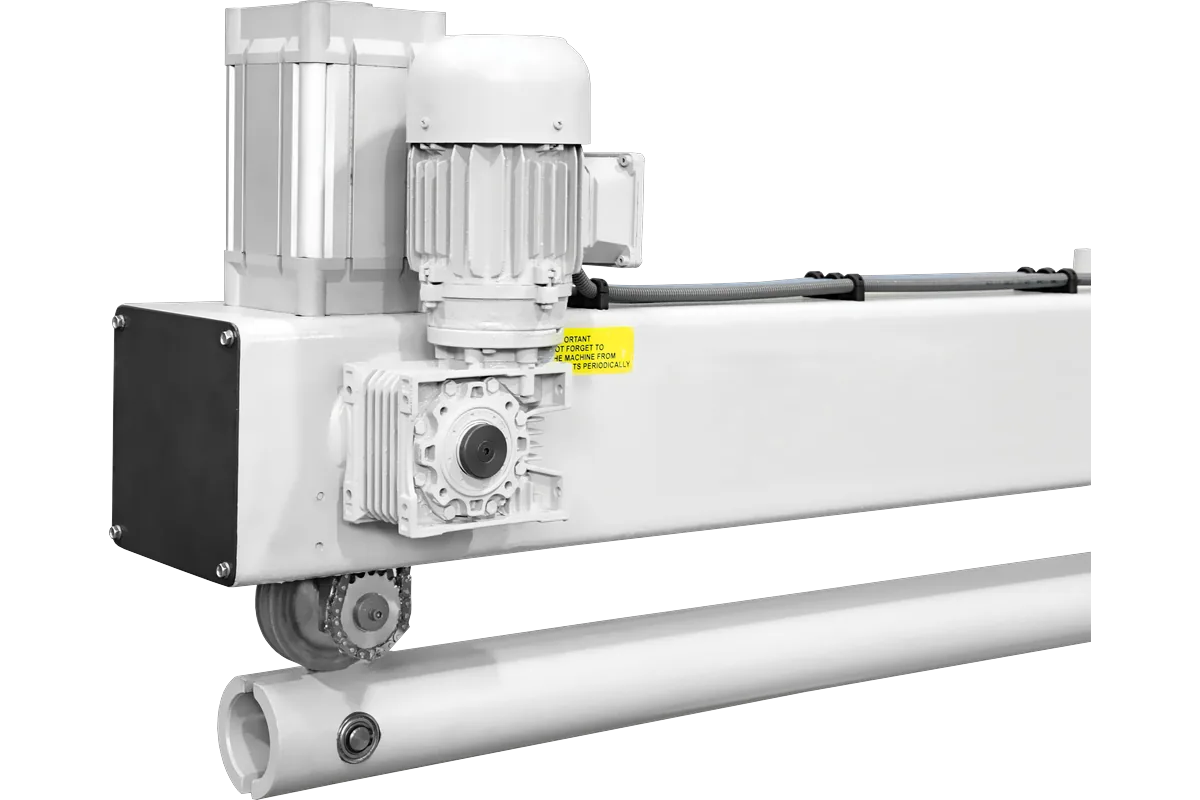

- Seaming: gearbox-driven seaming system with hardened seaming rolls.
- Pressing: pneumatic piston (LSM 13) or motorized pressing (LSM 13M).
- Control: one foot pedal controls both pressing and roll travel.
- Slide: ball-bearing slide system.
- Air protection: air-conditioning unit (filter / regulator) on the pneumatic LSM 13.

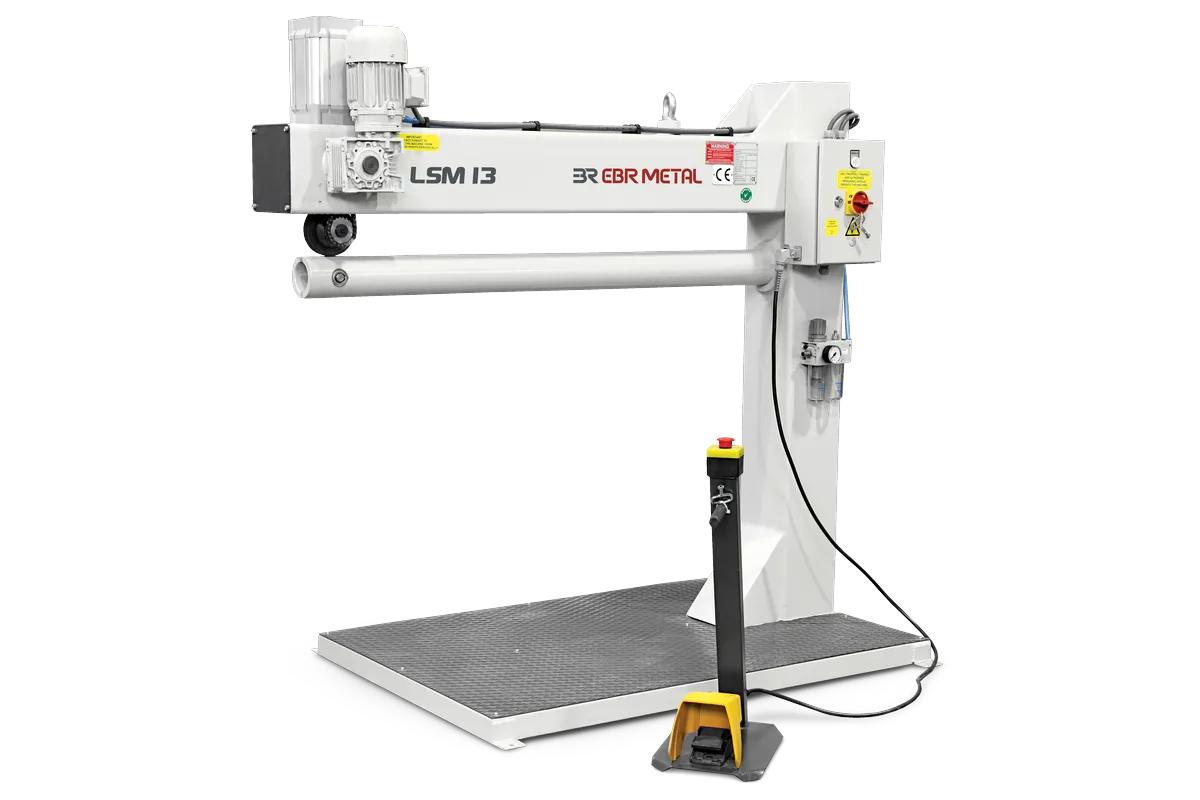

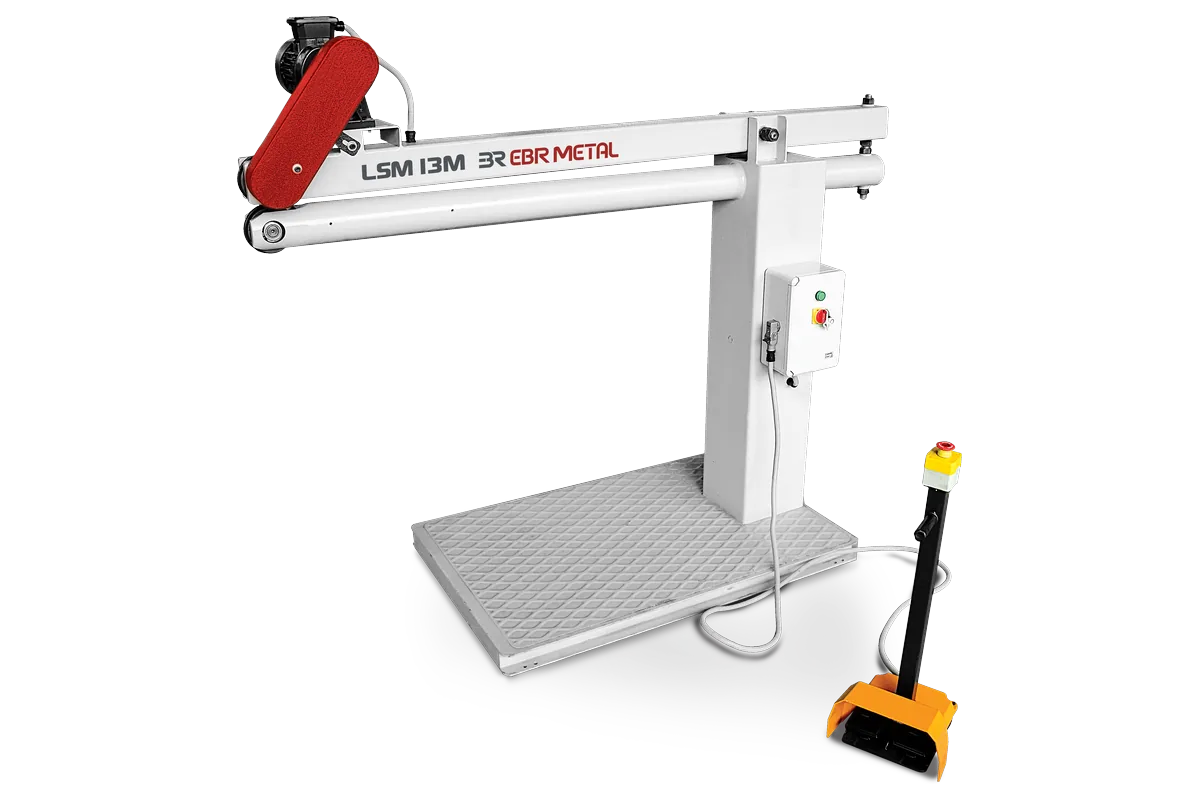

LSM Product Gallery
LSM General Features
- Seam length up to 1300 mm
- Duct diameters Ø130–1000 mm
- Hardened seaming rolls
- Ball-bearing slide
LSM Standard Equipment
- One foot pedal for pressing and roll travel
- Air-conditioning unit (LSM 13)
LSM Technical Specifications
| Model | Pressing | Capacity (mm) | Seam length (mm) | Duct Ø max / min (mm) | Working pressure (bar) | Press force (kg) | Motor (kW) | Dimensions L×W×H (mm) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LSM 13 | Pneumatic | 1.2 | 1300 | 1000 / 130 | 8 | 1000 | 0.37 | 1720×900×1650 | 300 |
| LSM 13M | Motorized | 1.0 | 1300 | 1000 / 130 | — | 1500 | 0.75 | 1600×800×1900 | 300 |
Capacity for mild steel S235JR (formerly St 37); it also applies to galvanized sheet. Specifications may change without notice.
Choosing the LSM Lock Seamer Machine
- LSM 13: pneumatic; for shops with a compressed-air supply.
- LSM 13M: motorized pressing with higher press force (1500 kg); no air supply needed.
The lock on the sheet edge is formed first on an LFM lock former machine.
EBR HVAC: for our HVAC duct production series, see the pipe lock seamer on EBR HVAC.
Request a Quote for the LSM
Send the sheet material, grade and thickness, the duct diameters and seam length, and tell us whether compressed air is available.
Frequently Asked Questions About LSM
What does a lock seamer machine do?
It closes the longitudinal lock seam of a round duct after the sheet has been rolled into a tube, pressing the seam flat and tight along its length.
Pneumatic or motorized?
The pneumatic LSM 13 needs an 8 bar air supply. The LSM 13M presses with a motor, with a higher press force, and needs no air.
What duct sizes can it close?
Ø130 to Ø1000 mm, with a seam up to 1300 mm long, in mild steel sheet up to 1.2 mm.
