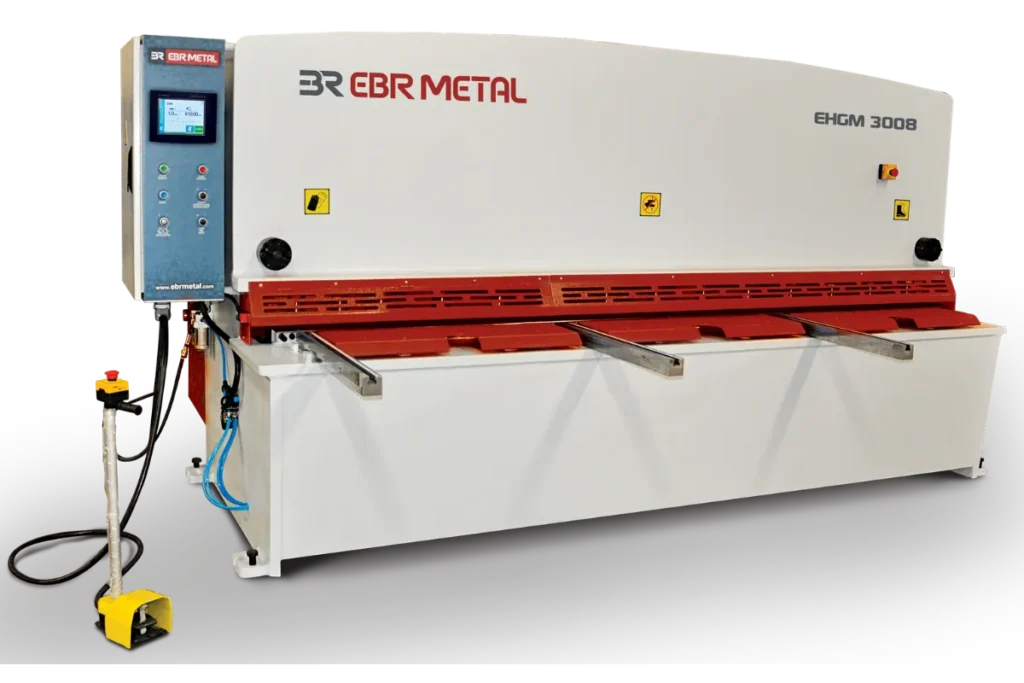

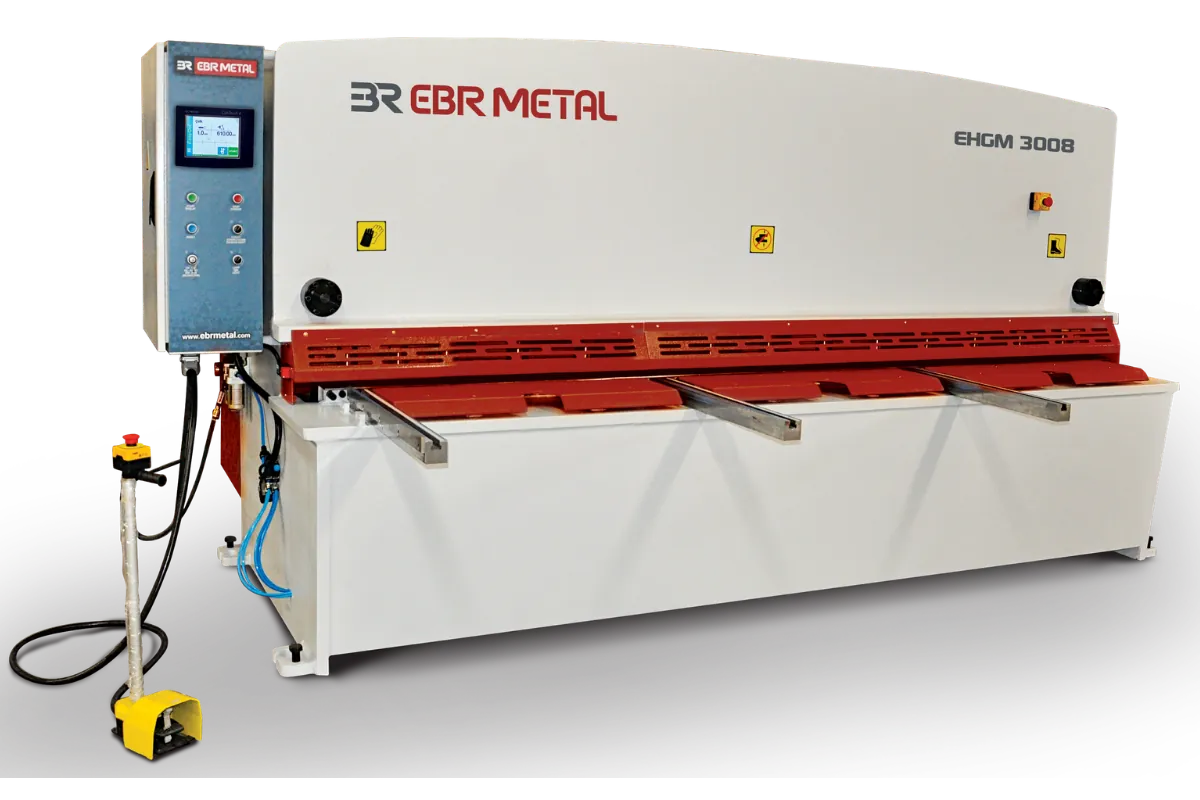

EHGM CNC Hydraulic Rake Angle Guillotine Shear

EHGM is EBR METAL’s CNC hydraulic guillotine shear range for industrial sheet-metal cutting, forming part of our wider sheet metal cutting machines portfolio.

CNC-adjustable rake angle, automatic blade-gap adjustment and a programmable 1,000 mm motorized backgauge let the operator set up each cutting job through the control system rather than each setting by hand.

Automatic CNC blade-gap adjustment
1,000 mm programmable motorized backgauge, ±0.1 mm positioning accuracy
Backgauge lift-up function for parts longer than 1,000 mm

• CNC-adjustable rake angle • CNC-controlled hydraulic guillotine shear

EHGM is EBR METAL’s CNC hydraulic guillotine shear range for industrial sheet-metal cutting, forming part of our wider sheet metal cutting machines portfolio.

Automatic CNC blade-gap adjustment
CNC-adjustable rake angle
CNC-controlled hydraulic guillotine shear
1,000 mm programmable motorized backgauge, ±0.1 mm positioning accuracy
Backgauge lift-up function for parts longer than 1,000 mm

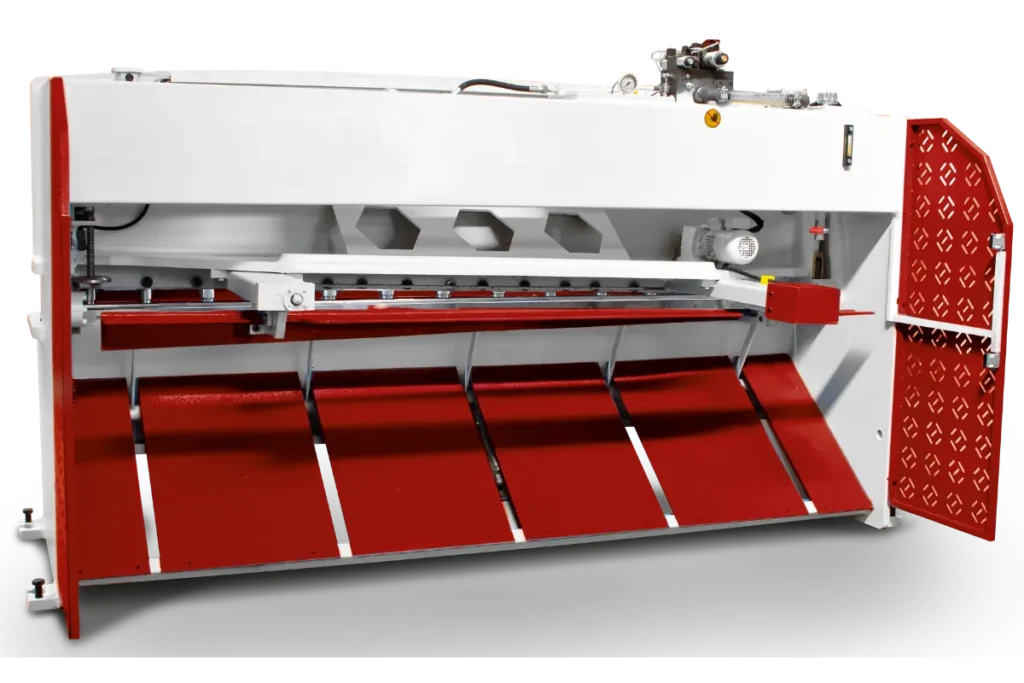

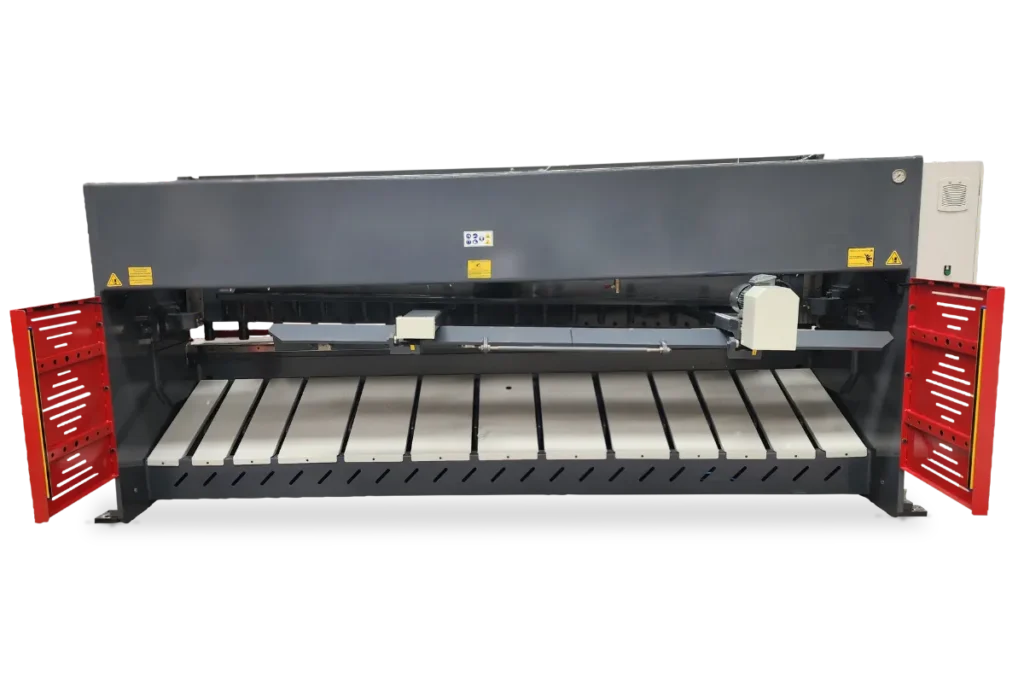

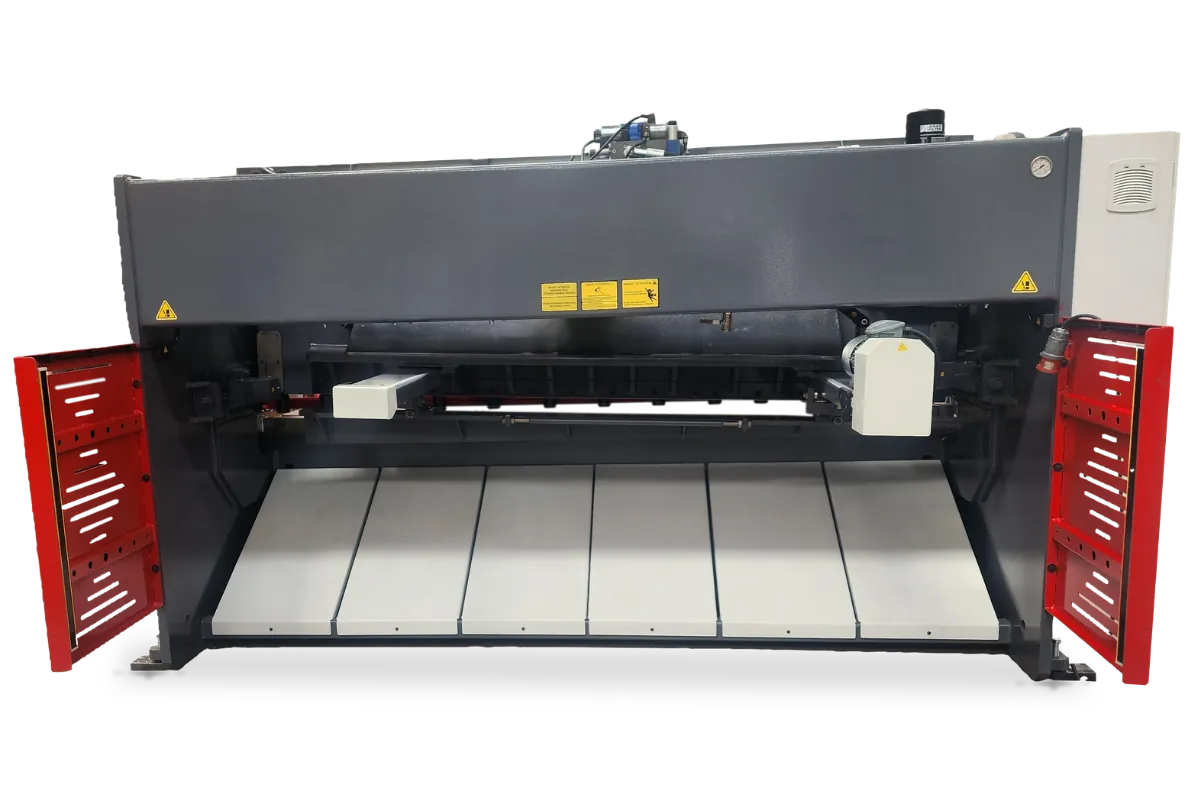

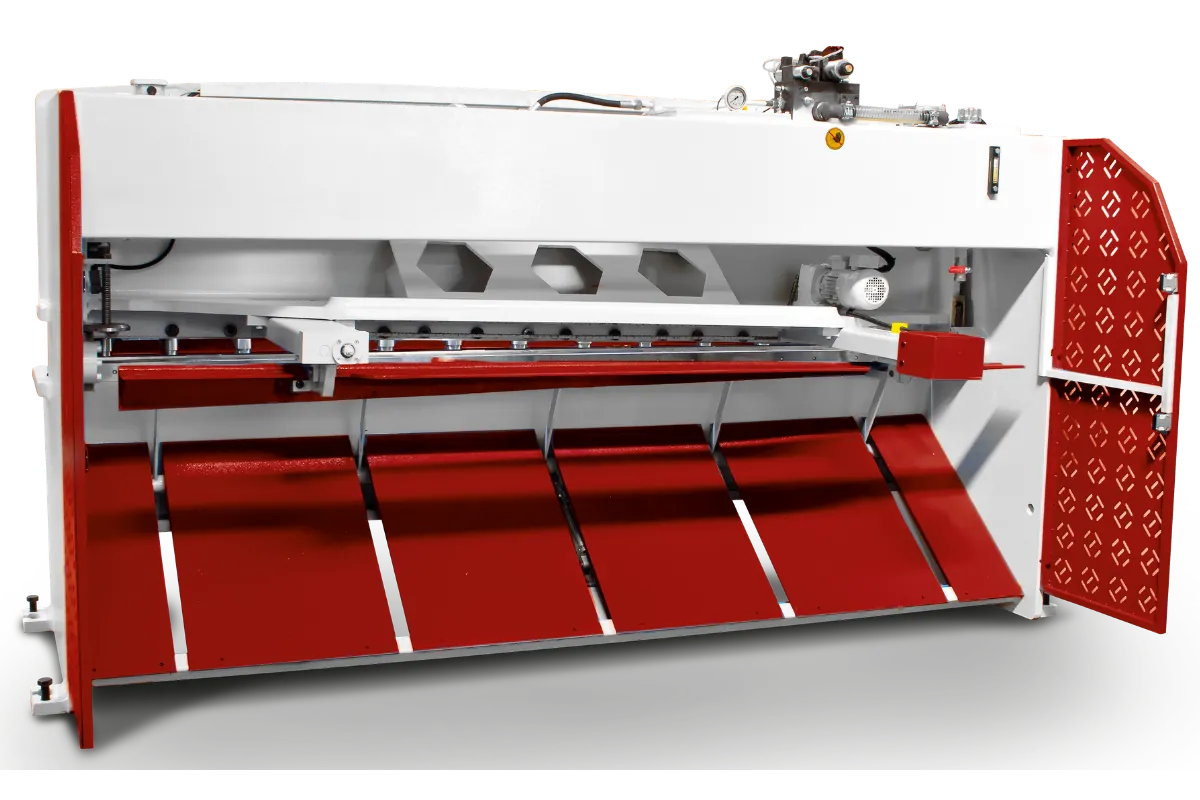

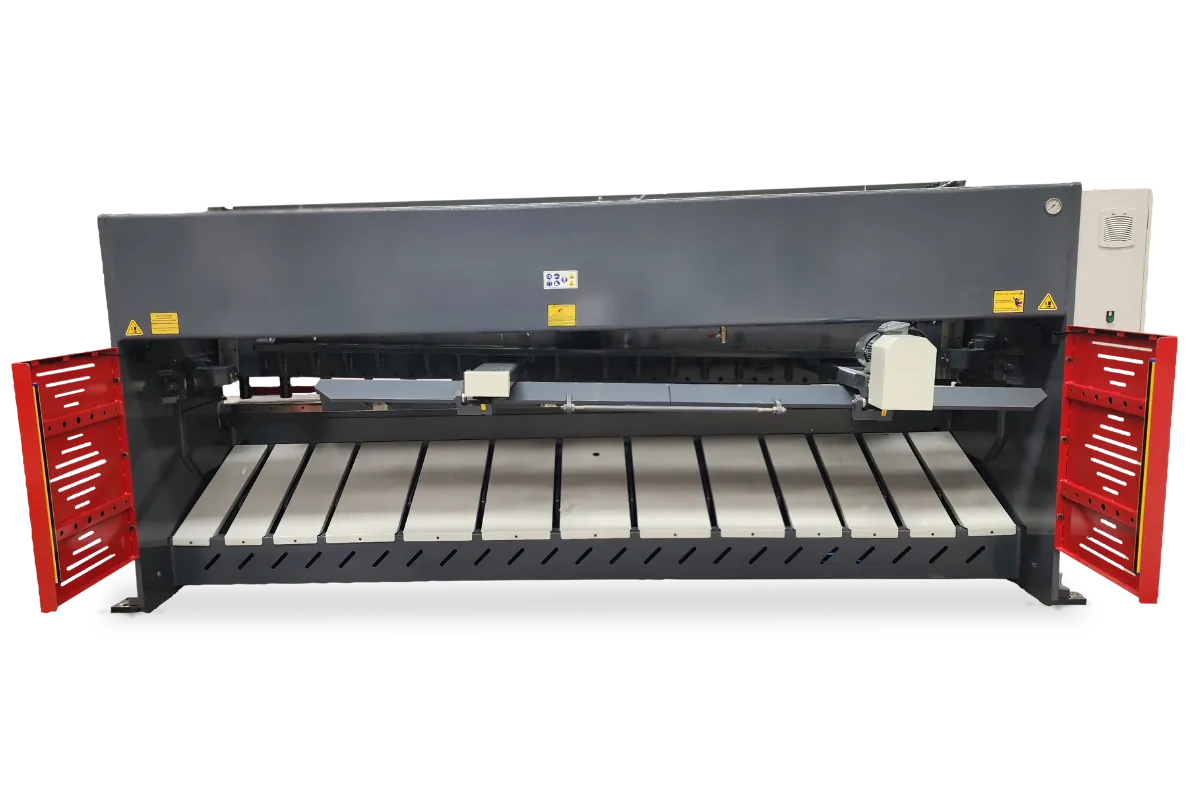

1000 mm CNC-Controlled Programmable Backgauge

EHGM CNC guillotine shearing machine uses a CNC-controlled programmable motorized backgauge with 1000 mm travel and a positioning accuracy of ±0.1 mm, with the required cutting dimension programmed as part of the CNC cutting setup. The system also provides programmable backgauge retraction.

For parts that need to travel further into the machine than this 1000 mm travel allows, the lift-up function clears the backgauge out of the way so the cut can still be made.

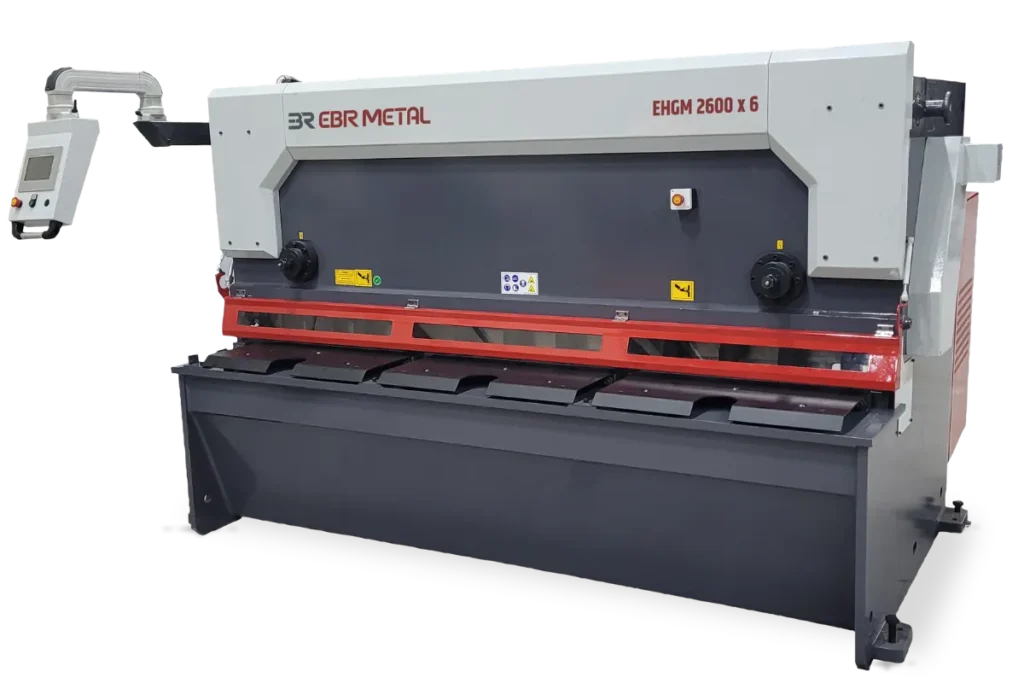

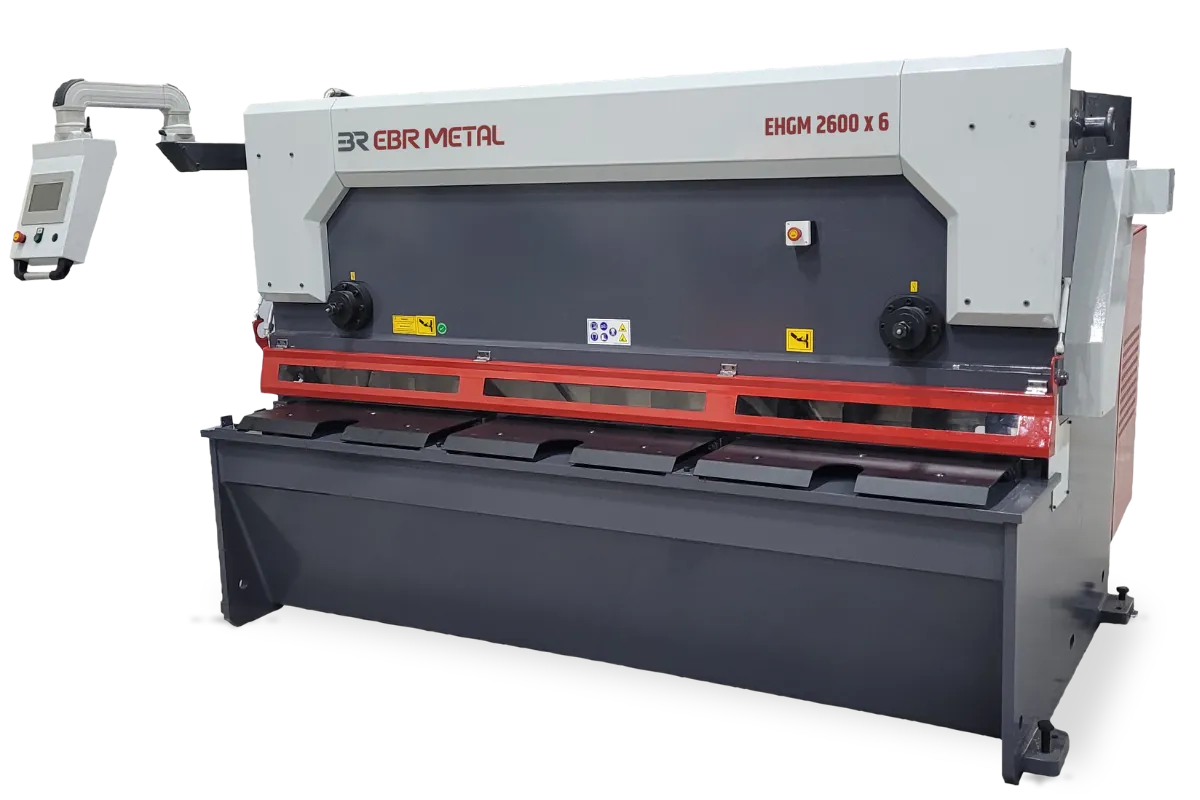

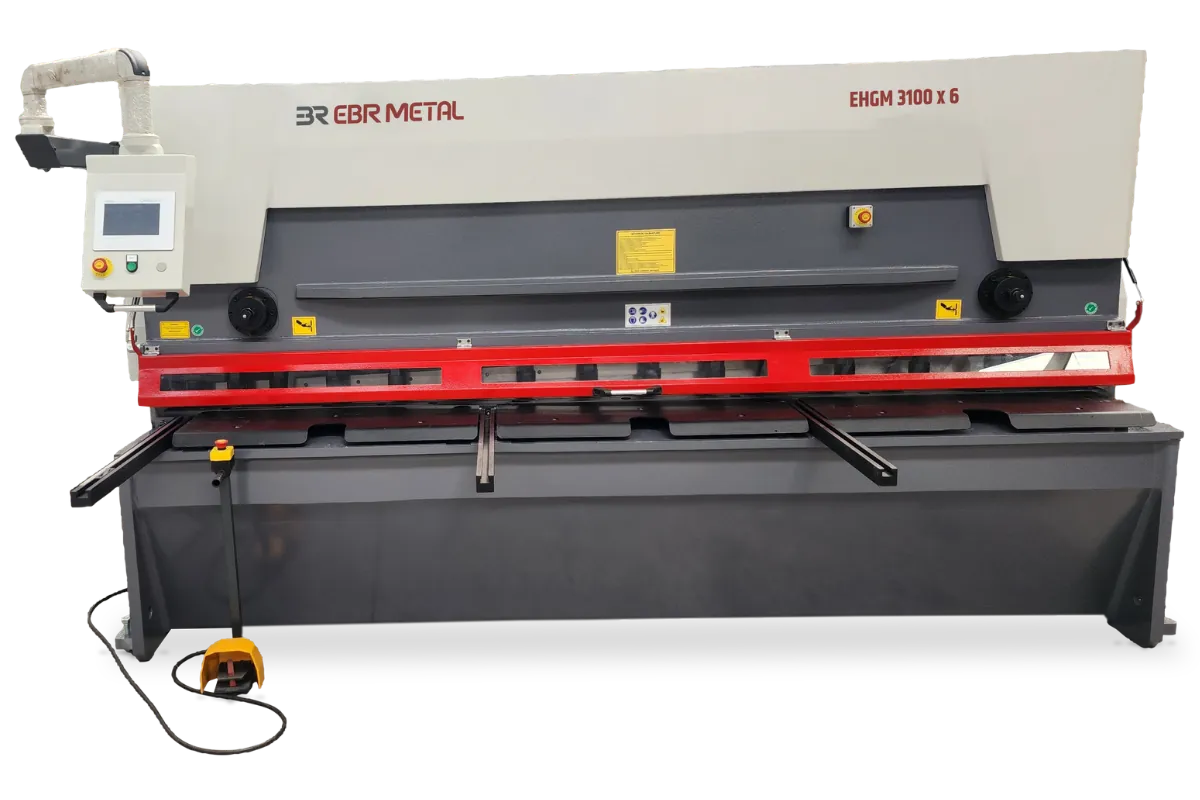

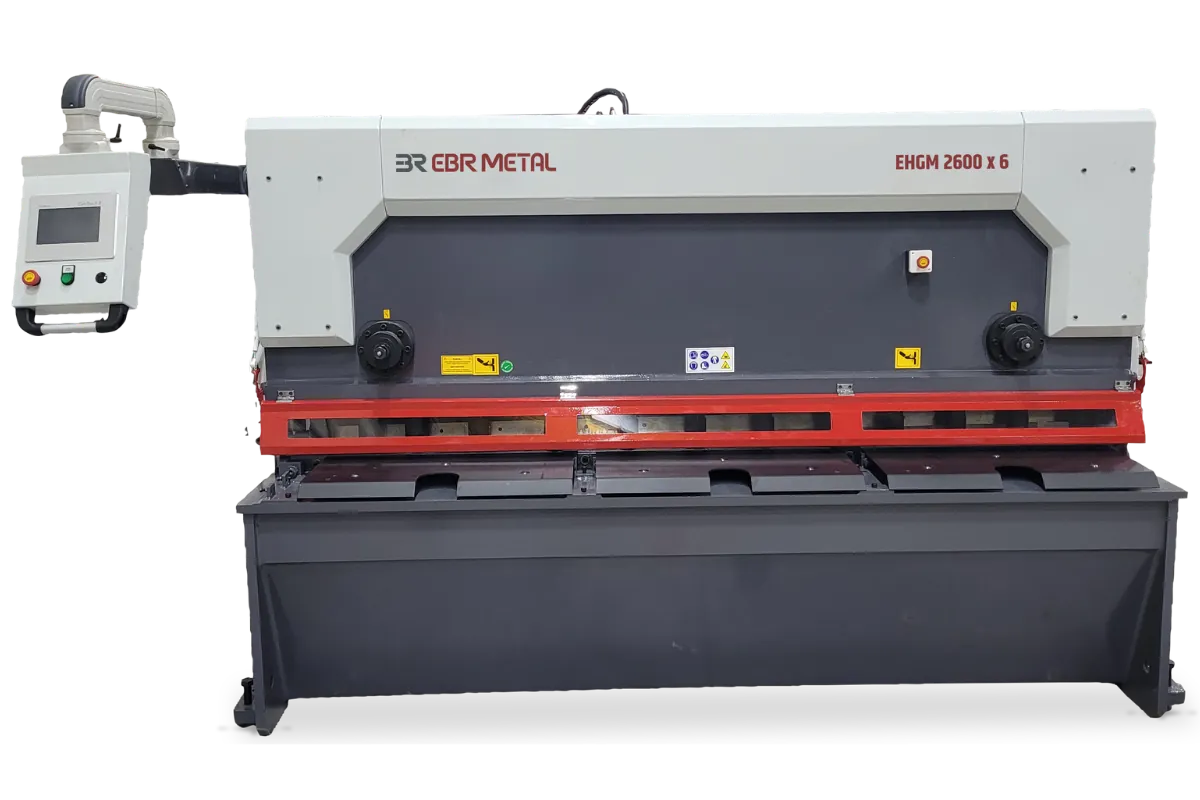

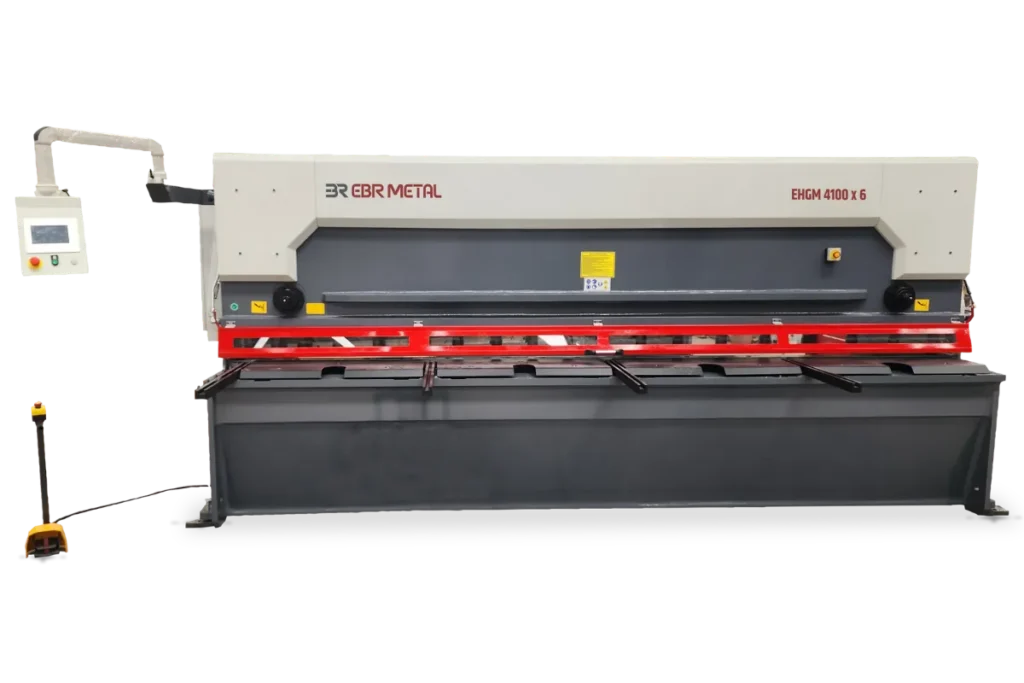

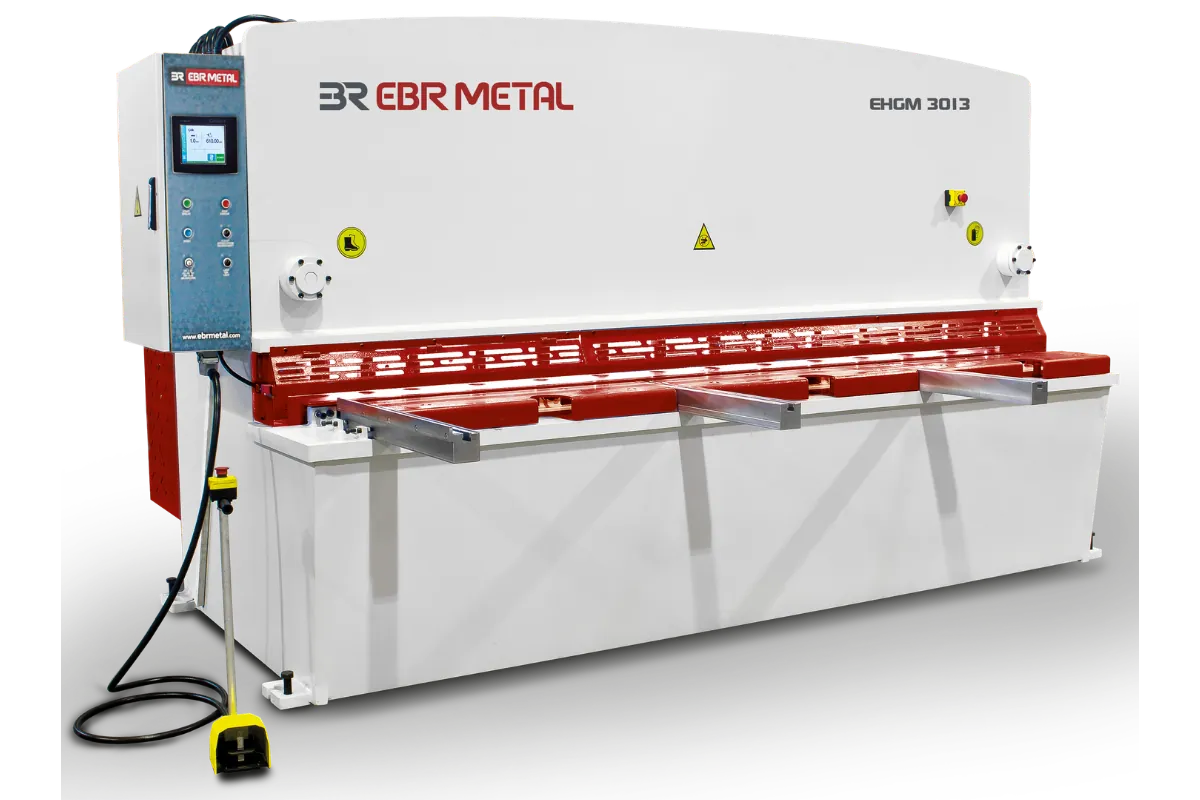

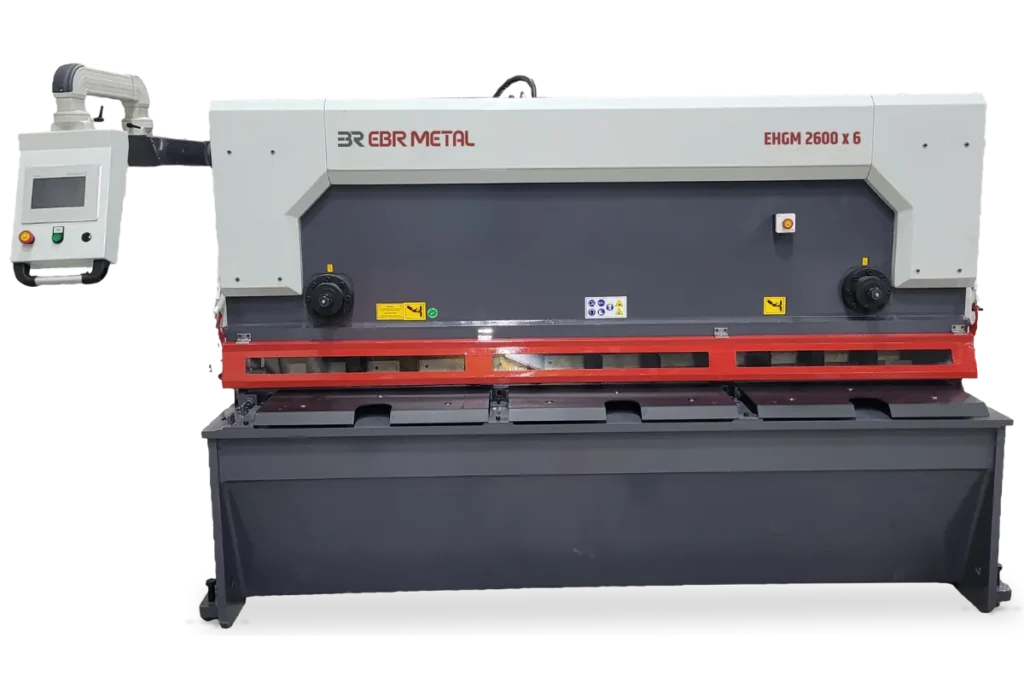

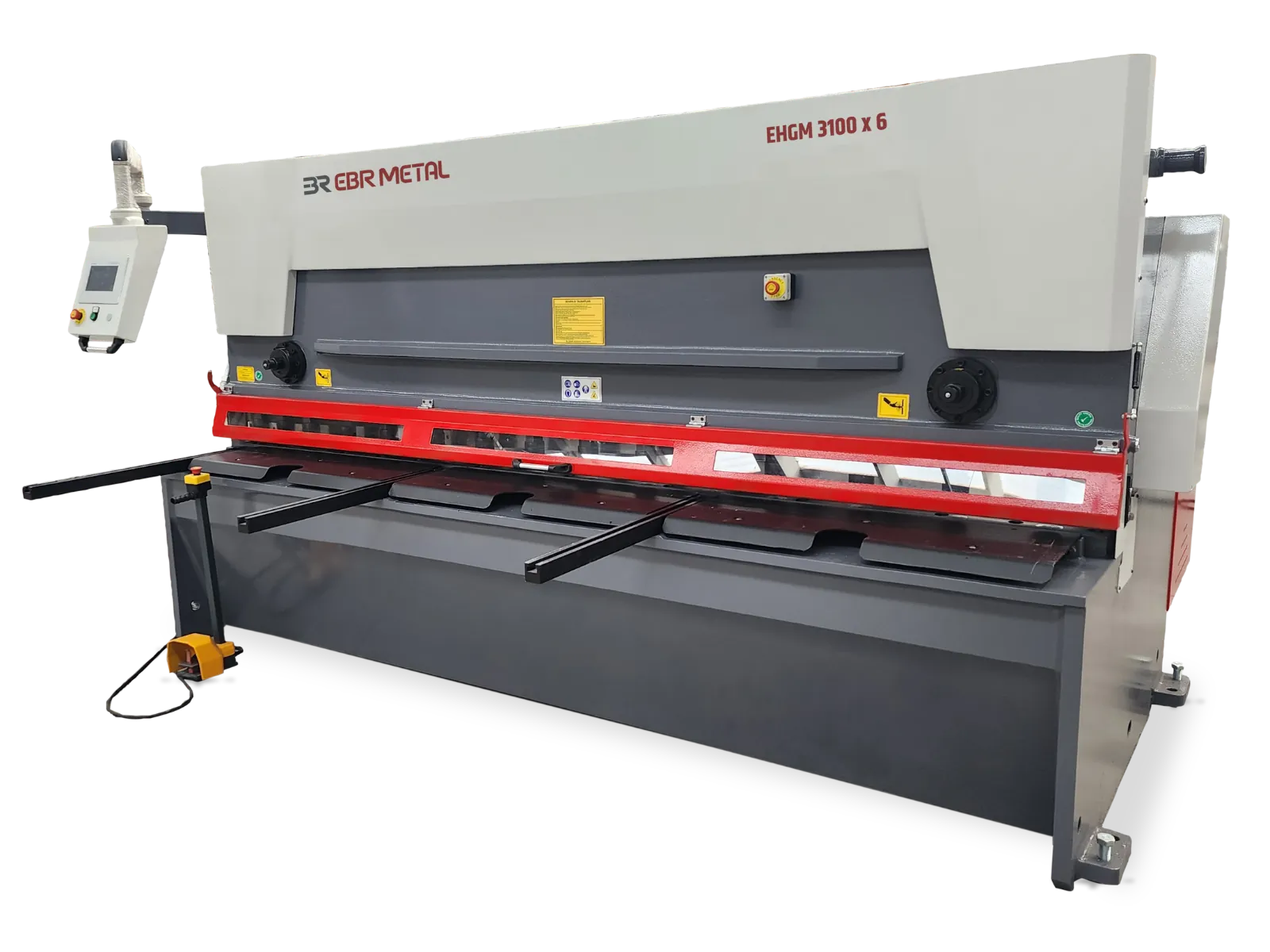

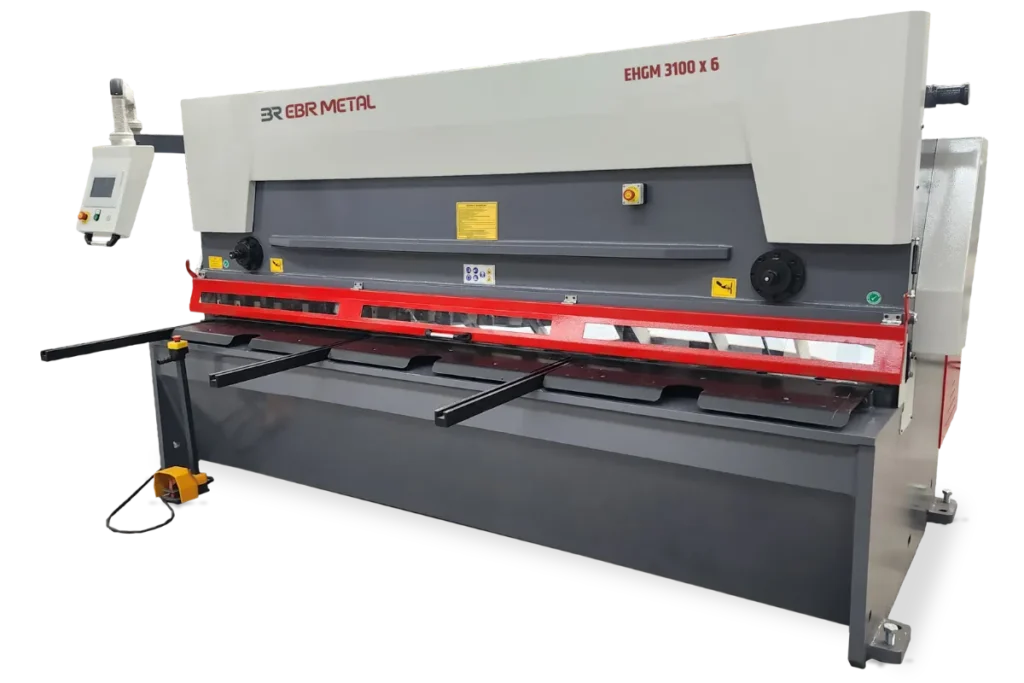

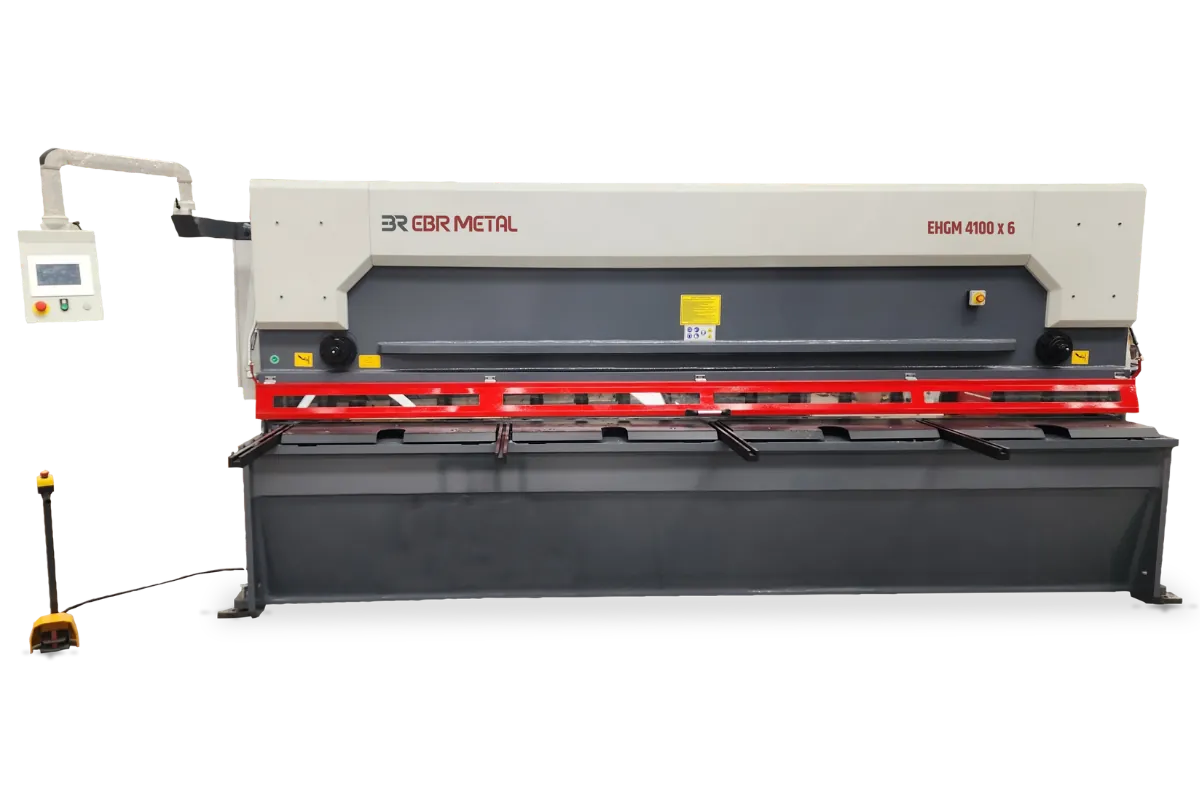

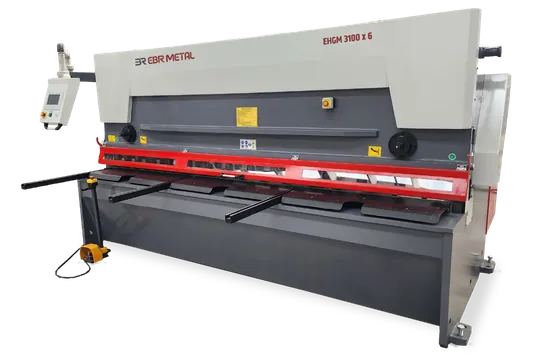

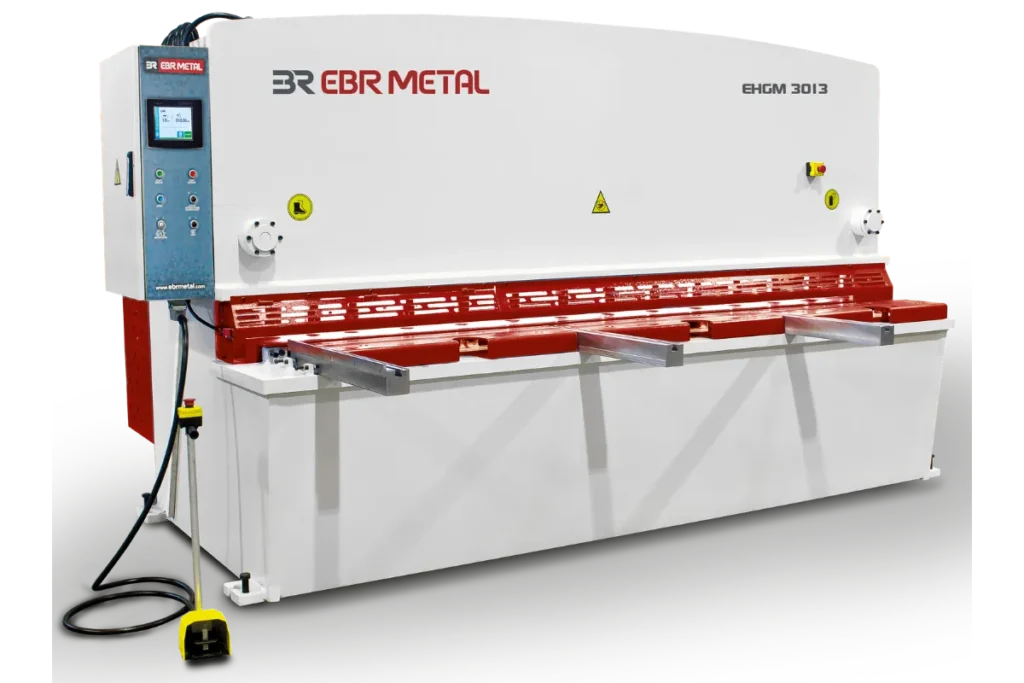

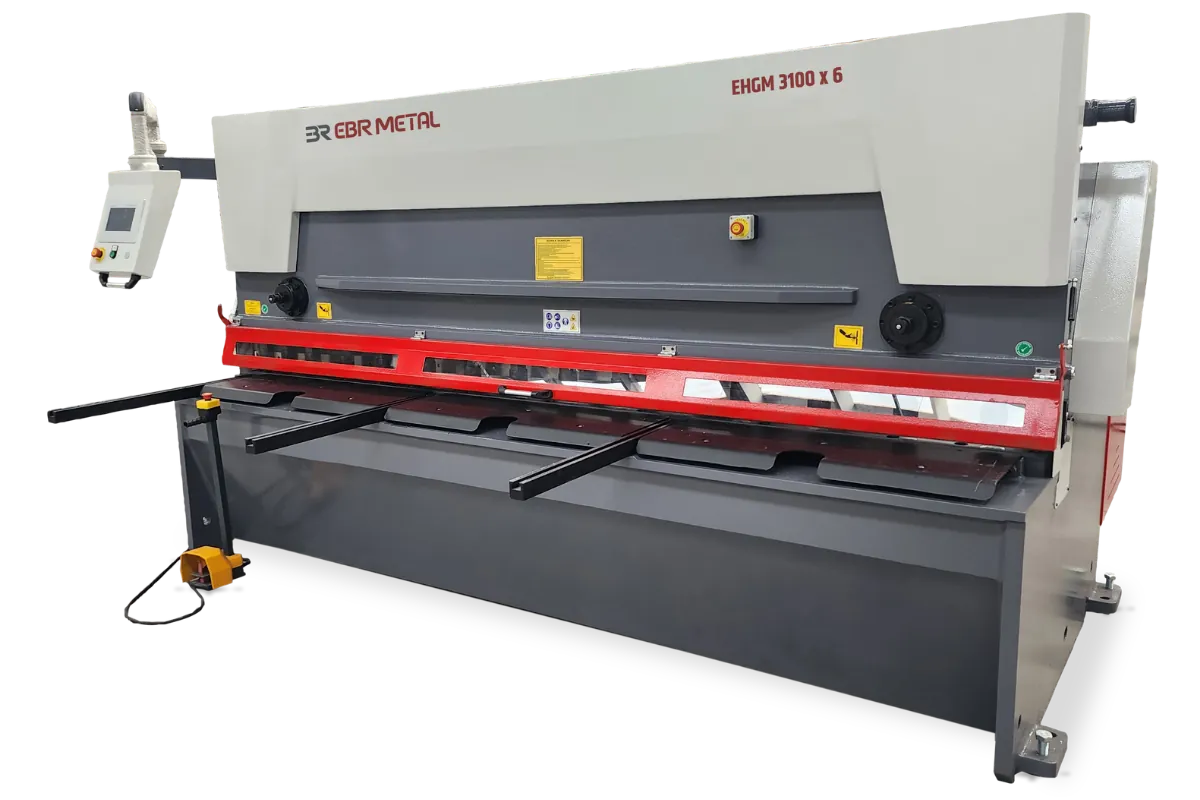

EHGM Product Gallery

Standard Equipment

Standard EHGM CNC guillotine shearing machine equipment includes:

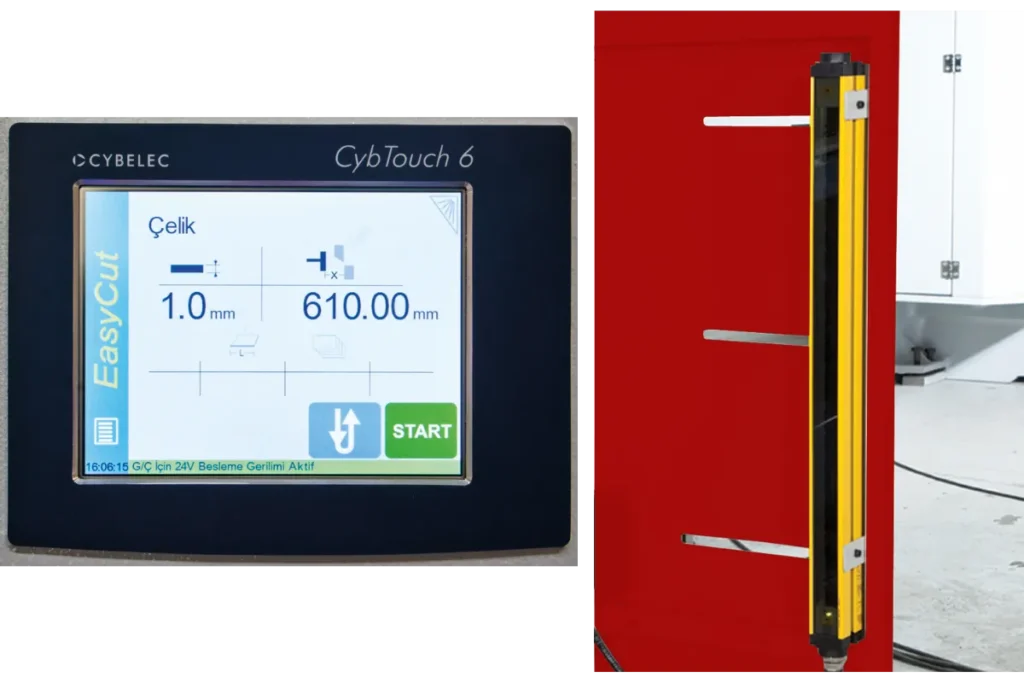

CYBELEC Touch 8 touch CNC control unit
Rexroth / Hoerbiger hydraulic system
Automatic CNC-controlled blade-gap adjustment
CNC-controlled stroke adjustment, including shortened stroke and increased working speed for shorter cutting widths
CNC-controlled rake-angle adjustment
1,000 mm CNC-controlled programmable motorized backgauge, ±0.1 mm positioning accuracy
Programmable backgauge retraction
Backgauge lift-up function for parts longer than 1000 mm
Ball transfer table
Upper blade with 2 cutting edges
Lower blade with 4 cutting edges
160 mm throat depth
1000 mm front support arms with ruler, T-slot and stopper
Front and side protection guards
Cutting-line illumination and shadow wire
Laser cutting line
1000 mm openable / collapsible front finger-protection cage
Foot pedal with emergency stop
Movable control panel
Emergency-stop buttons

Optional Equipment

Rear pneumatic sheet support

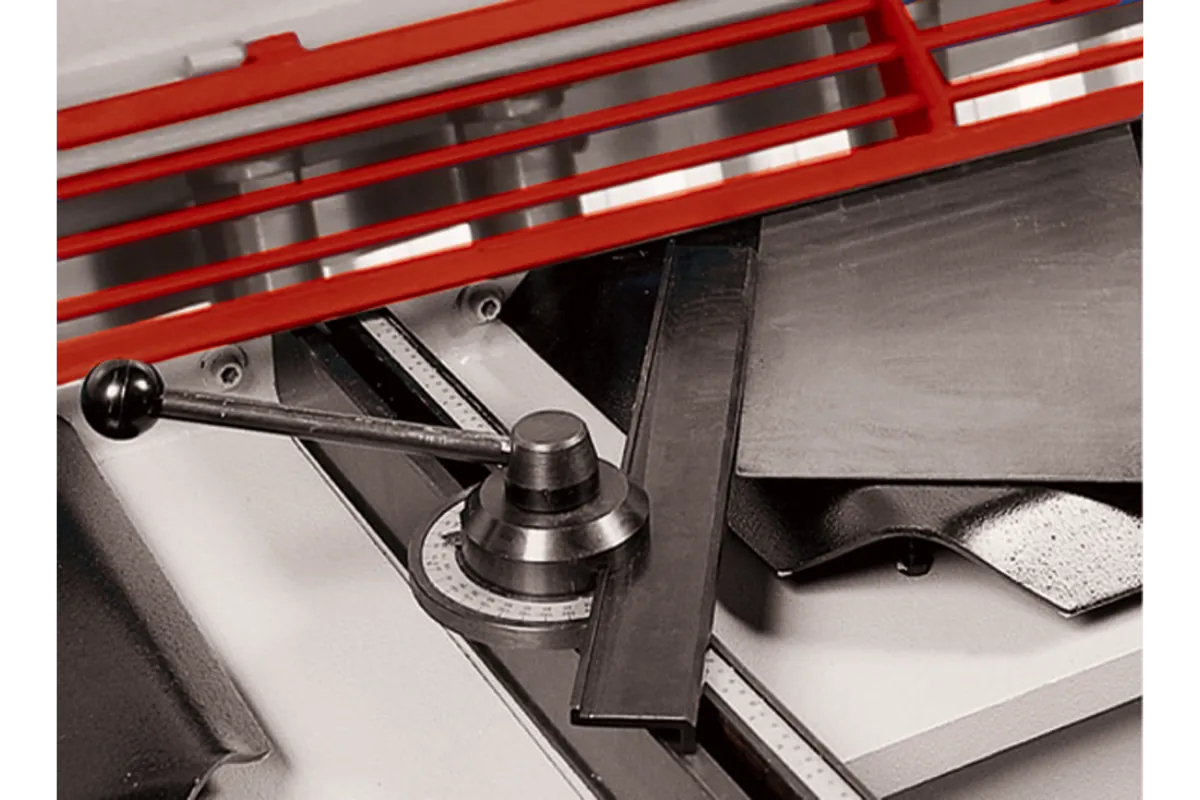

0–180° angular cutting device
Front support arms in requested lengths
Full-length openable front finger-protection cover

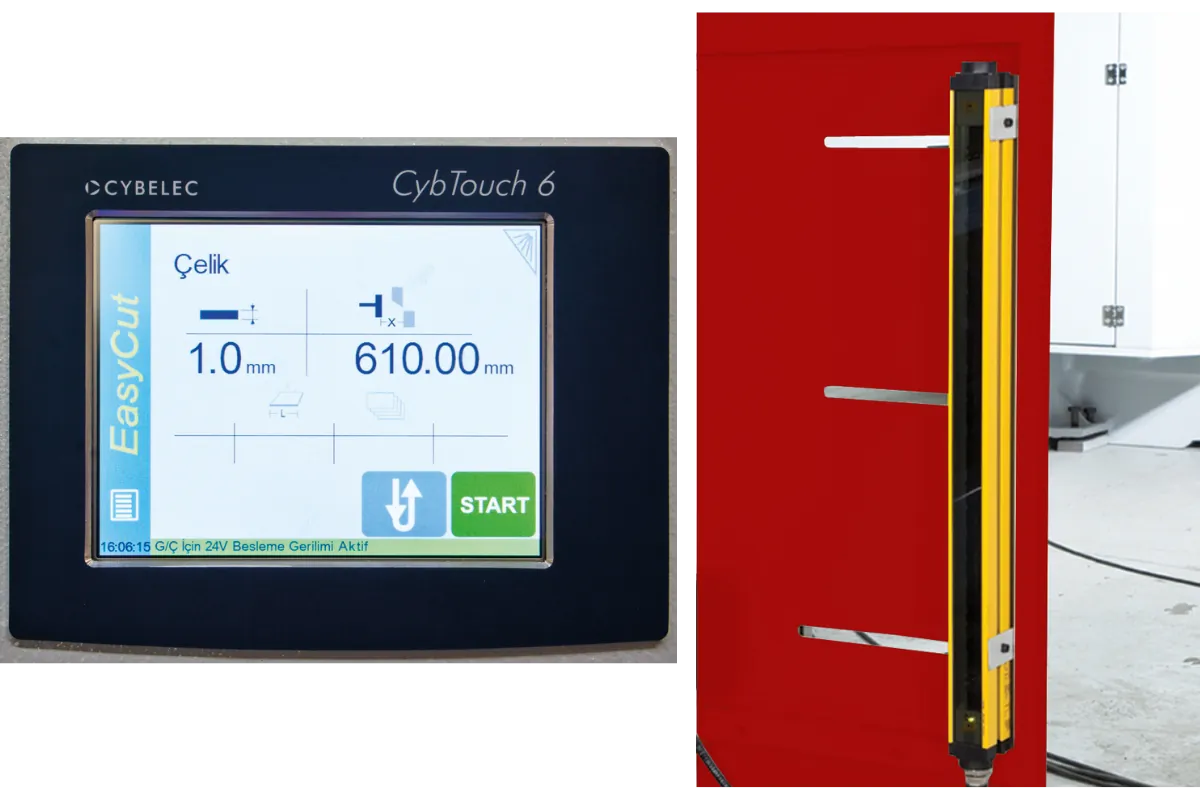

Front finger safety light curtain
Stainless-steel cutting blade for applications with frequent stainless-steel processing
Oil heater / cooler
Automatic or manual central lubrication
Electrical-cabinet cooling with air conditioner

EHGM Technical Specifications

The EHGM CNC hydraulic guillotine shear series is available in multiple cutting lengths and capacity configurations. Refer to the technical table below to compare individual models and select the appropriate configuration for your application.

Model	Cutting Capacity 450 N/mm² (mm)	Cutting Capacity 700 N/mm² (mm)	Cutting Length (mm)	Cutting Angle (°)	Holddown Cylinder (Qty)	Cutting Speed / Quick Mode (per/min)	Table Length (mm)	Table Height (mm)	Table Width (mm)	Throat Depth (mm)	Backgauge Stroke – X Axis (mm)	Machine Length (mm)	Machine Width (mm)	Machine Height (mm)	Oil Tank (lt)	Motor Power (kW)	Weight (kg)
EHGM 2600x6	6	4	2600	0,5-2	11	11/16	2735	810	485	160	1000	3300	2760	1790	150	11	5200
EHGM 3100x6	6	4	3100	0,5-2	15	10/15	3320	840	485	160	1000	3800	2760	1870	150	11	6500
EHGM 4100x6	6	4	4100	0,5-2	18	10/14	4360	880	490	160	1000	4840	2780	2000	185	11	9200
EHGM 6100x6	6	4	6100	0,5-2	27	9/13	6280	940	580	160	1000	6800	2860	2270	250	22	21500
EHGM 3100x8	8	5	3100	0,5-2,7	15	10/15	3330	860	490	160	1000	3820	2780	2010	250	22	8000
EHGM 4100x8	8	5	4100	0,5-2,7	18	9/13	4370	900	515	160	1000	4860	2810	2160	250	22	11000
EHGM 6100x8	8	5	6100	0,5-3	26	8/12	6290	960	585	160	1000	6810	2850	2360	350	30	22750
EHGM 3100x10	10	6	3100	0,5-3	15	7/13	3340	860	510	160	1000	3820	2800	2050	250	22	9000
EHGM 4100x10	10	6	4100	0,5-3	19	6/12	4370	920	545	160	1000	4860	2860	2220	250	22	13250
EHGM 6100x10	10	6	6100	0,5-3	27	5/12	6300	1000	590	160	1000	6820	2880	2400	350	30	24000
EHGM 3100x13	13	8	3100	0,5-3	15	7/13	3370	900	540	160	1000	3840	2830	2180	250	30	11000
EHGM 4100x13	13	8	4100	0,5-3	19	6/12	4390	940	570	160	1000	4880	2880	2300	250	30	15900
EHGM 6100x13	13	8	6100	0,5-3	27	5/12	6320	1020	610	160	1000	6850	2880	2820	350	37	32000
EHGM 3100x16	16	10	3100	0,5-3	18	6/12	3390	935	570	160	1000	3900	2900	2340	350	37	14800
EHGM 4100x16	16	10	4100	0,5-3	19	6/12	4430	1000	590	160	1000	4900	2930	2550	350	37	22300
EHGM 6100x16	16	10	6100	0,5-3	27	5/9	6350	1060	650	160	1000	6900	2930	3180	600	45	38500
EHGM 3100x20	20	13	3100	0,5-3	18	5/10	3430	960	580	160	1000	3950	2620	2500	500	45	19300
EHGM 4100x20	20	13	4100	0,5-3	19	5/10	4450	1060	630	160	1000	4950	2930	2600	500	45	27800
EHGM 6100x20	20	13	6100	0,5-3	27	5/7	6370	1120	680	160	1000	6950	2950	3220	550	55	40000
EHGM 3100x25	25	17	3100	0,5-3	18	4/8	3450	990	580	160	1000	3950	2930	2640	500	55	23800
EHGM 4100x25	25	17	4100	0,5-3	19	4/8	4490	1030	670	160	1000	4950	2970	2700	550	55	32800
EHGM 6100x25	25	17	6100	0,5-3	27	4/6	6410	1140	710	160	1000	6950	2990	3320	550	55	43500

Cutting capacities are given for 450 N/mm² and 700 N/mm² material strength and are model-specific: use the value for the model and cutting length you need.
For other materials or strengths, please confirm the configuration with EBR METAL.

CNC-Controlled Cutting Parameters

Sheet-metal shearing is not defined by thickness alone. Material properties, blade clearance and cutting geometry all shape the cutting process.

EHGM’s CNC system brings these variables into one workflow. The operator enters the material, thickness and cutting length; the control includes preset selections for commonly processed materials such as carbon steel, stainless steel and aluminium. From there, the CNC determines the cutting angle, blade clearance, cutting stroke and backgauge position from its predefined parameters.

The CNC applies these settings automatically.

CNC-Controlled Adjustable Rake Angle

Rake angle describes the inclination of the cutting blade along the cutting line.

With an inclined blade, the cut progresses along the sheet rather than engaging the complete cutting length at the same instant, reducing peak cutting load and affecting the resulting cut and sheet characteristics, including sheet deformation.

Because the ideal cutting angle depends on the material, thickness and cutting geometry, EHGM CNC hydraulic guillotine shear uses a CNC-adjustable rake angle rather than one fixed setting. The CNC system determines the rake angle from the entered cutting information, and the operator can adjust it manually if required.

CNC-Controlled Blade Gap Adjustment

Blade clearance, commonly referred to as blade gap, is another important parameter in sheet-metal shearing. The appropriate clearance depends on the sheet thickness and material, and influences how the material separates between the blades, affecting cutting force, burr formation and edge quality.

Because clearance needs to change with the material and thickness being cut, EHGM’s blade-gap adjustment is CNC controlled: the machine determines the setting from the entered material and thickness as part of its predefined cutting parameters. The operator can review and, if required, adjust the CNC-determined setting, which reduces reliance on manual selection and the risk of an incorrect setting.

Short-Cut Stroke Control

Full cutting stroke is not required for every part.

For shorter cutting widths, EHGM shortens the cutting stroke instead of completing the full available stroke, and working speed increases accordingly, so more short cuts are made in the same time.

Sheet Support and Cutting-Area Features

Sheet positioning, restraint and operator visibility are important parts of the shearing process.

EHGM combines hydraulic hold-downs with front support equipment and cutting-line references to support sheet positioning during the cutting operation.

The number of hold-down cylinders depends on the model; see the technical table. Hold-down contact surfaces include rubber protection to help protect sensitive sheet surfaces, and additional hold-downs can be supplied on request.

Cutting-area equipment includes front support arms, ball transfers on the table, cutting-line illumination, a shadow-wire reference and a laser cutting line.

The hold-downs clamp the sheet before the blades cut.

Multi-Edge Shear Blades

EHGM uses an upper blade with two cutting edges and a lower blade with four. When one cutting edge becomes worn, another available edge can be brought into service by repositioning the blade. The blades can also be reground for further use where technically appropriate.

Typical EHGM CNC Hydraulic Guillotine Shear Applications

EHGM is used across a range of industrial sheet-metal fabrication environments, including:

– sheet-metal processing centers;
– steel service centers;
– agricultural machinery manufacturers;
– trailer and semi-trailer manufacturers;
– steel-door manufacturers;
– stainless-steel tank manufacturers;
– steel furniture and steel-product manufacturers; and
– other industrial fabrication operations working with medium-to-heavy sheet.

Selecting the Right EHGM for Your Cutting Requirements

The appropriate EHGM CNC hydraulic guillotine shear model depends on more than nominal sheet thickness.

Start with the maximum required cutting length and then compare the required thickness against the catalogue capacity for the material-strength basis relevant to the application.

For model selection, provide EBR METAL with:

1. Material type
2. Material strength, where known
3. Maximum sheet thickness
4. Minimum sheet thickness, where relevant
5. Required cutting length
6. Typical cutting dimensions
7. Information about how frequently materials, thicknesses or cutting setups change
8. Any required optional equipment or sheet-support configuration

EBR METAL can then compare the cutting requirement with the model-specific EHGM technical data and available machine configuration.

For more consistent cutting requirements where NC control provides the required level of operation, see the EHGM-LT NC hydraulic guillotine shear range.

EHGM CNC Hydraulic Guillotine Shear in Operation

Watch the EHGM 3100 × 8 mm CNC hydraulic guillotine shear in operation.

EHGM 3100 × 8 mm — Sheet Cutting Demonstration

Need help selecting the right EHGM CNC hydraulic guillotine shear for your cutting requirements? Our engineering team can help you evaluate the appropriate model based on material strength, sheet thickness and required cutting length.

Frequently Asked Questions About EHGM

What does the EHGM CNC system control, and how does it adapt to changing materials and thicknesses?

Based on material type, sheet thickness and cutting length entered by the operator, the EHGM CNC system determines relevant settings from its predefined parameters, including cutting angle, blade clearance, cutting stroke and backgauge positioning. This allows several cutting parameters to be managed together when production requirements change.

What is adjustable rake angle in a hydraulic guillotine shear?

Rake angle is the inclination of the cutting blade along the cutting line. An inclined blade allows the cut to progress along the sheet instead of engaging the entire cutting length at once, reducing peak cutting load and affecting the resulting cut and sheet characteristics. Because the ideal angle depends on the material, thickness and cutting geometry, EHGM uses a CNC-adjustable rake angle rather than one fixed setting, with manual override available if required.

Why is blade-gap adjustment important in sheet-metal shearing?

Blade gap is the clearance between the cutting blades. The appropriate clearance depends on the material, thickness and cutting conditions, and affects how the sheet deforms and separates during the cut, including cutting force, burr formation and sheared-edge characteristics. EHGM determines blade-gap adjustment through the CNC system as part of the machine setup, and the operator can adjust it manually if required.

What is the EHGM backgauge travel, and how are parts longer than 1000 mm handled?

EHGM uses a 1,000 mm CNC-controlled programmable motorized backgauge with a positioning accuracy of ±0.1 mm. For cutting requirements where the sheet must travel further than the backgauge’s normal 1000 mm travel, EHGM’s lift-up function allows the backgauge to move clear so the required cut can still be made.

What is the difference between EHGM and EHGM-LT?

EHGM is the CNC-controlled EBR METAL hydraulic guillotine shear range with adjustable rake angle, CNC blade-gap adjustment and a 1,000 mm programmable motorized backgauge. EHGM-LT is the NC-controlled hydraulic range, with a fixed rake angle by model and a 750 mm NC-controlled motorized backgauge. EBR METAL generally starts with EHGM where CNC parameter flexibility is useful; EHGM-LT remains a practical alternative where cutting requirements are more consistent or budget is a significant factor.

Can EHGM cut stainless steel?

Yes. EHGM’s standard blades can process stainless steel. An optional stainless-steel cutting blade is also available for applications involving frequent or continuous stainless-steel cutting, where it offers greater durability and a longer service life. See Multi-Edge Shear Blades for the standard blade configuration.

How do I select the right EHGM model?

Start with the required cutting length, material and maximum sheet thickness; minimum sheet thickness may also be relevant. Compare those requirements with the model-specific EHGM technical table using the relevant material-strength basis. Information about typical cutting dimensions, material changes and required optional equipment also helps define the appropriate machine configuration. For final selection, provide EBR METAL with the complete cutting requirement rather than selecting a model from maximum thickness alone.
