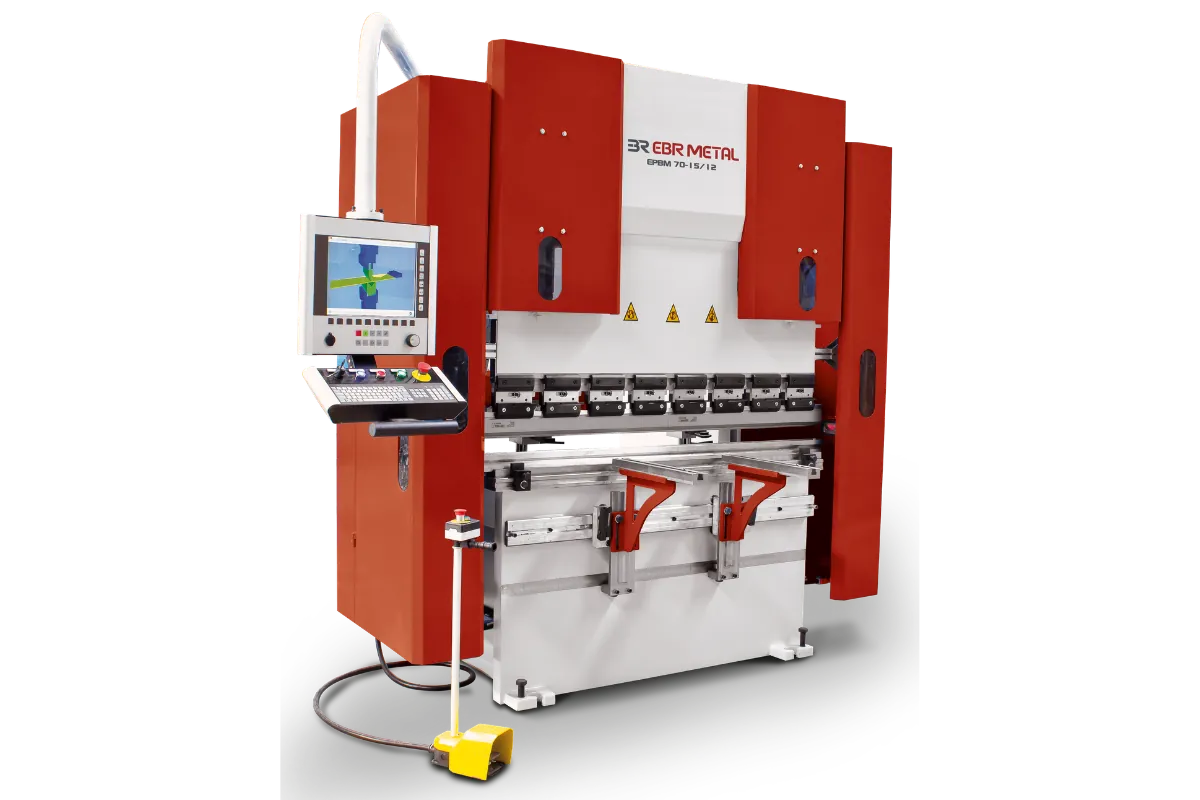

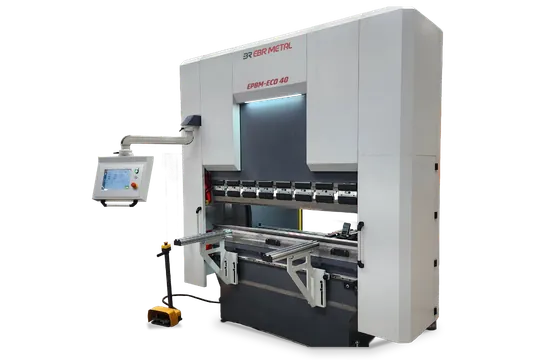

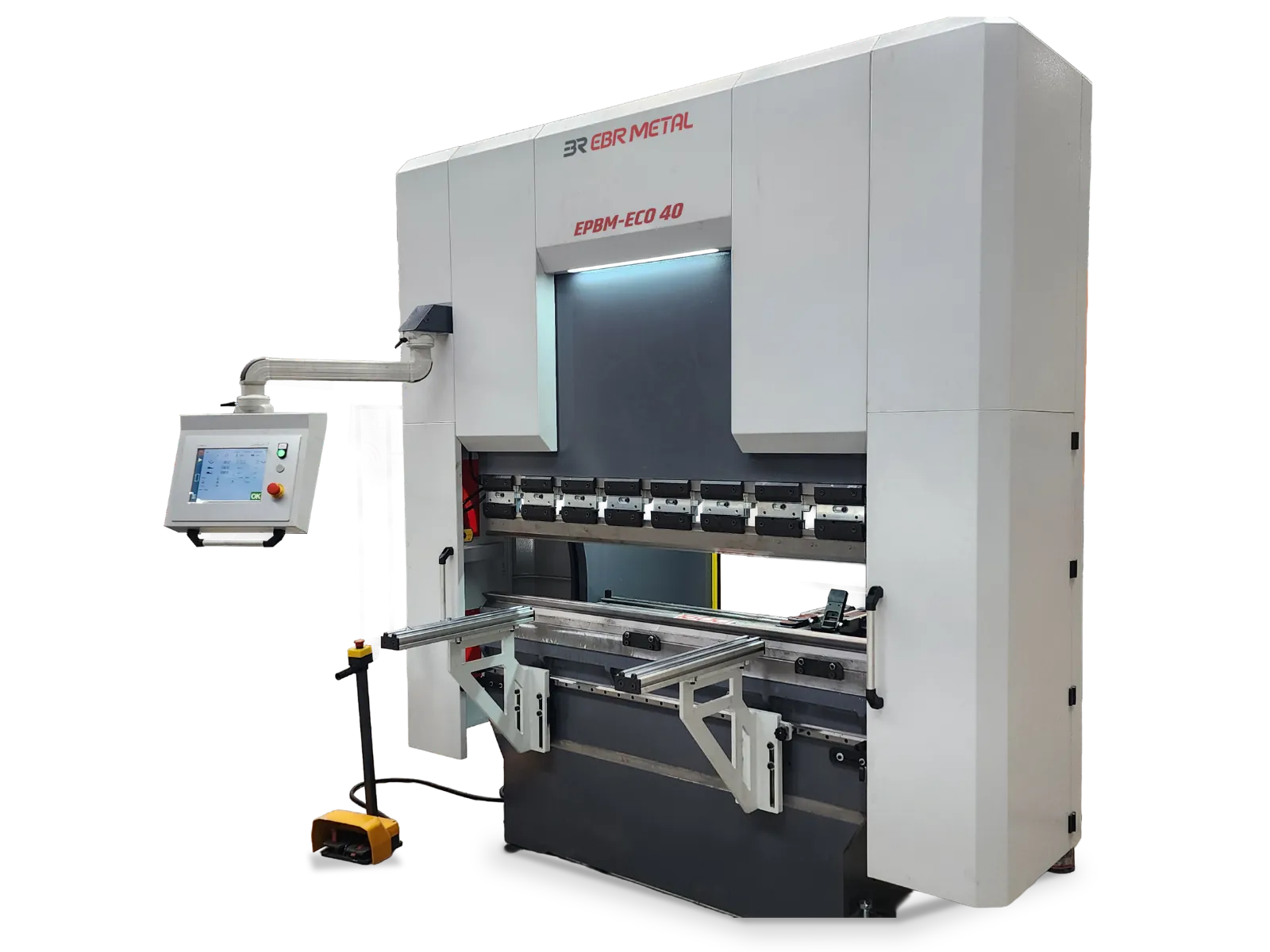

EPBM-ECO CNC Press Brake
The EPBM-ECO CNC press brake is EBR METAL’s value-oriented entry point into hydraulic CNC bending: a standard 3-axis configuration (Y1, Y2, X) on a Cybelec Touch 8 control unit, covering a 40 to 220 ton force range.
· 40–220 tons · 3-axis standard · Cybelec Touch 8 control
The EPBM-ECO CNC press brake is EBR METAL’s value-oriented entry point into hydraulic CNC bending: a standard 3-axis configuration (Y1, Y2, X) on a Cybelec Touch 8 control unit, covering a 40 to 220 ton force range.
- 40–220 tons
- 3-axis standard
- Cybelec Touch 8 control
The EPBM-ECO Package
EPBM-ECO packages the axes, control unit and equipment that CNC bending needs into one standard configuration, without the motorized crowning and full-size guarding carried as standard on EPBM-PRO. It is the more economical, value-oriented ready CNC configuration for applications that do not require PRO equipment as standard.
EPBM-ECO Product Gallery
Standard Configuration
- Y1, Y2, X — 3-axis standard, X-axis travel 530 mm
- Stroke 210 mm
- Throat depth 350 mm
- Cybelec Touch 8 CNC control unit (3-axis)

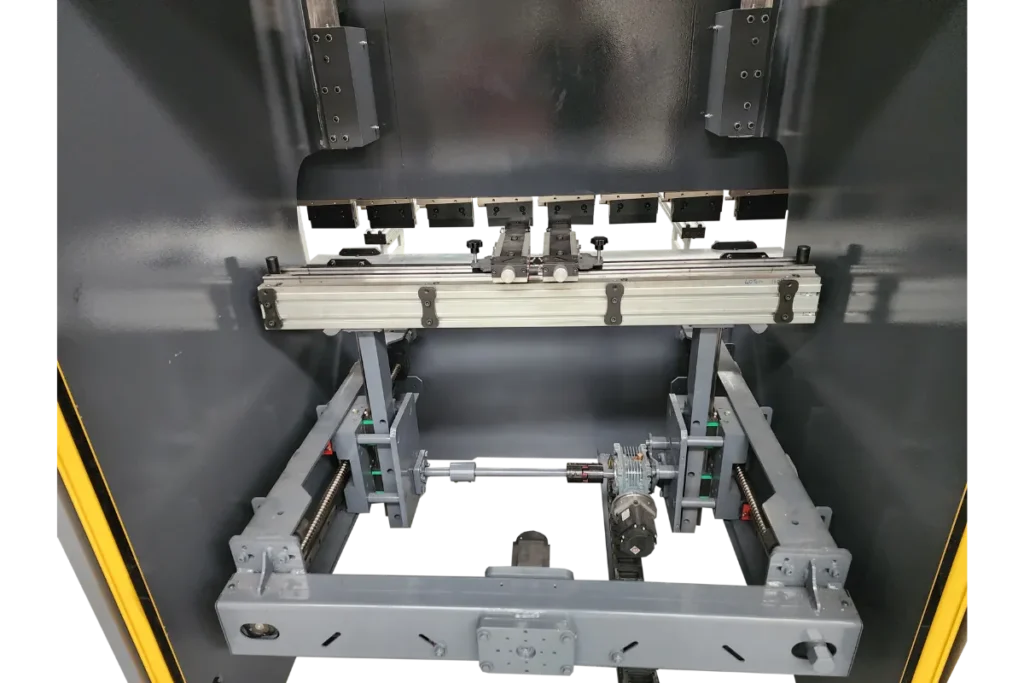

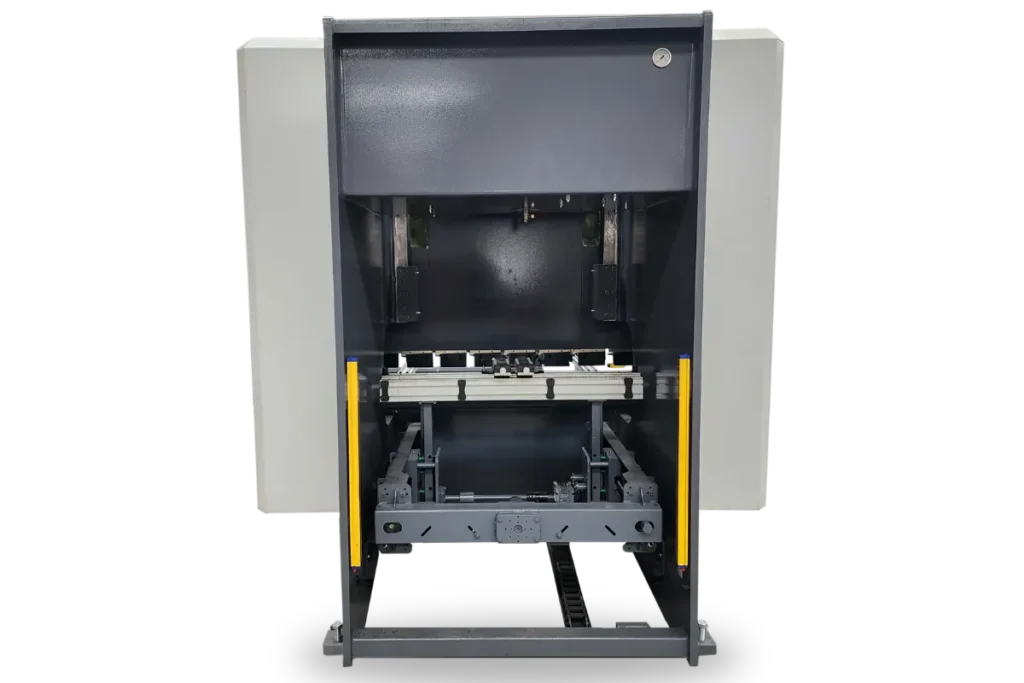

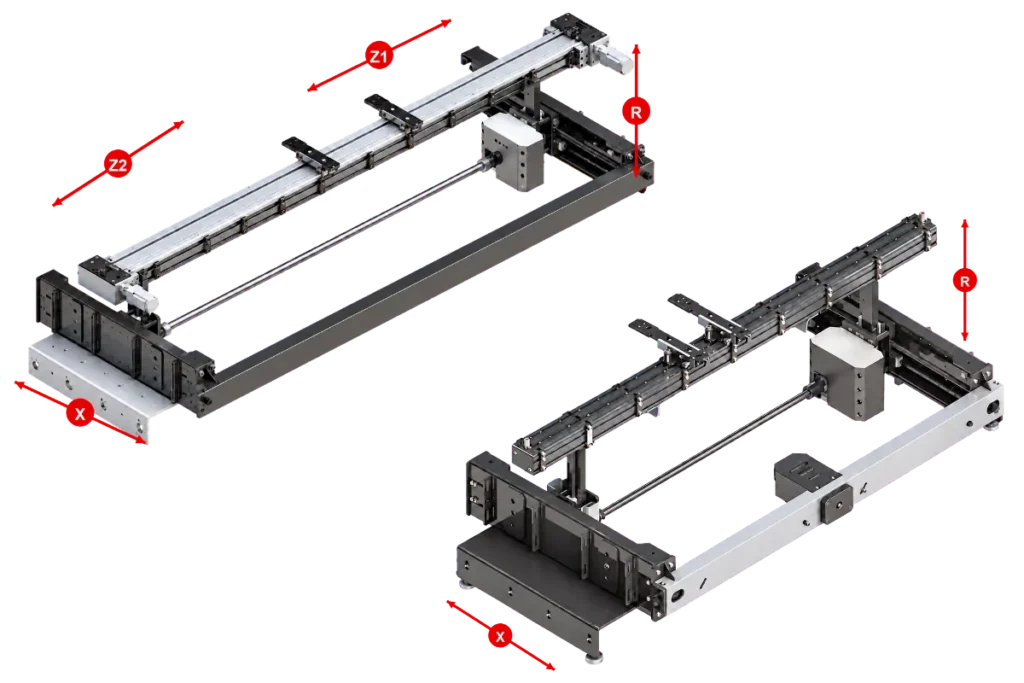

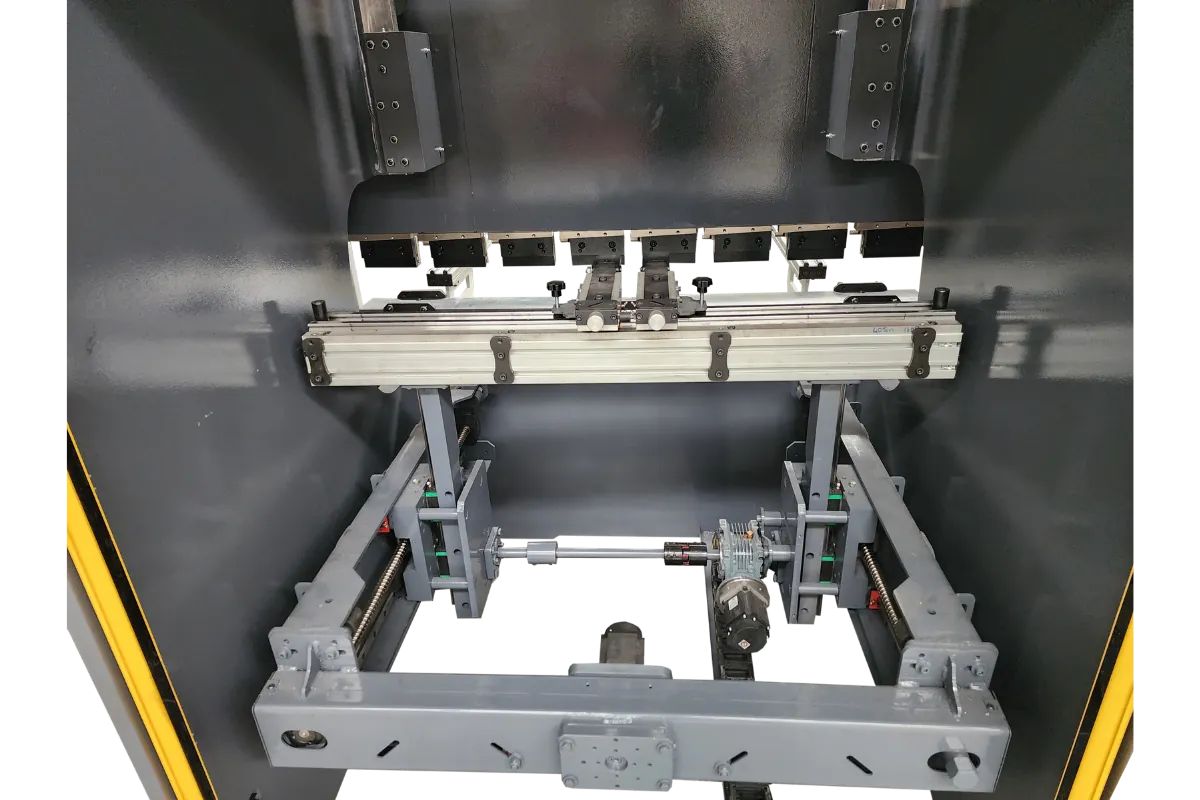

- Rexroth ball-screw backgauge drive, linear guide, aluminum body
- EBR METAL motorized backgauge with servo motors and drivers
- OPKON magnetic linear scales

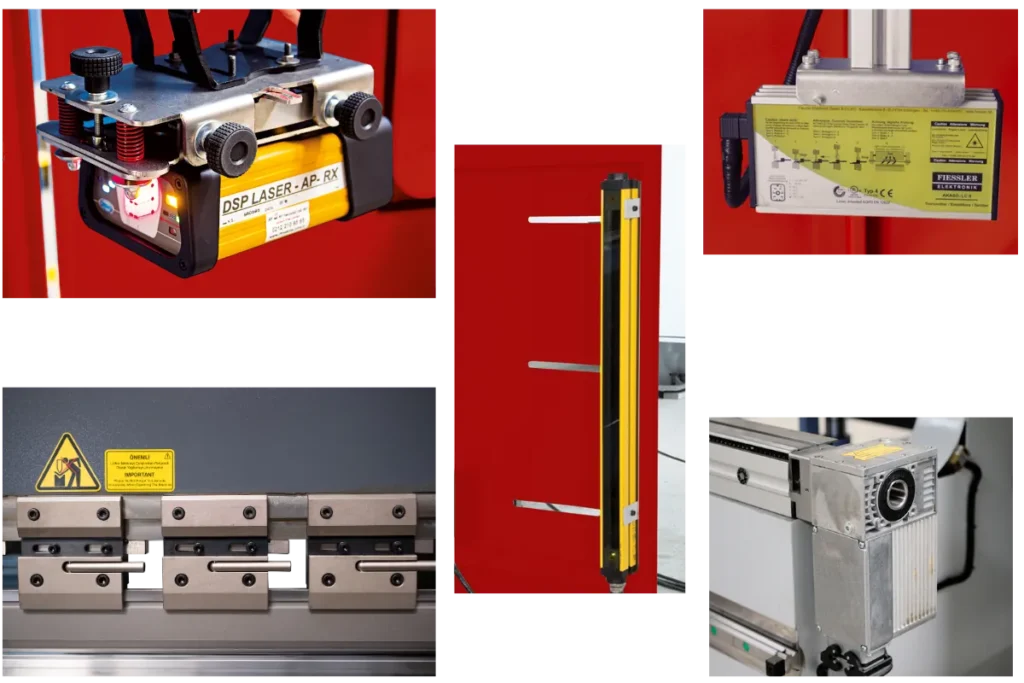

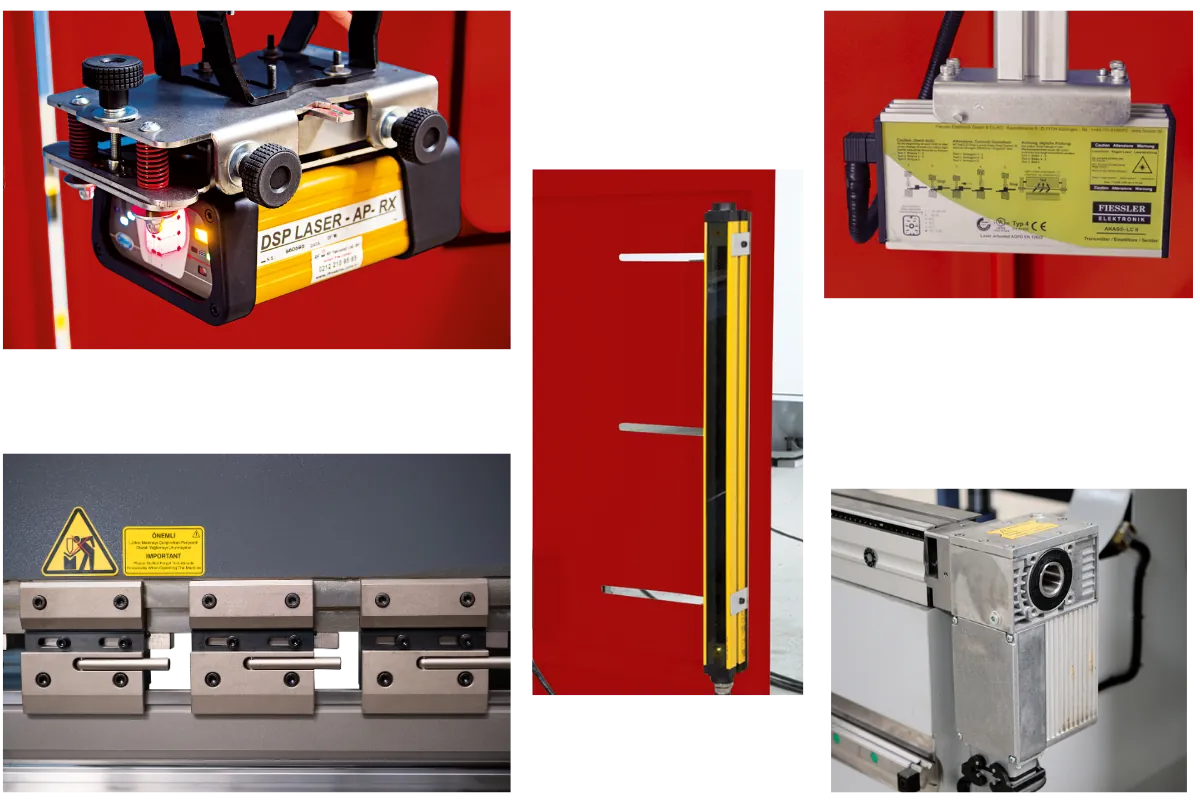

- EBR METAL finger-protection laser

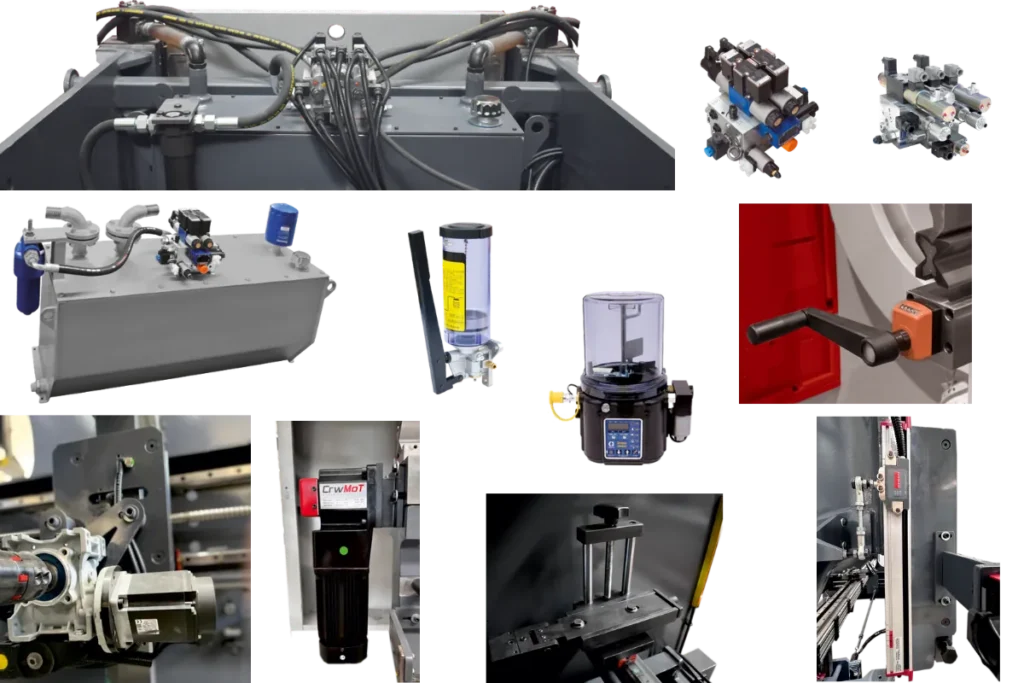

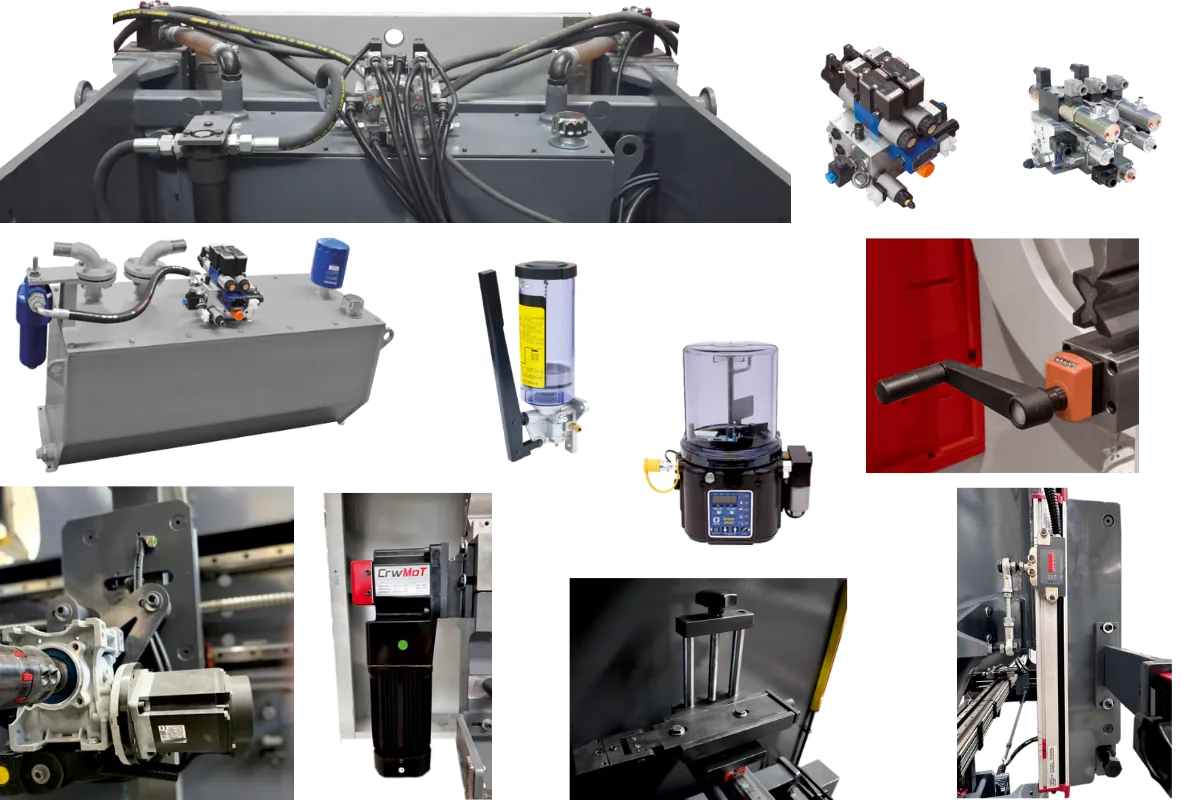

- Proportional-valve hydraulic blocks and internal-gear-type oil pump
- 2 backgauge fingers, manually positioned along the linear guide
- Half-size side safety guards and cylinder covers
- Promecam European-type quick clamping
- EBR METAL-specific narrow lower table (IW = 60 mm for 220 tons and below)
- 2 sliding front support arms
- Rolleri upper punch (P.97.85.R08, 835 mm) and 4-way lower die (M.460.R 85°, V = 16–22–35–50 mm, 835 mm)
Standard component brands are as listed above. Where a supply constraint arises, EBR METAL may substitute an equivalent component meeting the same or higher specification.
Optional Equipment

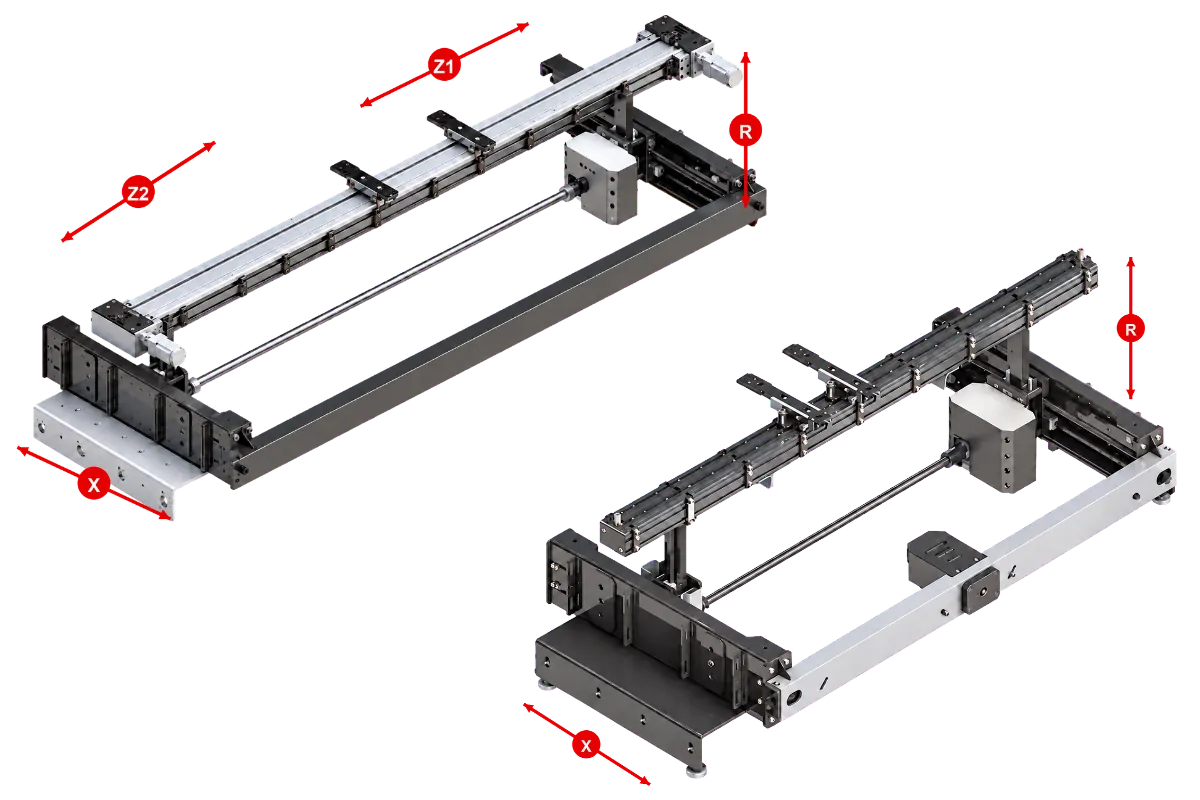

- R-axis (4th axis), 200 mm travel
- Manual crowning system
- Motorized crowning system
- Extra backgauge fingers

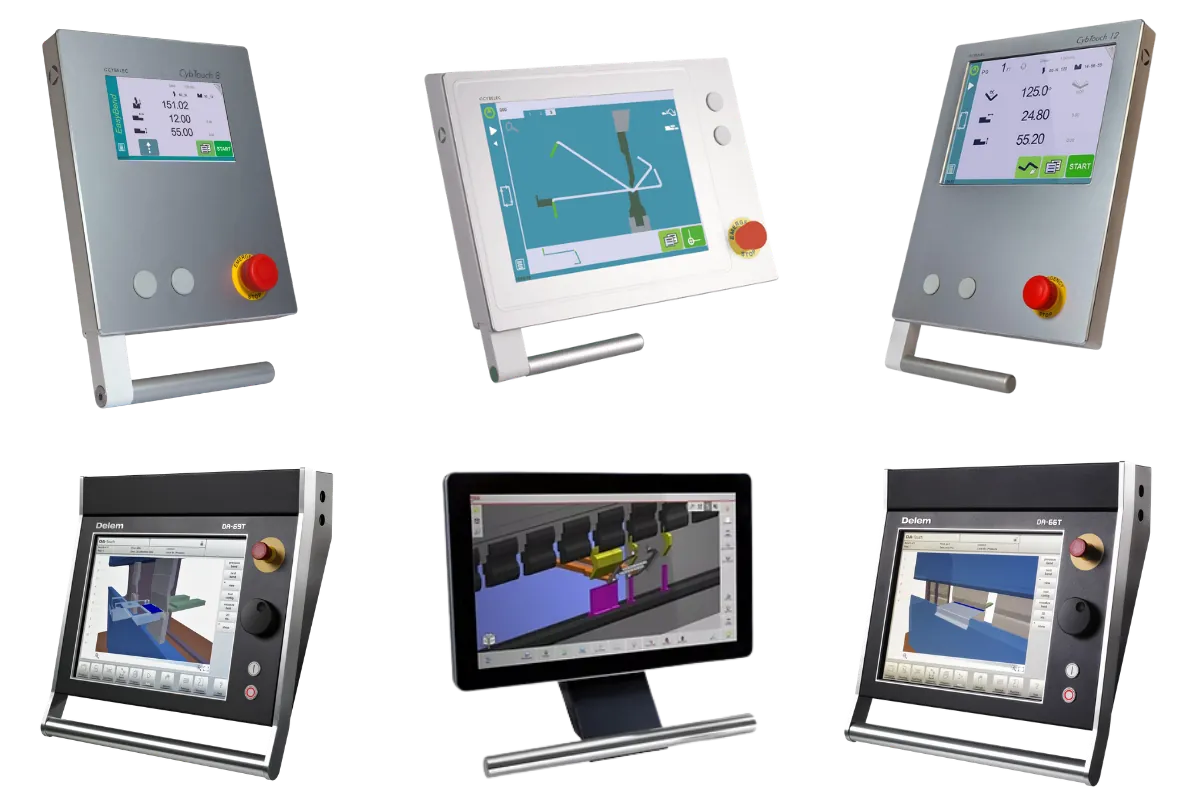

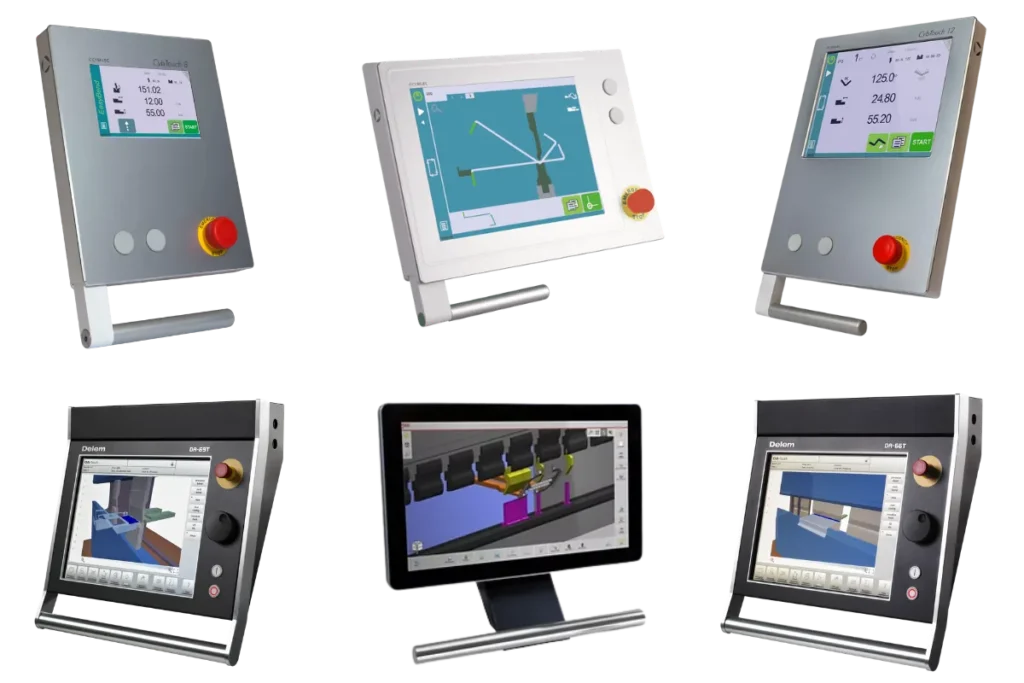

- Alternative CNC control units
- Larger lower table
- Optional CE Package: DSP front safety laser, PLC and rear light barriers
- Full-size side guard enclosure
- AKAS Fiessler front safety laser (an alternative front-safety option)
The R-axis and both crowning options are independent options. Adding one does not require the other.
Technical Specifications
| Model | Bending Force (t) | Bending Length A (mm) | Column Distance B (mm) | Stroke C (mm) | Throat Depth D (mm) | Table Distance E (mm) | Table Height F (mm) | Table Width W (mm) | Return Speed (mm/s) | Descent Speed (mm/s) | Bend Speed (mm/s) | Length L (mm) | Depth G (mm) | Height H (mm) | X-Axis Travel (mm) | R-Axis Travel if Fitted (mm) | Oil Tank (L) | Weight (kg) | Main Motor (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

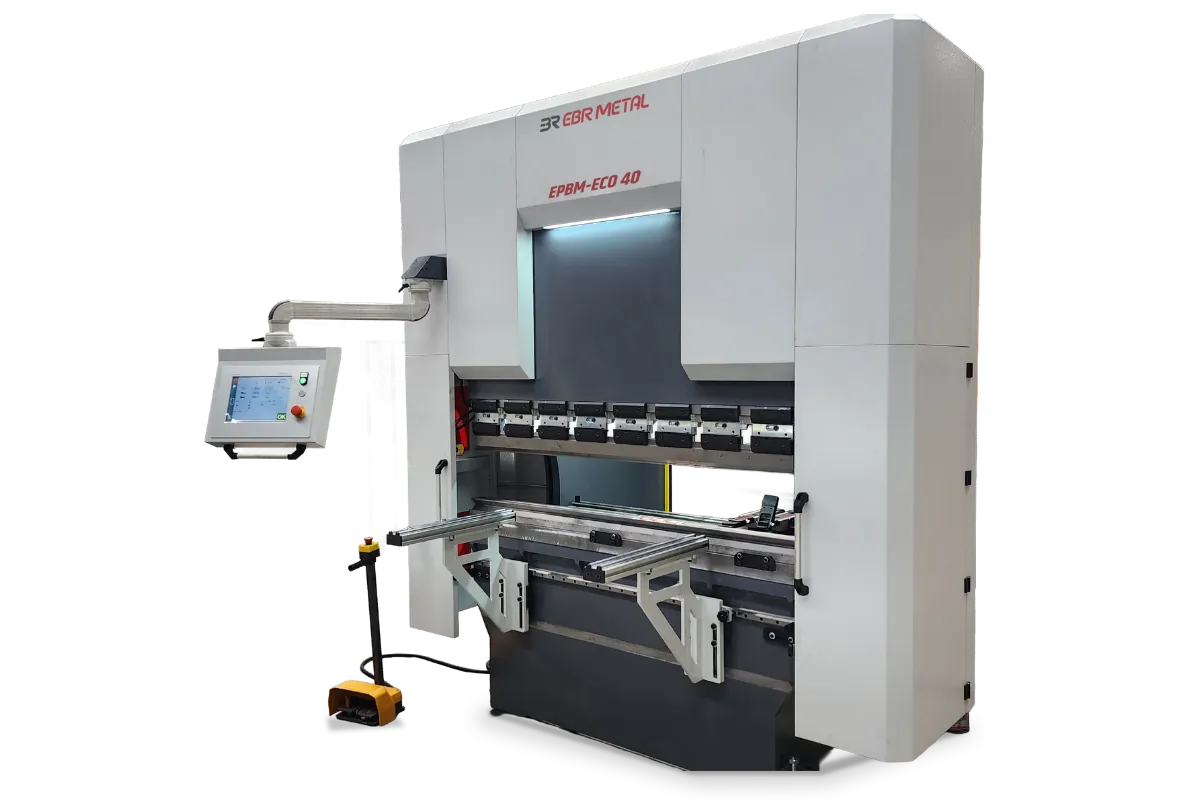

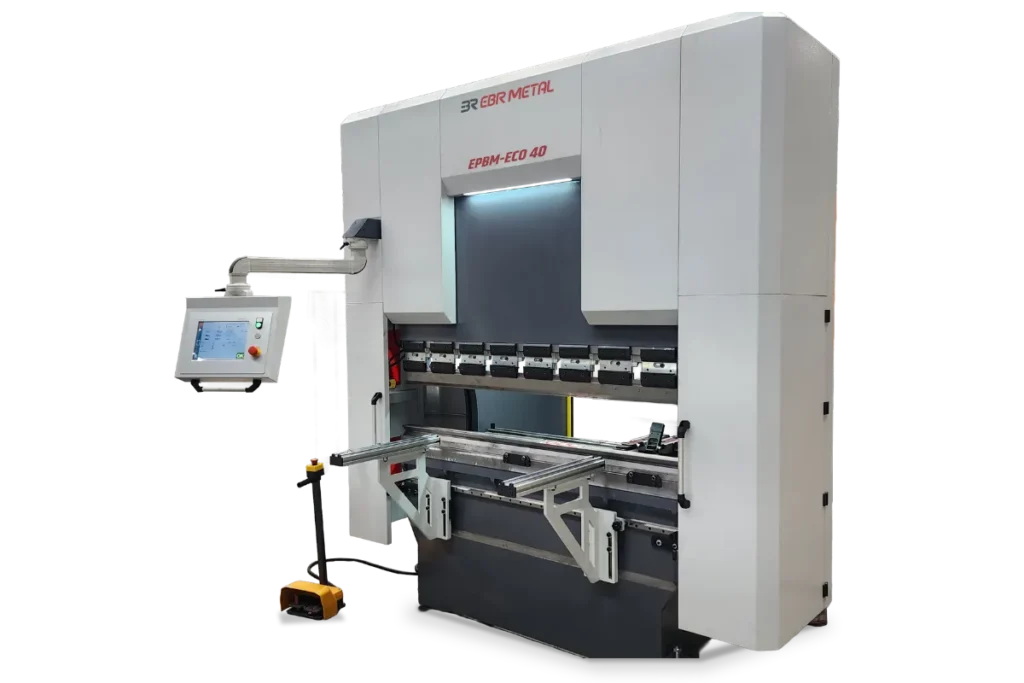

| EPBM-ECO 40 | 40 | 1300 | 1100 | 210 | 350 | 415 | 850 | 100 | 140 | 200 | 10 | 2150 | 1520 | 2340 | 530 | 200 | 80 | 3200 | 4 |
| EPBM-ECO 40 | 40 | 1600 | 1300 | 210 | 350 | 415 | 850 | 100 | 140 | 200 | 10 | 2450 | 1520 | 2340 | 530 | 200 | 80 | 3450 | 4 |
| EPBM-ECO 60 | 60 | 1600 | 1300 | 210 | 350 | 415 | 850 | 100 | 140 | 200 | 10 | 2450 | 1550 | 2360 | 530 | 200 | 90 | 3650 | 5.5 |
| EPBM-ECO 60 | 60 | 2100 | 1600 | 210 | 350 | 415 | 850 | 100 | 140 | 200 | 10 | 2950 | 1550 | 2360 | 530 | 200 | 90 | 3900 | 5.5 |
| EPBM-ECO 60 | 60 | 2600 | 2100 | 210 | 350 | 415 | 850 | 100 | 140 | 200 | 10 | 3450 | 1550 | 2360 | 530 | 200 | 90 | 4150 | 5.5 |
| EPBM-ECO 80 | 80 | 2100 | 1600 | 210 | 350 | 415 | 850 | 100 | 130 | 180 | 10 | 2950 | 1580 | 2400 | 530 | 200 | 120 | 4400 | 7.5 |
| EPBM-ECO 80 | 80 | 2600 | 2100 | 210 | 350 | 415 | 850 | 100 | 130 | 180 | 10 | 3450 | 1580 | 2400 | 530 | 200 | 120 | 4850 | 7.5 |
| EPBM-ECO 100 | 100 | 2100 | 1600 | 210 | 350 | 415 | 900 | 100 | 130 | 180 | 10 | 2950 | 1610 | 2450 | 530 | 200 | 150 | 5300 | 7.5 |
| EPBM-ECO 100 | 100 | 2600 | 2100 | 210 | 350 | 415 | 900 | 100 | 130 | 180 | 10 | 3450 | 1610 | 2450 | 530 | 200 | 150 | 5700 | 7.5 |
| EPBM-ECO 100 | 100 | 3100 | 2600 | 210 | 350 | 415 | 900 | 100 | 130 | 180 | 10 | 3950 | 1610 | 2450 | 530 | 200 | 150 | 6100 | 7.5 |
| EPBM-ECO 135 | 135 | 3100 | 2600 | 210 | 350 | 415 | 900 | 100 | 130 | 180 | 10 | 3950 | 1650 | 2600 | 530 | 200 | 150 | 7100 | 11 |
| EPBM-ECO 135 | 135 | 3700 | 3200 | 210 | 350 | 415 | 900 | 100 | 130 | 180 | 10 | 4550 | 1650 | 2600 | 530 | 200 | 150 | 8100 | 11 |
| EPBM-ECO 135 | 135 | 4100 | 3600 | 210 | 350 | 415 | 900 | 100 | 130 | 180 | 10 | 4950 | 1650 | 2600 | 530 | 200 | 150 | 9250 | 11 |
| EPBM-ECO 175 | 175 | 3100 | 2600 | 210 | 350 | 415 | 900 | 100 | 120 | 160 | 10 | 3950 | 1680 | 2620 | 530 | 200 | 200 | 8200 | 15 |
| EPBM-ECO 175 | 175 | 3700 | 3200 | 210 | 350 | 415 | 920 | 100 | 120 | 160 | 10 | 4550 | 1680 | 2650 | 530 | 200 | 200 | 9100 | 15 |
| EPBM-ECO 175 | 175 | 4100 | 3600 | 210 | 350 | 415 | 920 | 100 | 120 | 160 | 10 | 4950 | 1680 | 2650 | 530 | 200 | 200 | 10000 | 15 |
| EPBM-ECO 220 | 220 | 3100 | 2600 | 210 | 350 | 415 | 900 | 100 | 120 | 140 | 10 | 3950 | 1720 | 2670 | 530 | 200 | 200 | 9700 | 18.5 |
| EPBM-ECO 220 | 220 | 3700 | 3200 | 210 | 350 | 415 | 920 | 100 | 120 | 140 | 10 | 4550 | 1720 | 2700 | 530 | 200 | 200 | 10600 | 18.5 |
| EPBM-ECO 220 | 220 | 4100 | 3600 | 210 | 350 | 415 | 920 | 100 | 120 | 140 | 10 | 4950 | 1720 | 2700 | 530 | 200 | 200 | 11000 | 18.5 |
Application Fit
EPBM-ECO hydraulic press brakes 3-axis standard configuration handles a wide range of sheet-metal bends within its 40–220 ton range. Applications can include Z-shaped bends, parts with double bends on all four sides and common multi-bend components, provided the part’s geometry, stroke, throat depth and tooling requirements suit the standard configuration. Not every part suits every configuration. Complex or multi-bend parts are best confirmed with a technical drawing before ordering.
Preparing a Quotation
To size and quote an EPBM-ECO, EBR METAL needs the material type, maximum material thickness, maximum bending width/length, and a technical drawing for complex or multi-bend parts. This lets EBR METAL recommend the machine along with the appropriate upper punch and lower die. Let EBR METAL know if the R-axis, motorized crowning, extra backgauge fingers or the CE Package should be included.
When to Choose EPBM-ECO CNC Press Brake
EPBM-ECO fits shops that want CNC-controlled bending within a 40–220 ton range and don’t need motorized crowning or a 4th axis included as standard. If your work needs standard motorized crowning, full-size guarding built in, or tonnage above 220 tons, compare EPBM-PRO and EPBM-LUX, or return to the CNC Press Brake Series overview.
Frequently Asked Questions
What tonnage range does EPBM-ECO cover?
40 to 220 tons, across seven model groups (EPBM-ECO 40 through EPBM-ECO 220), each available in multiple bending-length variants.
Does EPBM-ECO include motorized crowning?
Not as standard. Both manual and motorized crowning are options, independent of the R-axis option. Motorized crowning is standard on EPBM-PRO and EPBM-LUX.
Is finger-protection laser safety standard on EPBM-ECO?
Yes. A separate optional CE Package (DSP front safety laser, PLC and rear light barriers) is available where a project or market requires it.
What control unit does EPBM-ECO use?
A Cybelec Touch 8 CNC unit as standard. Larger Cybelec units and other CNC control brands are available as options.
Can EPBM-ECO be upgraded to 4-axis?
Yes — the R-axis is available as an option, independent of the crowning options.
How is an EPBM-ECO hydraulic press brake quotation sized?
From your material type, maximum thickness, maximum bending width/length, and a technical drawing for complex parts. Expected tonnage is not required.
