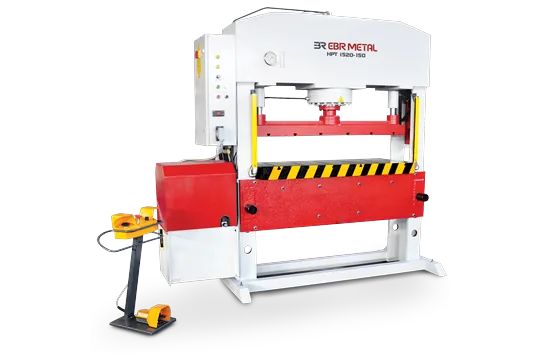

HPT Universal T-Slot Hydraulic Press
The HPT universal T-slot hydraulic press from EBR METAL has T-slot top and bottom tables for direct die mounting. Its welded steel frame carries a guide piston on each side, and the bottom table can be raised and lowered.
Four standard models cover 100 and 150 tonnes, with a working width of 1,020 or 1,520 mm and a 300 mm stroke. Other sizes and configurations are built to order.
• Press force 100–150 t • Working width 1,020–1,520 mm • Stroke 300 mm • T-slot top and bottom tables
The HPT universal T-slot hydraulic press from EBR METAL has T-slot top and bottom tables for direct die mounting. Its welded steel frame carries a guide piston on each side, and the bottom table can be raised and lowered.
Four standard models cover 100 and 150 tonnes, with a working width of 1,020 or 1,520 mm and a 300 mm stroke. Other sizes and configurations are built to order.
- Press force 100–150 t
- Working width 1,020–1,520 mm
- Stroke 300 mm
- T-slot top and bottom tables
HPT Design

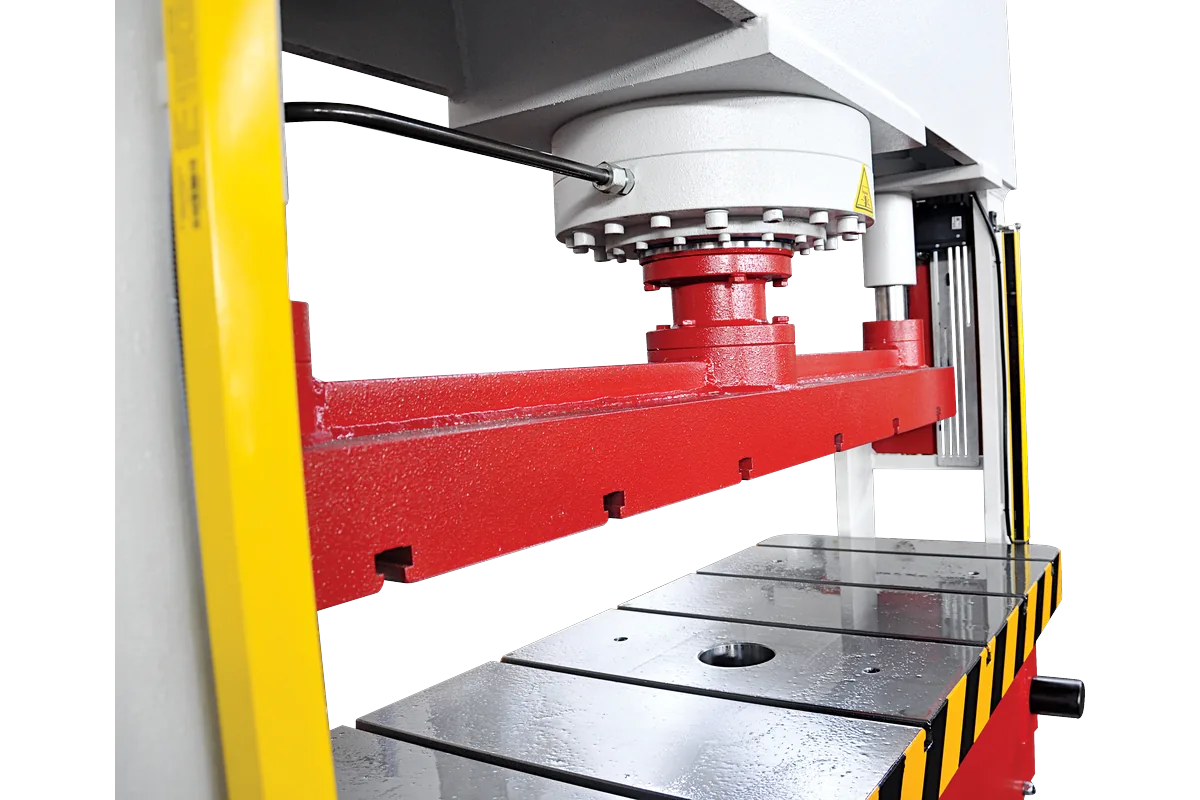

Dies are clamped directly in the T-slots of the top and bottom tables. Two guide pistons, one on each side, run with the ram. The bottom table is adjustable and has a table raising and lowering attachment, so the daylight can be matched to the tooling.

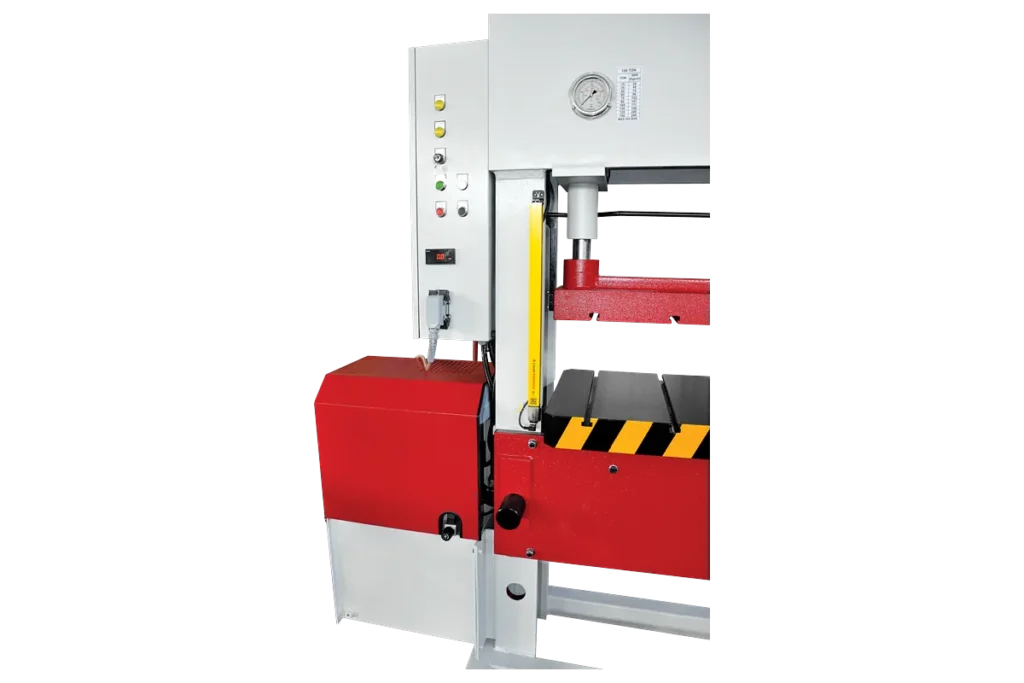

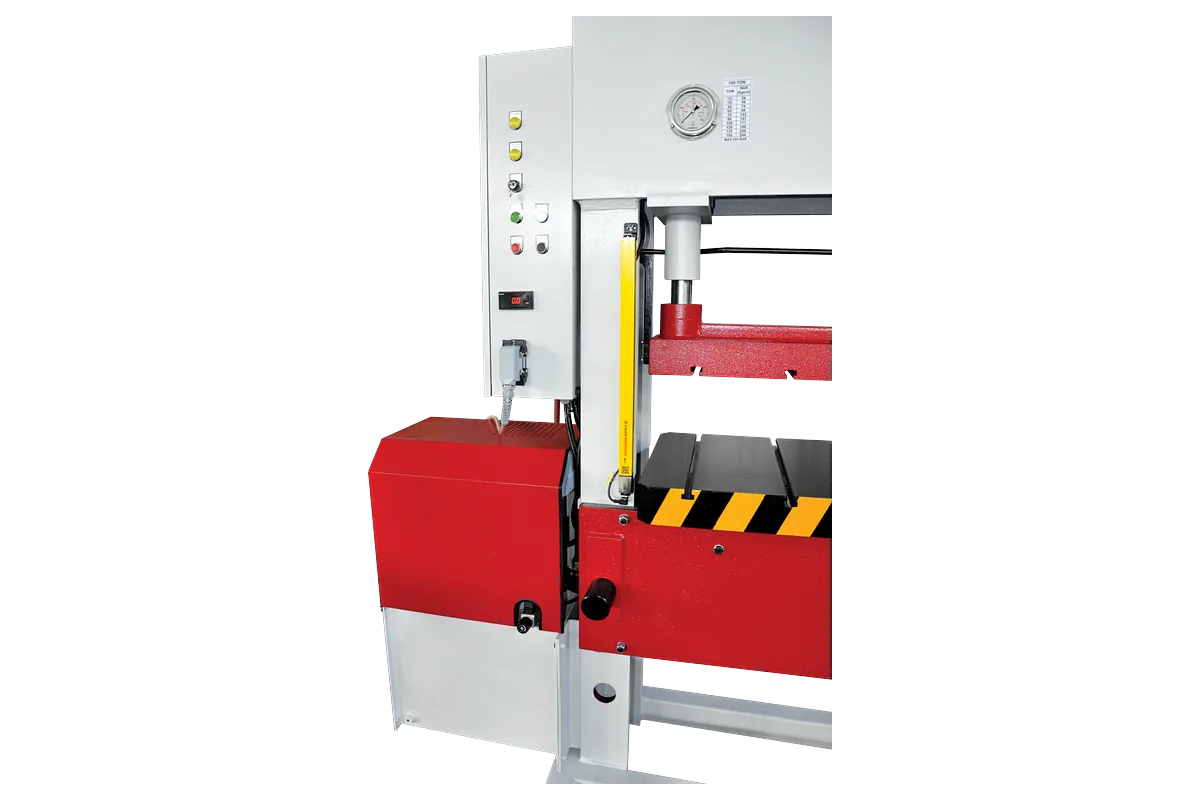

The operator sets the working pressure with the adjustable pressure valve and reads it on the manometer. The stroke is adjusted steplessly by limit switch. Two-hand control is standard.

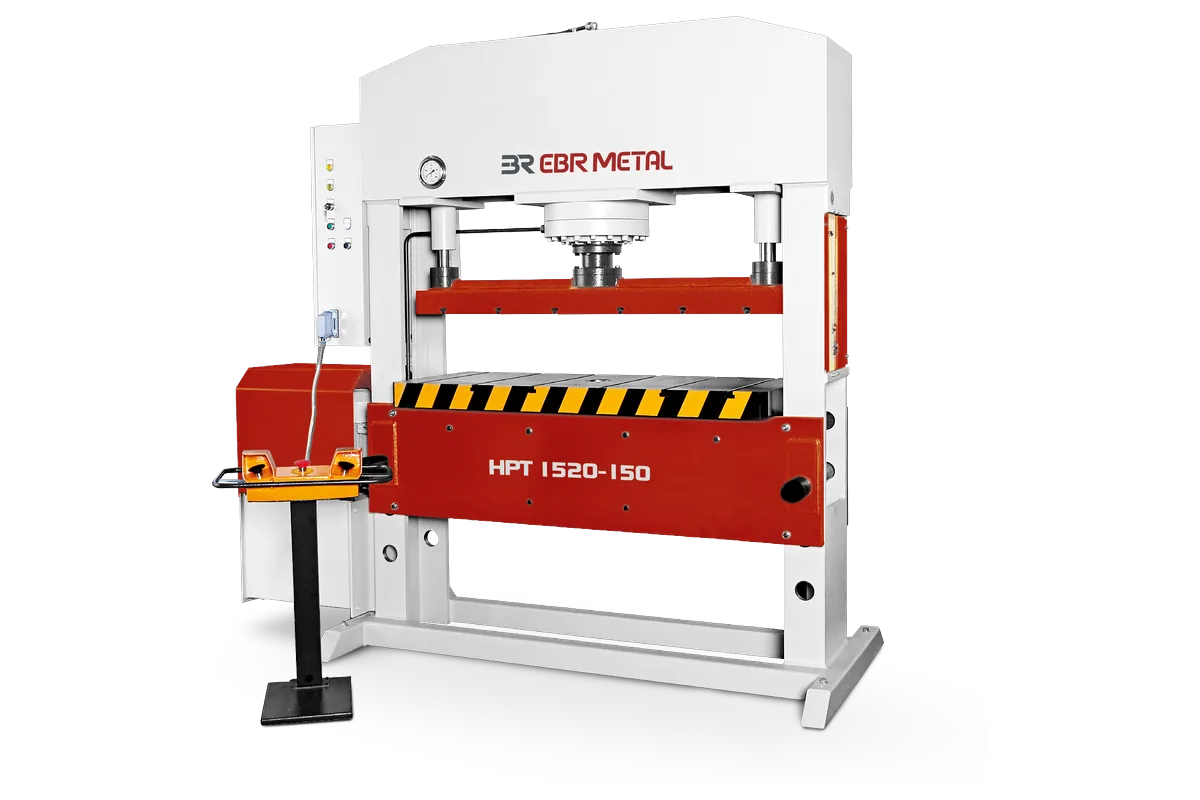

HPT Product Gallery
HPT General Features
- Welded steel frame with certified welding
- Two guide pistons, one on each side
- T-slot top and bottom tables for die mounting
- Adjustable bottom table

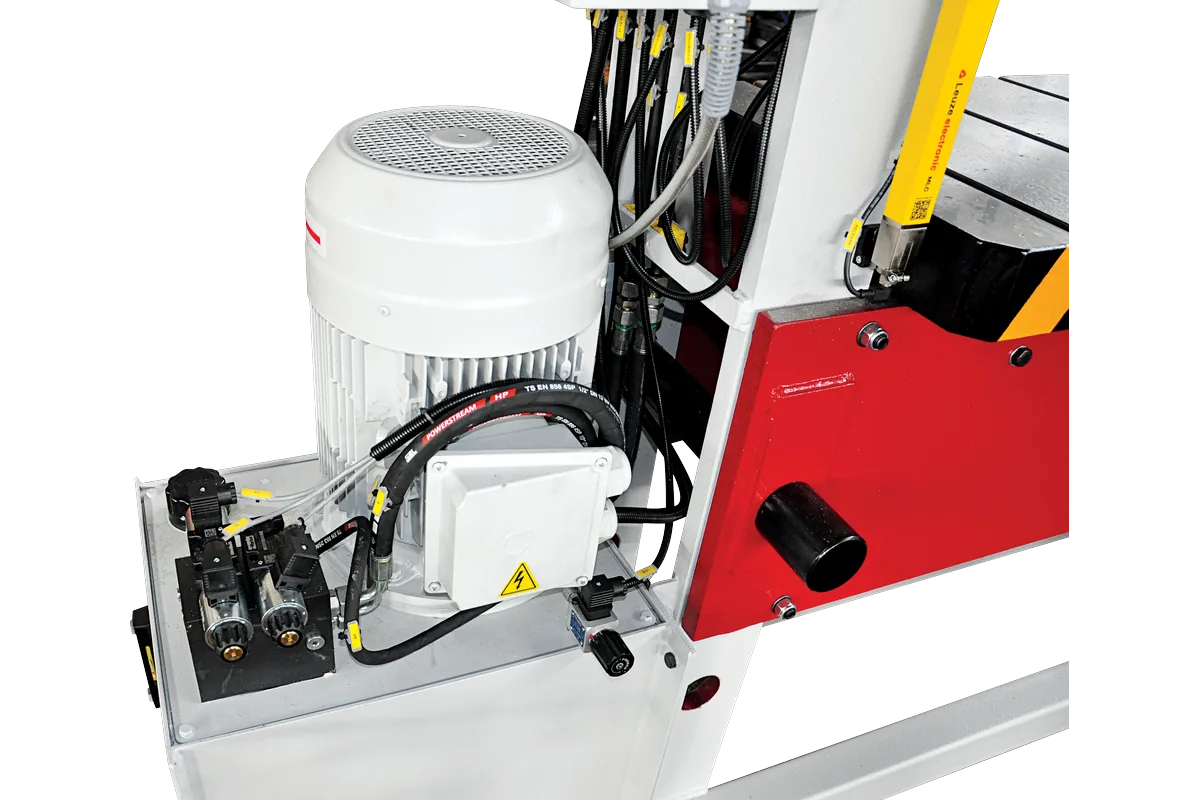

- Italian hydraulic components (Duplomatic)
- Available in a CE-conform configuration for CE markets
- Built to the customer’s requirements, with other sizes on request
HPT Standard Equipment
- Table raising and lowering attachment
- Adjustable pressure valve
- Manometer

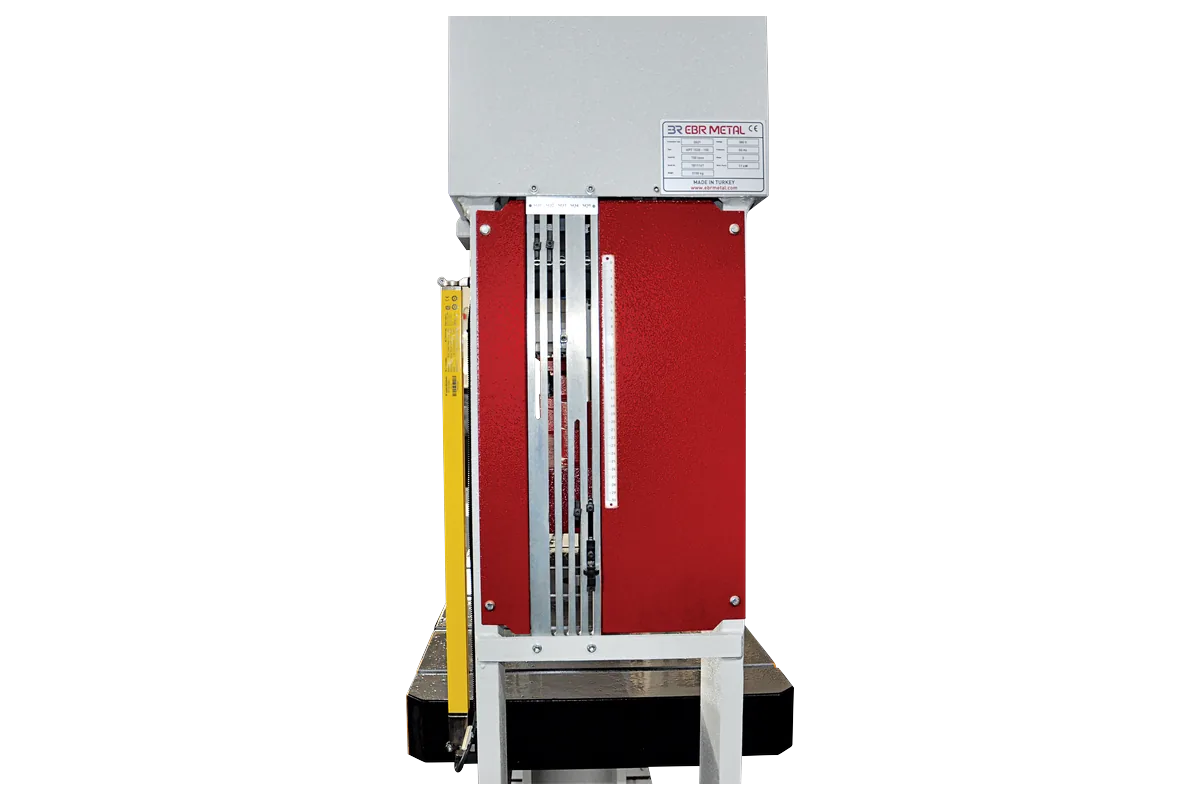

- Stepless stroke adjustment (limit switch)
- Two-hand control
HPT Optional Equipment

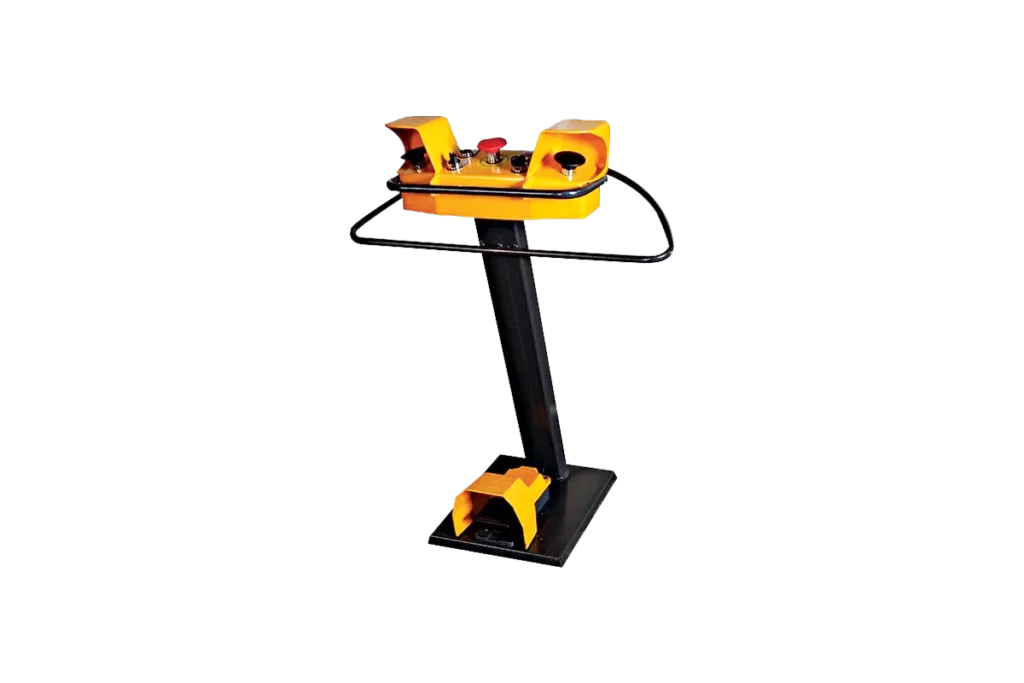

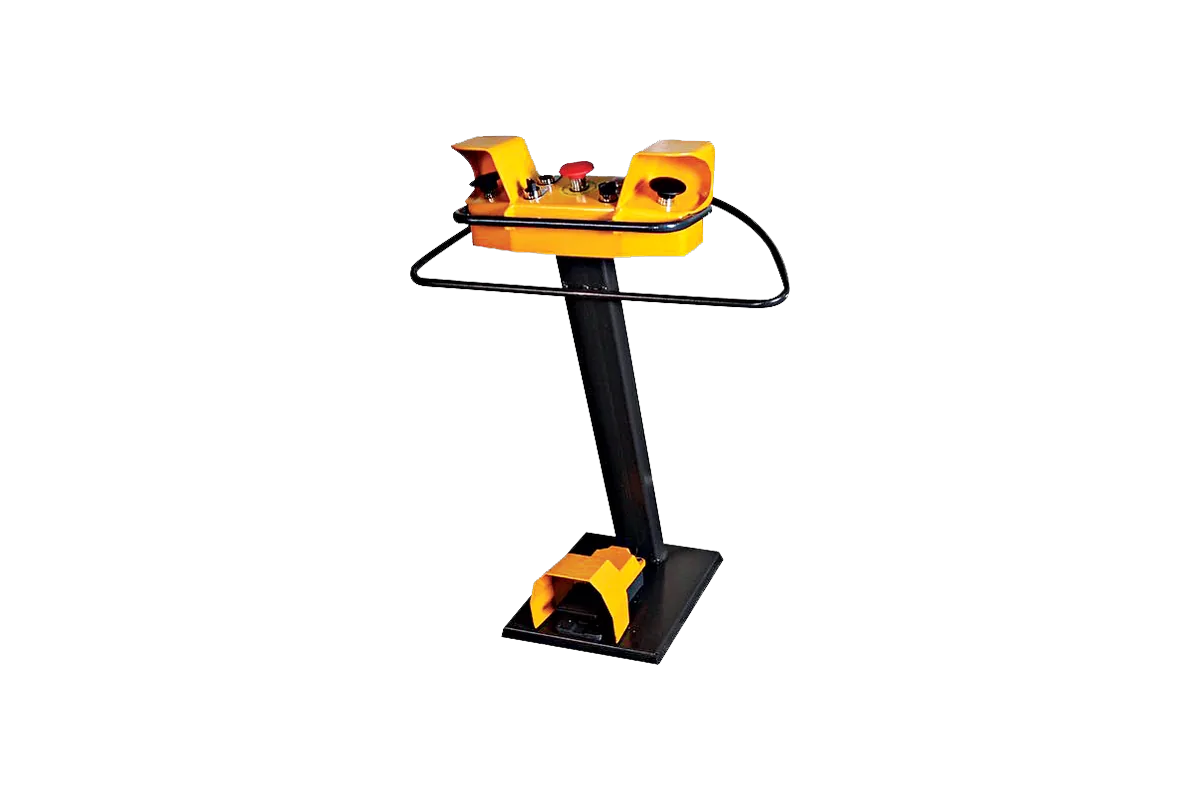

- Two-hand control with foot pedal
- Bending blade holder
- Press-brake tooling on request, as a full set (punch, lower die) or as individual pieces
- Custom T-slot tables
- Light barrier (light curtain)
HPT Technical Specifications
| Model | Press force (t) | Max. working pressure (bar) | Stroke (mm) | Working width (mm) | Distance between tables (mm) | Advance speed (mm/s) | Working speed (mm/s) | Return speed (mm/s) | Table size (mm) | Bottom table hole Ø (mm) | Motor power (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPT 1020-100 | 100 | 263 | 300 | 1020 | 680 | 8 | 5 | 10 | 500x1020 | 100 | 7.5 | 2110 | 1000 | 2350 | 1985 |
| HPT 1520-100 | 100 | 263 | 300 | 1520 | 680 | 8 | 5 | 10 | 500x1520 | 100 | 7.5 | 2630 | 1000 | 2350 | 2365 |
| HPT 1020-150 | 150 | 244 | 300 | 1020 | 610 | 9 | 5 | 10 | 600x1020 | 100 | 11 | 2110 | 1000 | 2450 | 2600 |
| HPT 1520-150 | 150 | 244 | 300 | 1520 | 610 | 9 | 5 | 10 | 600x1520 | 100 | 11 | 2630 | 1000 | 2450 | 3100 |
Speeds are typical values. Pump, motor and speeds are matched to the customer's requirements.
Choosing the HPT Universal T-Slot Hydraulic Press
The HPT suits small and medium workshops that run simple die work in low volumes, where a production press such as the HPHS or HPS would be more than the job needs. The die is clamped in the T-slot tables. Simple bending is possible with the optional blade holder and suitable bending tooling. For regular sheet bending with hardened blades and a 5-face prism as standard, see the HPG.
Typical industries: tool and die shops, machinery manufacturing, automotive parts and maintenance workshops.
HPT Universal Hydraulic Press in Operation
Watch the EBR METAL HPT 1520-150 universal t-slot hydraulic press in operation.

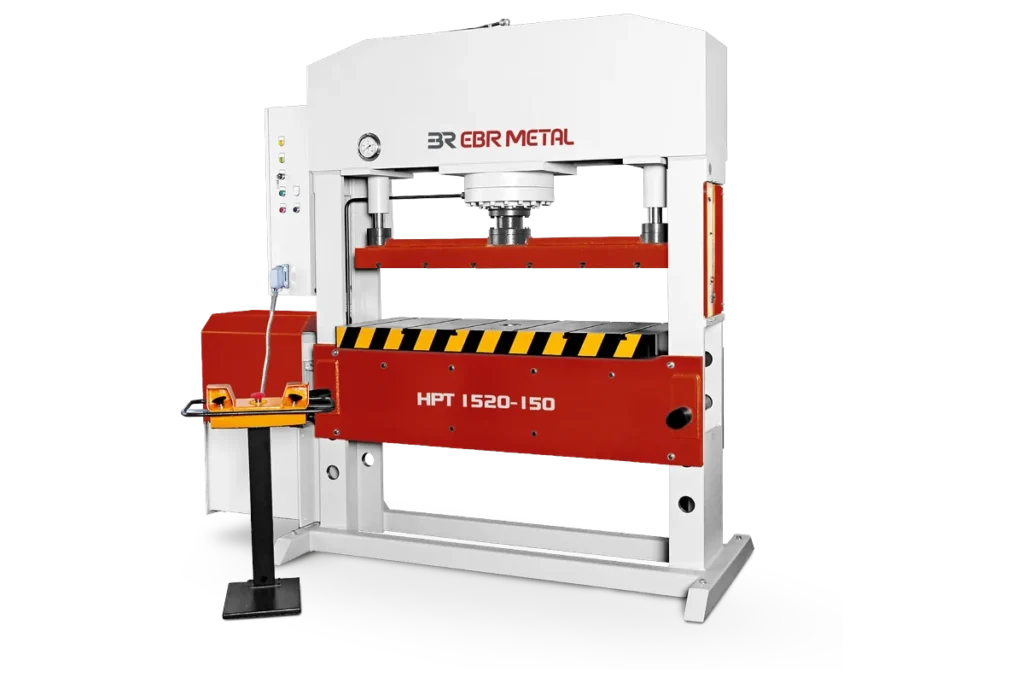

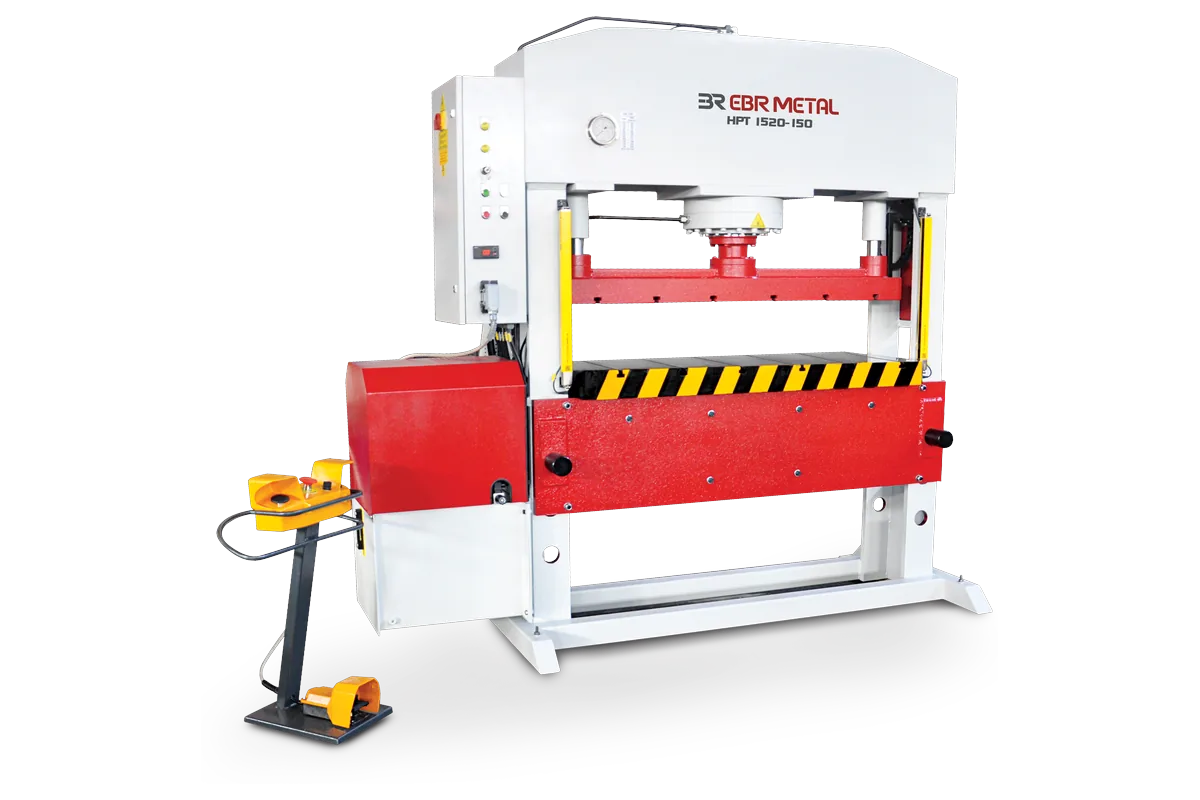

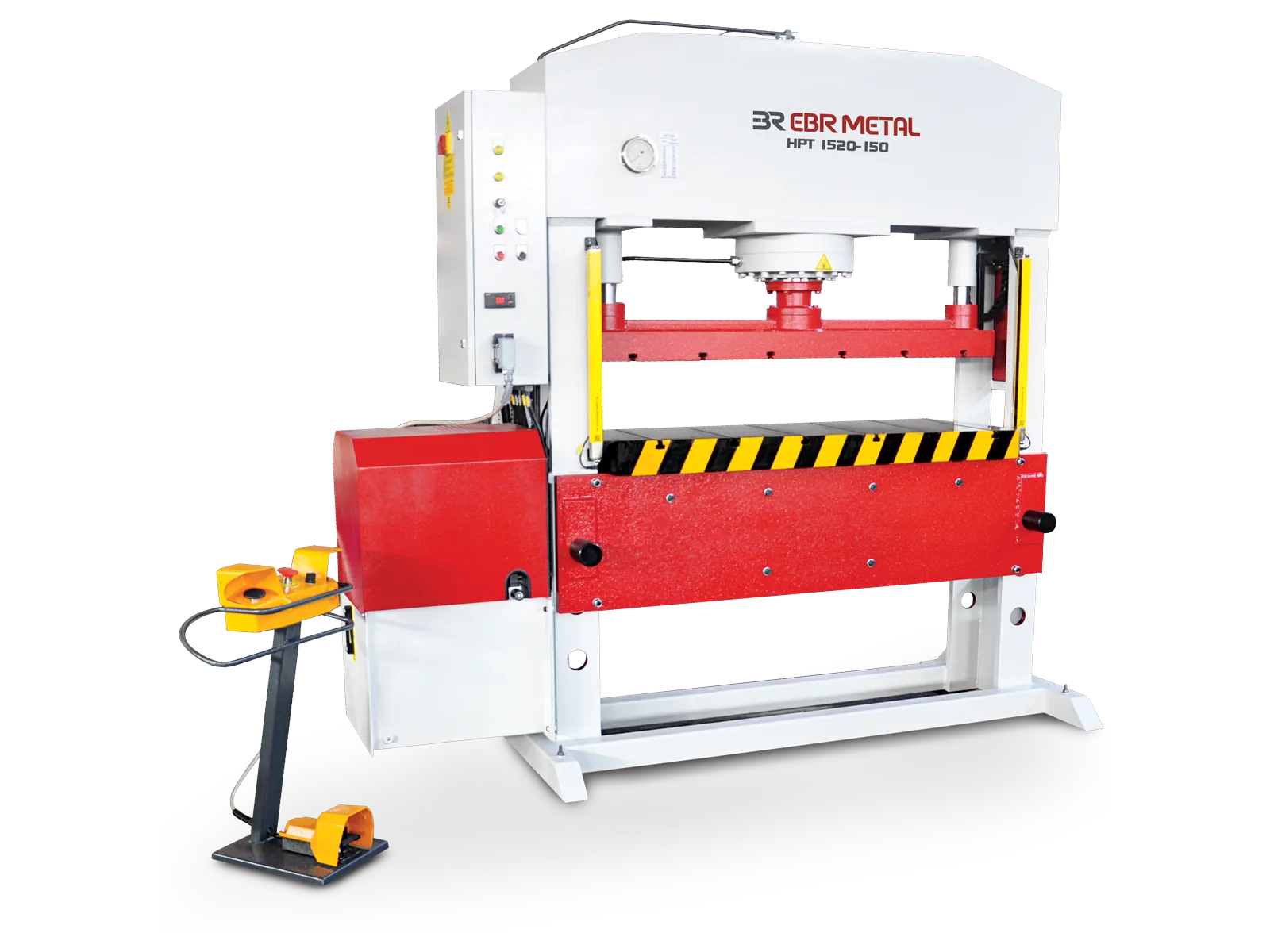

HPT 1520-150 — Universal T-Slot Hydraulic Press
Request a Quote for the HPT
Send us the required press force, the die dimensions and shut height, the working width and the type of work. With a drawing or a photo of the part, we can propose a model and configuration.
Frequently Asked Questions About HPT
What sizes does the HPT come in?
The standard models are 100 and 150 tonnes with 1,020 or 1,520 mm working width. Other sizes and configurations are built to order.
How are dies mounted on the HPT?
The top and bottom tables have T-slots, so dies are clamped directly. Custom T-slot tables are available as an option.
Can the HPT be used for bending?
Yes, for simple bends with the optional blade holder and suitable bending tooling. Regular sheet bending is better done on the HPG, which has hardened blades and a 5-face prism as standard.
How are pressure and stroke set?
With the adjustable pressure valve, read against the manometer. A limit switch sets the stroke steplessly.
Is a light curtain available?
It is optional. Two-hand control is standard, and a foot pedal can be added.
