Ventilation Duct Machines
Machines for sheet-metal duct work: forming the locks, closing the seams, stiffening the panels and beading the edges.
Duct Forming Machines from EBR METAL

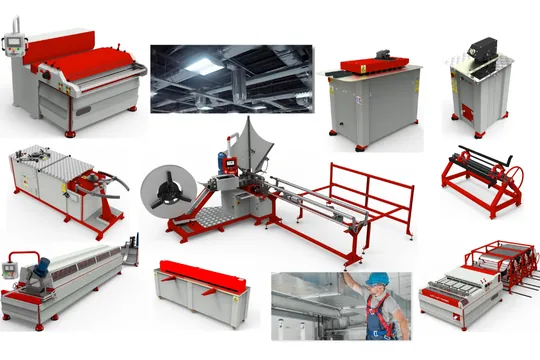

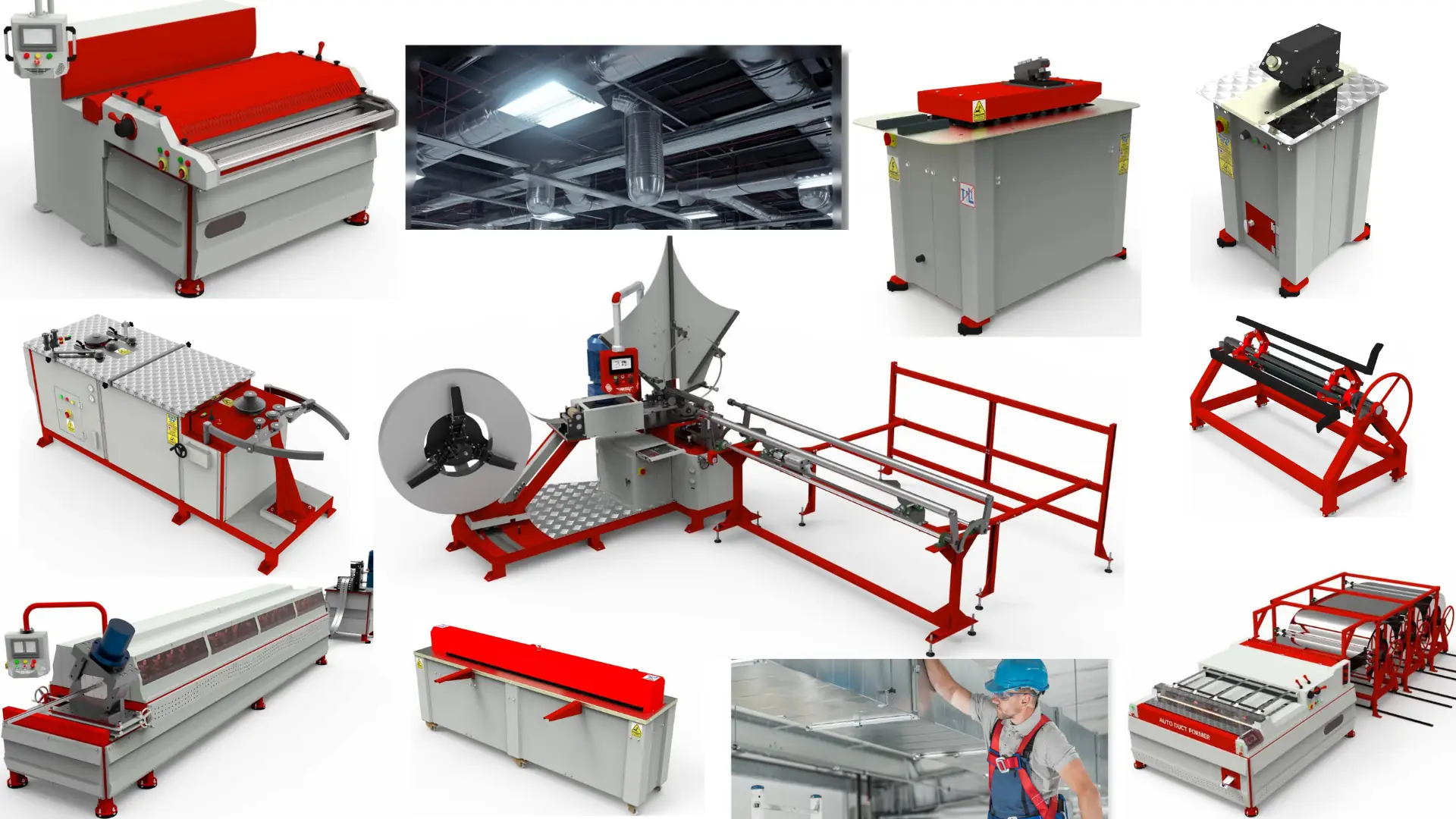

EBR METAL ventilation duct machines cover the forming steps of rectangular and round duct work in sheet up to 1.2 mm (bordering up to 4 mm). LFM lock formers roll the Pittsburgh lock and cleats on sheet edges, and LSM lock seamers close the longitudinal seams of round ducts. LPM machines stiffen flat panels. KBT, KMT and KT bordering machines bead and fold the edges of round parts and fittings.

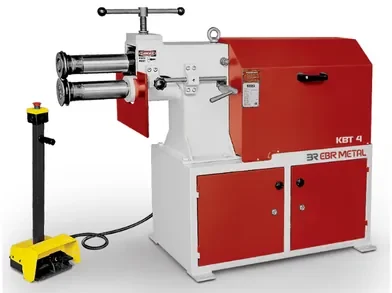

KBT Power Trimming and Beading Machines
Motorized bordering machines with interchangeable roll sets for edge beading and forming on heavier sheet.
2.5 and 4 mm · 2 models

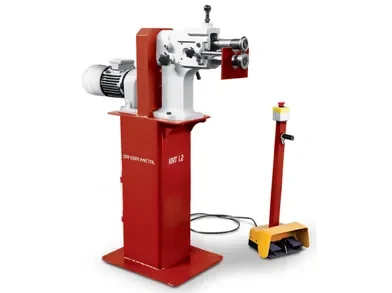

KMT / KT Sheet Metal Beading Machines
Compact motorized and manual bordering machines for thin sheet and site work.
0.8–1.2 mm · 3 models

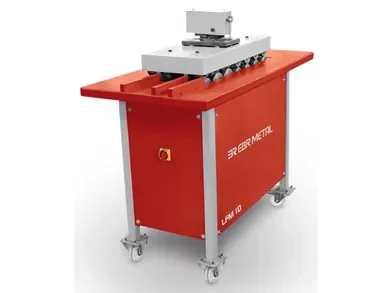

LFM Lock Former Machines
Roll the Pittsburgh lock and cleat profiles on duct sheet.
Up to 1.2 mm · 7 or 9 stations · 4 models

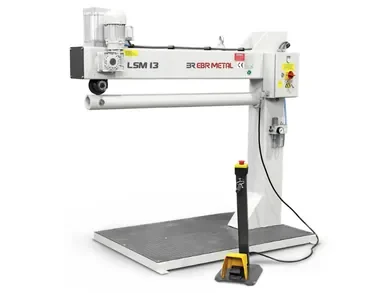

LSM Lock Seamer Machines
Close the lock seam of round ducts from Ø130 to Ø1000 mm.
1300 mm seam · pneumatic or motorized

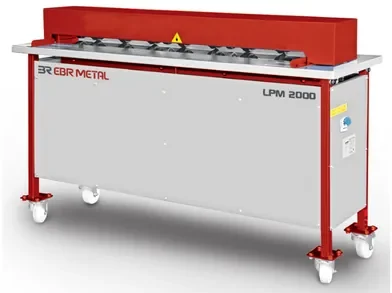

LPM Duct Beading Machines (Trace Pressing)
Press zig-zag stiffening beads into flat rectangular duct panels.
1200–2530 mm · 0.4–1.2 mm · 3 models
Where Each Machine Fits in Duct Work
- Edges and locks: the LFM lock former rolls the Pittsburgh lock and cleats on the cut sheet.
- Stiffening: the LPM presses zig-zag beads into large flat panels to make them stiffer and reduce drumming.
- Round ducts: after rolling, the LSM closes the longitudinal lock seam over a length of up to 1300 mm.
- Edges of round parts and fittings: the KBT, KMT and KT bordering machines bead and fold the edges with interchangeable rolls. Special rolls are made to order.
Customers in Italy, North Africa and the Gulf region have bought rolling machines, guillotine shears, bordering machines and LFM, LPM and LSM models together. Other shops there ordered after seeing those machines at work.
Which Machine Do You Need?
| You need to | Machine |
|---|---|
| Form Pittsburgh locks and cleats on duct sheet | LFM lock former |
| Close the lock seam of round ducts | LSM lock seamer |
| Stiffen flat duct panels | LPM duct beading machine |
| Bead and form edges on sheet up to 4 mm | KBT |
| Bead edges on thin sheet, in the shop or on site | KMT 1.2 or KT |
Why EBR METAL
- Experience: 35+ years of team experience in sheet-metal machinery, own production since 2002, EBR METAL brand since 2017.
- Export: machines delivered to 45+ countries on 5 continents.
- Quality: ISO 9001, ISO 14001 and ISO 45001; built to CE requirements.
- Tested before shipment: each machine is tested with standard sheet. Special rolls are also tested when ordered, and a test video can be sent on request.
- Support: free video-call support and a 1-year warranty. Standard spare parts and the standard rolls in our catalogue ship from stock; special rolls and parts not in stock are supplied at short notice.
EBR HVAC: for larger duct production series and automatic duct lines, see our sister site EBR HVAC.
Request a Quote
Frequently Asked Questions About Ventilation Duct Machines
Which machines does a small duct shop need first?
Usually a lock former for the Pittsburgh lock and a bordering machine for edges and fittings. A lock seamer is added for round duct work, and a trace pressing machine for large rectangular panels.
What sheet thickness can the machines handle?
Lock formers and lock seamers up to 1.2 mm, duct beading (trace pressing) machines 0.4–1.2 mm and bordering machines up to 4 mm (KBT 4.0). Capacities are for mild steel S235JR (formerly St 37) and also apply to galvanized sheet. For stainless steel they are lower.
Do you also make automatic duct lines?
Yes. Our automatic duct lines and HVAC duct production series are presented on our sister site EBR HVAC (ebrhvac.com). This site lists the standard EBR METAL duct forming machines. Send us your duct sizes and output, and we will recommend the right machines from either range.
Do you supply spare rolls?
Yes. The standard rolls ship from stock, and special rolls for the KBT, KMT and KT are made to your profile.
What warranty and support do you provide?
A 1-year warranty and free support by video call. Standard spare parts ship from stock; anything not in stock is supplied at short notice.
