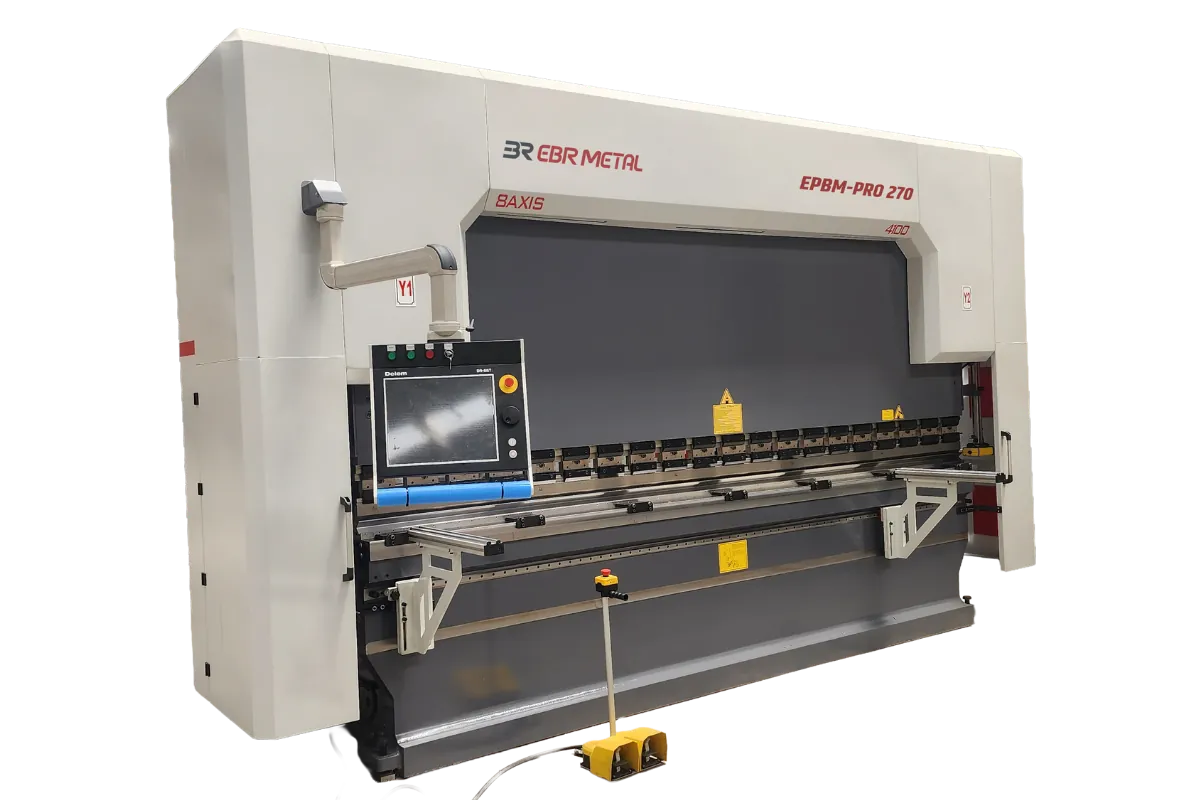

EPBM-PRO CNC Press Brake
The EPBM-PRO CNC press brake is EBR METAL’s ready standard configuration: 4-axis control (Y1, Y2, X, R), motorized crowning and a Cybelec Touch 12 control unit built in as standard, covering a 100 to 320 ton force range.
· 100–320 tons · 4-axis standard · Motorized crowning standard
The EPBM-PRO CNC press brake is EBR METAL’s ready standard configuration: 4-axis control (Y1, Y2, X, R), motorized crowning and a Cybelec Touch 12 control unit built in as standard, covering a 100 to 320 ton force range.
- 100–320 tons
- 4-axis standard
- Motorized crowning standard
The EPBM-PRO Package
EPBM-PRO packages the R-axis, motorized crowning and full-size guarding as standard, on a Cybelec Touch 12 control unit, so a buyer whose bending work already needs these does not have to add them as separate options. Crowning compensation across the bend length is available from the machine as delivered.

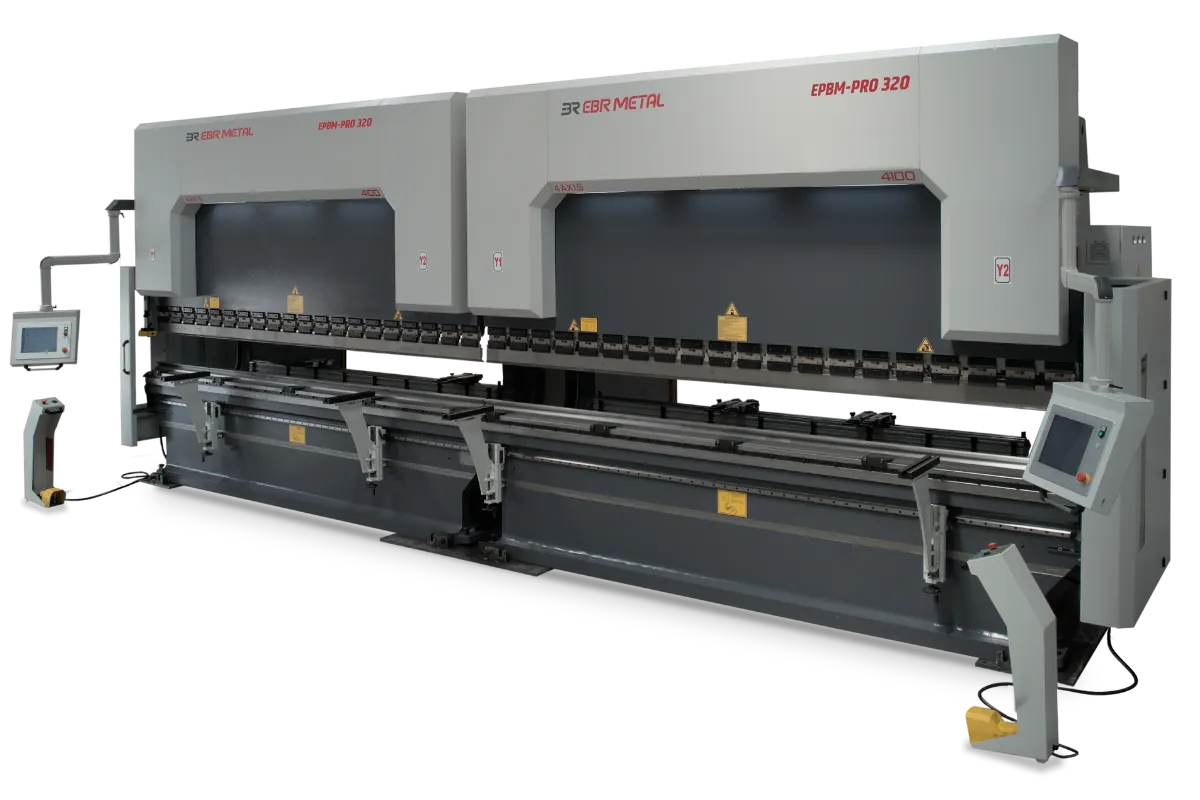

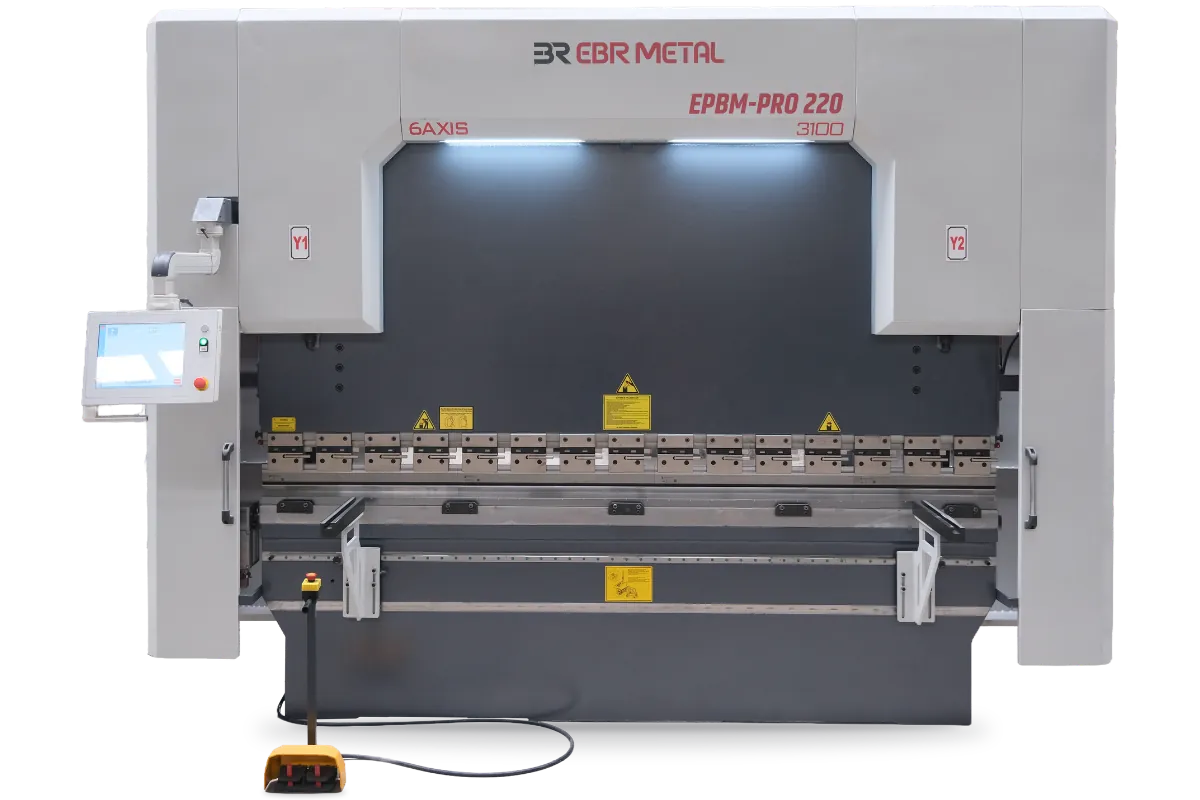

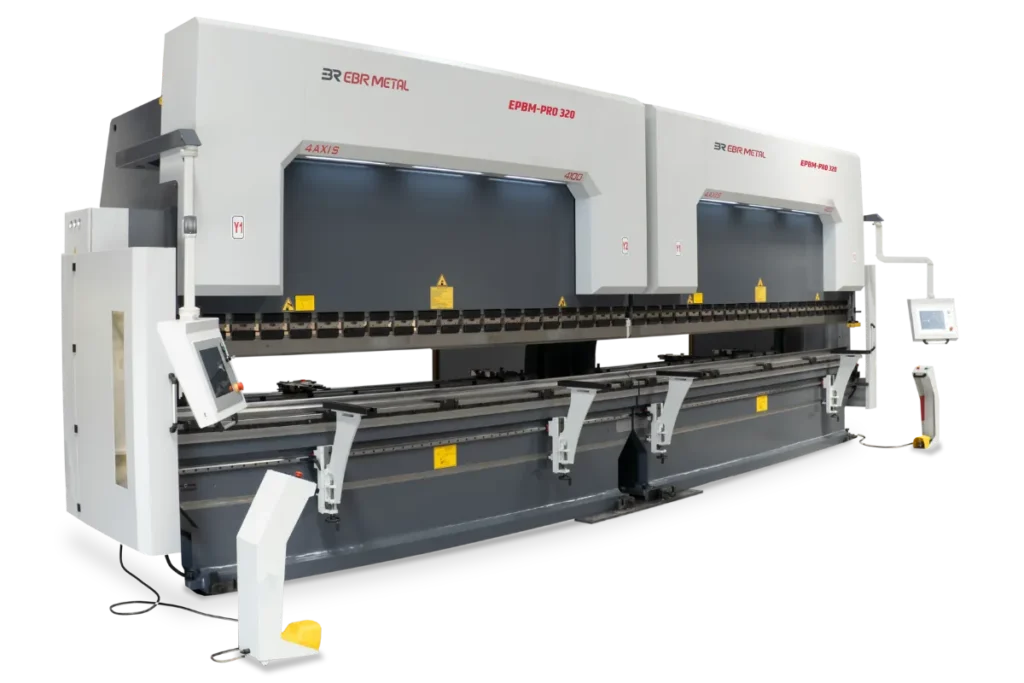

EPBM-PRO Product Gallery
Standard Configuration
- Y1, Y2, X, R — 4-axis standard, X-axis travel 750 mm, R-axis travel 250 mm
- Stroke 275 mm
- Throat depth 450 mm

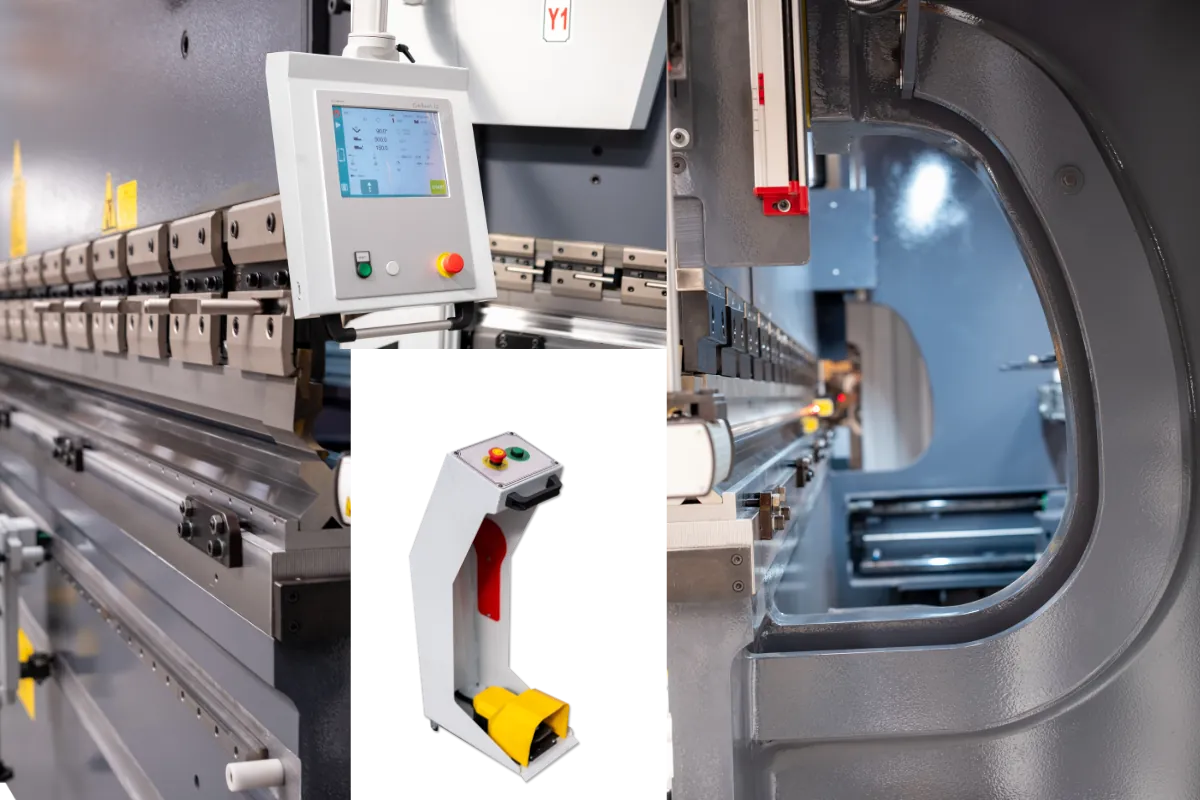

- Cybelec Touch 12 CNC control unit (standard)
- Motorized crowning

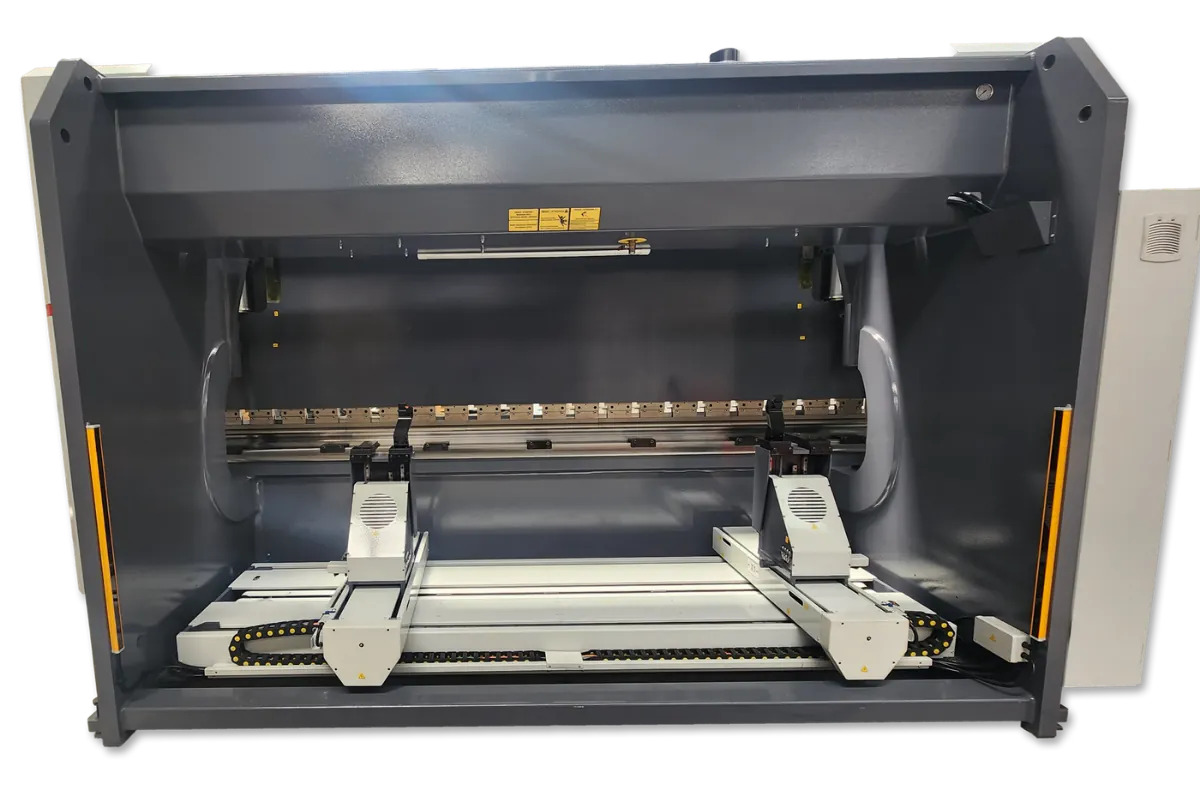

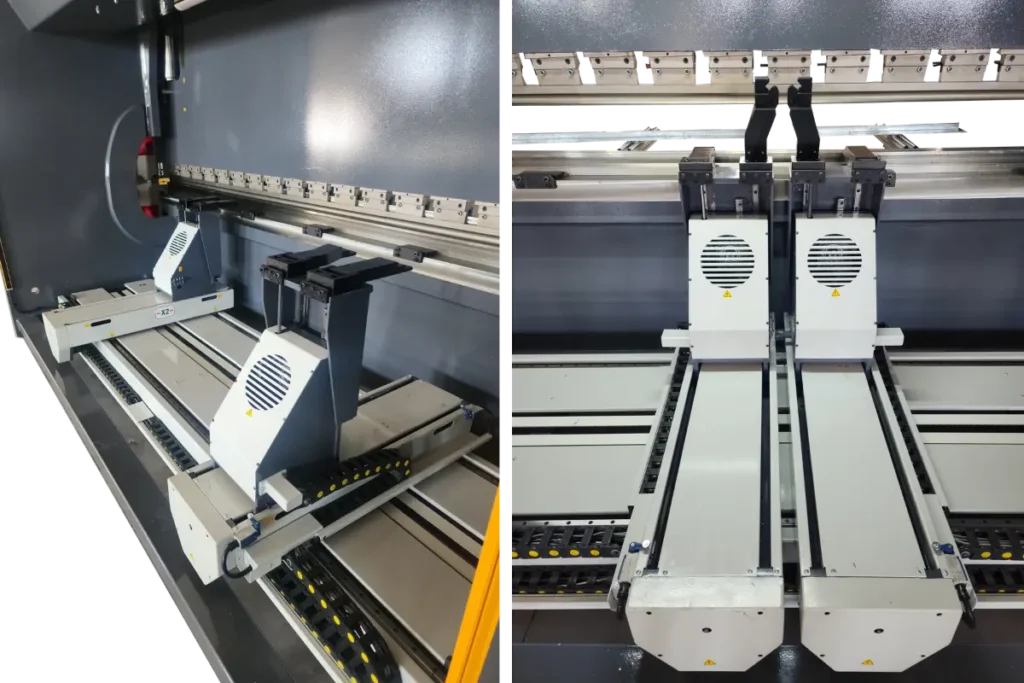

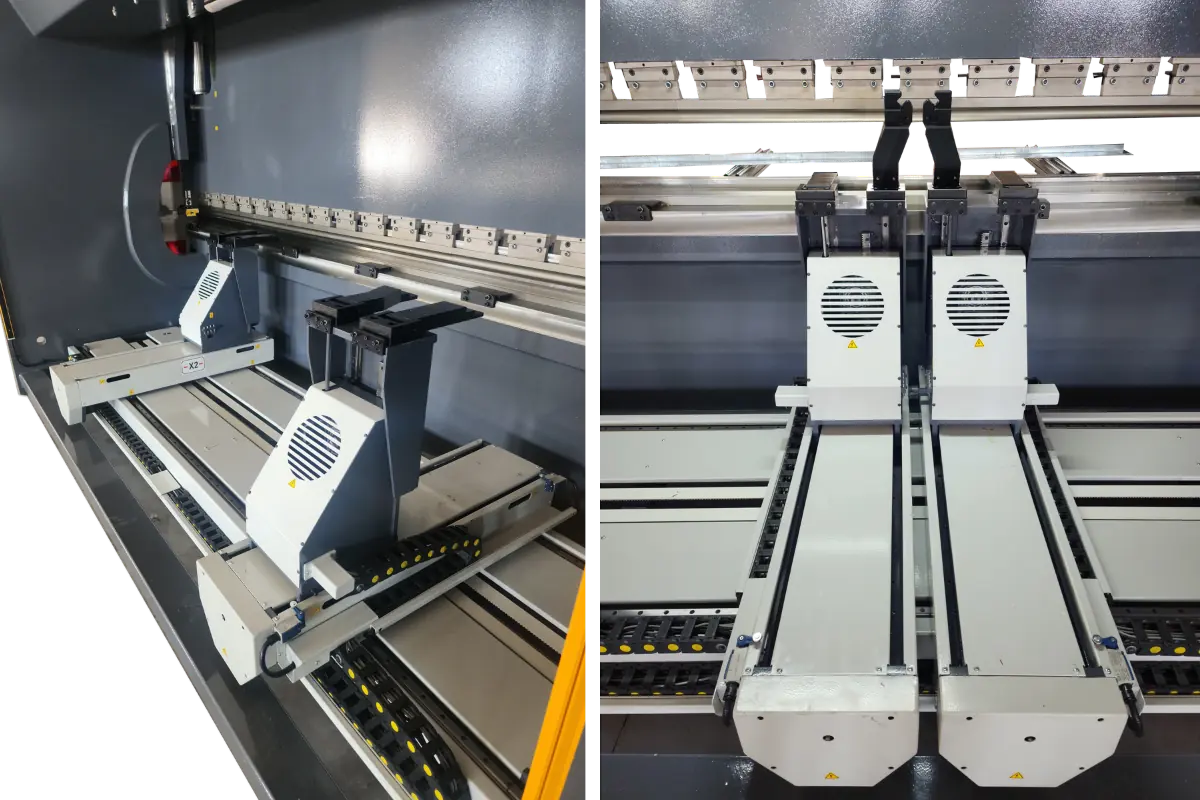

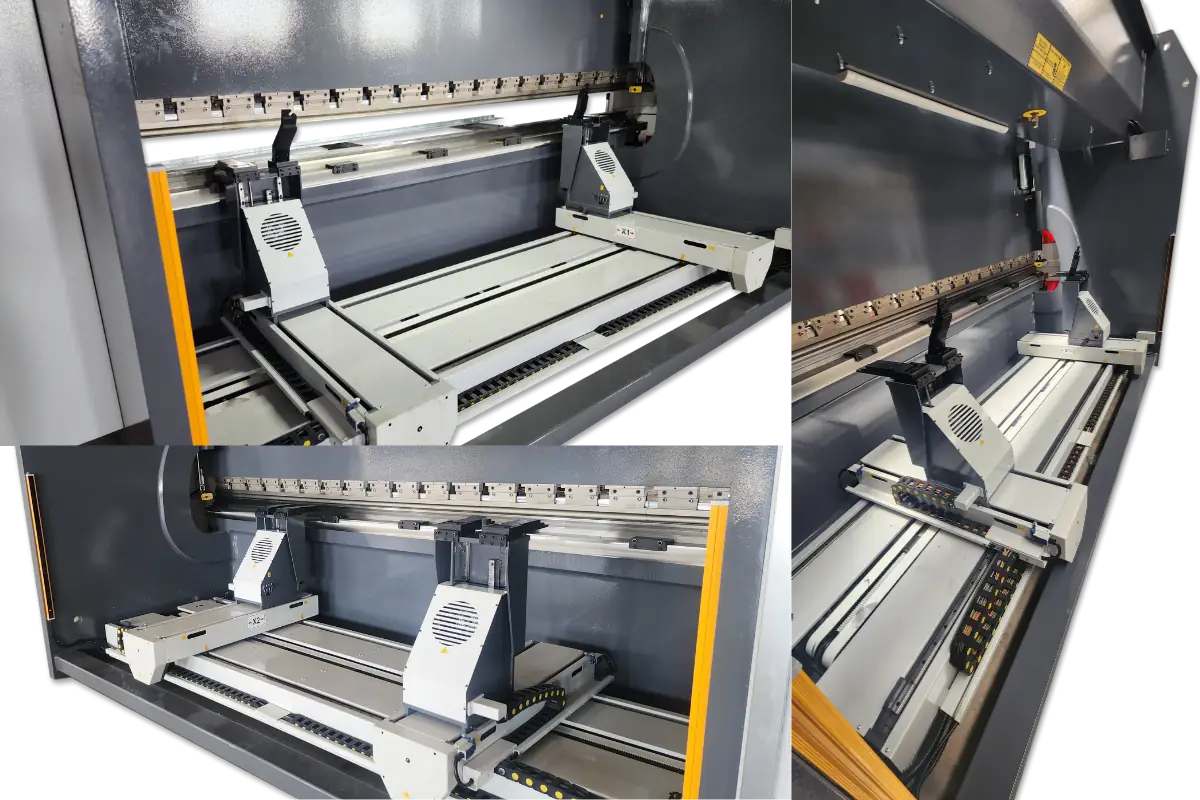

- Rexroth ball-screw backgauge drive, linear guide, aluminum body
EBR METAL motorized backgauge with servo motors and drivers - OPKON magnetic linear scales

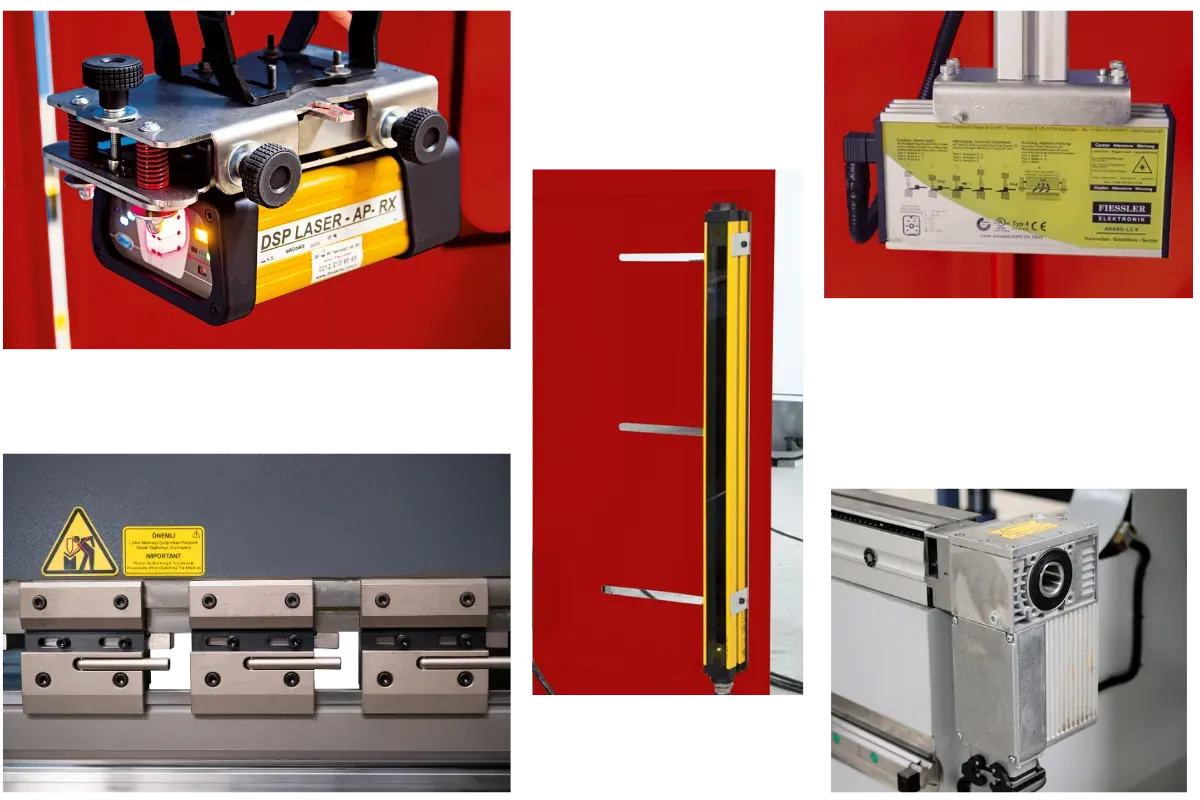

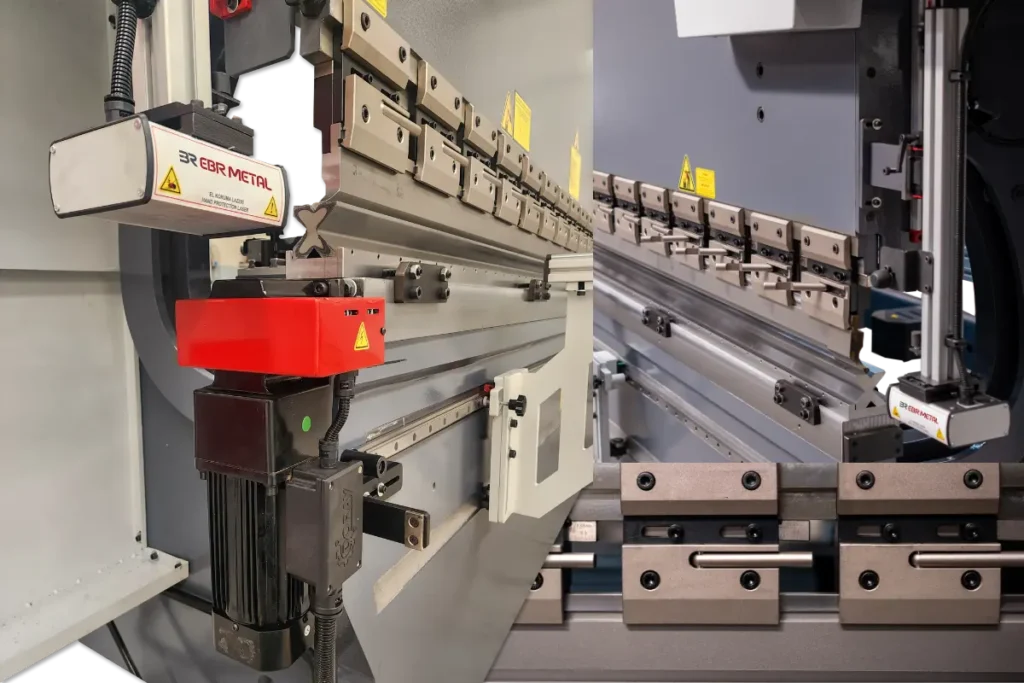

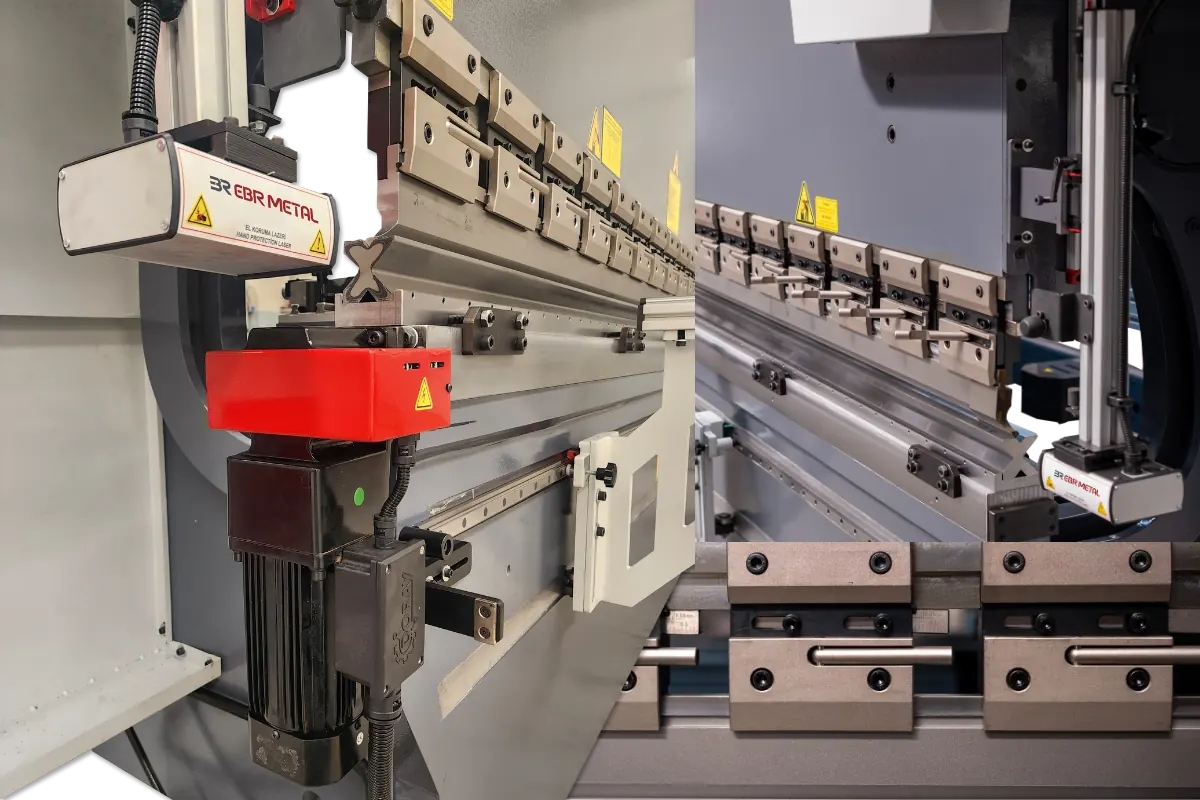

- EBR METAL finger-protection laser

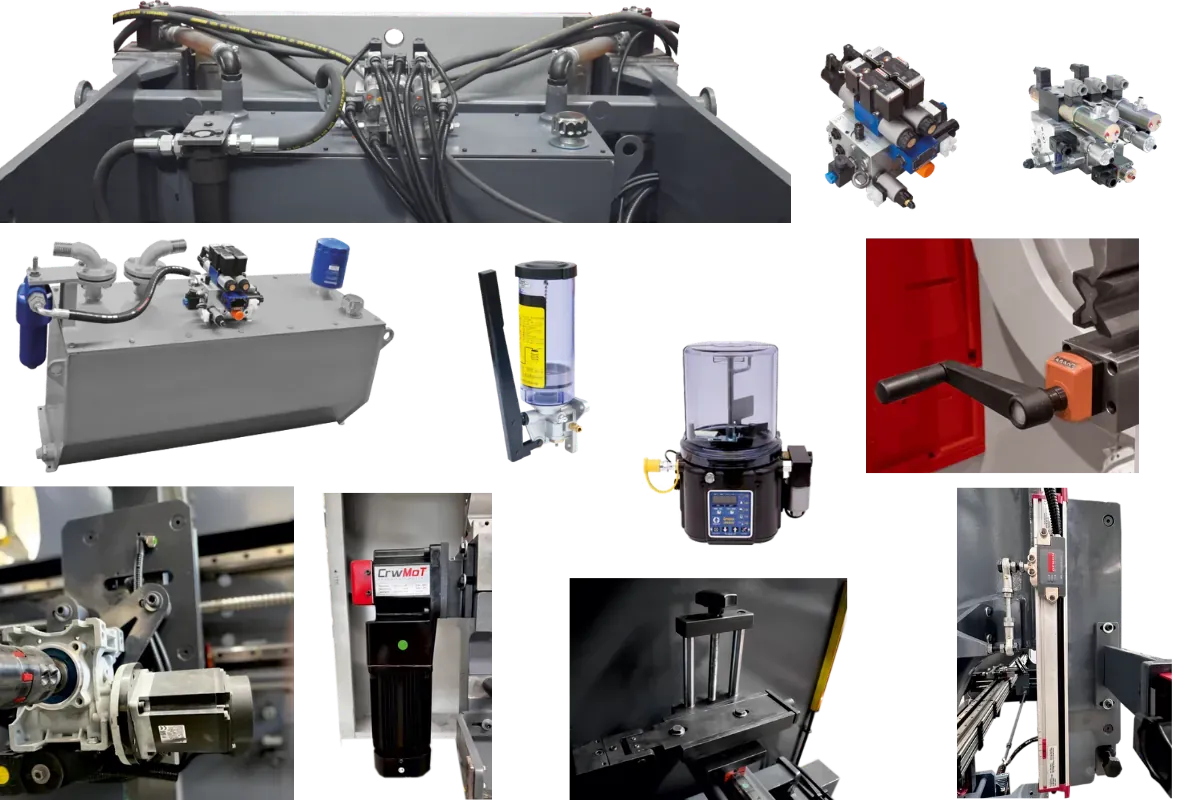

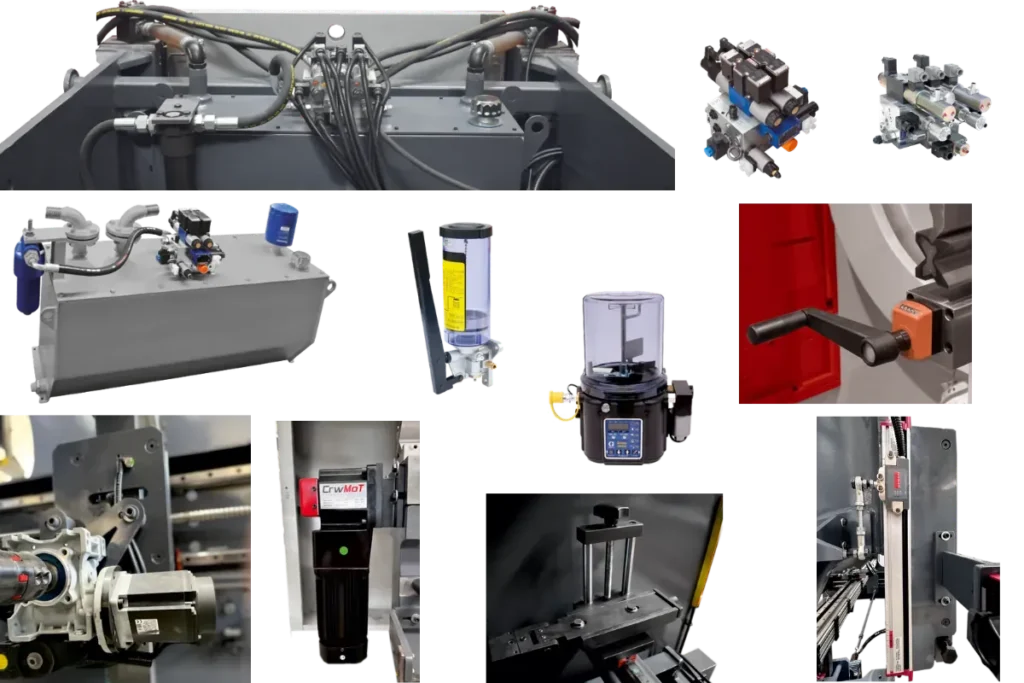

- Rexroth proportional-valve hydraulic blocks and internal-gear-type oil pump

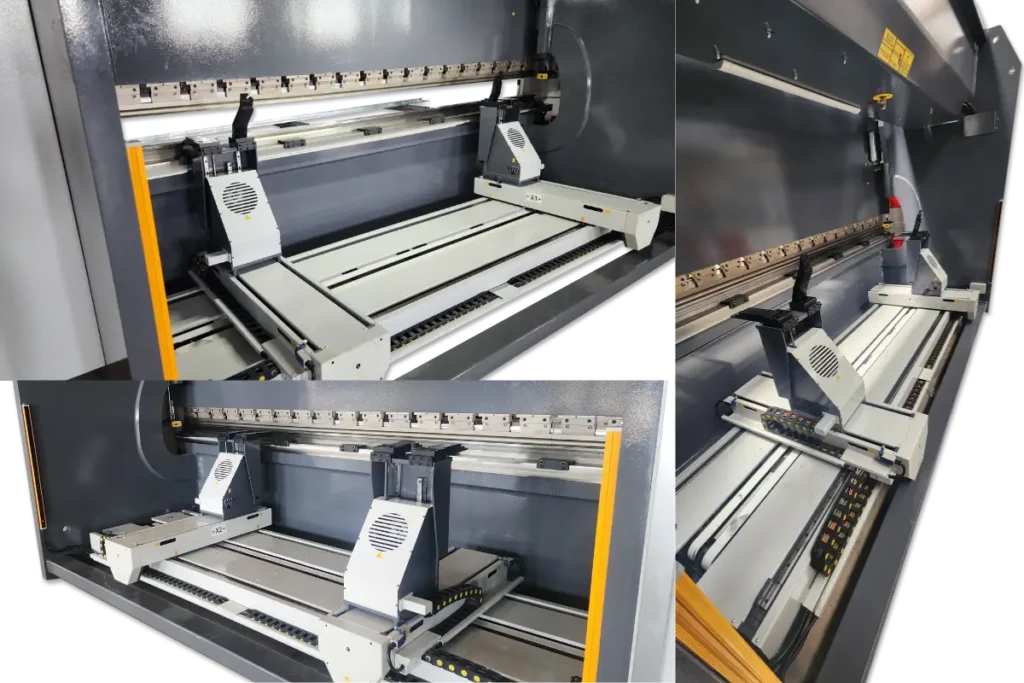

- 2 backgauge fingers, manually positioned along the linear guide

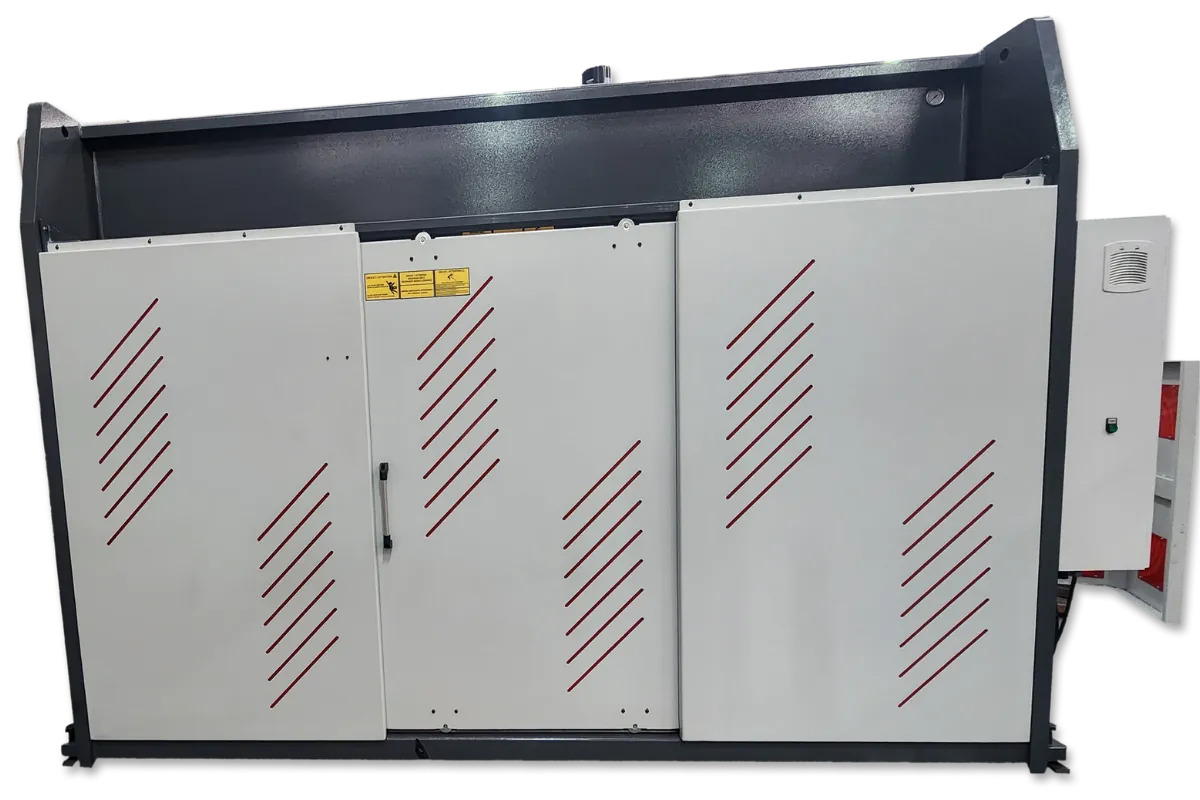

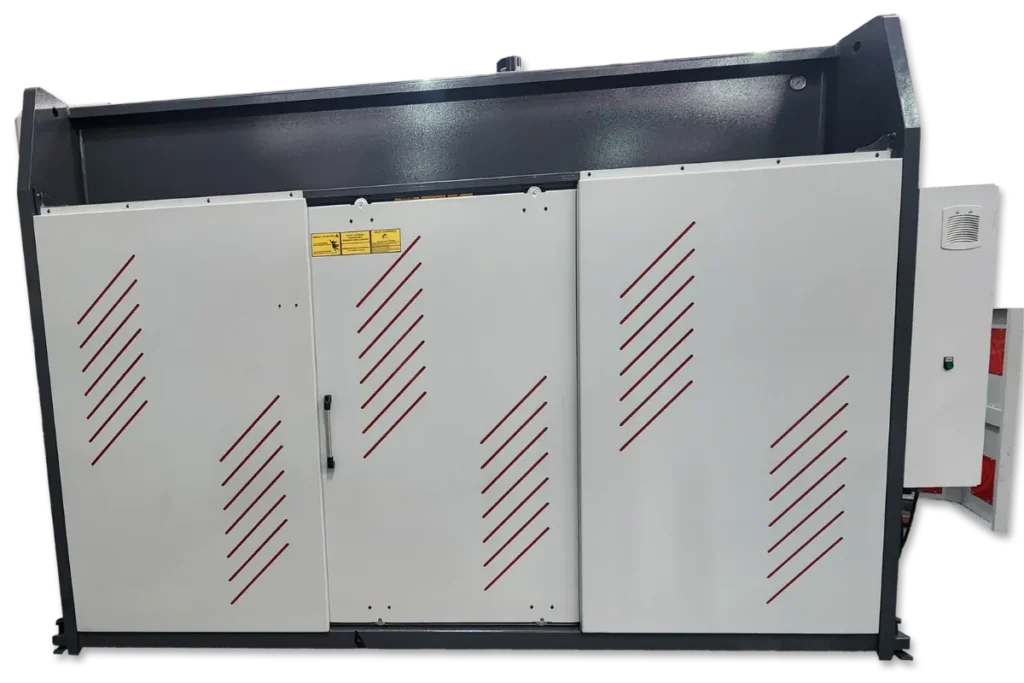

- Full-size side safety guards and cylinder covers
- Promecam European-type quick clamping
- EBR METAL-specific narrow lower table (IW = 60 mm for 220 tons and below, IW = 90 mm for 270 tons and above)
- 2 sliding front support arms
- Rolleri upper punch (P.97.85.R08, 835 mm) and 4-way lower die (M.460.R 85°, V = 16–22–35–50 mm, 835 mm)
Standard component brands are as listed above. Where a supply constraint arises, EBR METAL may substitute an equivalent component meeting the same or higher specification.
Optional Equipment

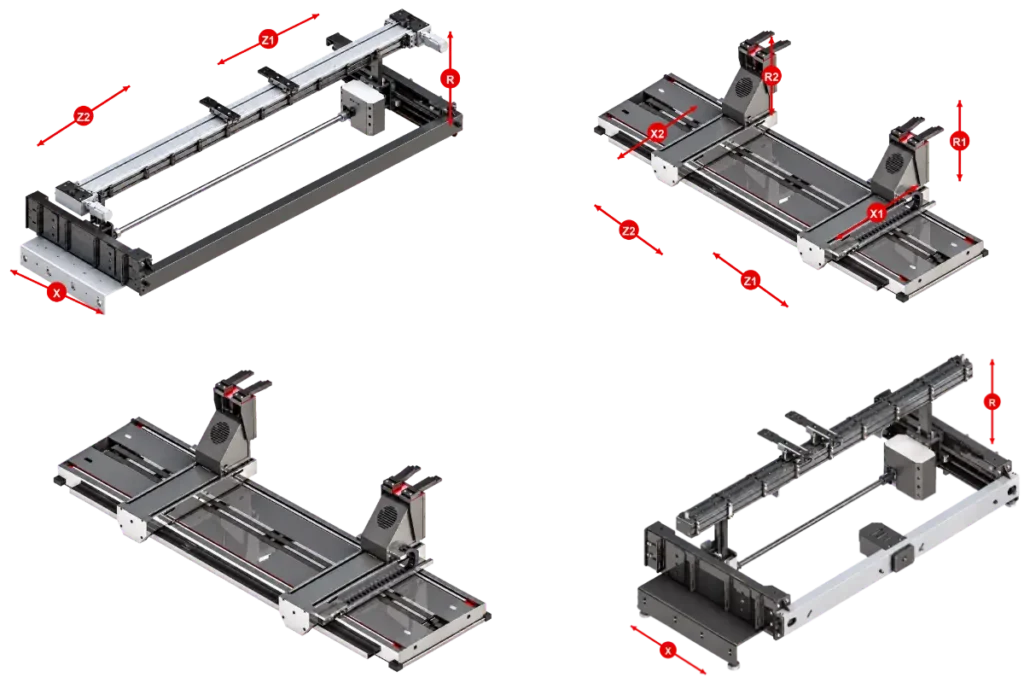

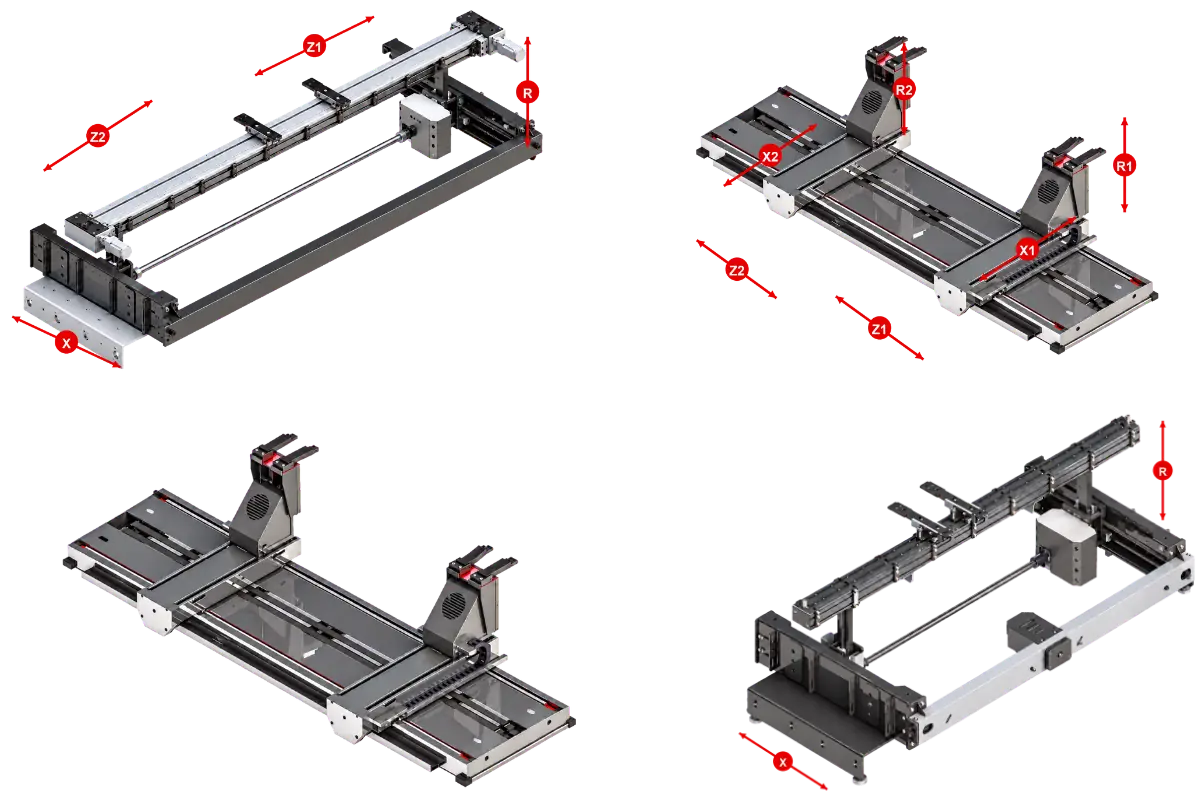

- 6-axis backgauge (adds Z1, Z2 automatic left/right movement to the standard configuration)
- 8-axis backgauge (X1, X2, R1, R2, Z1, Z2 — two independent backgauge consoles)
- Extra backgauge fingers
- Extra throat depth
- Inverter system
- Extra stroke

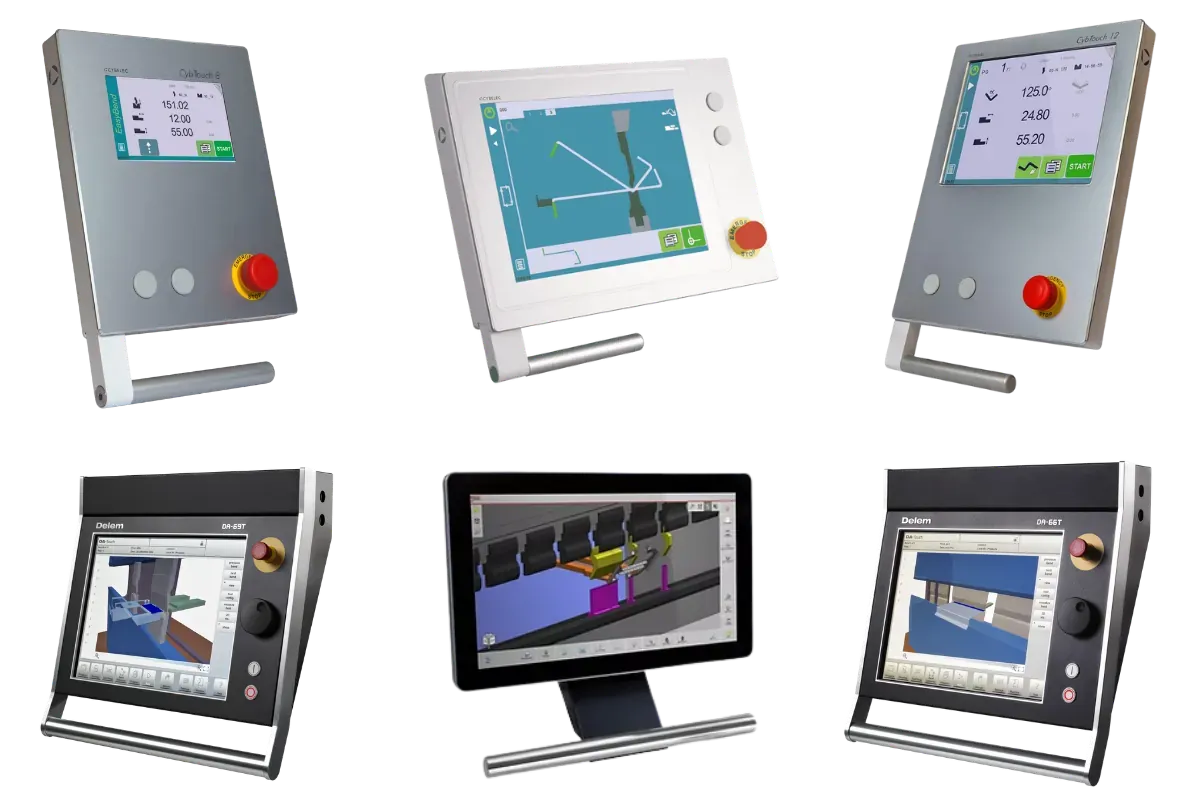

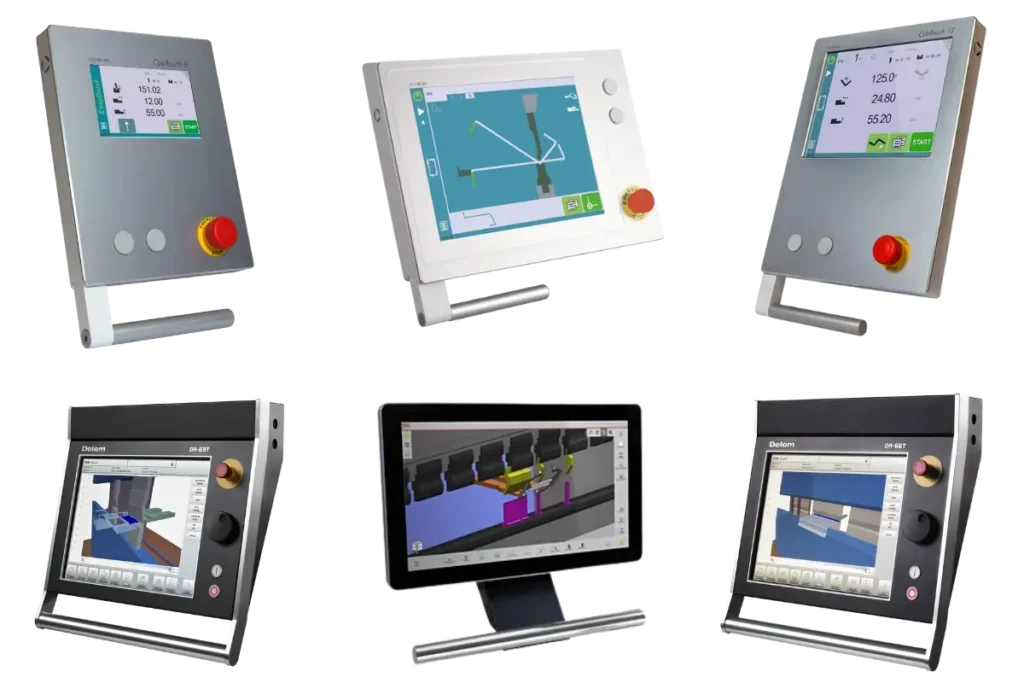

- Alternative CNC control units
- Optional CE Package:

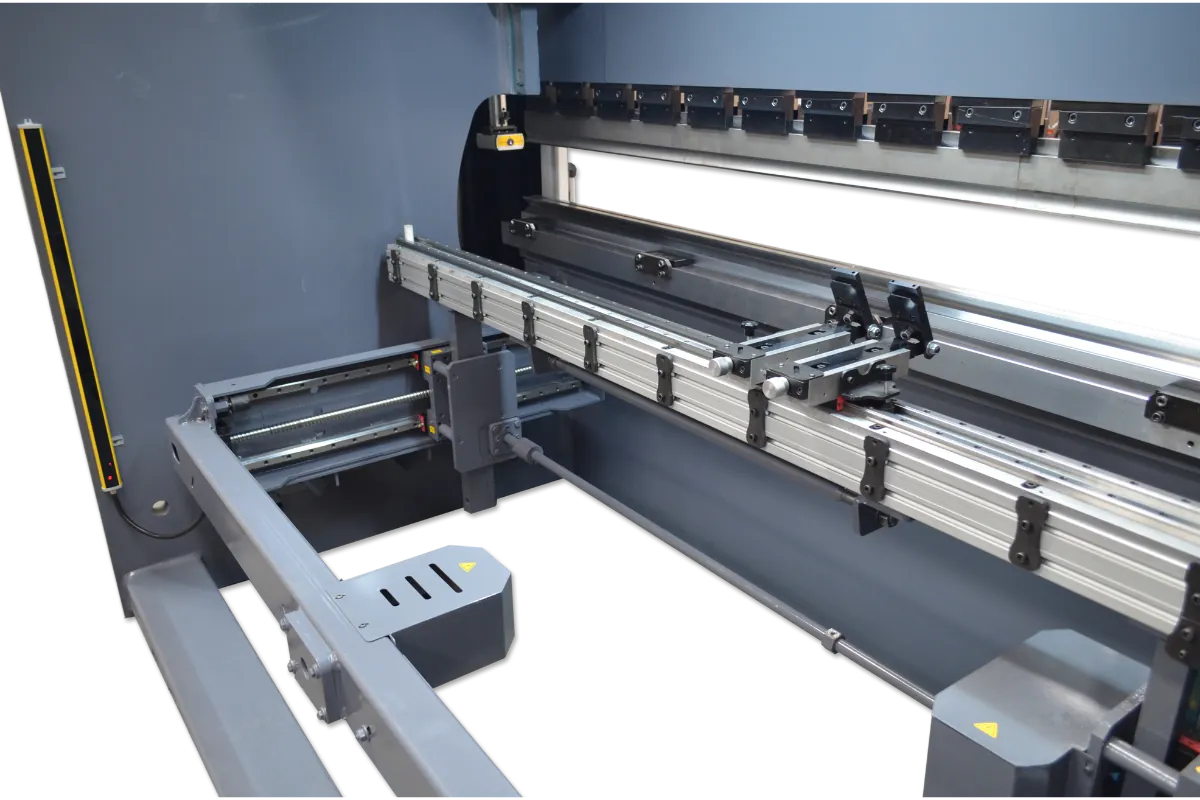

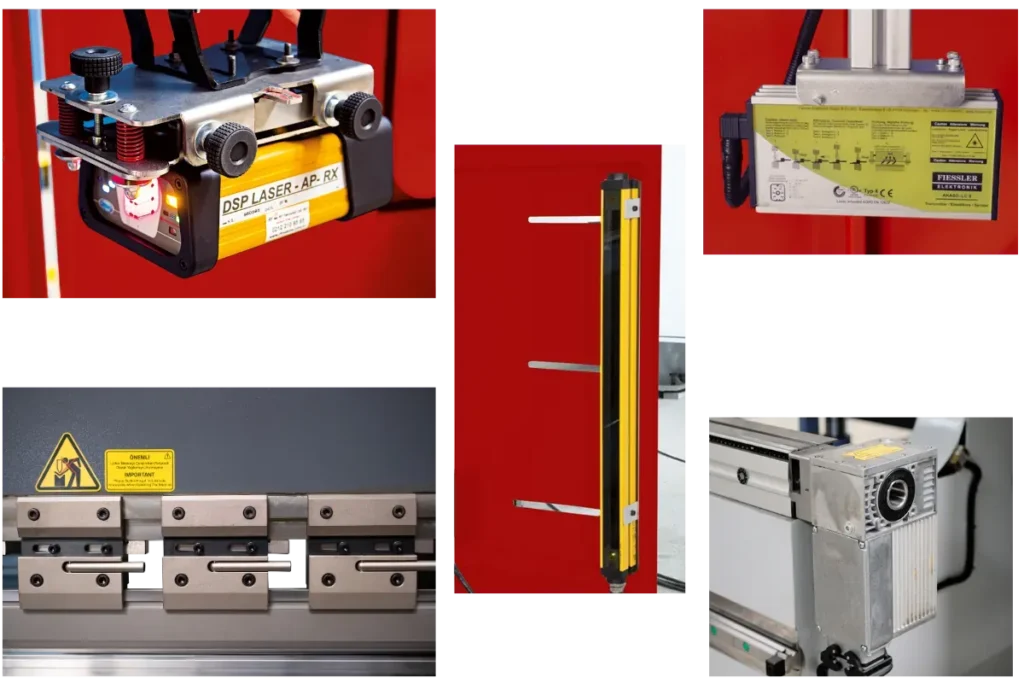

- DSP front safety laser, PLC and rear light barriers
- Larger lower table
Wila-brand die clamping and a hydraulic (non-motorized) crowning variant are illustrated in the source material for this series but are not stated in its own standard or optional equipment lists, so they are not listed as a definitive option here.
Technical Specifications
| Model | Bending Force (t) | Bending Length A (mm) | Column Distance B (mm) | Stroke C (mm) | Throat Depth D (mm) | Table Distance E (mm) | Table Height F (mm) | Table Width W (mm) | Return Speed (mm/s) | Descent Speed (mm/s) | Bend Speed (mm/s) | Length L (mm) | Depth G (mm) | Height H (mm) | X-Axis Travel (mm) | R-Axis Travel (mm) | Oil Tank (L) | Weight (kg) | Main Motor (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EPBM-PRO 100 | 100 | 2600 | 2100 | 275 | 450 | 485 | 900 | 100 | 130 | 180 | 10 | 2950 | 1750 | 2600 | 750 | 250 | 150 | 6350 | 7.5 |
| EPBM-PRO 100 | 100 | 3100 | 2600 | 275 | 450 | 485 | 900 | 100 | 130 | 180 | 10 | 3450 | 1750 | 2600 | 750 | 250 | 150 | 6900 | 7.5 |

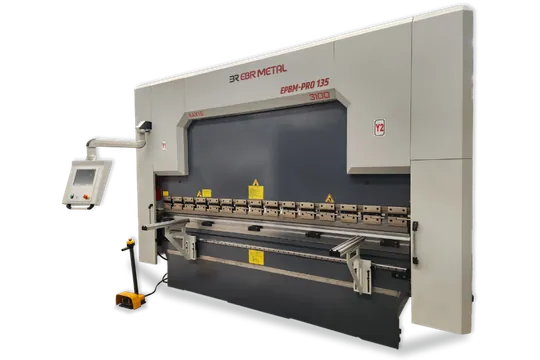

| EPBM-PRO 135 | 135 | 3100 | 2600 | 275 | 450 | 485 | 900 | 100 | 130 | 180 | 10 | 4825 | 2105 | 2730 | 750 | 250 | 150 | 8200 | 11 |
| EPBM-PRO 135 | 135 | 3700 | 3200 | 275 | 450 | 485 | 900 | 100 | 130 | 180 | 10 | 5325 | 2105 | 2715 | 750 | 250 | 150 | 9800 | 11 |
| EPBM-PRO 135 | 135 | 4100 | 3600 | 275 | 450 | 485 | 900 | 100 | 130 | 180 | 10 | 5725 | 2105 | 2765 | 750 | 250 | 150 | 10900 | 11 |
| EPBM-PRO 175 | 175 | 3100 | 2600 | 275 | 450 | 485 | 900 | 100 | 120 | 160 | 10 | 4830 | 2105 | 2745 | 750 | 250 | 200 | 9550 | 15 |
| EPBM-PRO 175 | 175 | 3700 | 3200 | 275 | 450 | 485 | 920 | 100 | 120 | 160 | 10 | 5330 | 2105 | 2730 | 750 | 250 | 200 | 11550 | 15 |
| EPBM-PRO 175 | 175 | 4100 | 3600 | 275 | 450 | 485 | 920 | 100 | 120 | 160 | 10 | 5730 | 2105 | 2805 | 750 | 250 | 200 | 12100 | 15 |

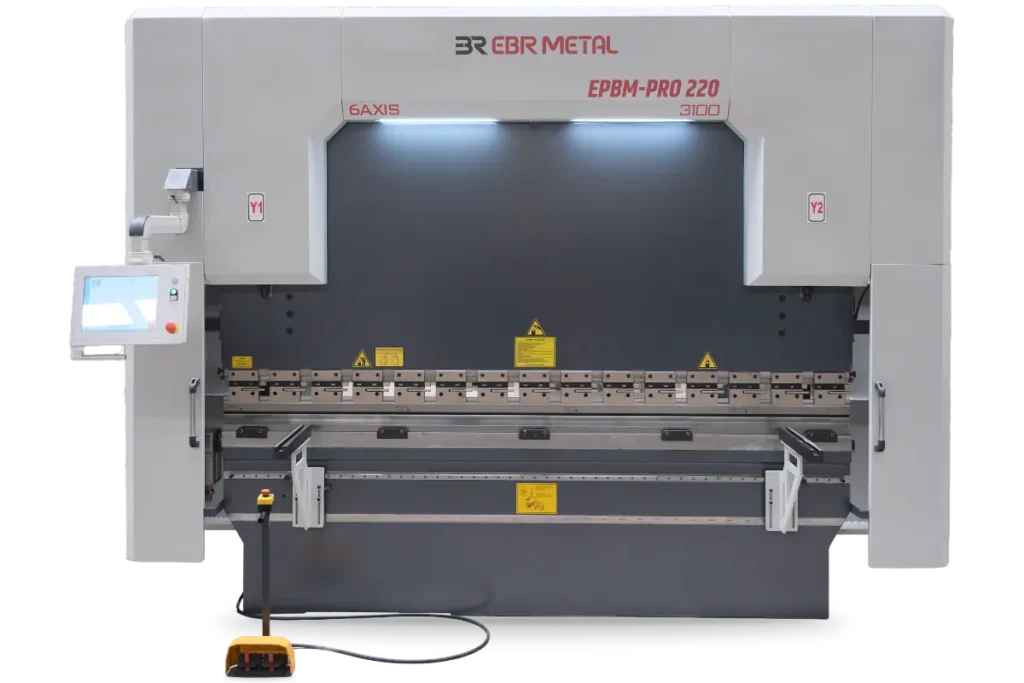

| EPBM-PRO 220 | 220 | 3100 | 2600 | 275 | 450 | 485 | 900 | 100 | 120 | 140 | 10 | 4835 | 2105 | 2700 | 750 | 250 | 200 | 11100 | 18.5 |
| EPBM-PRO 220 | 220 | 3700 | 3200 | 275 | 450 | 485 | 920 | 100 | 120 | 140 | 10 | 5335 | 2105 | 2695 | 750 | 250 | 200 | 13100 | 18.5 |
| EPBM-PRO 220 | 220 | 4100 | 3600 | 275 | 450 | 485 | 920 | 100 | 120 | 140 | 10 | 5735 | 2105 | 2790 | 750 | 250 | 200 | 13800 | 18.5 |
| EPBM-PRO 270 | 270 | 3100 | 2600 | 275 | 450 | 485 | 900 | 140 | 110 | 120 | 9 | 4840 | 2105 | 2920 | 750 | 250 | 240 | 13100 | 22 |
| EPBM-PRO 270 | 270 | 3700 | 3200 | 275 | 450 | 485 | 920 | 140 | 110 | 120 | 9 | 5340 | 2105 | 2920 | 750 | 250 | 240 | 14700 | 22 |
| EPBM-PRO 270 | 270 | 4100 | 3600 | 275 | 450 | 485 | 920 | 140 | 110 | 120 | 9 | 5740 | 2105 | 2940 | 750 | 250 | 240 | 15500 | 22 |
| EPBM-PRO 320 | 320 | 3100 | 2600 | 275 | 450 | 485 | 920 | 140 | 100 | 100 | 8 | 4845 | 2110 | 2950 | 750 | 250 | 240 | 14500 | 30 |
| EPBM-PRO 320 | 320 | 3700 | 3200 | 275 | 450 | 485 | 920 | 140 | 100 | 100 | 8 | 5345 | 2110 | 2960 | 750 | 250 | 240 | 15700 | 30 |

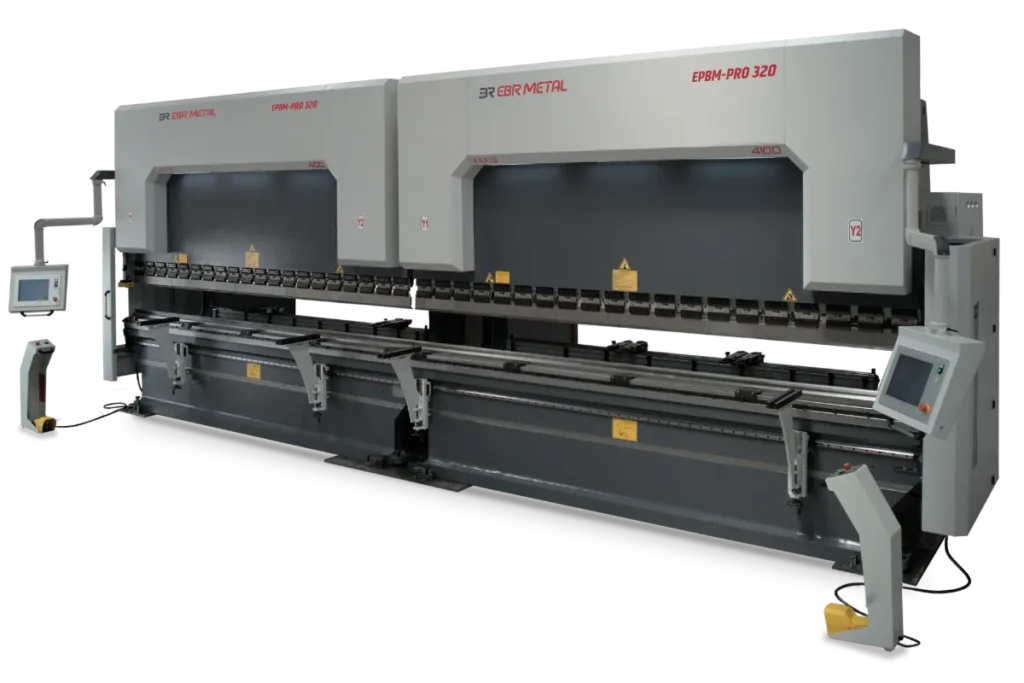

| EPBM-PRO 320 | 320 | 4100 | 3600 | 275 | 450 | 485 | 920 | 140 | 100 | 100 | 8 | 5745 | 2110 | 3010 | 750 | 250 | 240 | 17000 | 30 |
Application Fit
EPBM-PRO hydraulic press brakes 4-axis standard configuration and motorized crowning suit sheet-metal parts that benefit from consistent crowning compensation across the 100–320 ton range. Applications can include Z-shaped bends, parts with double bends on all four sides and multi-bend components, provided the part’s geometry, stroke, throat depth and tooling requirements suit the standard configuration. Complex or multi-bend parts are best confirmed with a technical drawing before ordering.
Preparing a Quotation
To size and quote an EPBM-PRO, EBR METAL needs the material type, maximum material thickness, maximum bending width/length, and a technical drawing for complex or multi-bend parts. This lets EBR METAL recommend the machine along with the appropriate upper punch and lower die. Let EBR METAL know if extended backgauge axes, extra backgauge fingers or the CE Package should be included.
When to Choose EPBM-PRO CNC Press Brake
EPBM-PRO fits shops whose required axes, motorized crowning, guarding and control needs are covered by its standard configuration, within a 100–320 ton range. If your work stays within EPBM-ECO’s 3-axis, 40–220 ton range and doesn’t need standard crowning, EPBM-ECO is the more economical configuration. If you need EPBM-LUX’s larger control unit or its wider envelope beyond PRO, compare EPBM-LUX. See the CNC Press Brake Series overview, or EPBM-ECO directly, for the full comparison.
EPBM-PRO CNC Press Brake in Operation

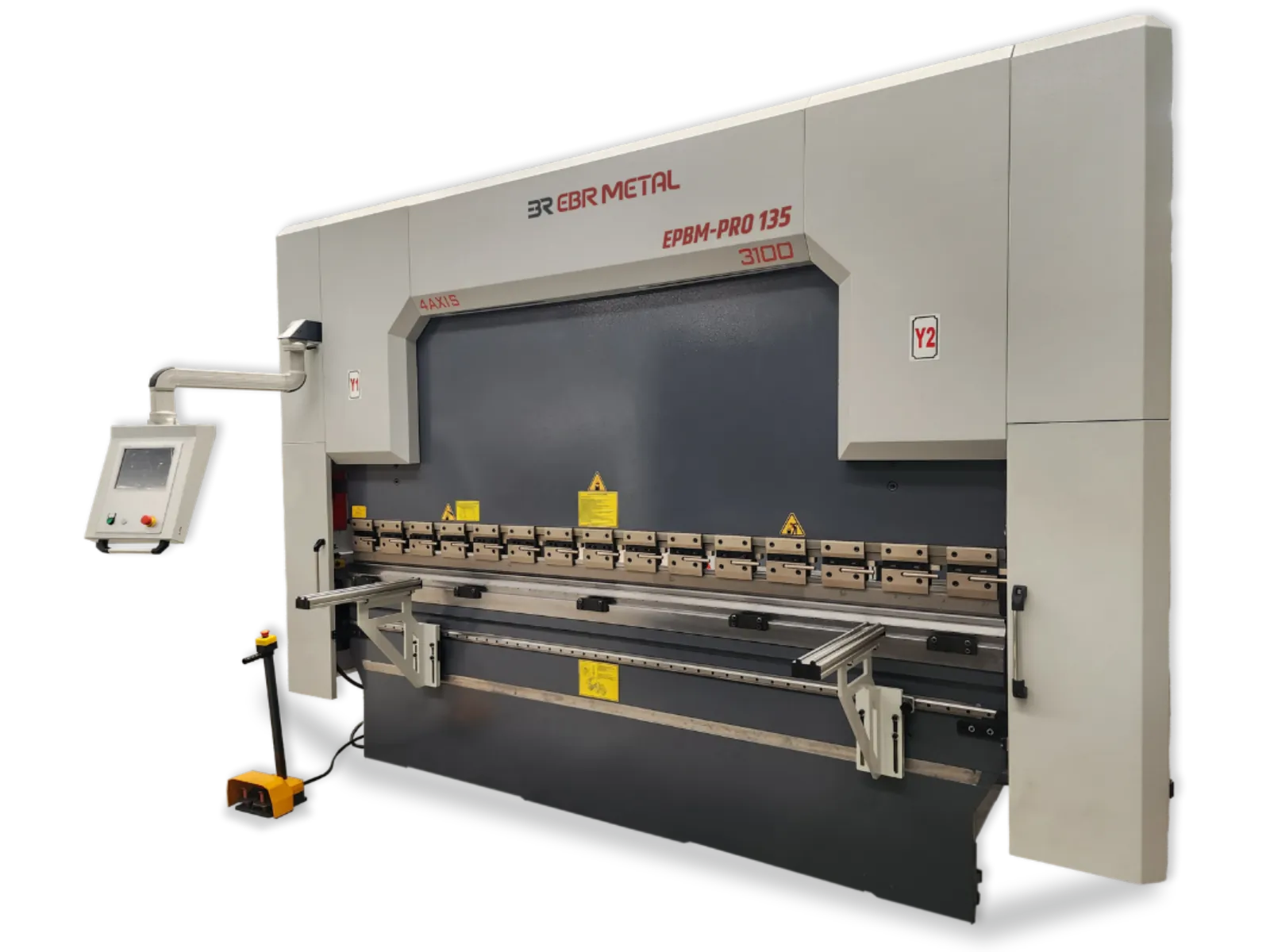

Watch the EPBM-PRO 135-ton CNC hydraulic press brake with a 3,100 mm bending length in operation. This video shows one specific machine configuration within the wider EPBM-PRO range.
EPBM 3100 × 135 ton — Sheet Bending Demonstration
Frequently Asked Questions
What tonnage range does EPBM-PRO hydraulic press brake cover?
100 to 320 tons, across six model groups (EPBM-PRO 100 through EPBM-PRO 320), each available in multiple bending-length variants.
What comes standard on EPBM-PRO that is optional on EPBM-ECO?
The R-axis, motorized crowning, the Cybelec Touch 12 control unit and full-size side guards are all standard on EPBM-PRO; on EPBM-ECO, the R-axis and crowning are options and the standard control unit is a Cybelec Touch 8.
Is finger-protection laser safety standard on EPBM-PRO?
Yes. A separate optional CE Package (DSP front safety laser, PLC and rear light barriers) is available where a project or market requires it.
Can EPBM-PRO's backgauge be configured beyond the standard 4 axes?
Yes — 6-axis and 8-axis backgauge configurations are available as options.
How is an EPBM-PRO quotation sized?
From your material type, maximum thickness, maximum bending width/length, and a technical drawing for complex parts. Expected tonnage is not required.
