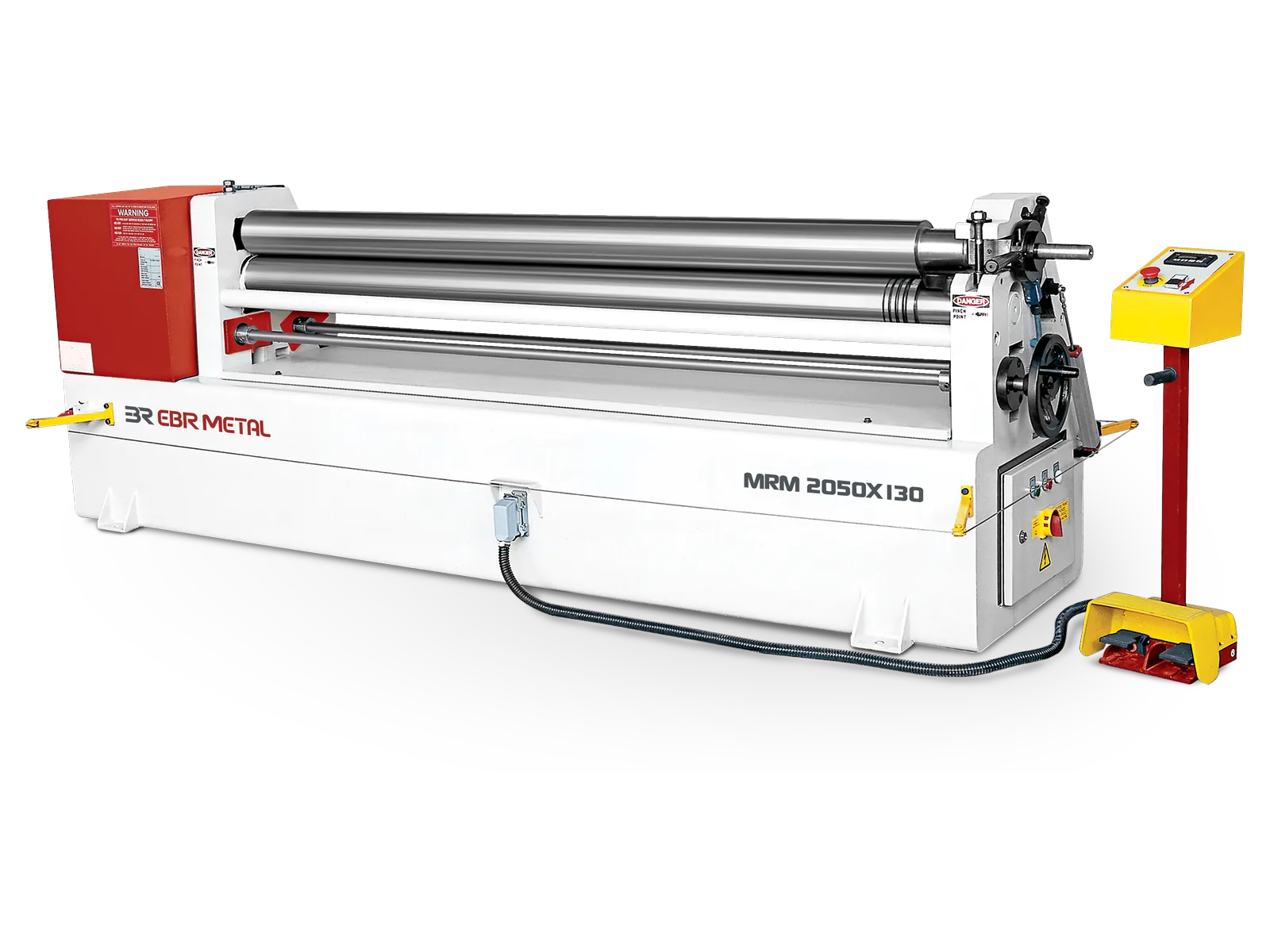

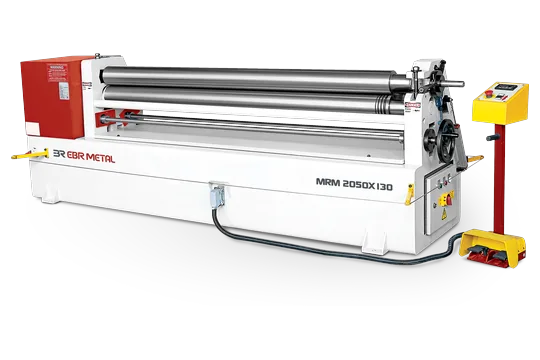

MRM Asymmetrical 3-Roll Plate Bending Machine

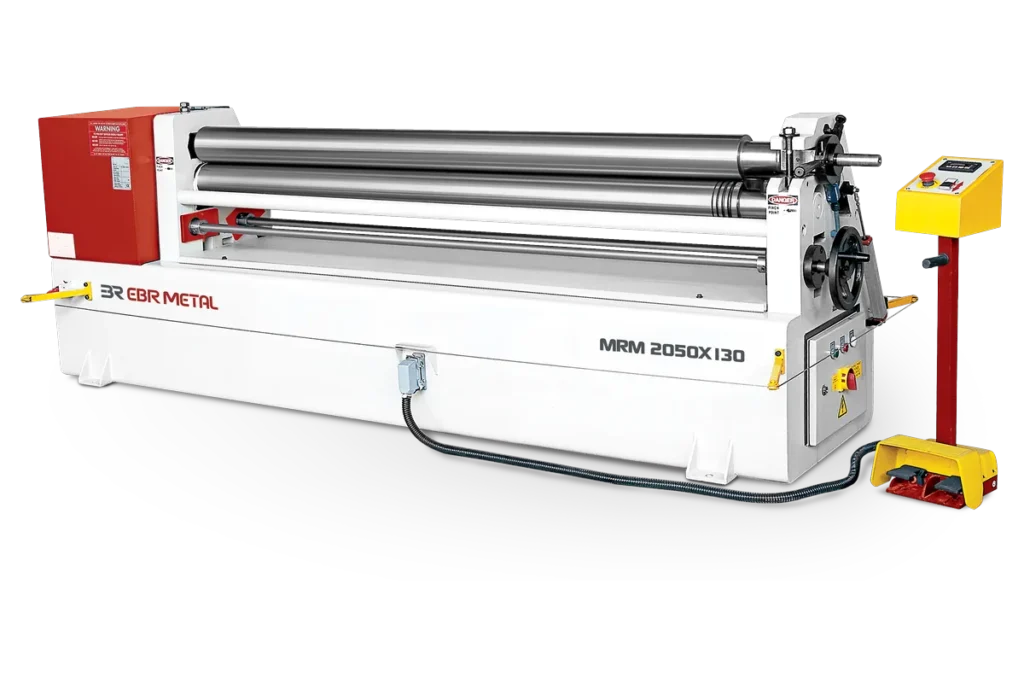

The MRM asymmetrical 3-roll plate bending machine from EBR METAL has spheroid cast-iron frames. A single gearbox drives the top and bottom rolls, and the operator works from a mobile foot-pedal control panel.
A conical bending device is standard. The range has 10 models with useful lengths from 1,050 to 2,550 mm and bending capacities from 2 to 5 mm.
• Useful length 1,050–2,550 mm • Capacity 2–5 mm • Rolls Ø110–140 mm • Foot-pedal control
The MRM asymmetrical 3-roll plate bending machine from EBR METAL has spheroid cast-iron frames. A single gearbox drives the top and bottom rolls, and the operator works from a mobile foot-pedal control panel.
A conical bending device is standard. The range has 10 models with useful lengths from 1,050 to 2,550 mm and bending capacities from 2 to 5 mm.
- Useful length 1,050–2,550 mm
- Capacity 2–5 mm
- Rolls Ø110–140 mm
- Foot-pedal control
MRM Design

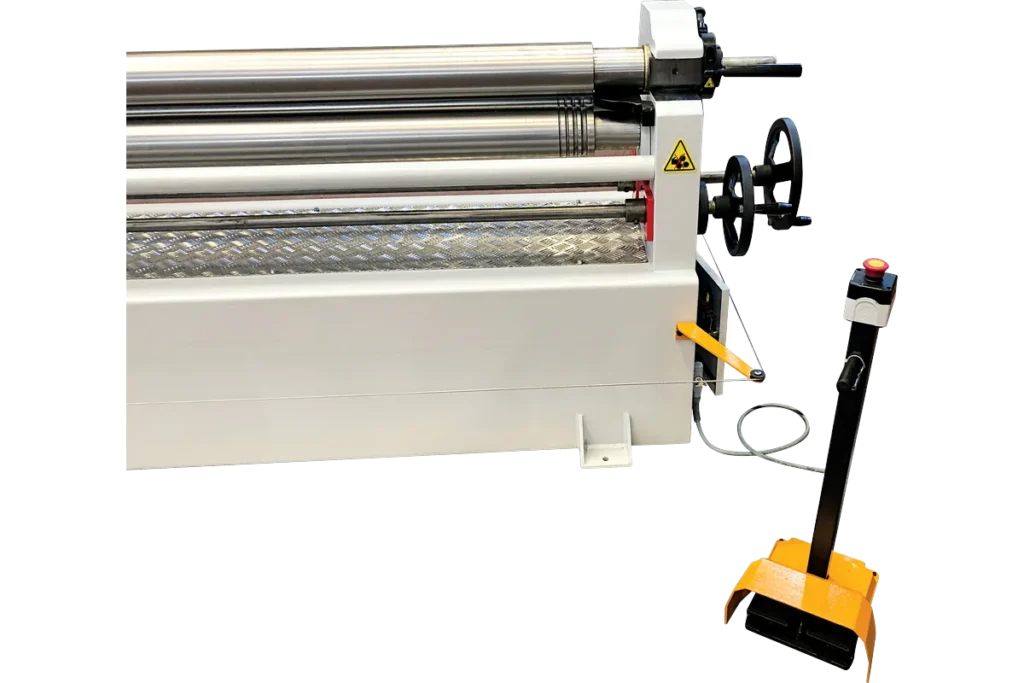

A single gearbox and gear system drive the top and bottom rolls, and a brake motor gives precise bending. The top roll opens by hand to release the finished part, and a top roll support system holds it during work.

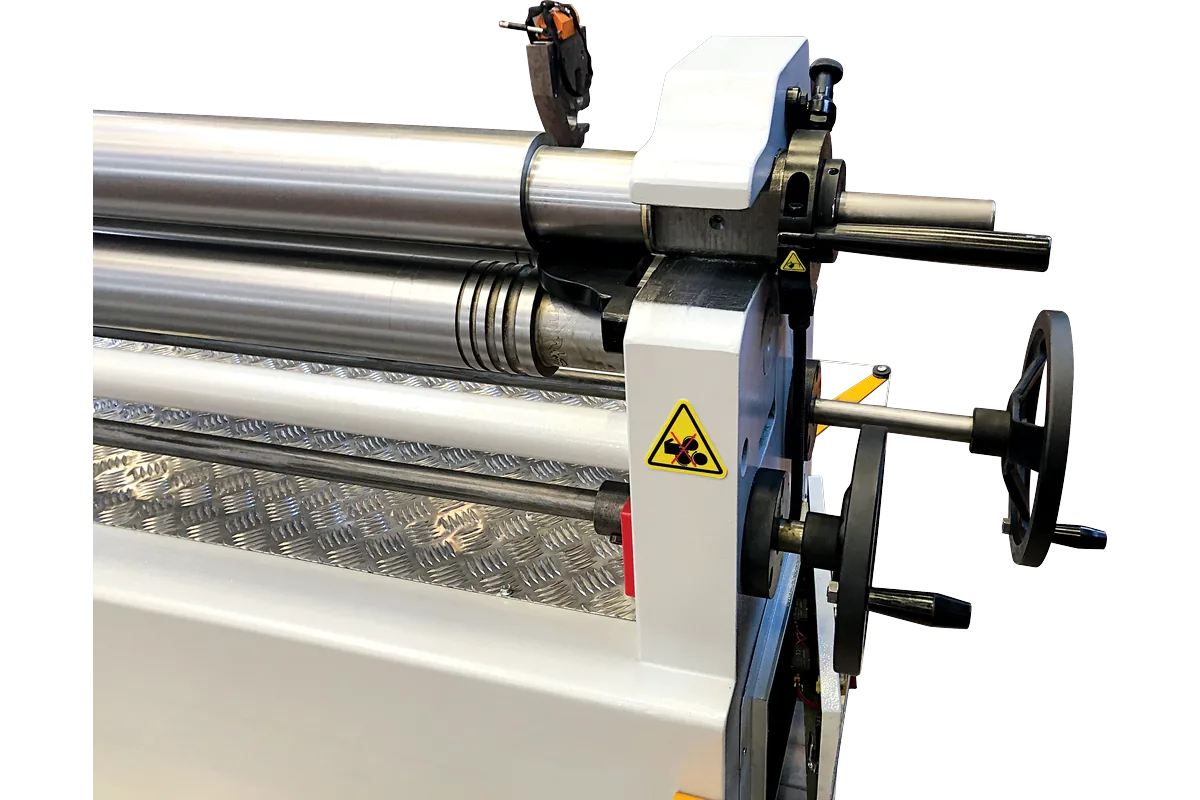

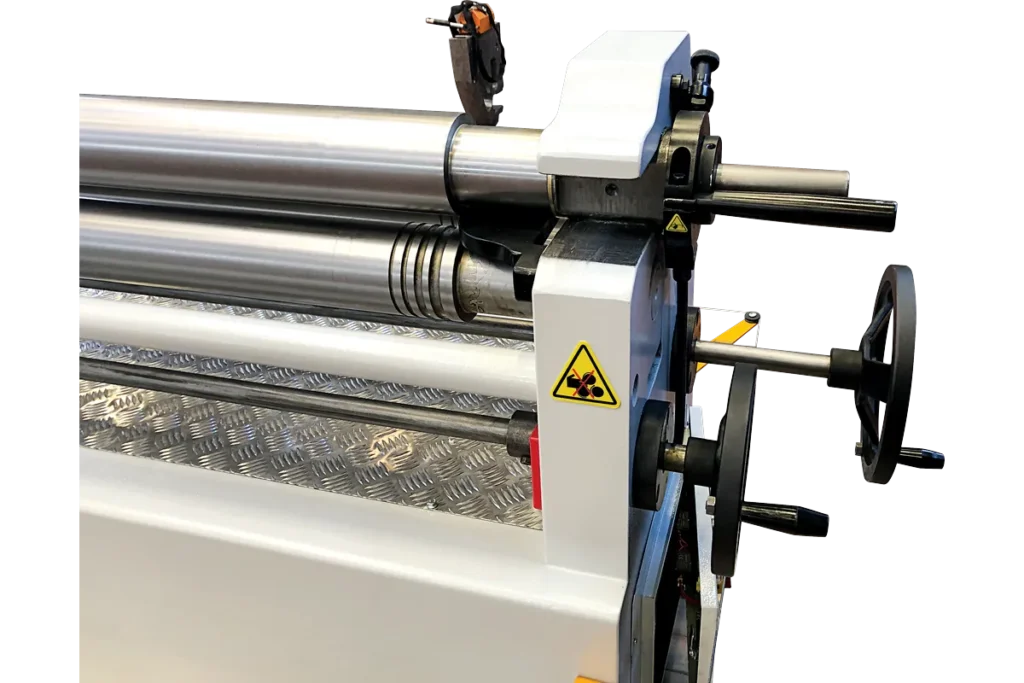

Wire grooves of 4, 7, 9 and 13 mm at the roll ends allow wire rolling.
MRM Product Gallery
MRM General Features
- Spheroid cast-iron main frames
- Top and bottom rolls driven by a single gearbox and gear system

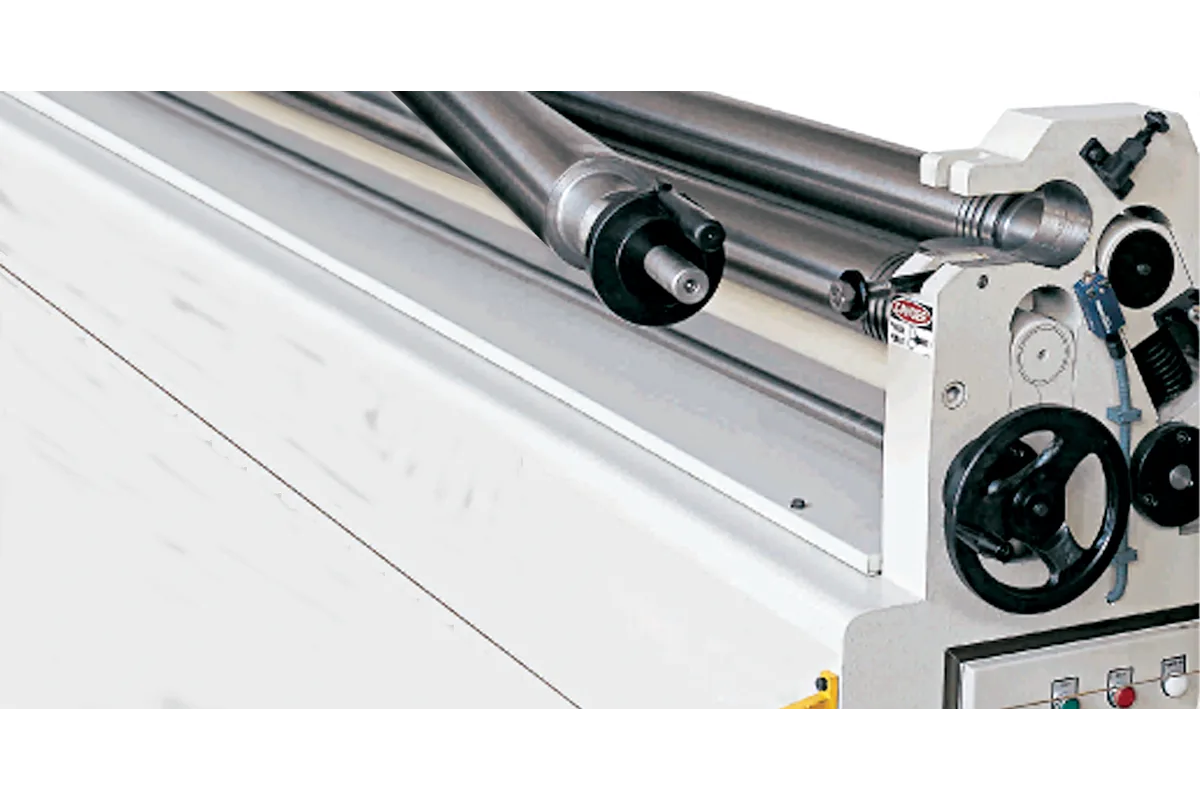

- Manual drop-end
- Wire grooves at the roll ends (4/7/9/13 mm)
- Manufactured in conformity with CE requirements
MRM Standard Equipment
- Precision bending with brake motor

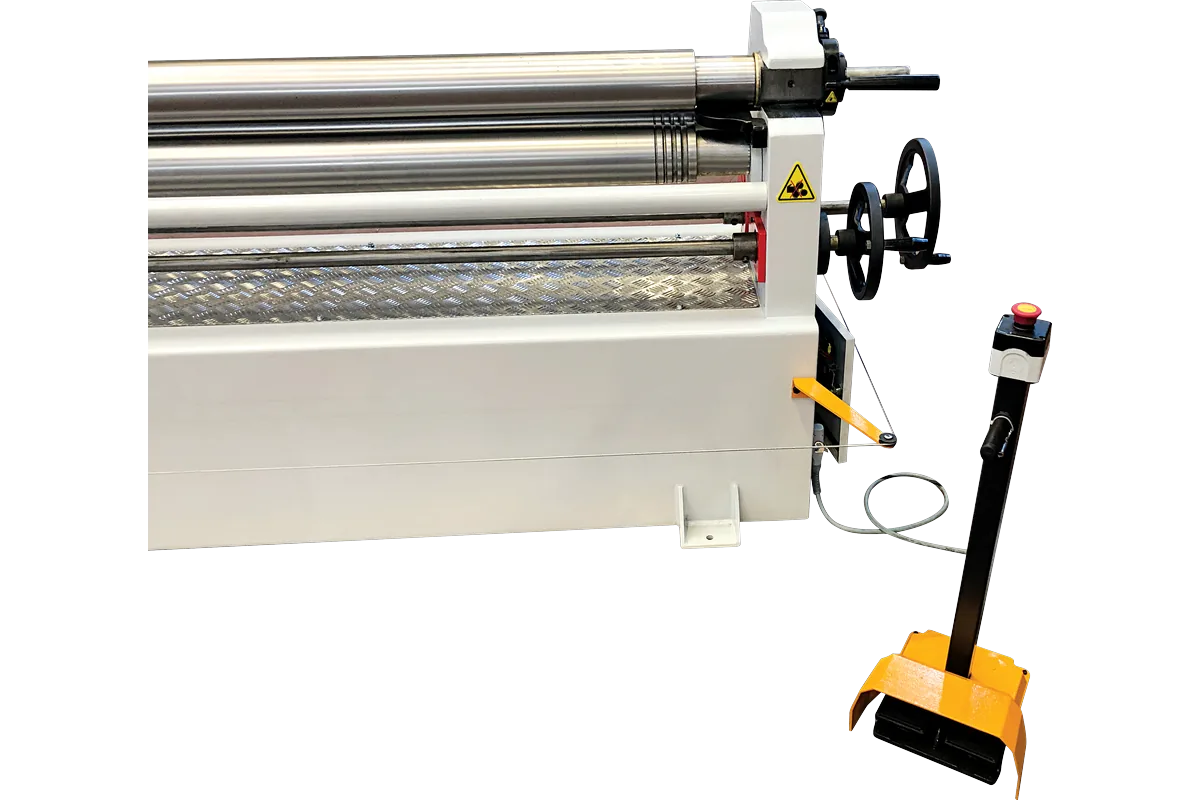

- Mobile control panel with foot pedal
- Conical bending device
- Top roll support system
- SAE 1050 certificated steel rolls
MRM Optional Equipment
- Motorised back roll adjustment (standard on the MRM 2550×140)
- Digital readout for the motorised back roll
- Induction hardened rolls
MRM Technical Specifications
| Model | Useful length (mm) | Bending capacity (mm) | Roll dia (mm) | Roll speed (m/min) | Motor power (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| MRM 1050x110 | 1050 | 4 | 110 | 3 | 2.2 | 2200 | 750 | 1000 | 990 |
| MRM 1050x130 | 1050 | 5 | 130 | 3.5 | 2.2 | 2200 | 750 | 1000 | 1200 |
| MRM 1270x120 | 1270 | 4 | 120 | 3 | 2.2 | 2470 | 750 | 1000 | 1115 |
| MRM 1270x140 | 1270 | 5 | 140 | 3.5 | 2.2 | 2470 | 750 | 1000 | 1350 |
| MRM 1550x110 | 1550 | 3 | 110 | 3 | 2.2 | 2700 | 750 | 1000 | 1200 |
| MRM 1550x140 | 1550 | 4 | 140 | 3.5 | 2.2 | 2700 | 750 | 1000 | 1420 |
| MRM 2050x110 | 2050 | 2 | 110 | 3 | 2.2 | 3200 | 750 | 1000 | 1380 |

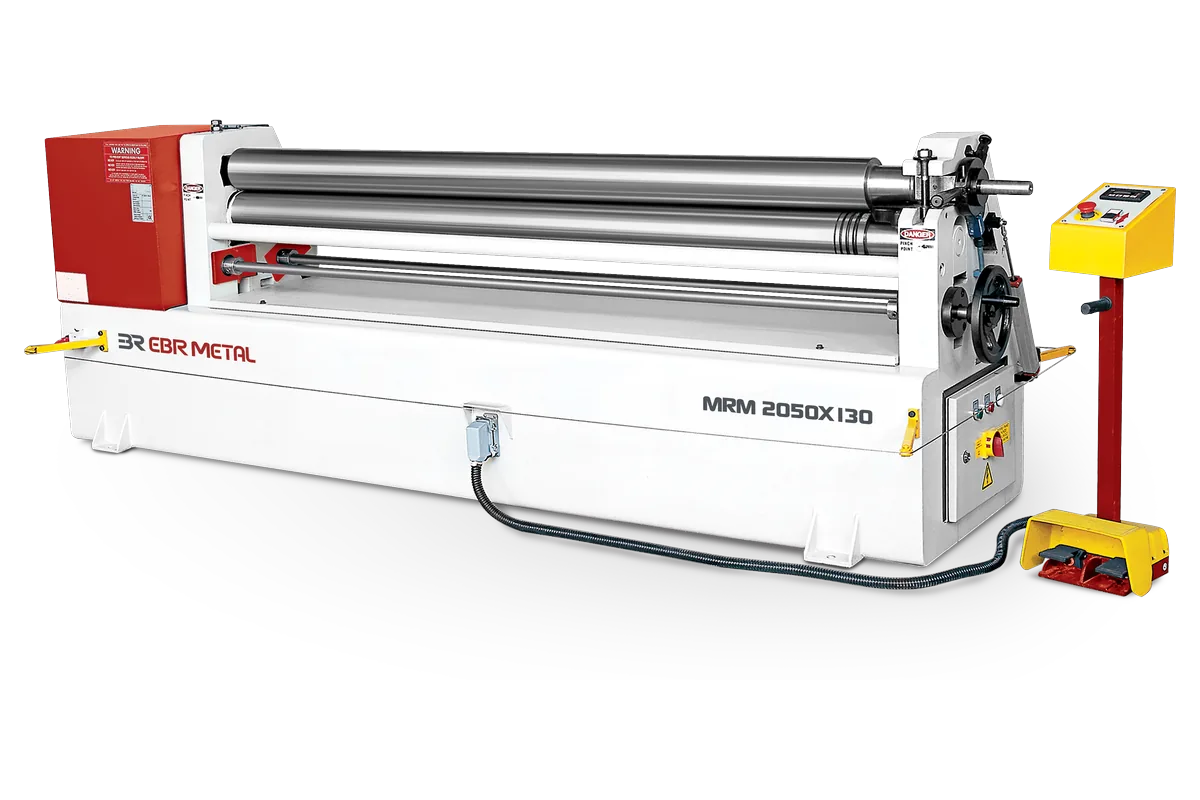

| MRM 2050x130 | 2050 | 3 | 130 | 3.5 | 2.2 | 3200 | 750 | 1000 | 1500 |
| MRM 2050x140 | 2050 | 4 | 140 | 3.5 | 2.2 | 3200 | 750 | 1000 | 1650 |
| MRM 2550x140 | 2550 | 2.5 | 140 | 3.5 | 2.2+0.75 | 3700 | 750 | 1000 | 1850 |
Plate bending capacities are given for 260 N/mm² plate yield strength.
Minimum bending diameter: top roll diameter × 1.5.
Choosing the MRM
The MRM is the cast-iron asymmetrical model in the range. Typical work includes ventilation ducts and parts, light cylindrical parts and machinery bodies, depending on thickness, working length and diameter within its 2–5 mm capacity. The MRMS adds welded steel frames, a planetary reducer and a motorised back roll. For thinner sheet, see the MRD | RD and MSR | SR machines.
MRM Asymmetrical 3-Roll Plate Bending Machine in Operation

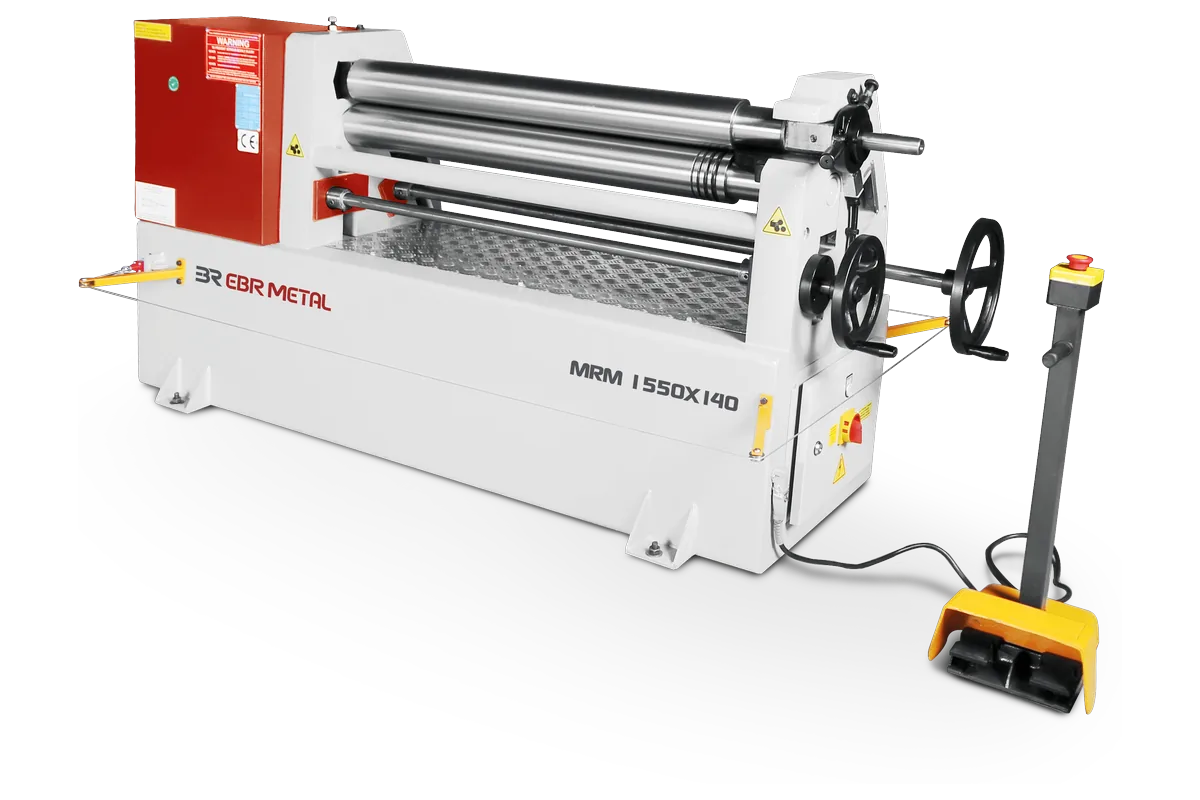

Watch the MRM 1550 × 140 asymmetrical 3-roll plate bending machine in operation.
MRM 1550 × 140 — Asymmetrical 3-Roll Plate Bending Machine
Request a Quote for the MRM
Send us the material type and grade, the thinnest and thickest sheet or plate, the maximum working length and the minimum inside diameter. A drawing or a photo of a sample part helps us propose a model and configuration.
Frequently Asked Questions About MRM
What drives the rolls on the MRM?
A single gearbox and gear system drive the top and bottom rolls, with a brake motor for precise bending.
Is the back roll motorised?
Motorised back roll adjustment is an option. The MRM 2550×140 has it as standard.
Can the MRM roll cones?
Yes. The conical bending device is standard.
What wire grooves does the MRM have?
Wire grooves of 4, 7, 9 and 13 mm at the ends of the rolls.
