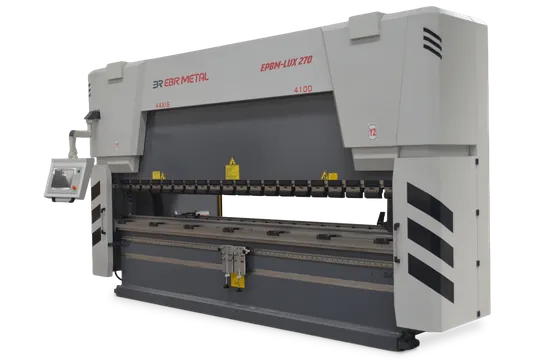

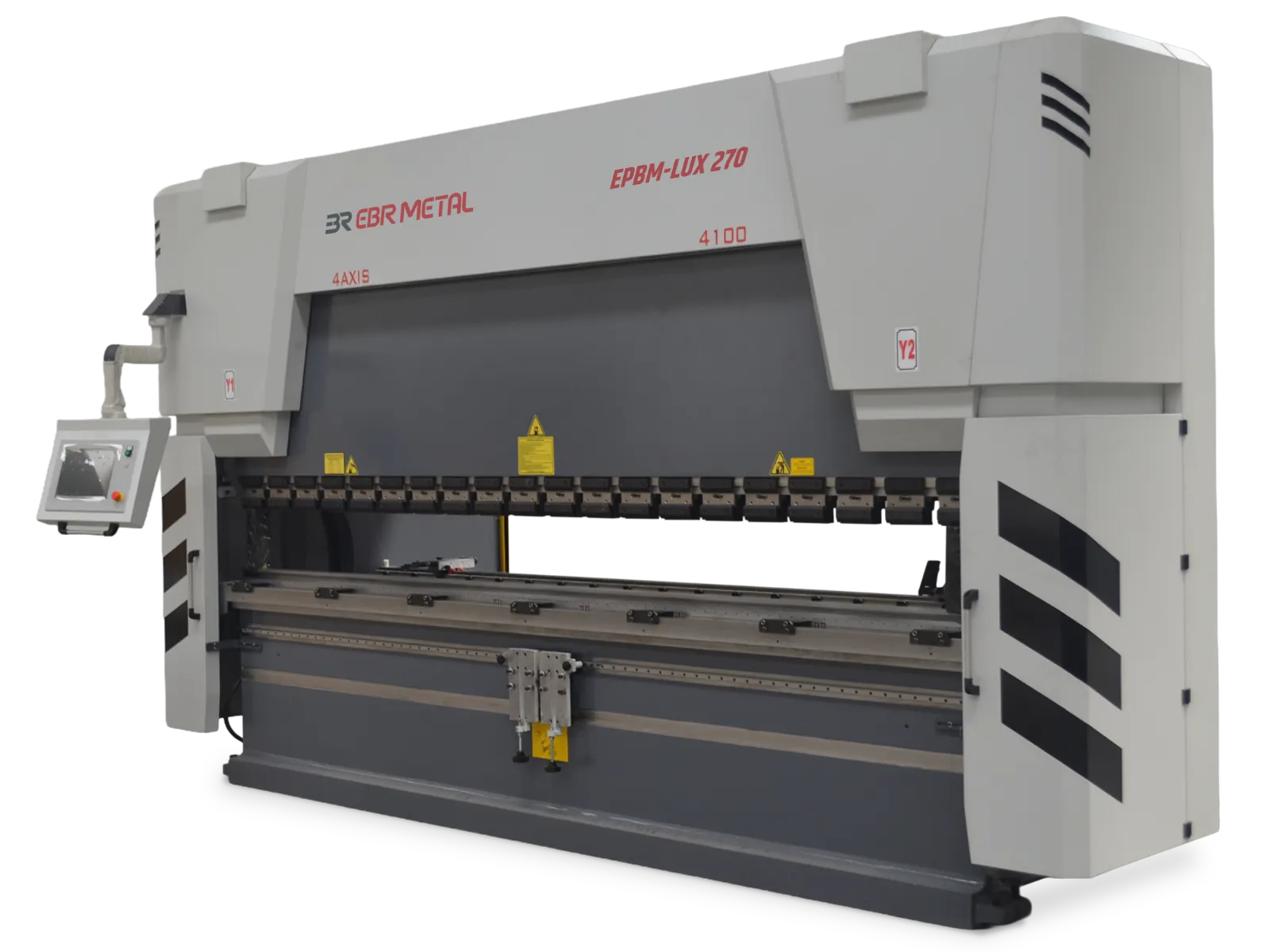

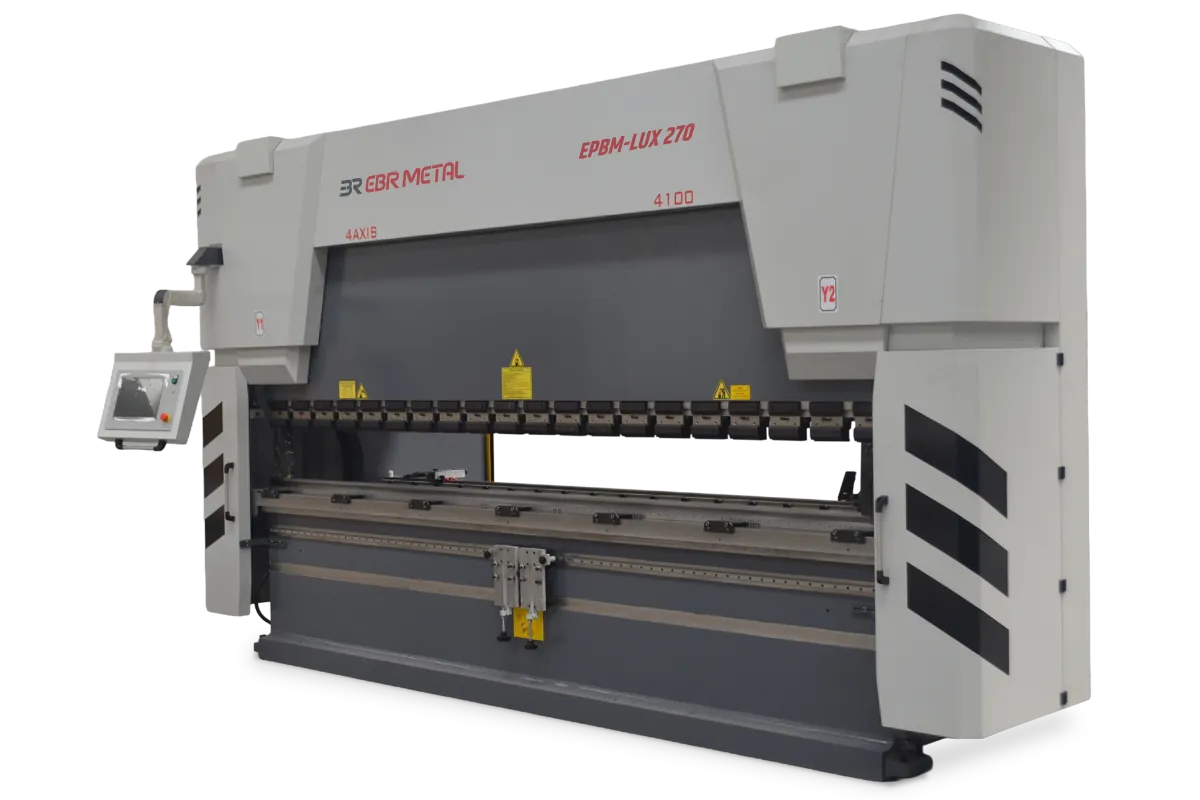

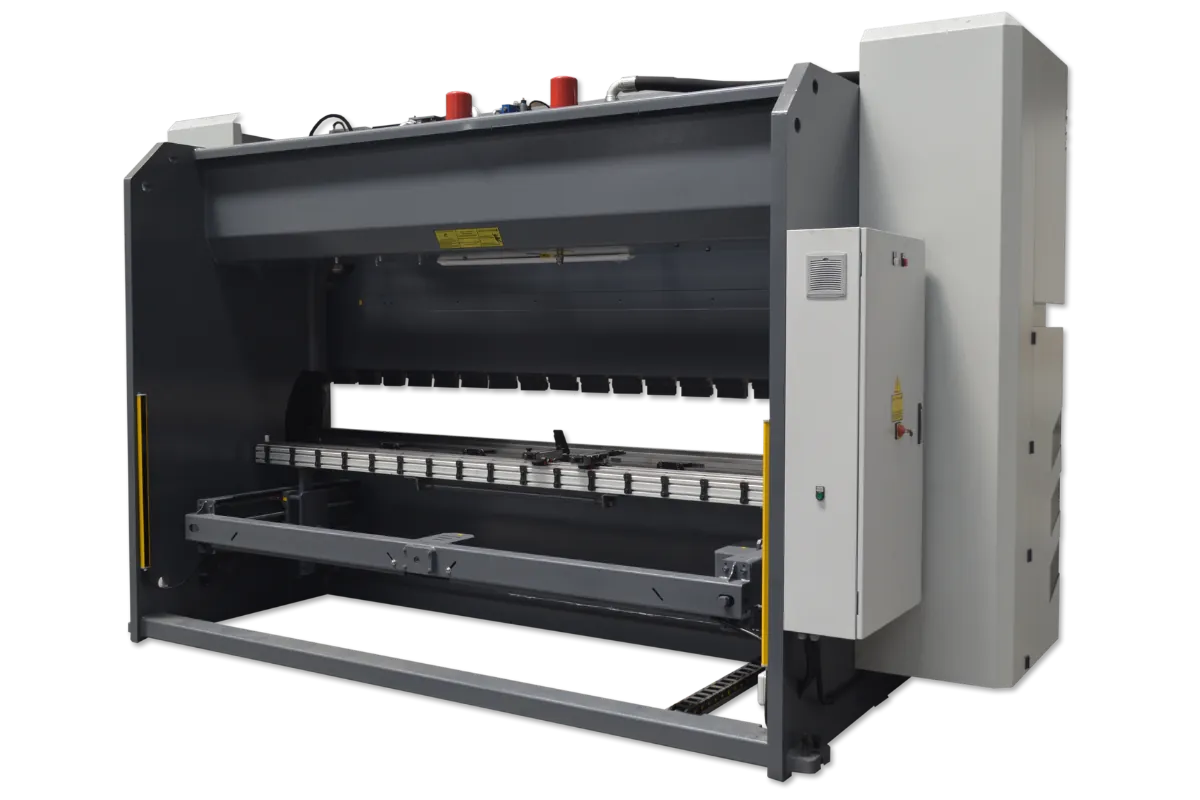

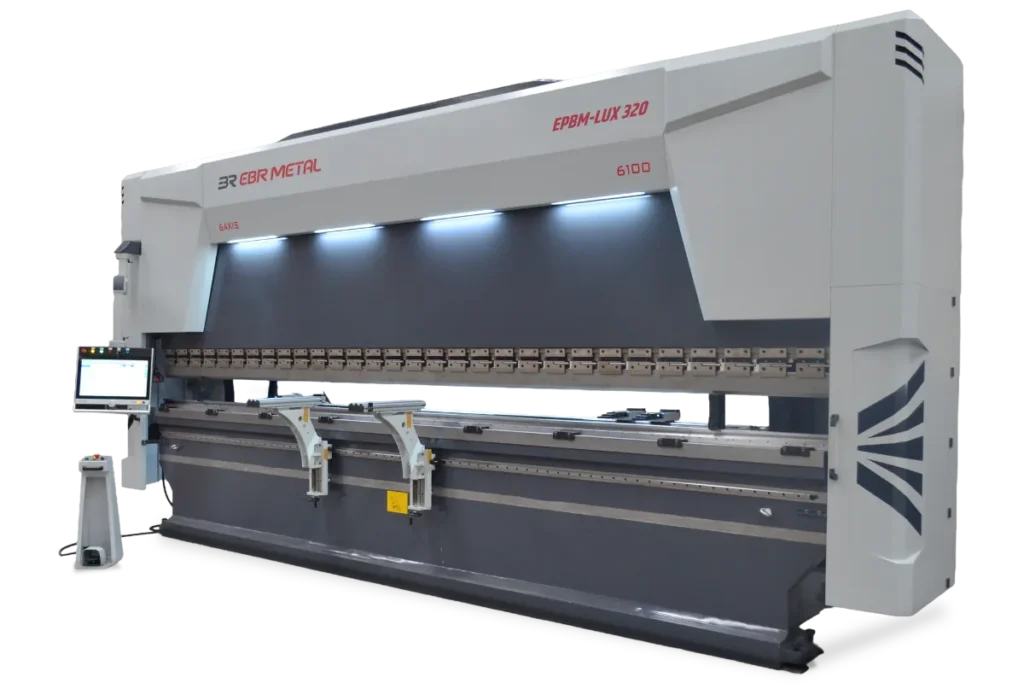

EPBM-LUX Press Brake

The EPBM-LUX CNC press brake is EBR METAL’s configuration for additional features or a larger machine envelope beyond EPBM-PRO: 4-axis control (Y1, Y2, X, R) on a Cybelec Touch 15 control unit, with a force range from 135 up to 1,000 tons.

· 135–1000 tons · Hand-wheel-adjustable front supports · Cybelec Touch 15 control

135–1000 tons
Hand-wheel-adjustable front supports
Cybelec Touch 15 control

The EPBM-LUX Package

EPBM-LUX shares EPBM-PRO’s standard 4-axis configuration but steps up to a Cybelec Touch 15 control unit and a larger standard machine envelope. Stroke (320 mm), throat depth (550 mm) and table-to-table distance (535 mm) are constant across the LUX range; table height, table width and overall machine dimensions vary by model (see the technical table below). Front support arms are hand-wheel adjustable, and the force range extends well beyond PRO’s ceiling. The right choice depends on the application and on which equipment the buyer needs beyond the EPBM-PRO configuration. Overlapping tonnage bands do not determine the selection.

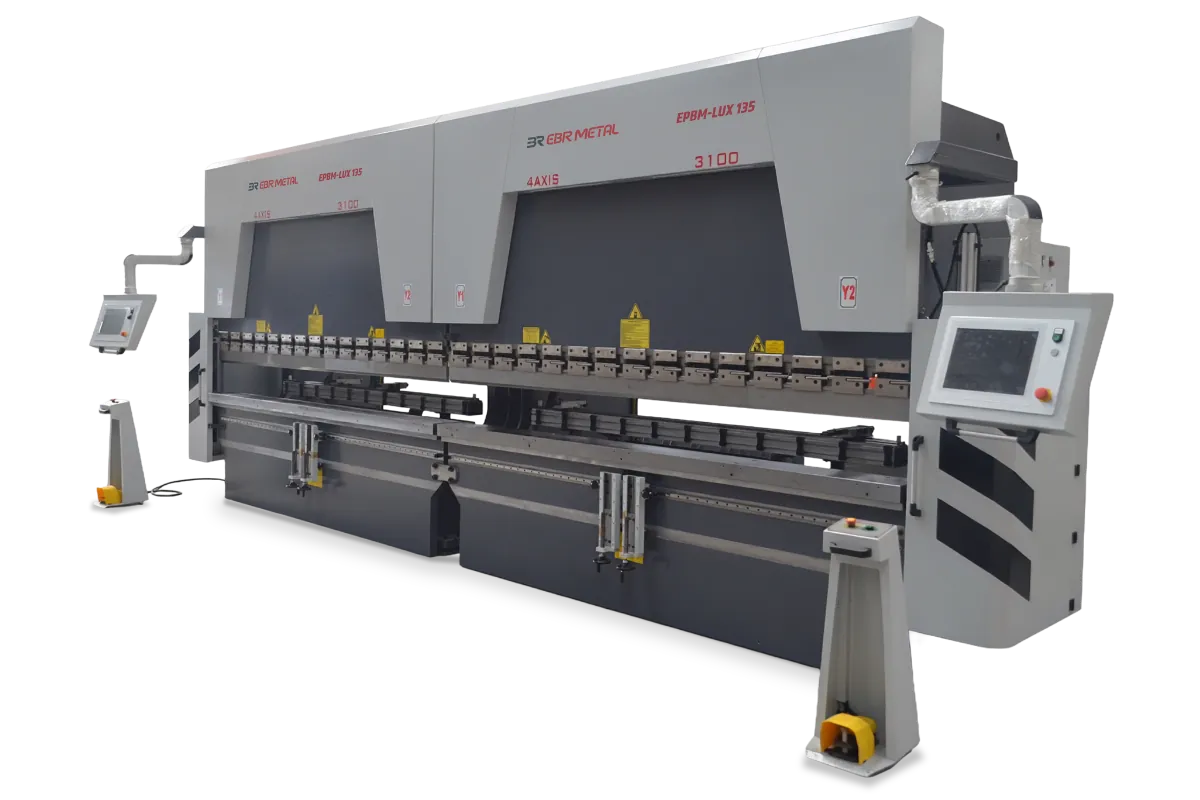

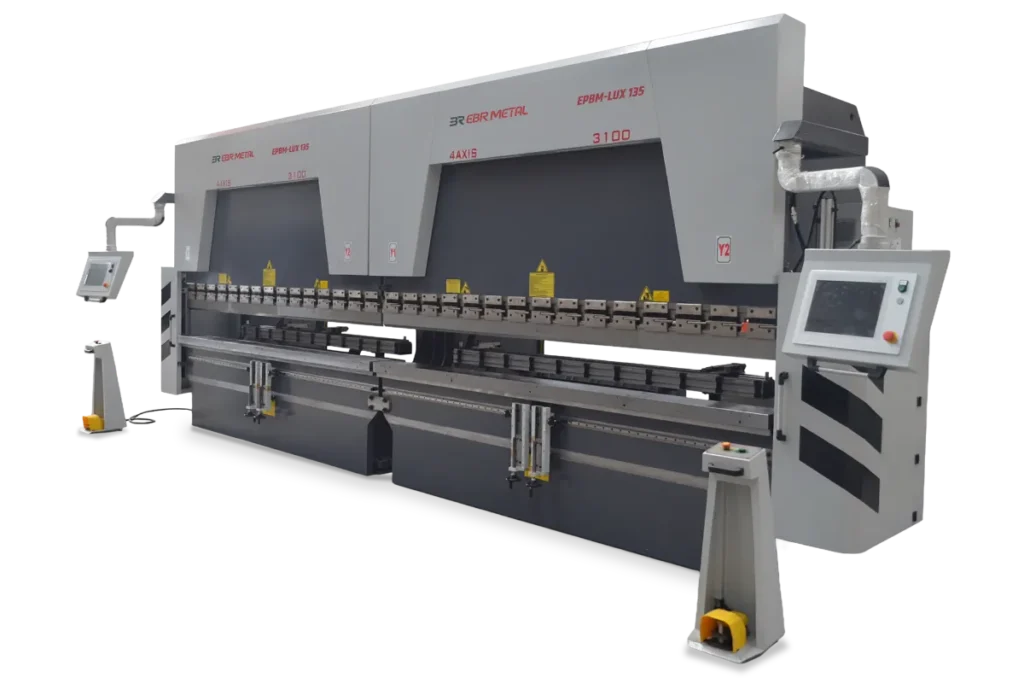

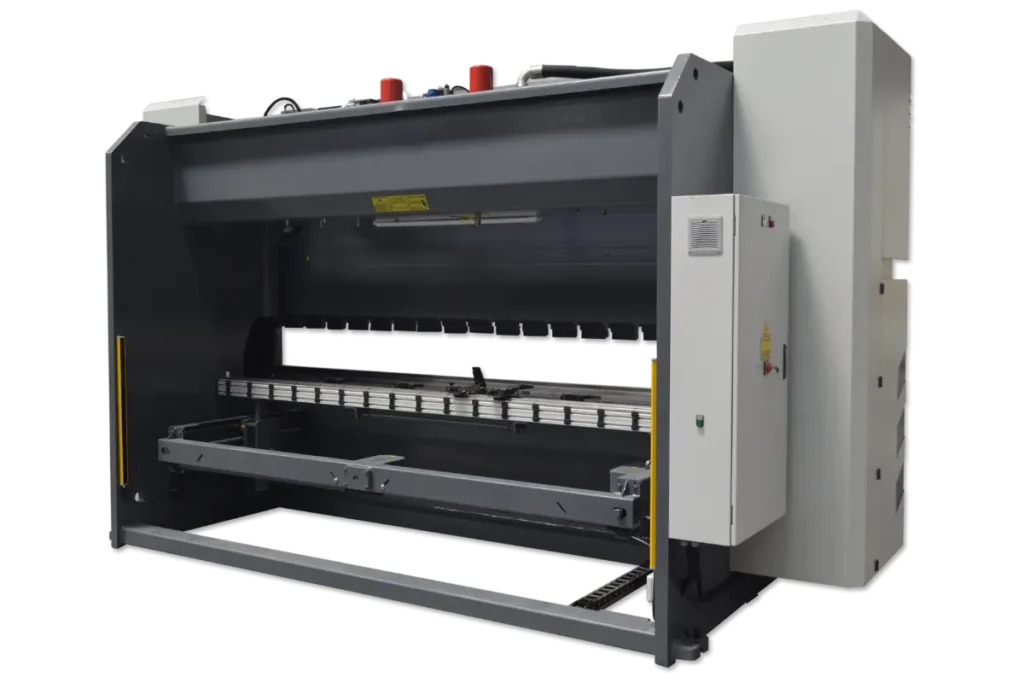

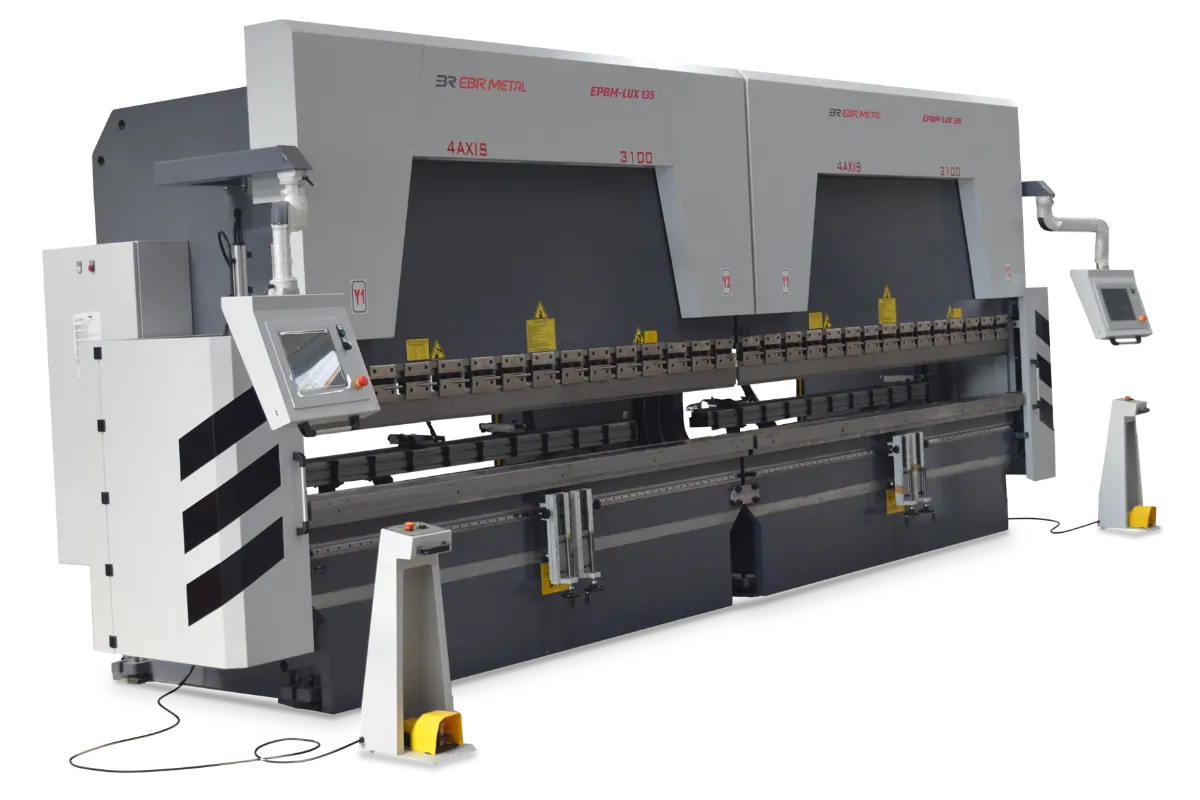

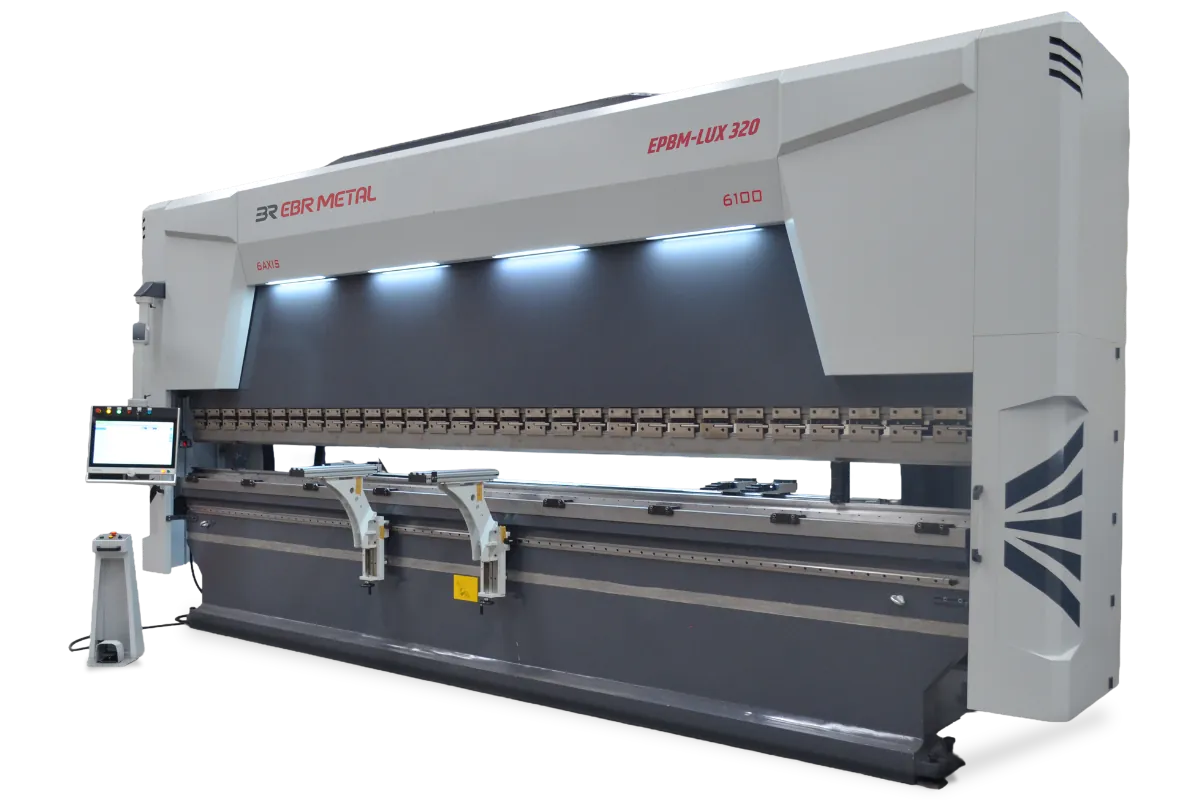

EPBM-LUX Product Gallery

Standard Configuration

Y1, Y2, X, R — 4-axis standard, X-axis travel 750 mm, R-axis travel 250 mm
Stroke 320 mm
Throat depth 550 mm

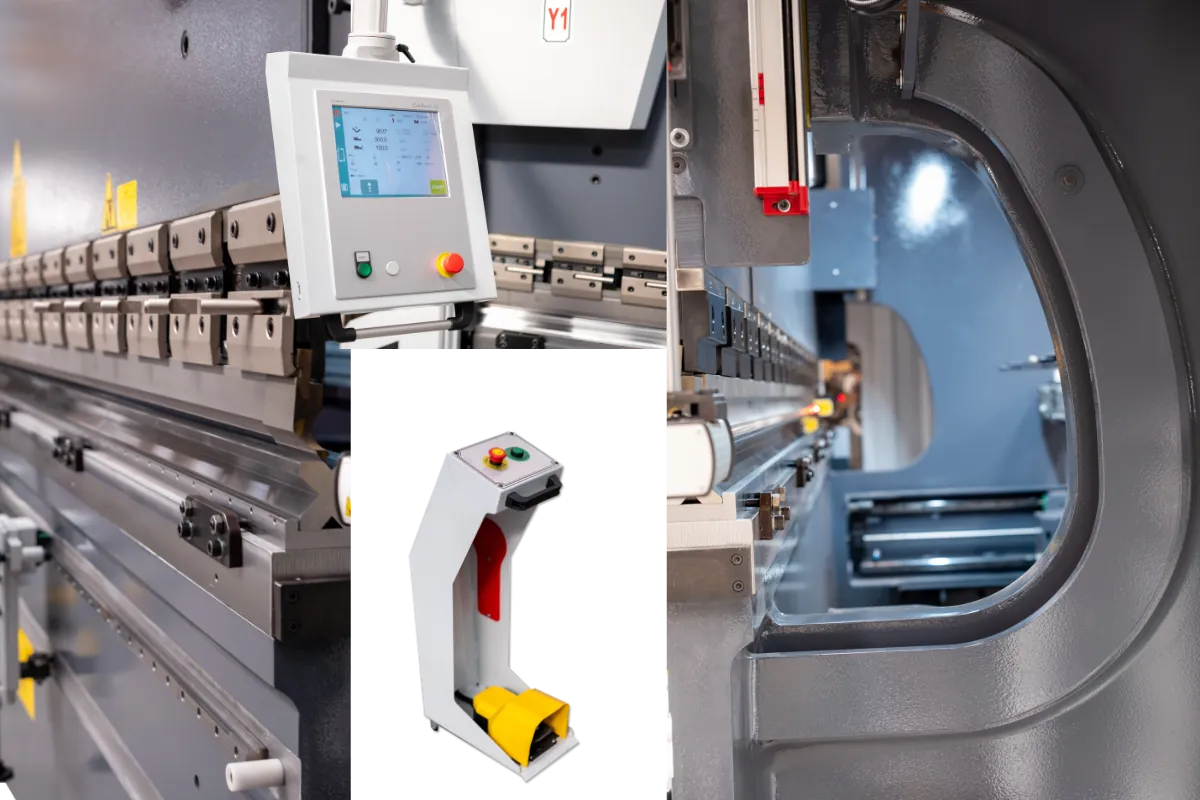

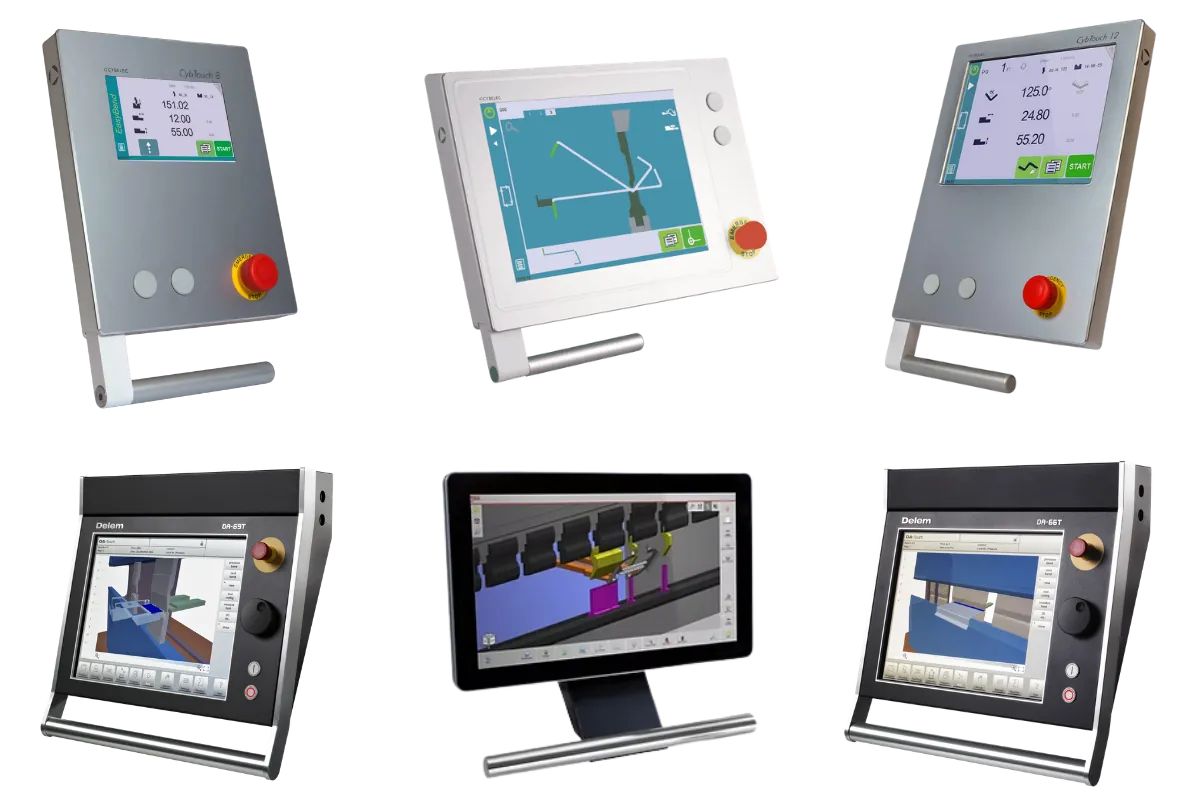

Cybelec Touch 15 CNC control unit
Motorized crowning
Rexroth ball-screw backgauge drive, linear guide, aluminum body

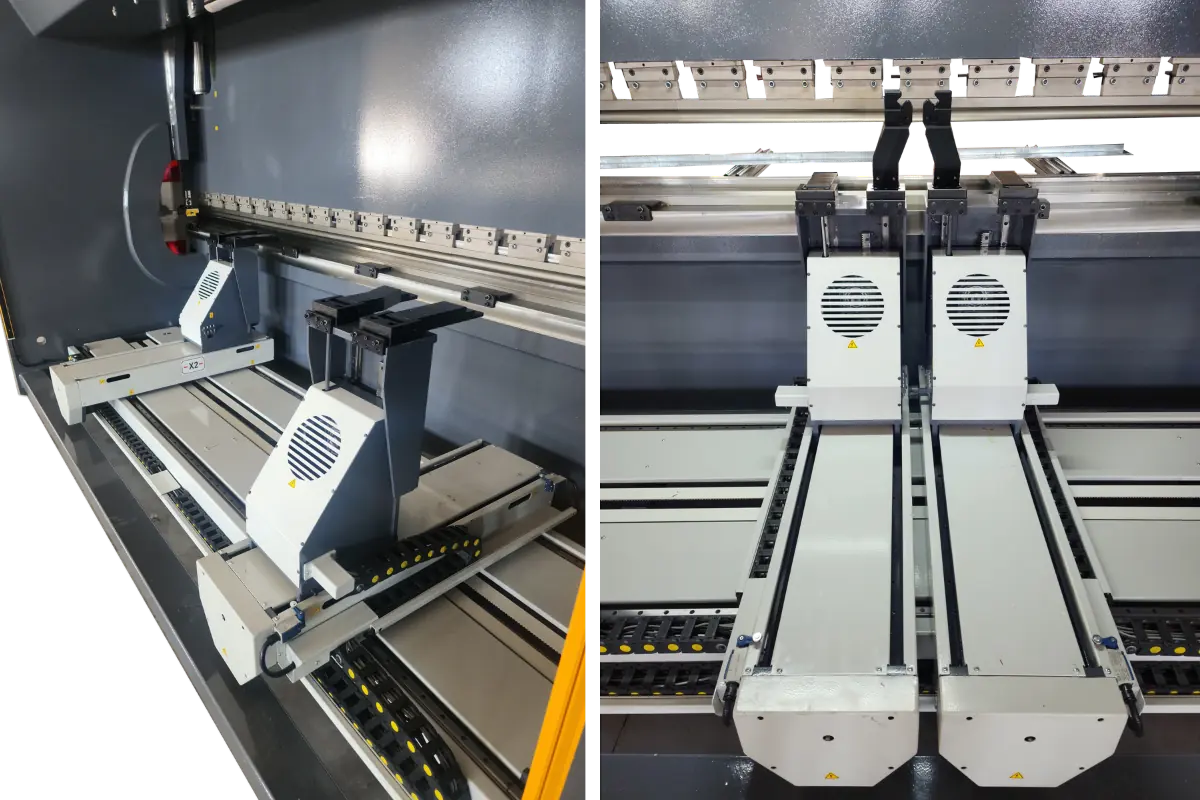

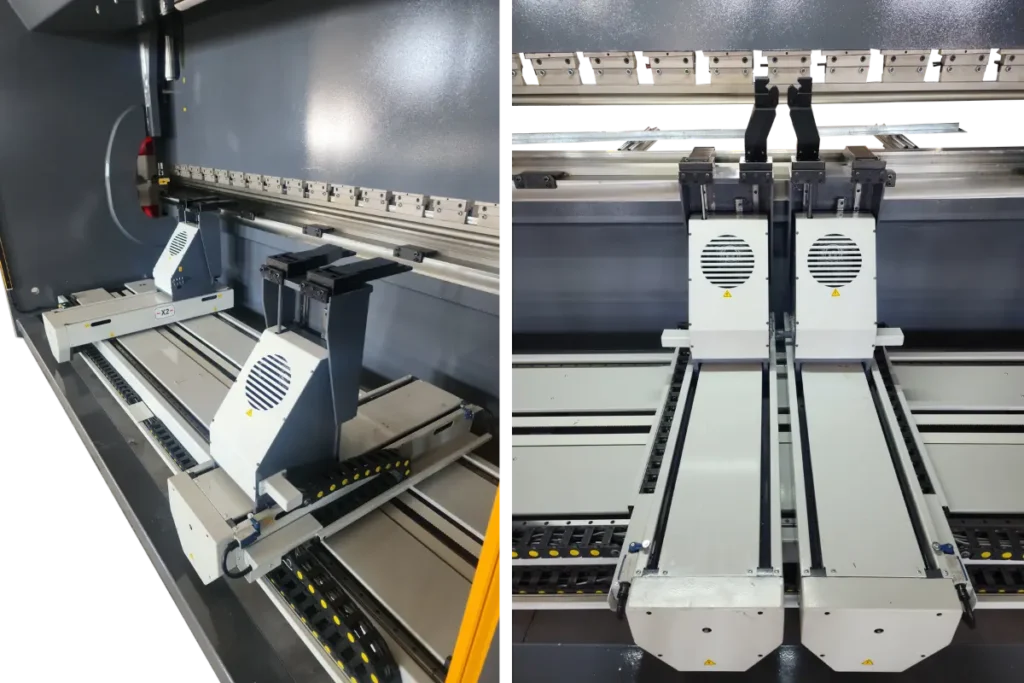

EBR METAL motorized backgauge with servo motors and drivers
OPKON magnetic linear scales

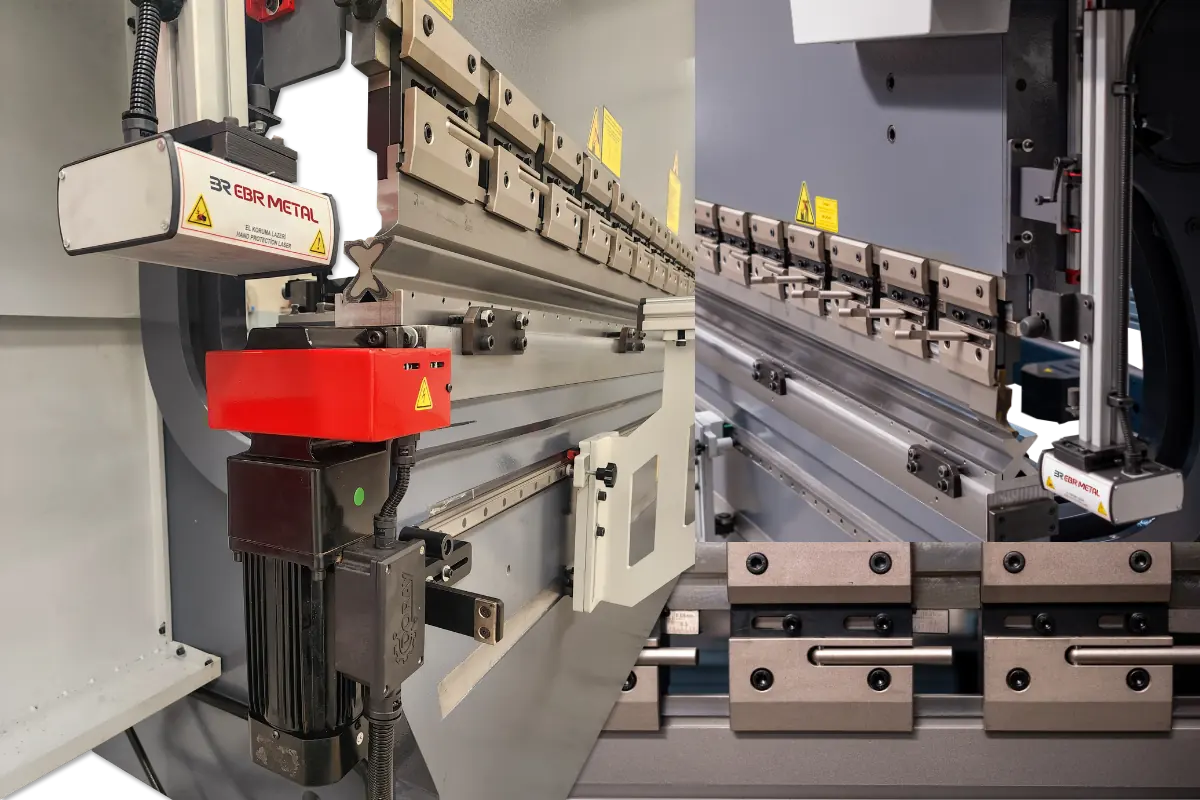

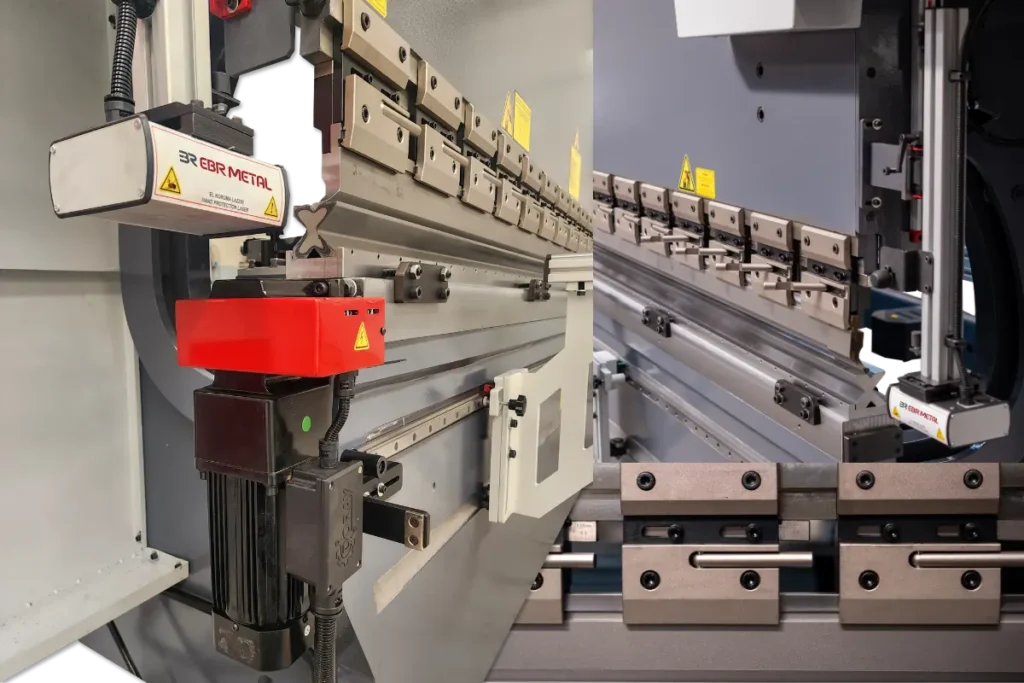

EBR METAL finger-protection laser

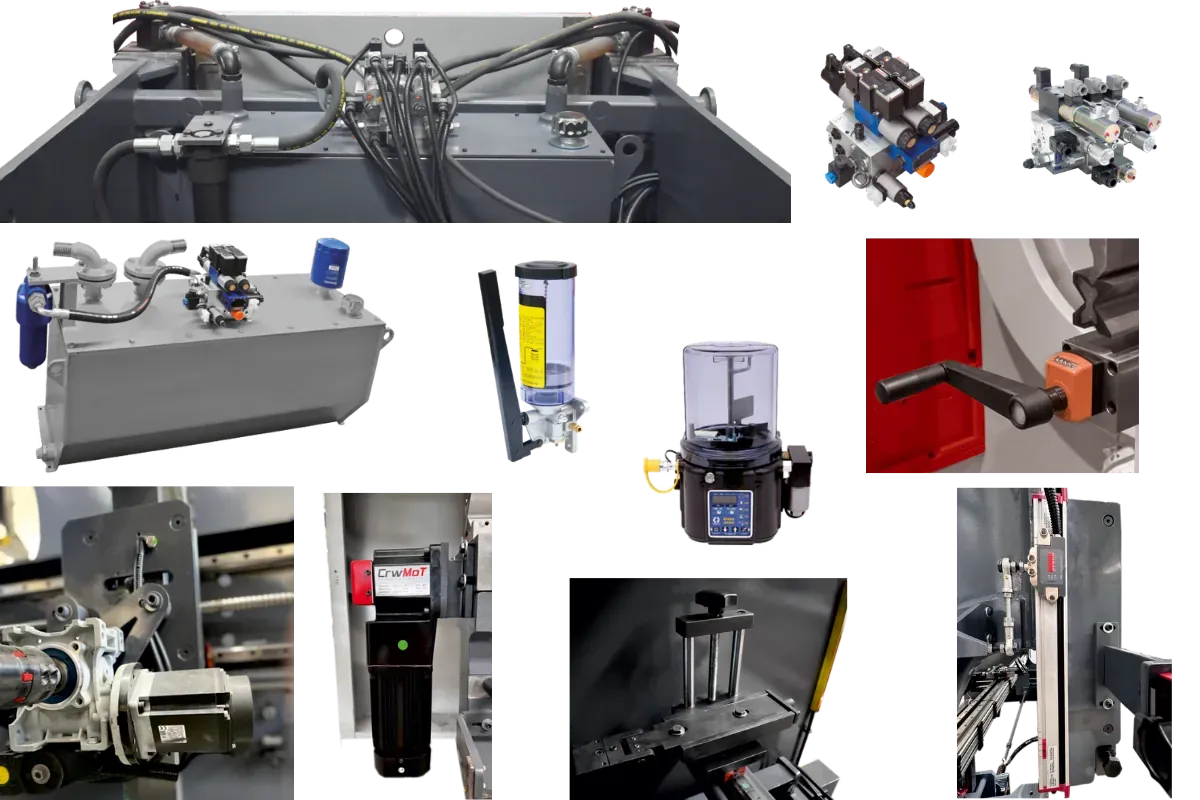

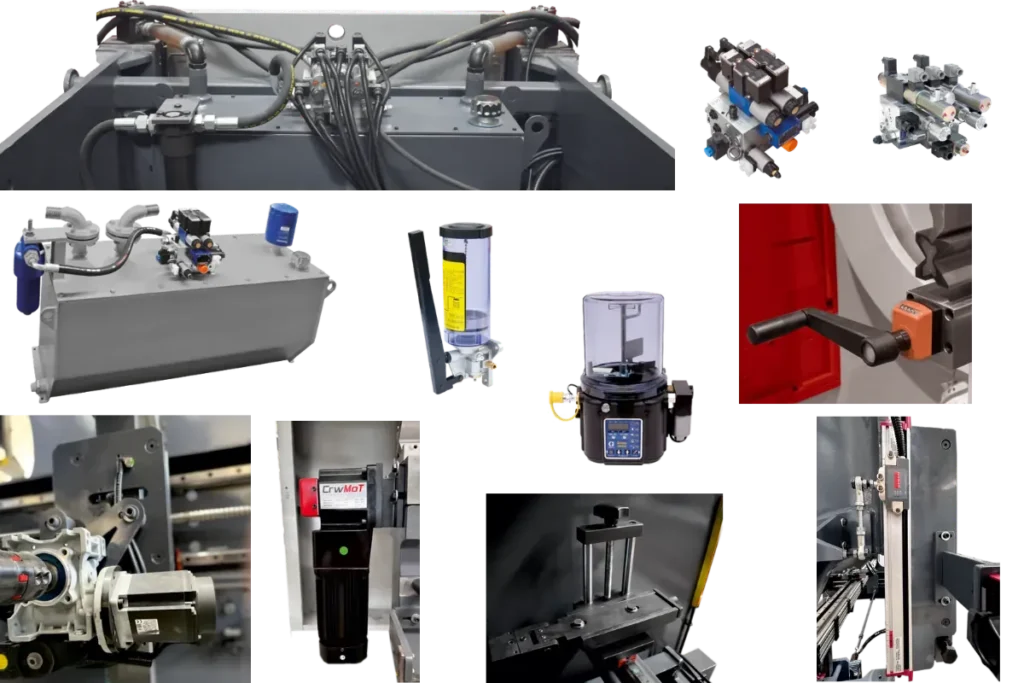

Rexroth proportional-valve hydraulic blocks and internal-gear-type oil pump

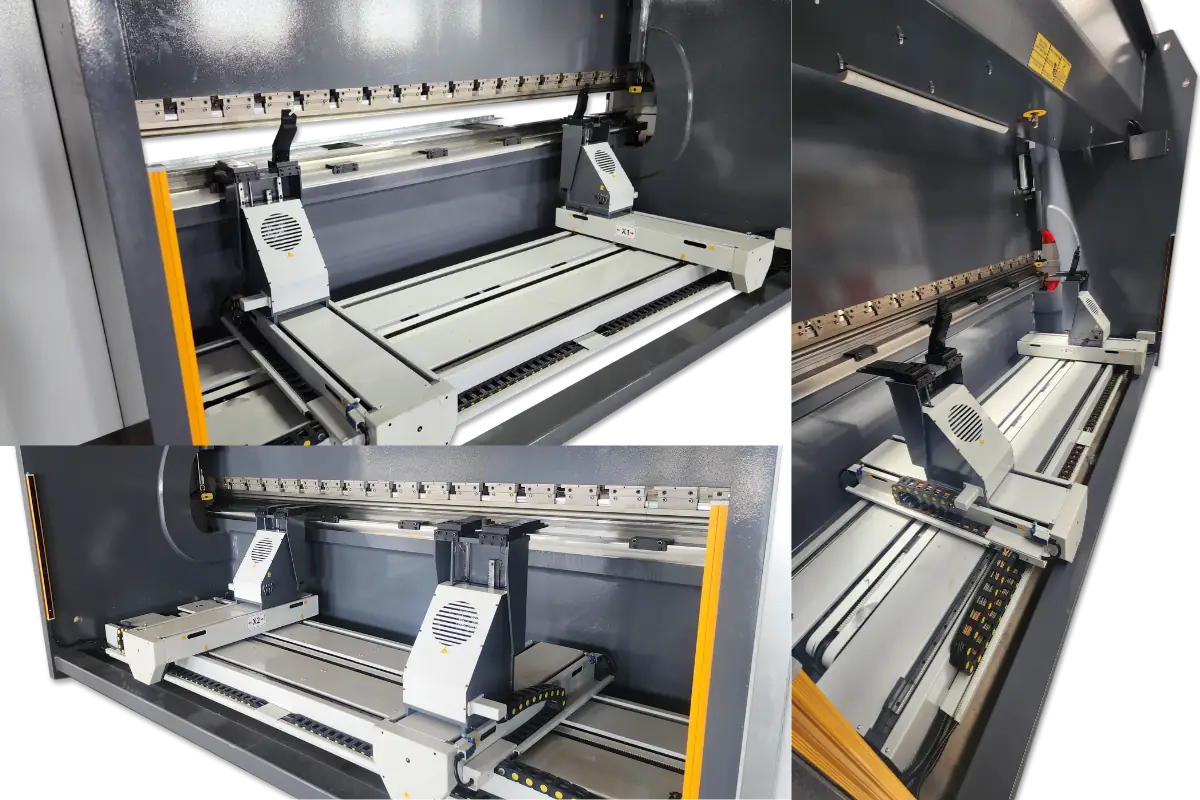

2 backgauge fingers, manually positioned along the linear guide
Full-size side safety guards and cylinder covers
Promecam European-type quick clamping
EBR METAL-specific narrow lower table (IW = 60 mm for 220 tons and below, IW = 90 mm for 270 tons and above)
2 sliding front support arms, hand-wheel adjustable
Rolleri upper punch (P.97.85.R08, 835 mm) and 4-way lower die (M.460.R 85°, V = 16–22–35–50 mm, 835 mm)

Standard component brands are as listed above. Where a supply constraint arises, EBR METAL may substitute an equivalent component meeting the same or higher specification.

Optional Equipment

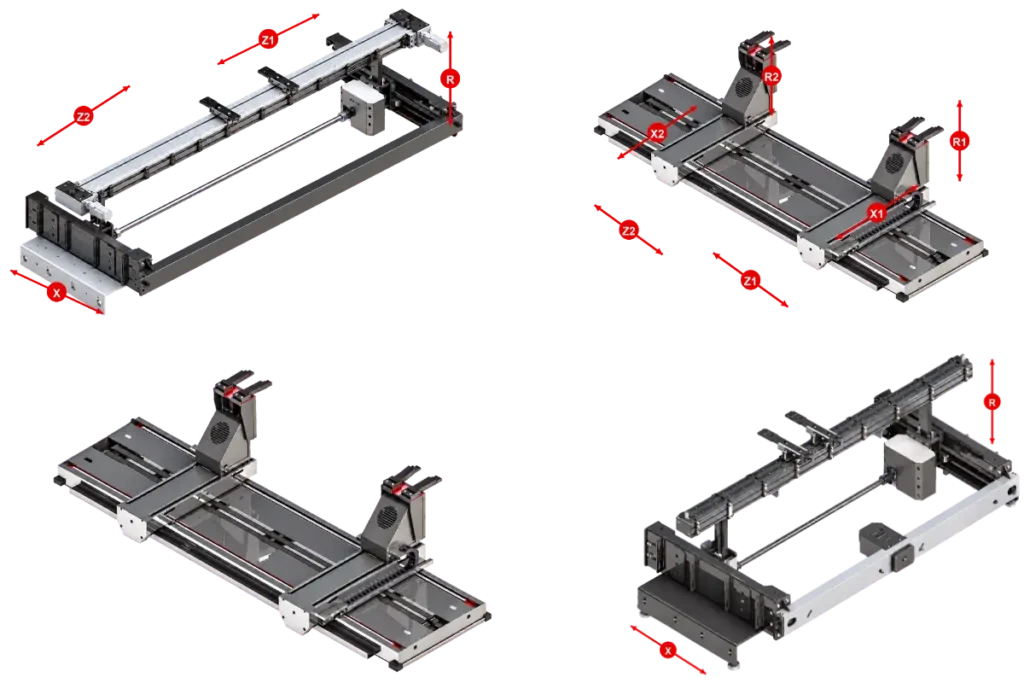

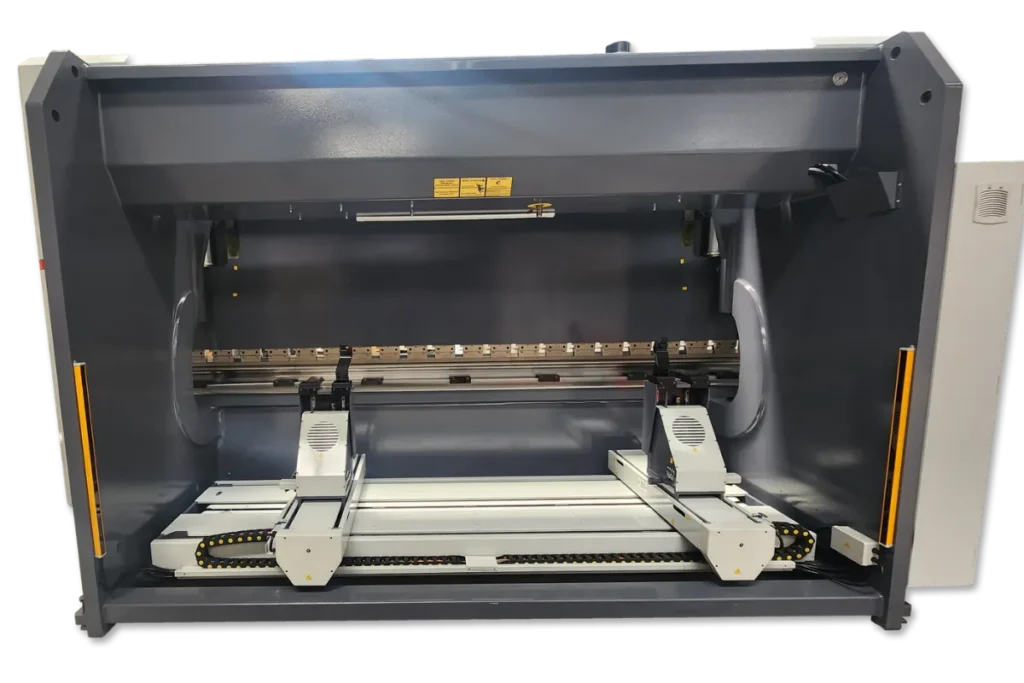

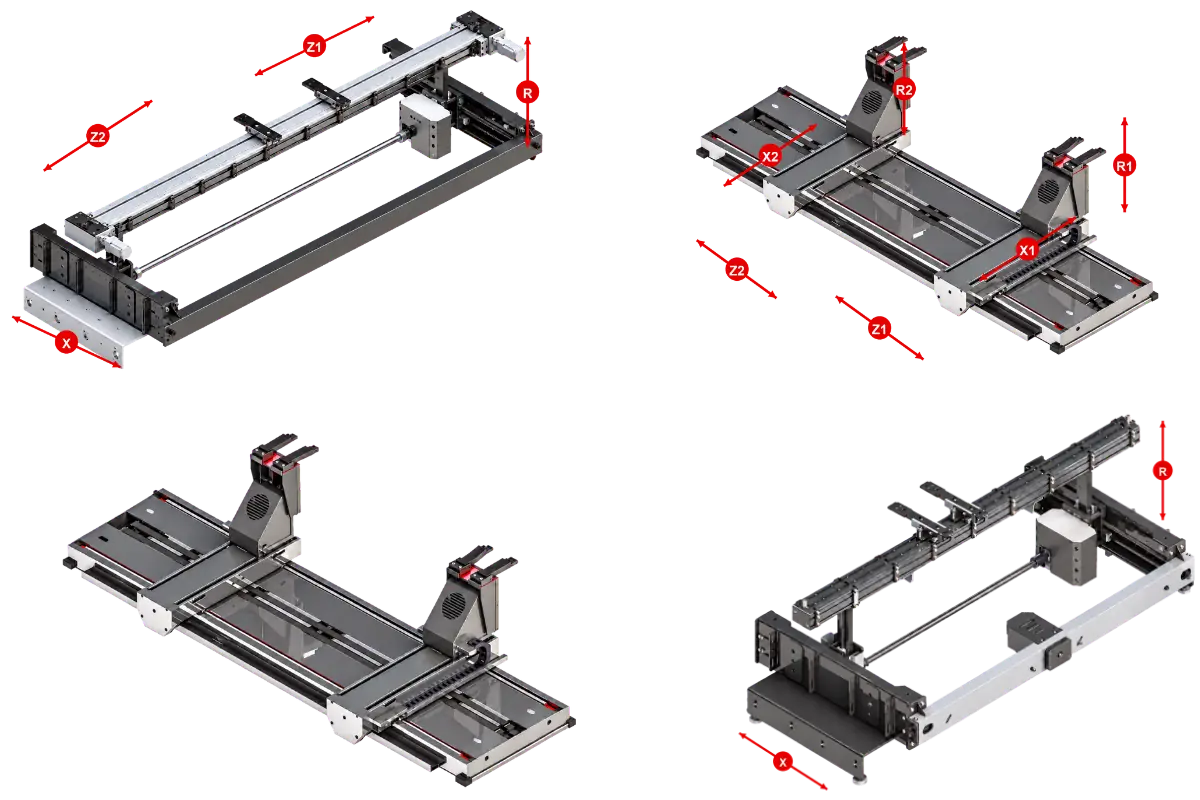

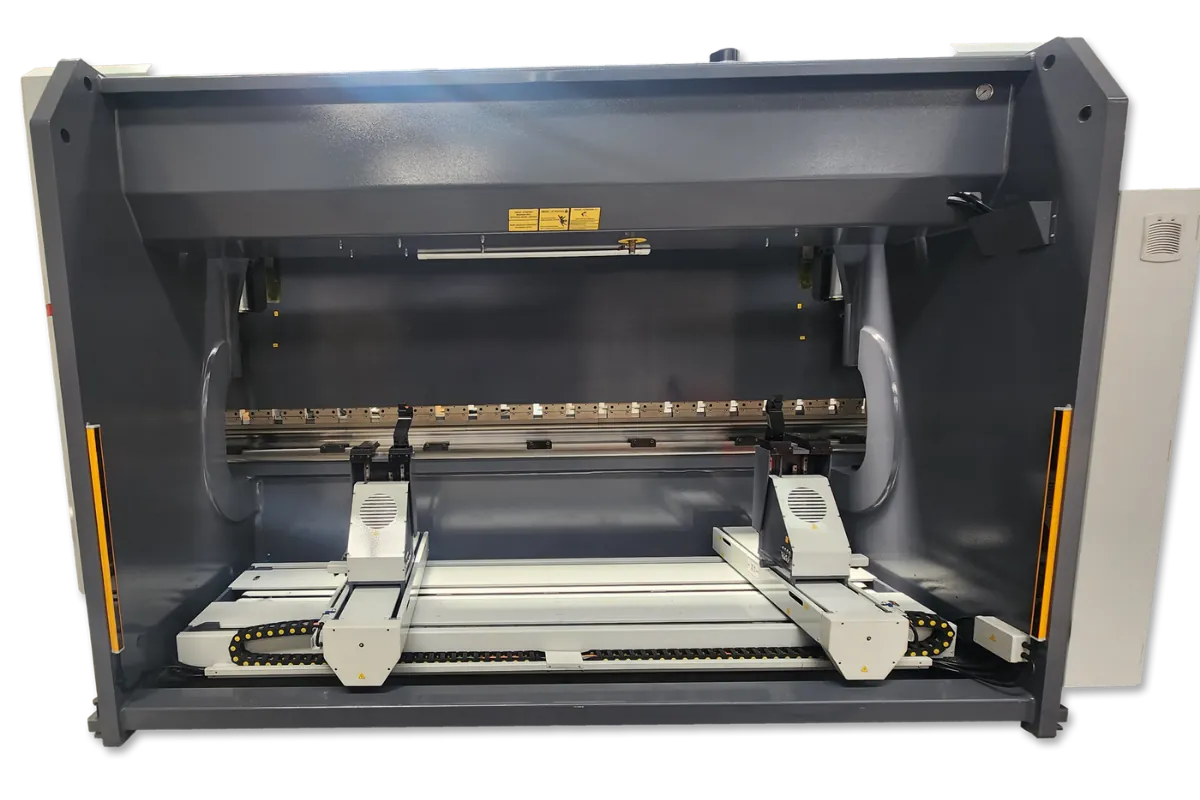

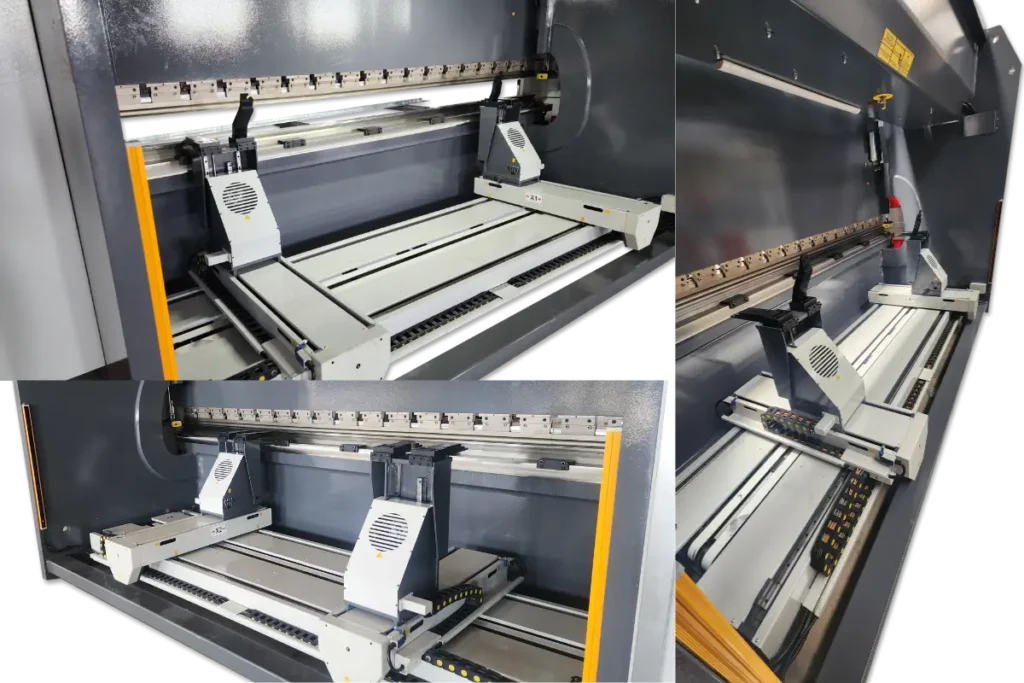

6-axis backgauge (adds Z1, Z2 automatic left/right movement to the standard configuration)
8-axis backgauge (X1, X2, R1, R2, Z1, Z2 — two independent backgauge consoles)
Extra backgauge fingers

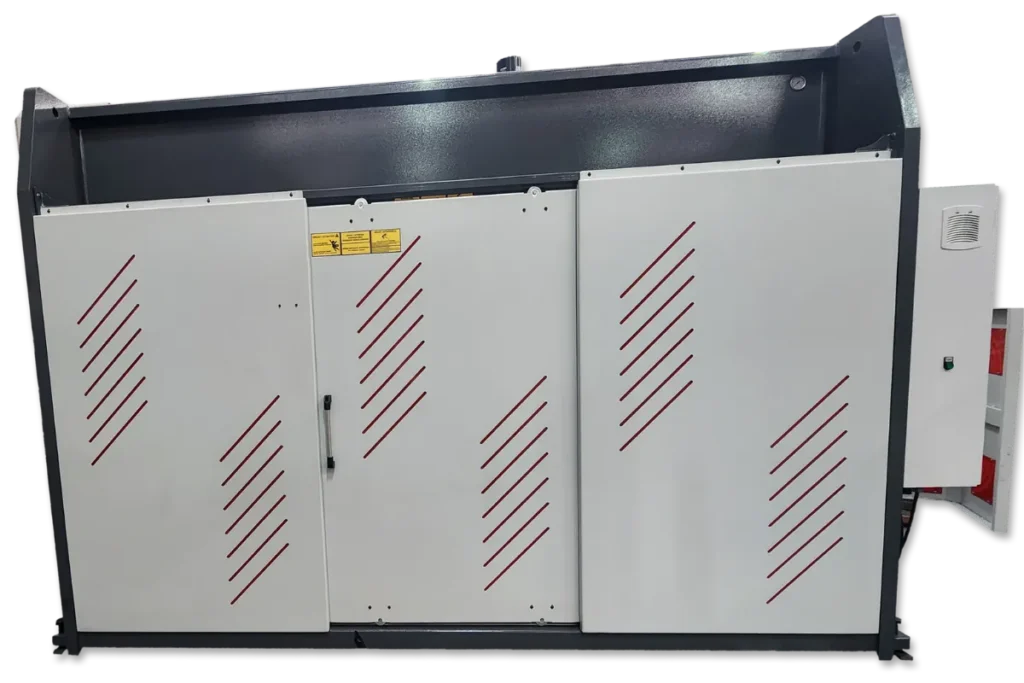

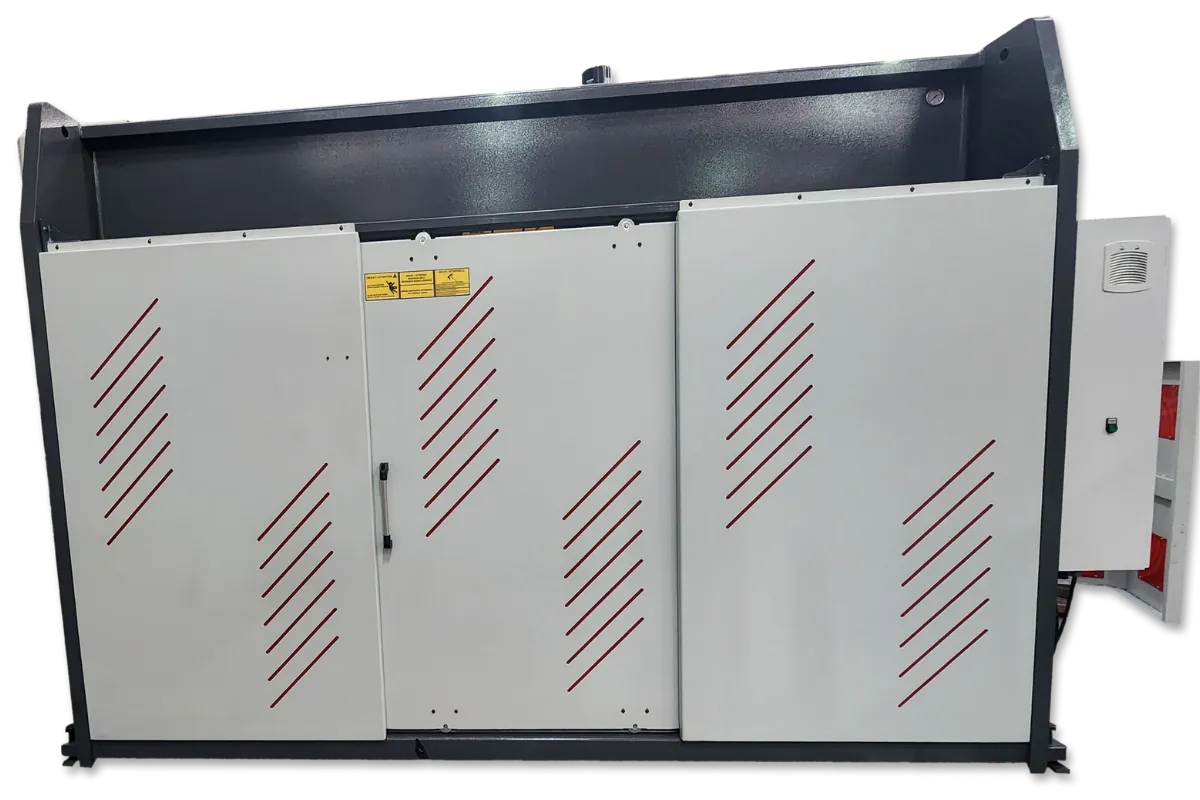

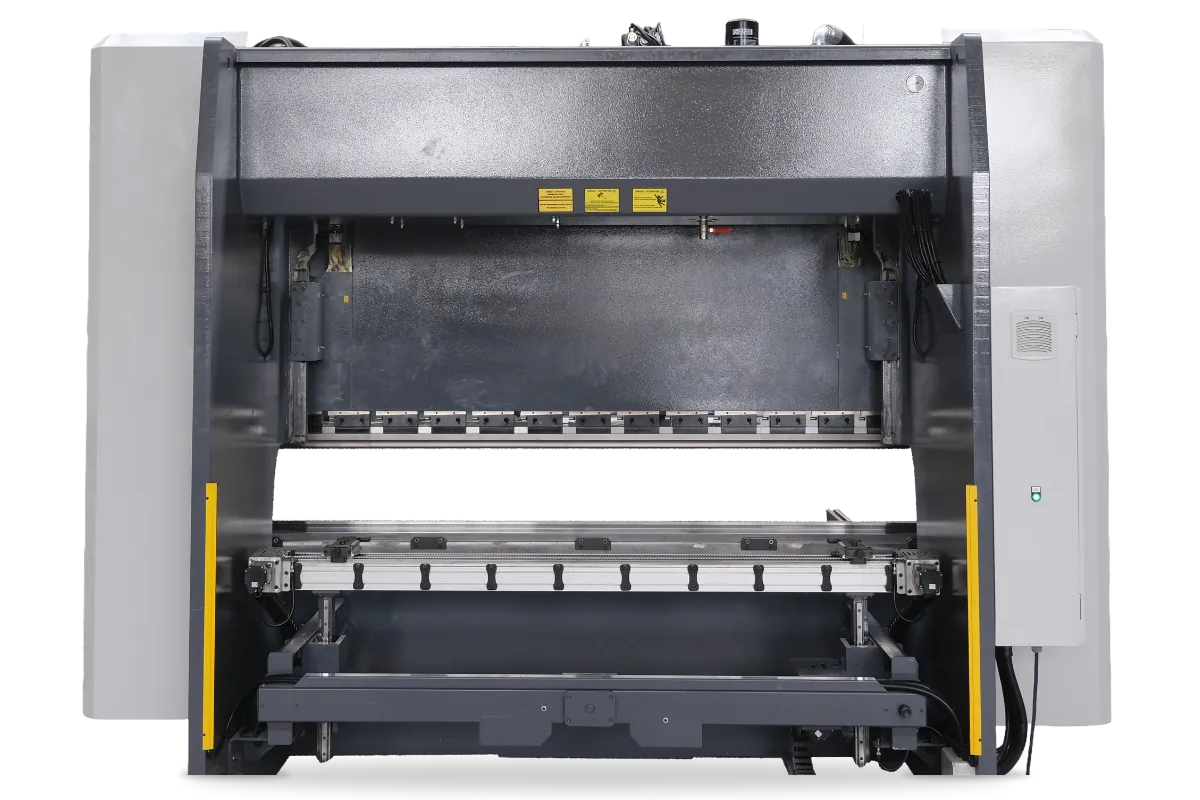

Rear sliding safety doors
Extra throat depth
Inverter system
Extra stroke

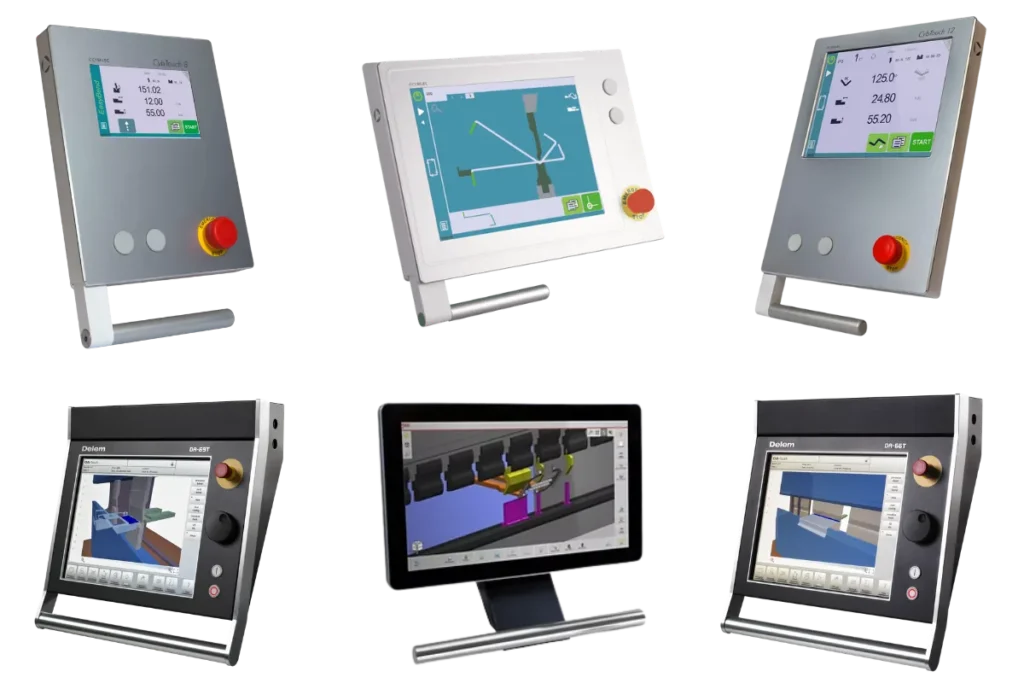

Alternative CNC control units

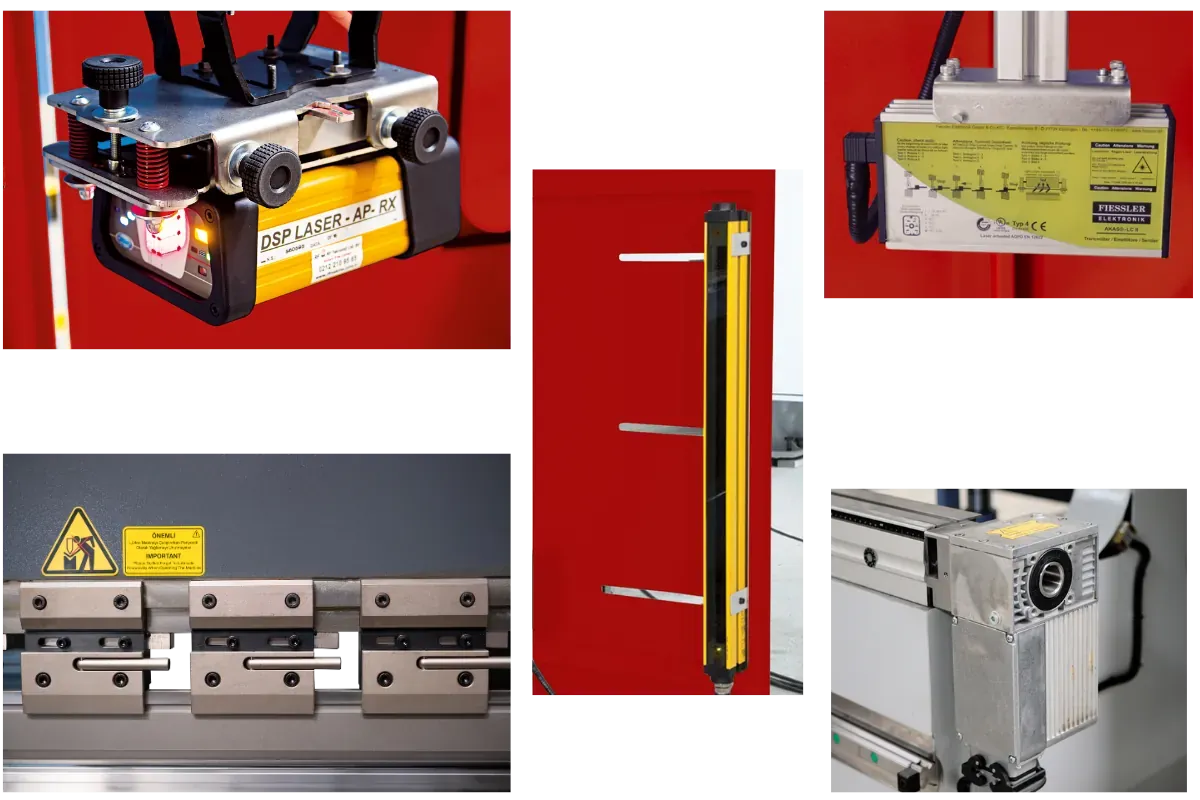

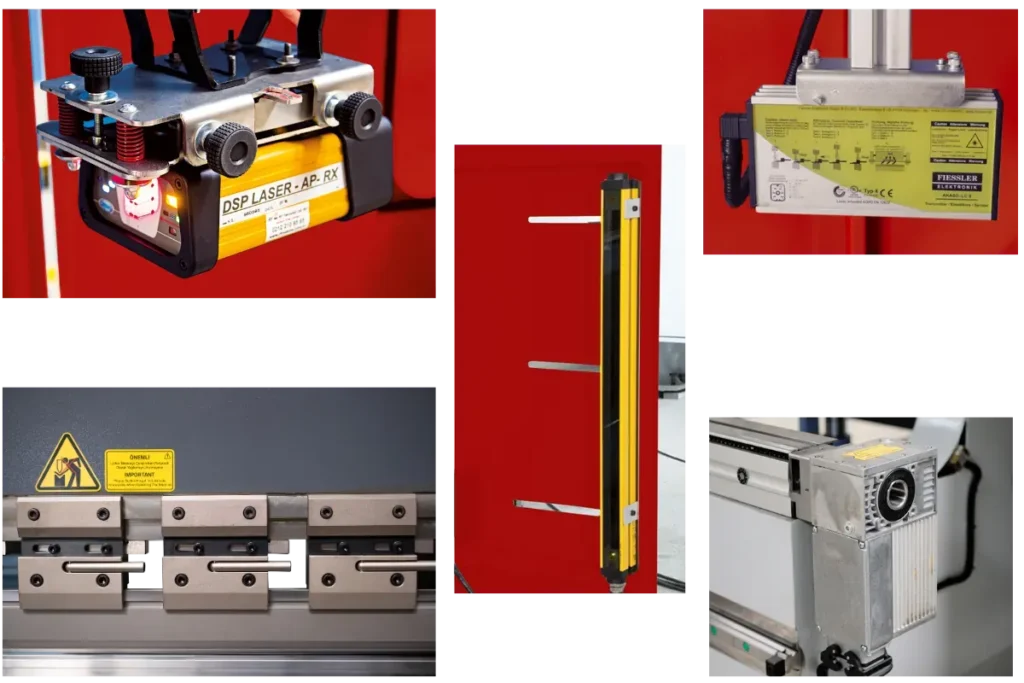

Optional CE Package: DSP front safety laser, PLC and rear light barriers
Larger lower table

Technical Specifications

Model	Bending Force (t)	Bending Length A (mm)	Column Distance B (mm)	Stroke C (mm)	Throat Depth D (mm)	Table Distance E (mm)	Table Height F (mm)	Table Width W (mm)	Return Speed (mm/s)	Descent Speed (mm/s)	Bend Speed (mm/s)	Length L (mm)	Depth G (mm)	Height H (mm)	X-Axis Travel (mm)	R-Axis Travel (mm)	Oil Tank (L)	Weight (kg)	Main Motor (kW)
EPBM-LUX 135	135	3100	2600	320	550	535	900	100	130	180	10	4825	2105	2730	750	250	150	8200	11
EPBM-LUX 135	135	3700	3200	320	550	535	900	100	130	180	10	5325	2105	2715	750	250	150	9800	11
EPBM-LUX 135	135	4100	3600	320	550	535	900	100	130	180	10	5725	2105	2765	750	250	150	10900	11
EPBM-LUX 175	175	3100	2600	320	550	535	900	100	120	160	10	4830	2105	2745	750	250	200	9550	15
EPBM-LUX 175	175	3700	3200	320	550	535	920	100	120	160	10	5330	2105	2730	750	250	200	11550	15
EPBM-LUX 175	175	4100	3600	320	550	535	920	100	120	160	10	5730	2105	2805	750	250	200	12100	15
EPBM-LUX 220	220	3100	2600	320	550	535	900	100	120	140	10	4835	2105	2700	750	250	200	11100	18.5
EPBM-LUX 220	220	3700	3200	320	550	535	920	100	120	140	10	5335	2105	2695	750	250	200	13100	18.5
EPBM-LUX 220	220	4100	3600	320	550	535	920	100	120	140	10	5735	2105	2790	750	250	200	13800	18.5
EPBM-LUX 220	220	5100	4100	320	550	535	940	140	110	120	10	6735	2105	2820	750	250	200	18000	18.5
EPBM-LUX 220	220	6100	5100	320	550	535	940	140	110	120	10	7735	2105	2820	750	250	200	22500	18.5
EPBM-LUX 270	270	3100	2600	320	550	535	900	140	110	120	9	4840	2105	2920	750	250	240	13100	22
EPBM-LUX 270	270	3700	3200	320	550	535	900	140	110	120	9	5340	2105	2920	750	250	240	14700	22
EPBM-LUX 270	270	4100	3600	320	550	535	920	140	110	120	9	5740	2105	2940	750	250	240	15500	22
EPBM-LUX 270	270	5100	4100	320	550	535	940	160	100	100	8	6740	2105	2950	750	250	240	18000	22
EPBM-LUX 270	270	6100	5100	320	550	535	940	180	100	100	8	7750	2105	2980	750	250	240	21500	22
EPBM-LUX 320	320	3100	2600	320	550	535	920	140	100	100	8	4845	2110	2950	750	250	240	14500	30
EPBM-LUX 320	320	3700	3200	320	550	535	920	140	100	100	8	5345	2110	2960	750	250	240	15700	30
EPBM-LUX 320	320	4100	3600	320	550	535	920	140	100	100	8	5745	2110	3010	750	250	240	17000	30
EPBM-LUX 320	320	5100	4100	320	550	535	1000	160	100	100	8	6745	2110	3065	750	250	240	21400	30
EPBM-LUX 320	320	6100	5100	320	550	535	1100	180	100	100	8	7750	2160	3240	750	250	240	25500	30
EPBM-LUX 400	400	3100	2600	320	550	535	950	160	90	100	8	4850	2140	3345	750	250	400	18200	37
EPBM-LUX 400	400	3700	3200	320	550	535	1000	160	90	100	8	5350	2140	3345	750	250	400	20200	37
EPBM-LUX 400	400	4100	3600	320	550	535	1000	160	90	100	8	5750	2155	3345	750	250	400	22000	37
EPBM-LUX 400	400	5100	4100	320	550	535	1050	200	90	100	8	6750	2155	3345	750	250	400	25000	37
EPBM-LUX 400	400	6100	5100	320	550	535	1100	200	90	100	10	7750	2155	3475	750	250	400	32500	37
EPBM-LUX 400	400	8100	6800	320	550	535	1200	240	90	100	8	9750	2170	3495	750	250	400	44500	37
EPBM-LUX 500	500	3700	3200	320	550	535	1050	160	80	90	7	5355	2120	3370	750	250	400	23600	45
EPBM-LUX 500	500	4100	3600	320	550	535	1050	160	80	90	7	5755	2125	3370	750	250	400	25800	45
EPBM-LUX 500	500	5100	4100	320	550	535	1100	200	80	90	7	6755	2135	3395	750	250	400	29500	45
EPBM-LUX 500	500	6100	5100	320	550	535	1100	200	80	90	7	7755	2135	3645	750	250	400	39000	45
EPBM-LUX 500	500	8100	6800	320	550	535	1200	240	80	90	7	9755	2135	3695	750	250	400	55000	45
EPBM-LUX 600	600	3700	3200	320	550	535	1050	180	80	90	7	5360	2470	3795	750	250	500	26800	45
EPBM-LUX 600	600	4100	3600	320	550	535	1100	180	80	90	7	5760	2510	3795	750	250	500	32000	45
EPBM-LUX 600	600	5100	4100	320	550	535	1100	240	80	90	7	6760	2645	3795	750	250	500	35000	45
EPBM-LUX 600	600	6100	5100	320	550	535	1150	240	80	90	7	7760	2645	3795	750	250	500	47000	45
EPBM-LUX 600	600	8100	6800	320	550	535	1200	280	80	90	7	9760	2635	3795	750	250	500	66000	45
EPBM-LUX 800	800	4100	3400	320	550	535	1150	240	70	80	7	5765	2585	3895	750	250	800	42000	55
EPBM-LUX 800	800	6100	4800	320	550	535	1200	300	70	80	7	7765	2635	3895	750	250	800	60000	55
EPBM-LUX 800	800	8100	6500	320	550	535	1200	320	70	80	7	9765	2635	3895	750	250	800	85000	55
EPBM-LUX 1000	1000	4100	3400	320	550	535	1200	300	70	80	7	5770	3035	3895	750	250	1000	68000	75
EPBM-LUX 1000	1000	6100	4800	320	550	535	1200	350	70	80	7	7770	3035	4095	750	250	1000	74000	75
EPBM-LUX 1000	1000	8100	6500	320	550	535	1200	400	70	80	7	9770	3035	4495	750	250	1000	103000	75

Application Fit

Across its 135–1,000 ton range, EPBM-LUX’s larger control unit and machine envelope suit parts that need LUX’s specific features beyond EPBM-PRO. Applications can include Z-shaped bends, parts with double bends on all four sides and multi-bend components, provided the part’s geometry, stroke, throat depth and tooling requirements suit the chosen model. Complex or multi-bend parts are best confirmed with a technical drawing before ordering.

Preparing a Quotation

To size and quote an EPBM-LUX, EBR METAL needs the material type, maximum material thickness, maximum bending width/length, and a technical drawing for complex or multi-bend parts. This lets EBR METAL recommend the machine along with the appropriate upper punch and lower die. Let EBR METAL know if extended backgauge axes, rear sliding safety doors or the CE Package should be included.

When to Choose EPBM-LUX CNC Press Brake

EPBM-LUX hydraulic press brakes fits buyers who need its larger control unit, larger machine envelope, or other features beyond EPBM-PRO’s standard configuration. Where the two configurations’ tonnage ranges overlap (135–320 tons), the application and requested equipment determine the choice. Tonnage alone is not the deciding factor. If your work fits within EPBM-PRO’s 100–320 ton range and its standard configuration already covers what you need, EPBM-PRO is worth comparing directly. See the CNC Press Brake Series overview for the full comparison.

Frequently Asked Questions

What tonnage range does EPBM-LUX hydraulic press brake cover?

135 up to 1,000 tons, across ten model groups (EPBM-LUX 135 through EPBM-LUX 1000), each available in multiple bending-length variants.

What does EPBM-LUX have that EPBM-PRO doesn't?

A larger Cybelec Touch 15 control unit (vs. PRO’s Touch 12), a larger standard machine envelope, hand-wheel-adjustable front supports, and a force range extending to 1,000 tons rather than PRO’s 320-ton ceiling.

Are rear sliding safety doors standard on EPBM-LUX?

No — they are available as an option.

Is finger-protection laser safety standard on EPBM-LUX?

Yes. A separate optional CE Package (DSP front safety laser, PLC and rear light barriers) is available where a project or market requires it.

Can EPBM-LUX's backgauge be configured beyond the standard 4 axes?

Yes — 6-axis and 8-axis backgauge configurations are available as options.

How is an EPBM-LUX quotation sized?

From your material type, maximum thickness, maximum bending width/length, and a technical drawing for complex parts. Expected tonnage is not required.
