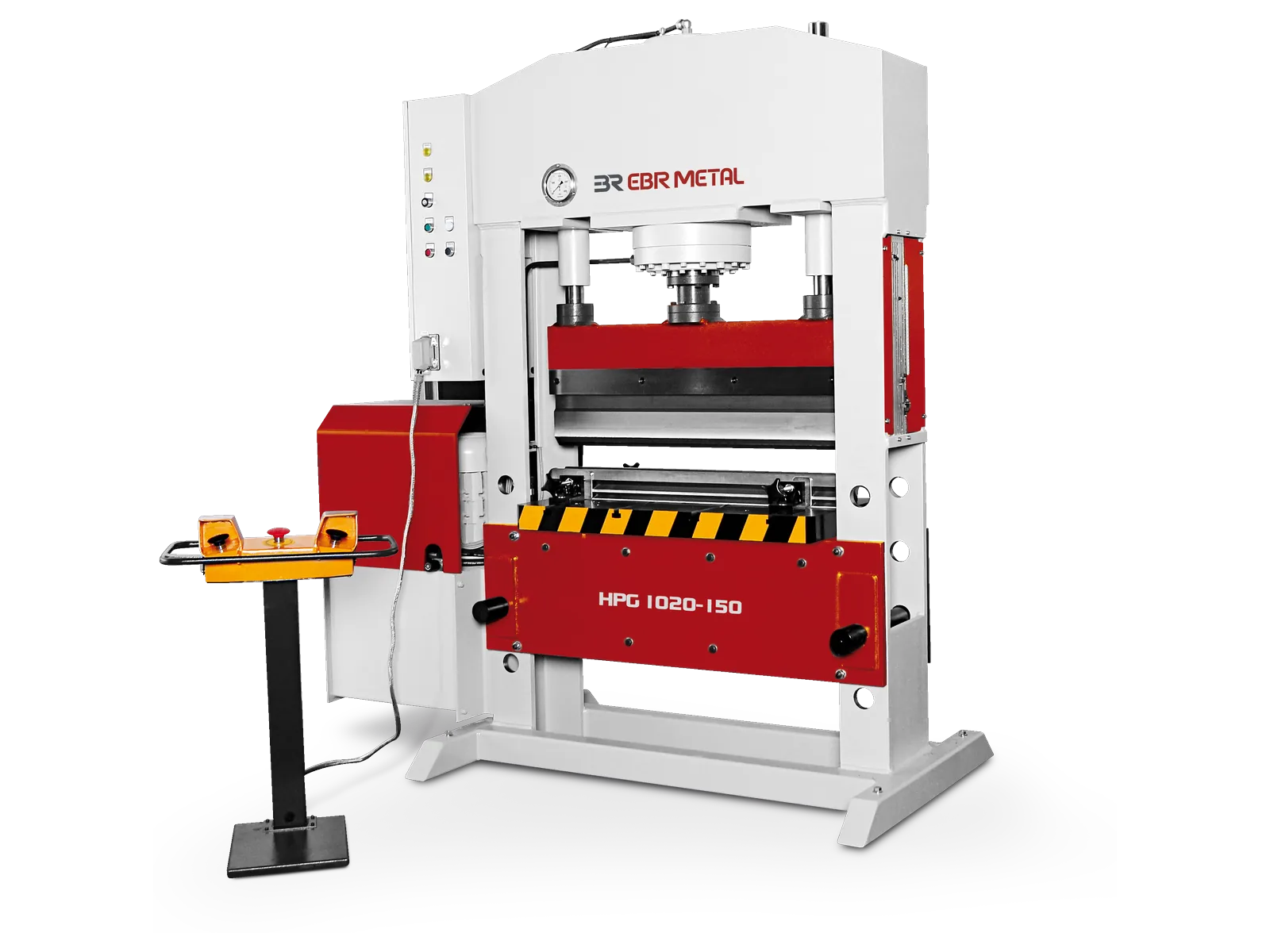

HPG Garage-Type Press Brake

The HPG garage-type press brake from EBR METAL is a hydraulic bending press on a welded steel frame. It comes with hardened blades, a 5-face prism and a T-slot bottom table, and the bottom table can be raised and lowered.

Four standard models cover 100 and 150 tonnes, with table lengths of 1,020 and 1,520 mm and a 300 mm stroke. The open working space takes large sheets. Other sizes and configurations are built to order.

• Press force 100–150 t • Bends 6–10 mm St37 over the full length • Table length 1,020–1,520 mm • Stroke 300 mm • Hardened blades and 5-face prism

Press force 100–150 t
Bends 6–10 mm St37 over the full length
Table length 1,020–1,520 mm
Stroke 300 mm
Hardened blades and 5-face prism

HPG Design

The upper blade bends the sheet into the 5-face prism on the T-slot bottom table, and the table itself is adjustable, with a table raising and lowering attachment. The open working space leaves room to position large sheets.

The operator sets the working pressure with the adjustable pressure valve and reads it on the manometer. The stroke is adjusted steplessly by limit switch. Two-hand control is standard.

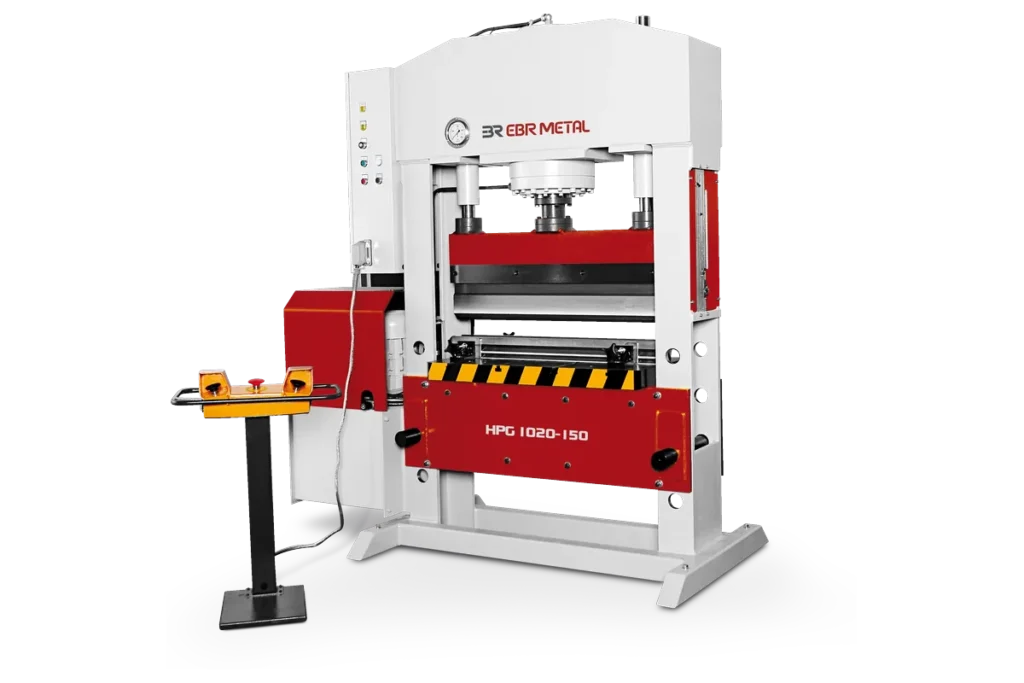

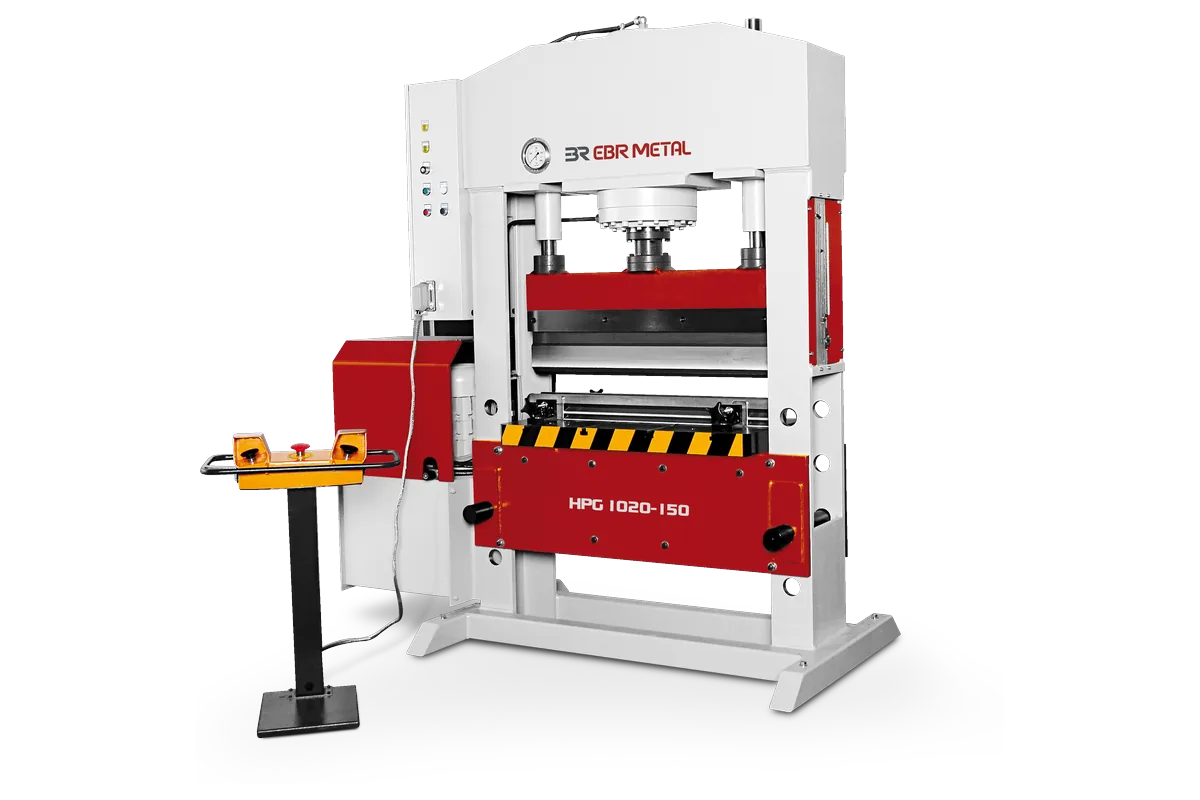

HPG Product Gallery

HPG General Features

Welded steel frame with certified welding
Open working space for large sheets
T-slot bottom table
Adjustable bottom table
Italian hydraulic components (Duplomatic)
Available in a CE-conform configuration for CE markets
Built to the customer’s requirements, with other sizes on request

HPG Standard Equipment

Hardened blades
5-face prism
Table raising and lowering attachment
Adjustable pressure valve
Manometer

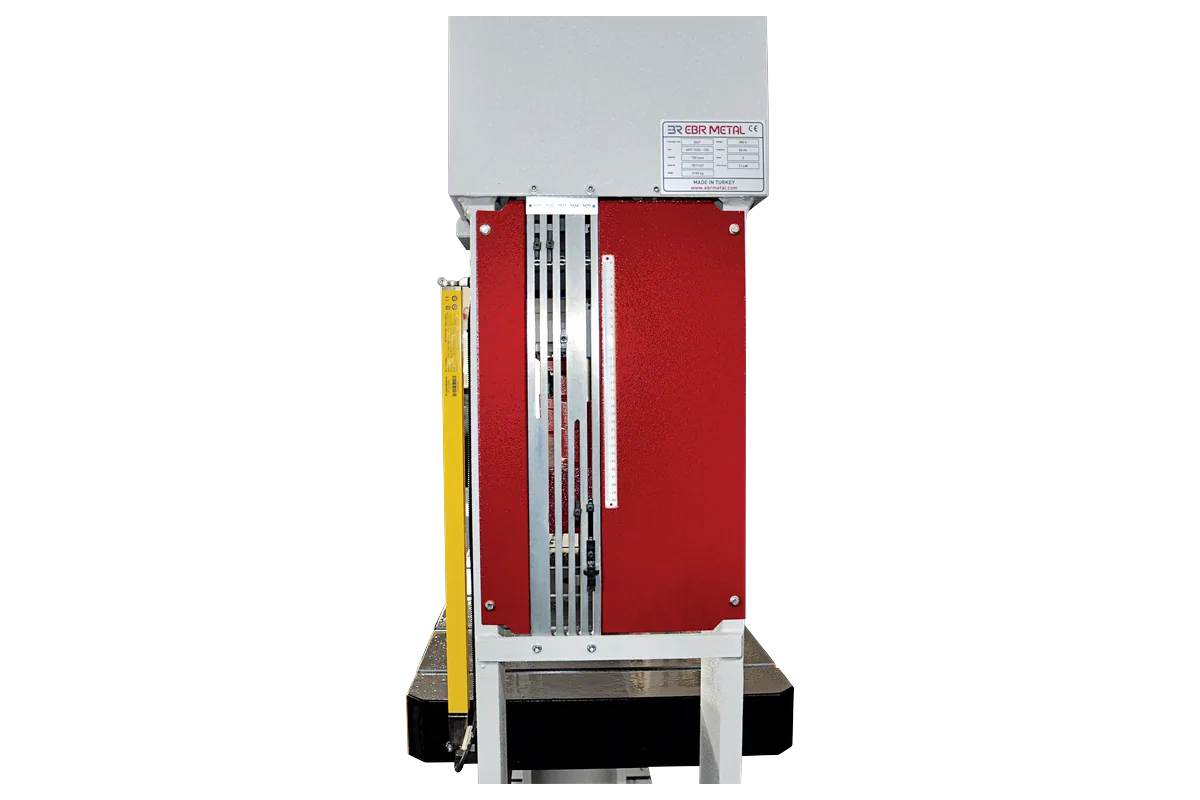

Stepless stroke adjustment (limit switch)
Two-hand control

HPG Optional Equipment

Two-hand control with foot pedal

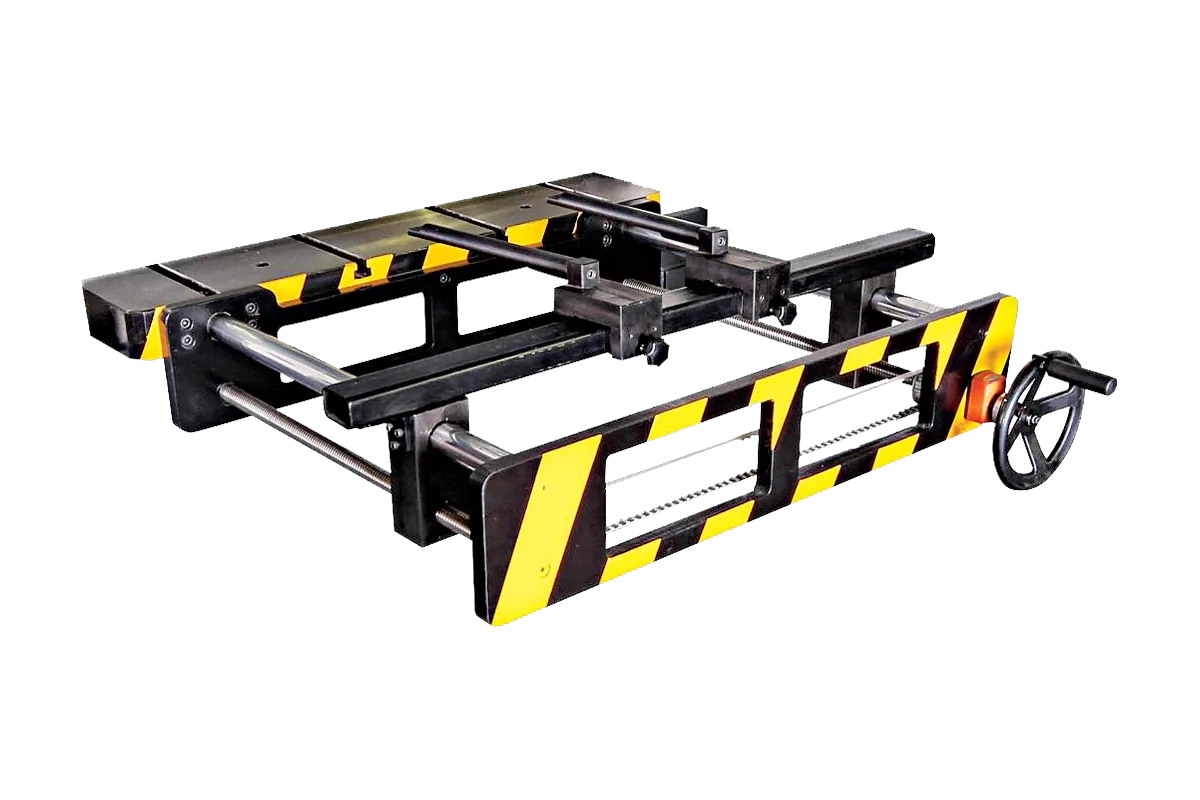

Manual back gauge, 750 mm

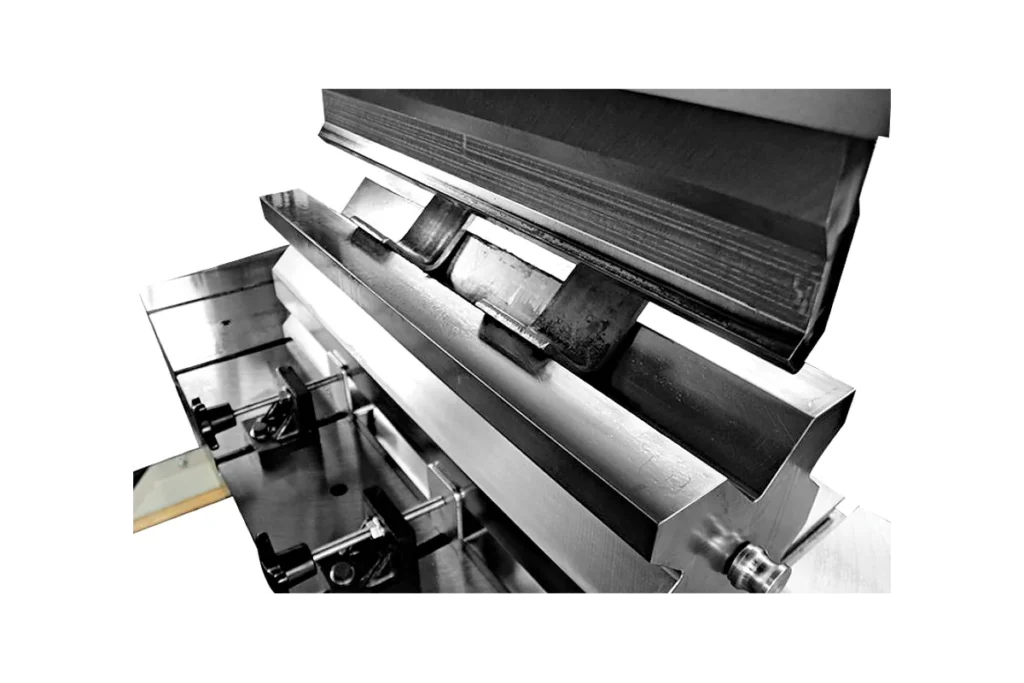

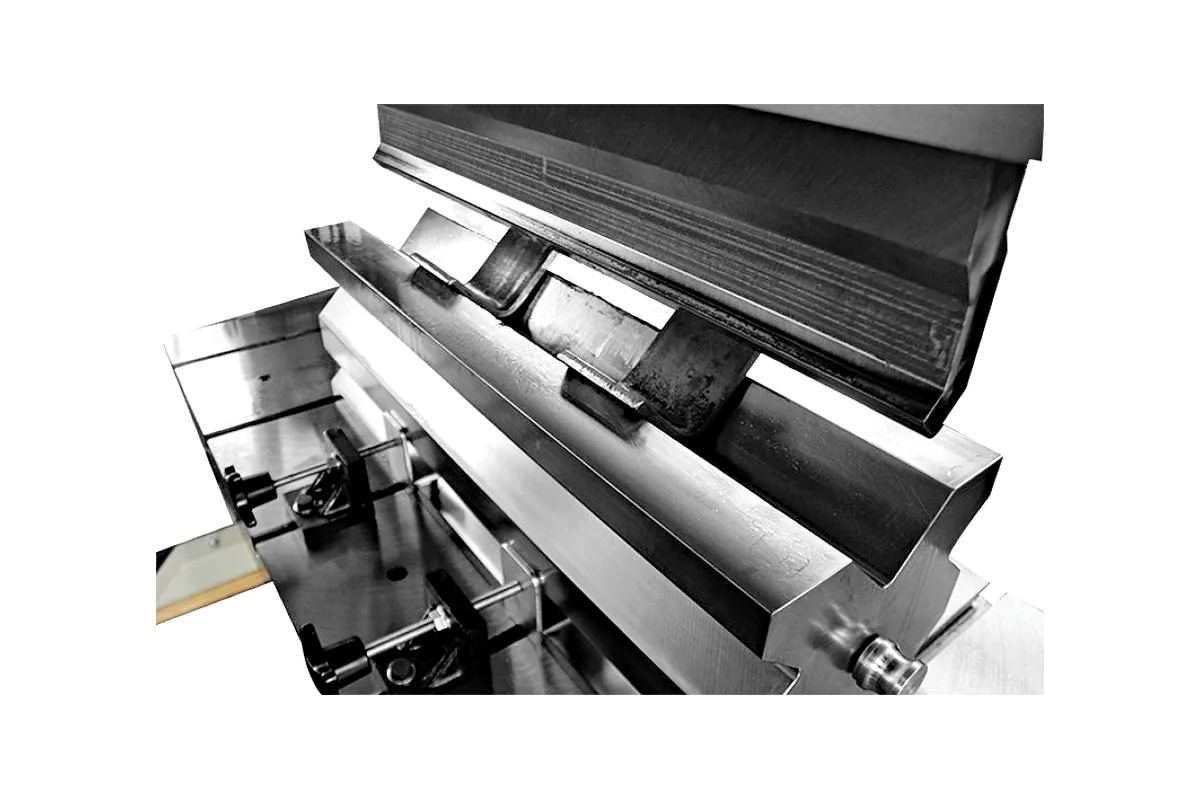

Custom blade and prism
Light barrier (light curtain)

HPG Technical Specifications

Model	Press force (t)	Bending capacity (mm)*	Max. working pressure (bar)	Stroke (mm)	Distance between tables (mm)	Advance speed (mm/s)	Working speed (mm/s)	Return speed (mm/s)	Table size (mm)	Bottom table hole Ø (mm)	Motor power (kW)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
HPG 1020-100	100	6	263	300	680	9	5	10	500x1020	100	7.5	2110	1000	2275	2080
HPG 1520-100	100	6	263	300	680	9	5	10	500x1520	100	7.5	2630	1000	2275	2500
HPG 1020-150	150	10	244	300	610	9	5	10	600x1020	100	11	2110	1000	2450	2400
HPG 1520-150	150	10	244	300	610	9	5	10	600x1520	100	11	2630	1000	2450	3350

Bending capacities are given for St37 (S235) mild steel over the full working length.

Speeds are typical values. Pump, motor and speeds are matched to the customer's requirements.

Choosing the HPG Garage-Type Press Brake

The HPG is a press brake on a hydraulic press frame, with blade and prism tooling as standard. Agricultural machinery manufacturers are typical users, bending their own sheet parts. For CNC production bending, see EBR’s sheet metal folding machines. Die work on T-slot tables goes to the HPT, and shafts and bars that need straightening go to the HPR. General workshop pressing is covered by the HPA.

Typical industries: steel construction, agricultural machinery, metal fabrication and maintenance workshops.

Request a Quote for the HPG

Send us the material and its thickness, the longest bend length and the bend angles you need. If you have a drawing or a photo of a sample part, include it so we can propose a model and tooling.
